LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

LZ Alphacool Core 6x 4-Pin PWM/DRGB Splitter mit SATA-Stromanschluss

Article no.: LZ
EAN: 4250197135948
Weight: 0,09 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€12.98 * €15.98 * (18.77% Saved)

Prices incl. VAT plus shipping costs

in stock

1x

Alphacool Eisplateau anti-static work and assembly mat 120x60cm

€59.98*

1x

Alphacool Ice Cyclone Aurora LUX Digital RGB - Kit of 3 (120x120x25mm)

€25.98*

1x

Alphacool Digital RGB LED Y-cable 3-way with JST connector - Black 30cm

€6.99*

1x

Alphacool Rise Aurora 120 mm fan (120x120x25mm)

€11.98*

1x

Alphacool Rise Aurora 140mm Fan White (140x140x25mm)

€14.98*

1x

Phobya 4Pin PWM Extension - Black 60cm

€4.98*

Alphacool's Core PWM/DRGB splitter has six 3-pin ports for controlling digitally addressable RGB... more

Product information

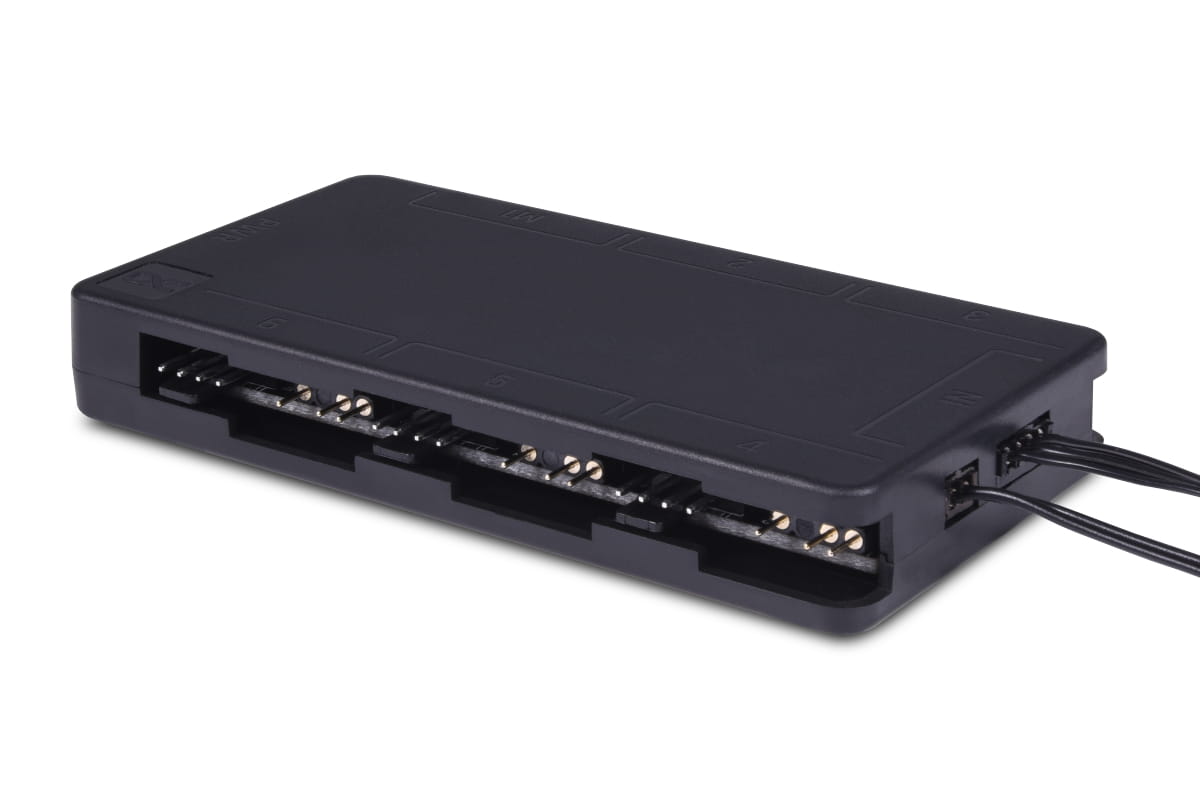

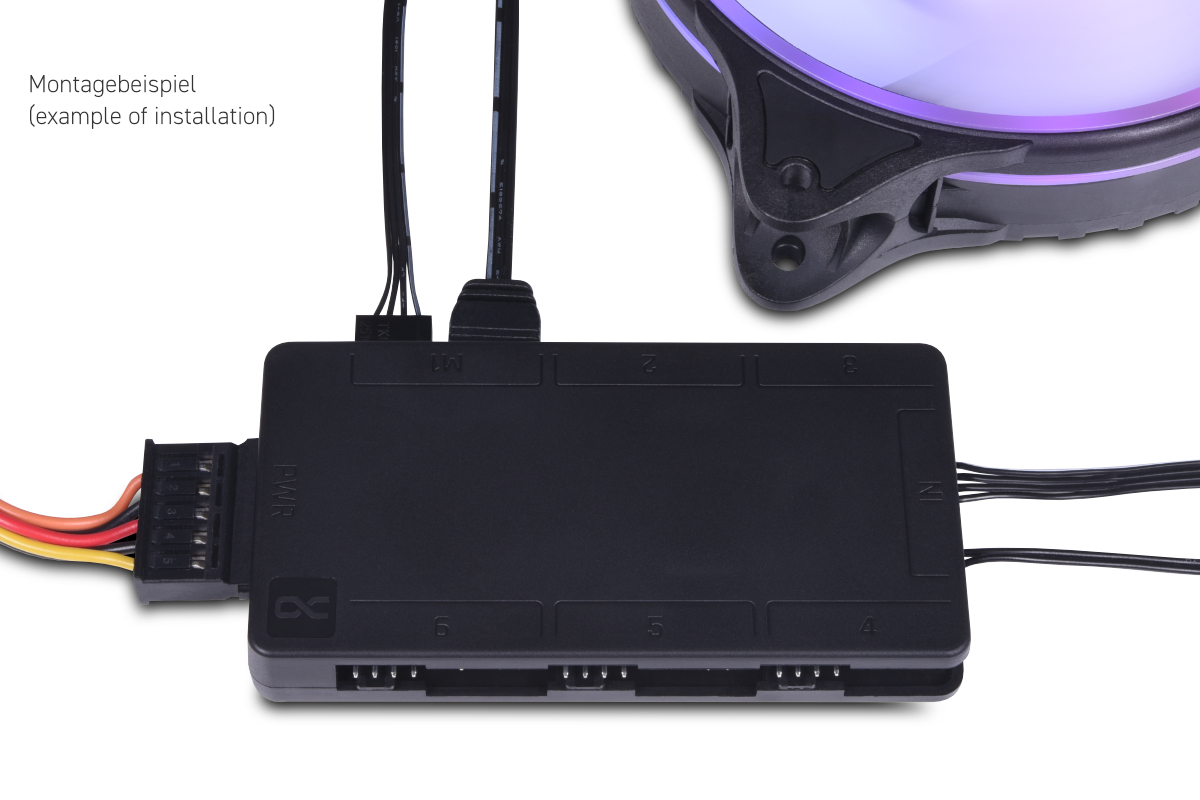

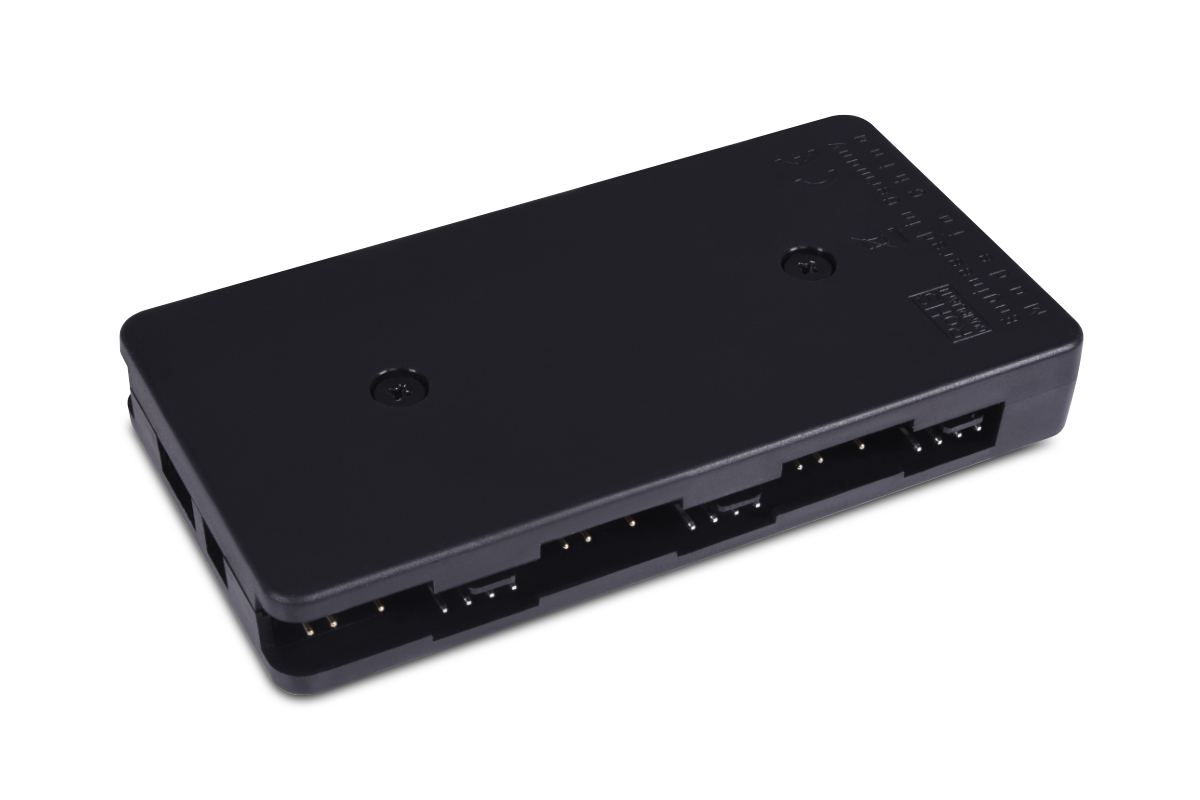

Alphacool's Core PWM/DRGB splitter has six 3-pin ports for controlling digitally addressable RGB elements and six 4-pin ports for controlling fans via PWM. The splitter can be connected via aRGB and PWM mainboard cable (included in the scope of delivery), each via an internal header on the mainboard. A maximum of 6 aRGB illuminated fans with a total power consumption of 22.5W (4.5A) can be connected to the controller and thus sufficiently supplied with power. Power is supplied via the SATA cable of the PC power supply.

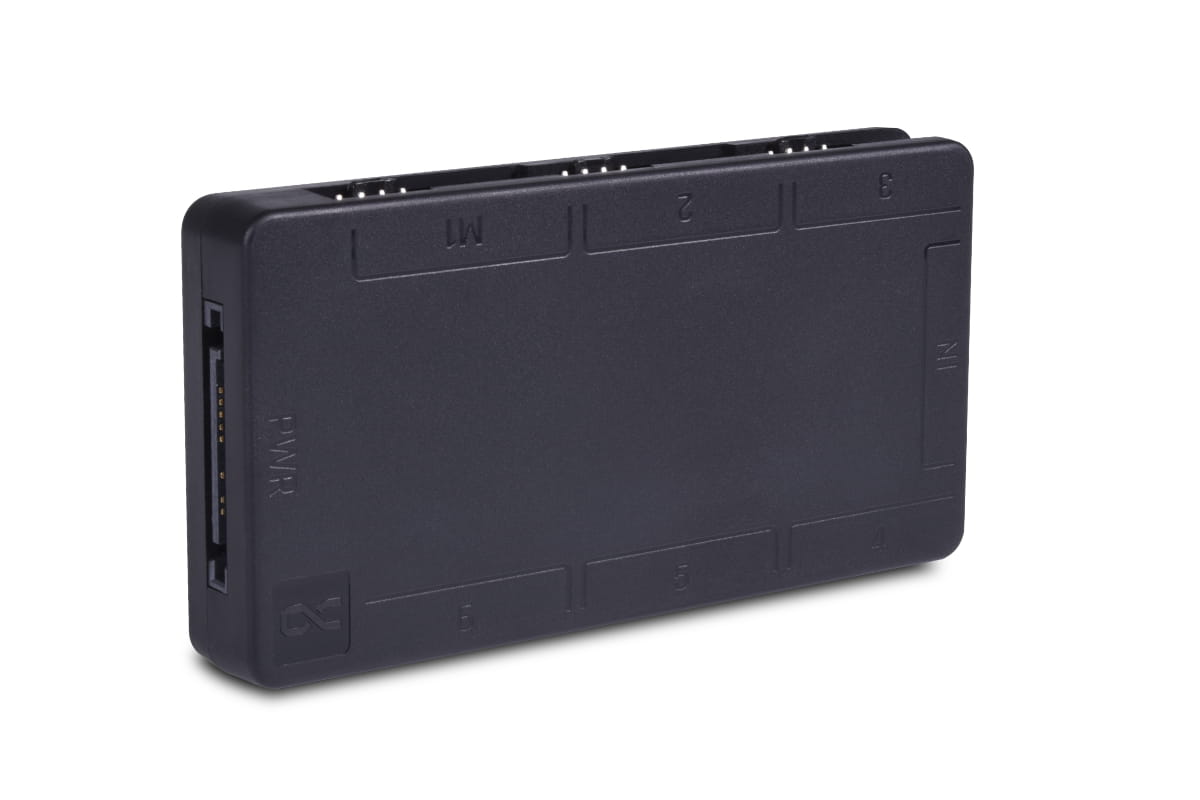

The speed of the connected fans and their aRGB settings will be controlled by the master fan (M1 port).

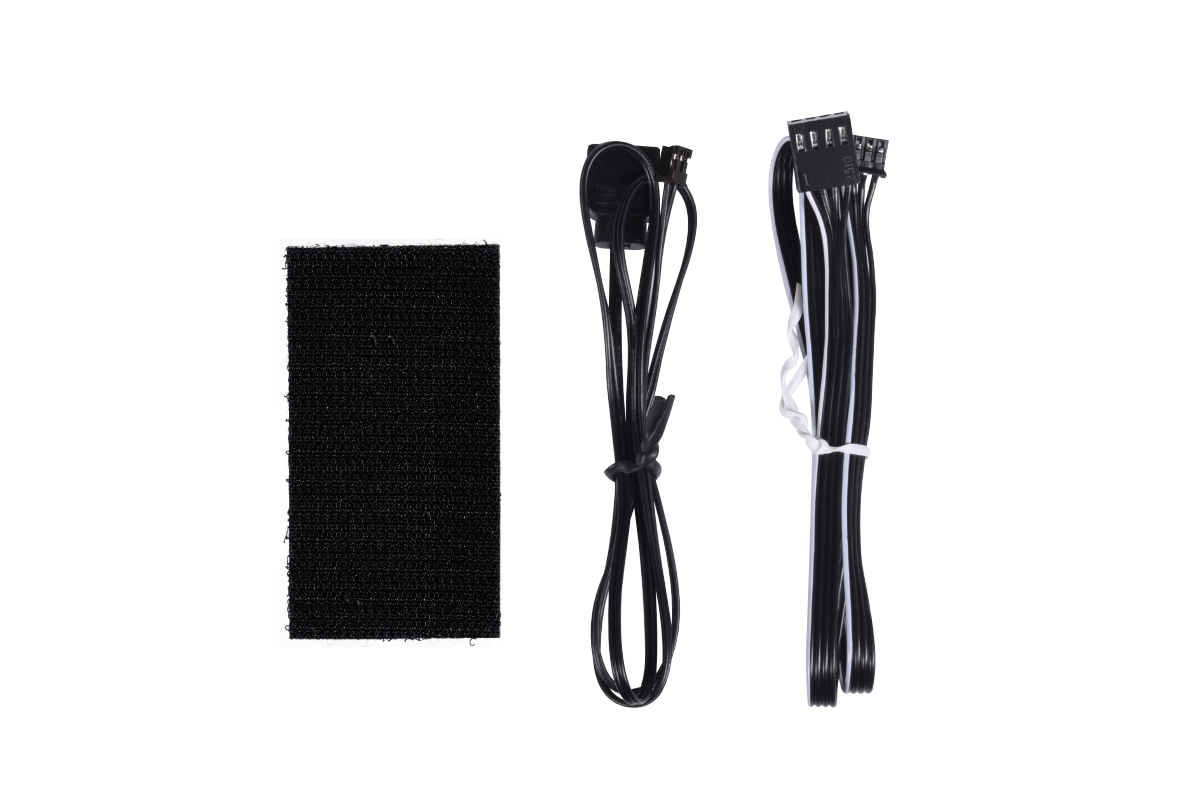

The scope of delivery includes self-adhesive Velcro tape that allows the Core PWM/DRGB Splitter to be positioned anywhere in the case.

Technical data
Dimensions (L x W x H)	95,92 x 49,91 x 14mm
Power supply	via SATA Power Connector
Threads	6x 4-Pin PWM \| 6x 3-Pin aRGB (5V) \| 1x SATA (5V) \| 1x 2-Pin (Splitter IN)
Maximum power consumption	22,5W (4,5A)

Technical details mehr

Technical details

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Abmessungen:	95,92 x 49,91 x 14mm
