Alphacool Core 11x 3-Pin DRGB Splitter with SATA power connector

  • 25669
  • 4250197135931
  • 0,075 kg
  • There are more than 250 units available
  • Images may differ slightly from the original
€11.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
ZSO Alphacool Eisplateau anti-static work and assembly mat 120x60cm
1x
Alphacool Eisplateau anti-static work and assembly mat 120x60cm
€59.98*
LED Alphacool Aurora LED Flexible Light - Digital RGB 20cm
1x
Alphacool Aurora LED Flexible Light - Digital RGB 20cm
€13.98*
LED Alphacool Aurora LED Flexible Light - Digital RGB 60cm EOL
1x
Alphacool Aurora LED Flexible Light - Digital RGB 60cm
€12.98*
KAB Alphacool Digital RGB LED Y-cable 3-way with JST connector - Black 30cm
1x
Alphacool Digital RGB LED Y-cable 3-way with JST connector - Black 30cm
€6.99*
KAB Alphacool connection cable 3Pin to 3pin Digital RGB - 15cm
1x
Alphacool connection cable 3Pin to 3pin Digital RGB - 15cm
€1.48*
Alphacool's Core DRGB Splitter has eleven 3-pin channels for controlling digitally addressable... more
Product information

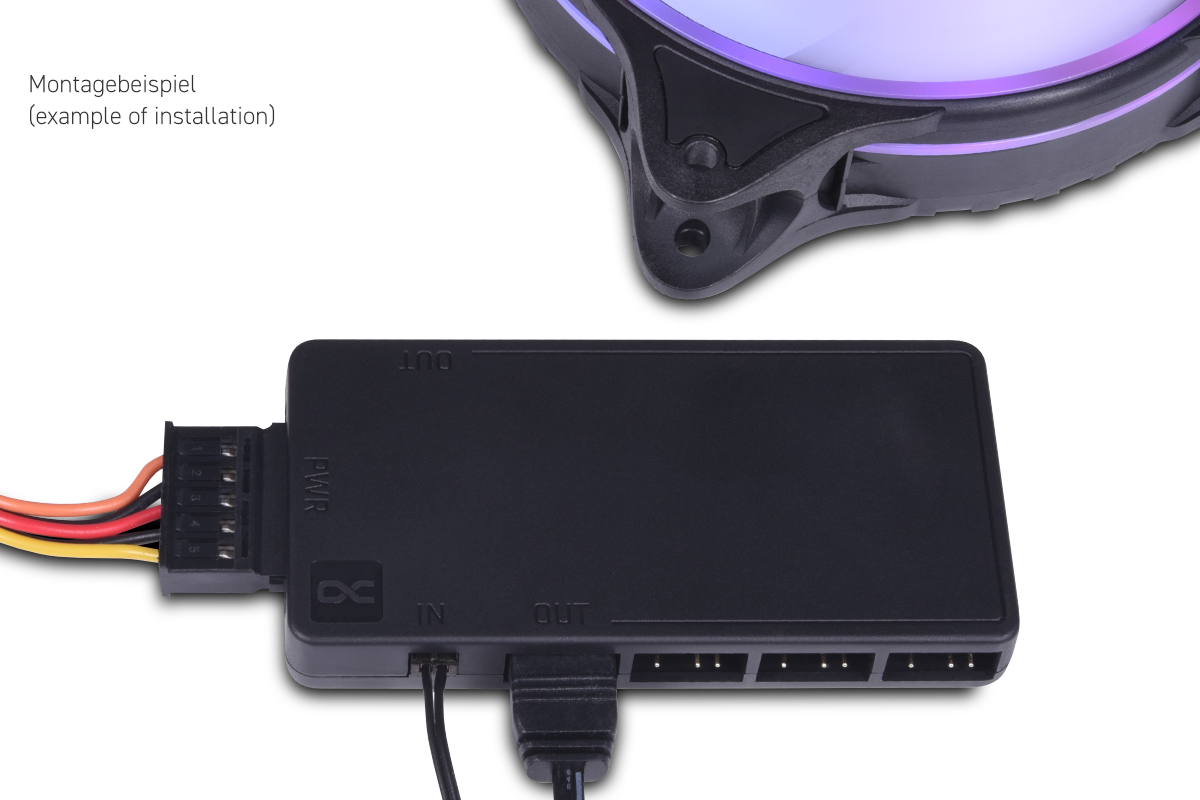

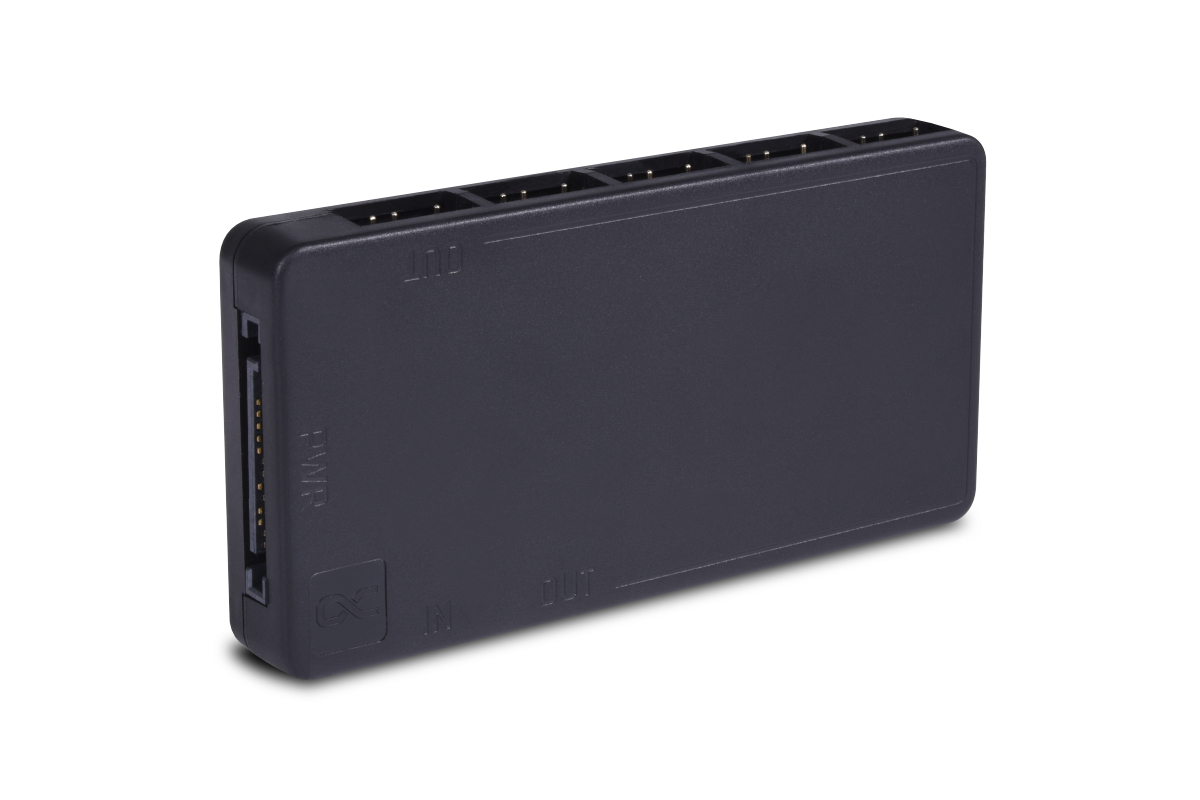

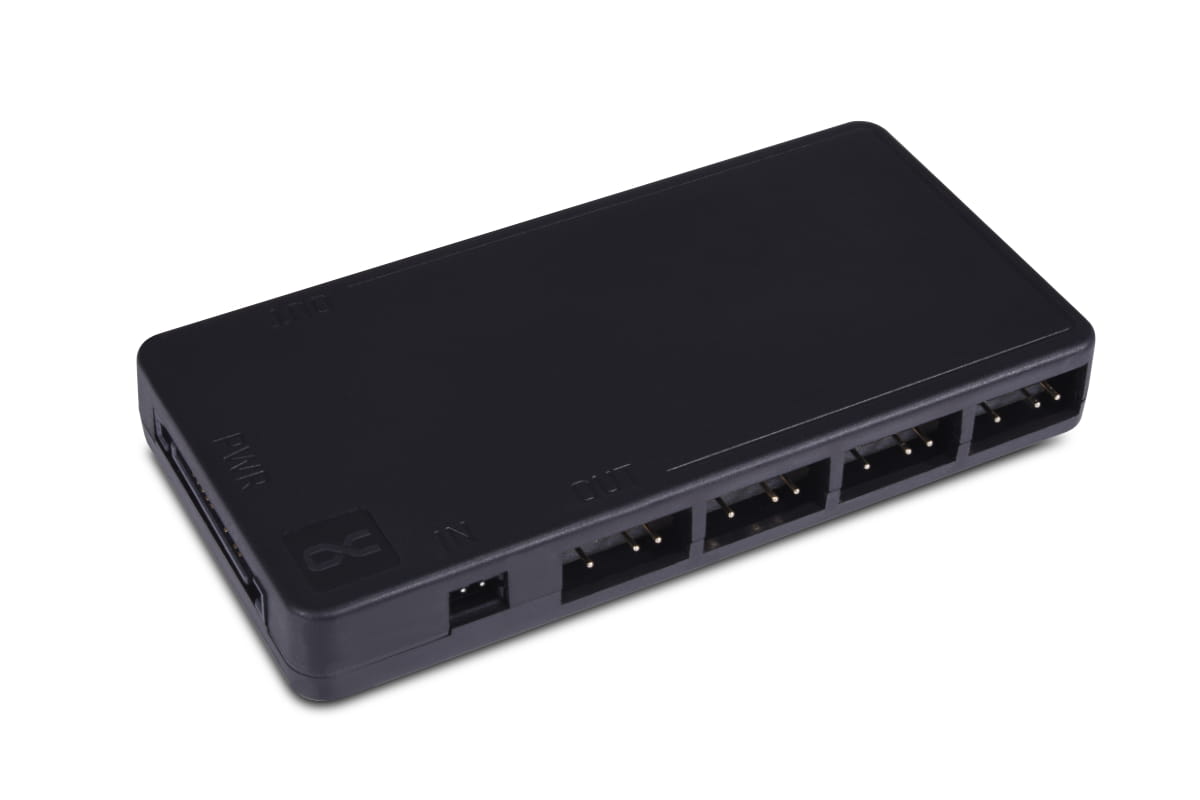

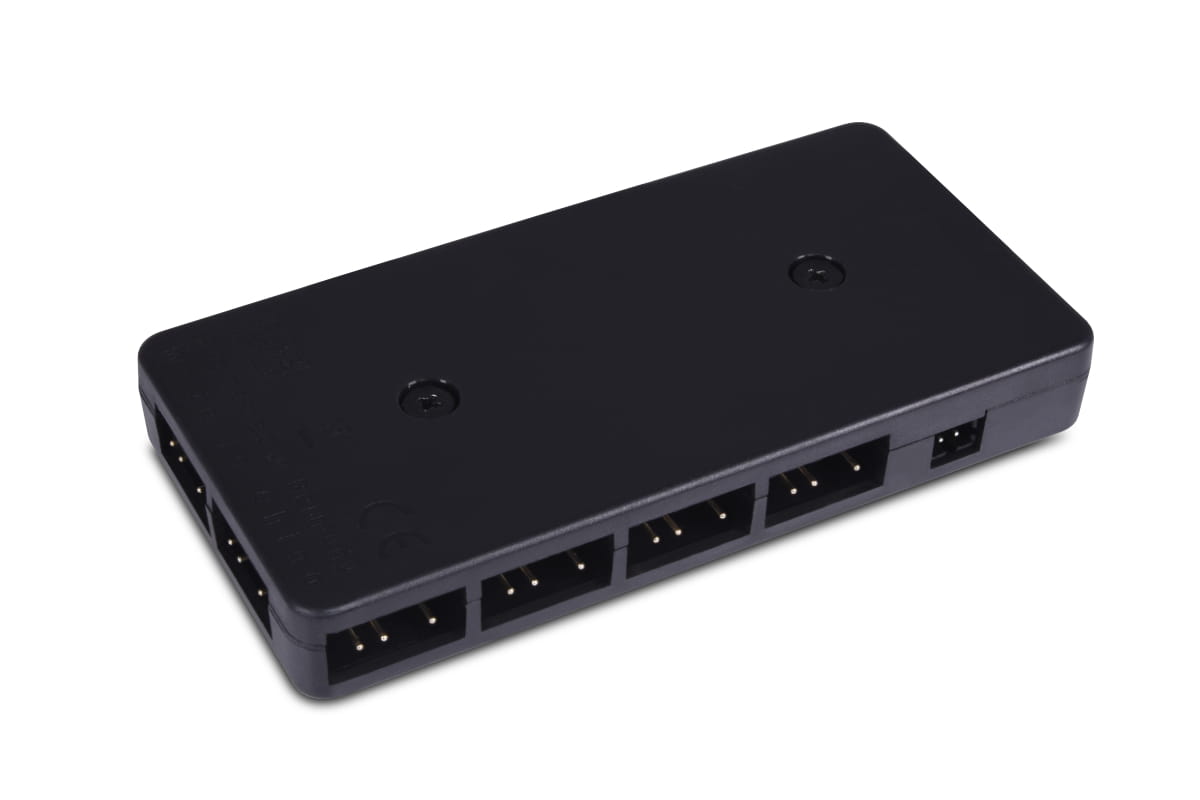

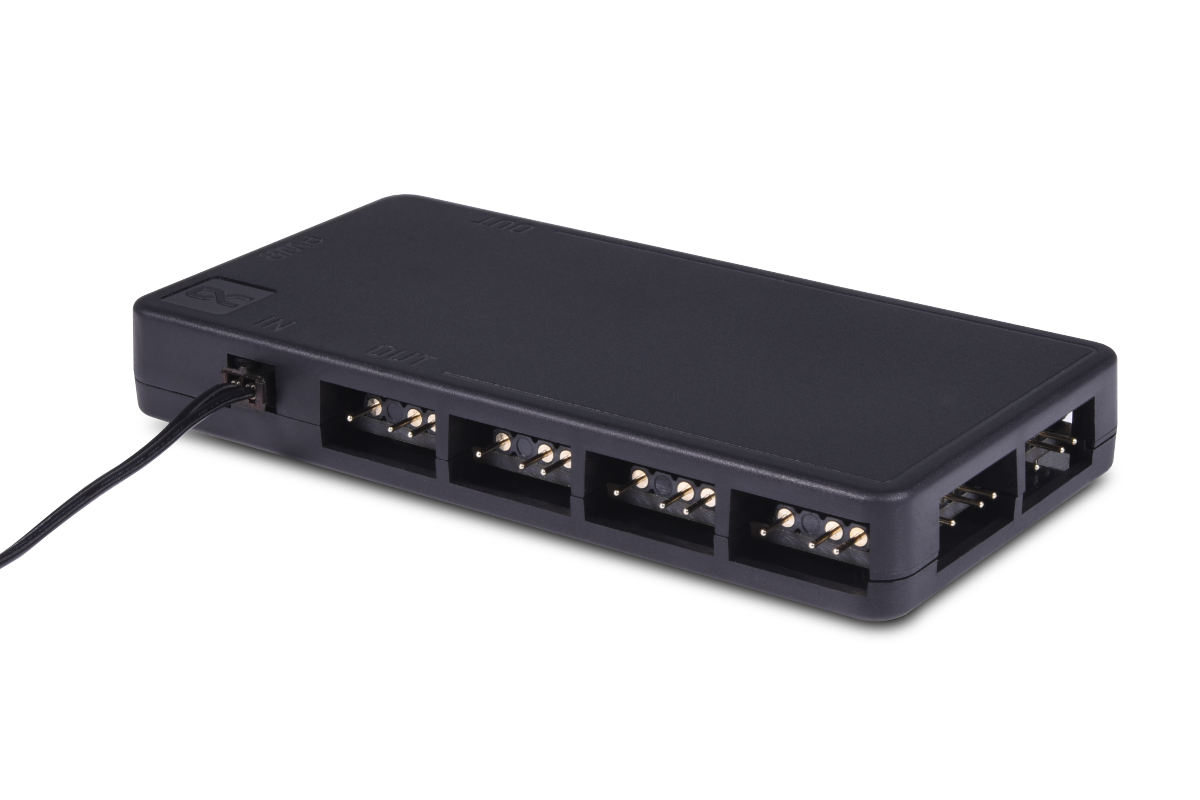

Alphacool's Core DRGB Splitter has eleven 3-pin channels for controlling digitally addressable RGB elements. The splitter is connected via aRGB mainboard cable (included in the scope of delivery) via an internal RGB header on the mainboard. A maximum of 11 aRGB elements with a total power consumption of 22.5W (4.5A) can be connected to the controller and thus supplied with sufficient power. Power is supplied via the SATA cable of the PC power supply.

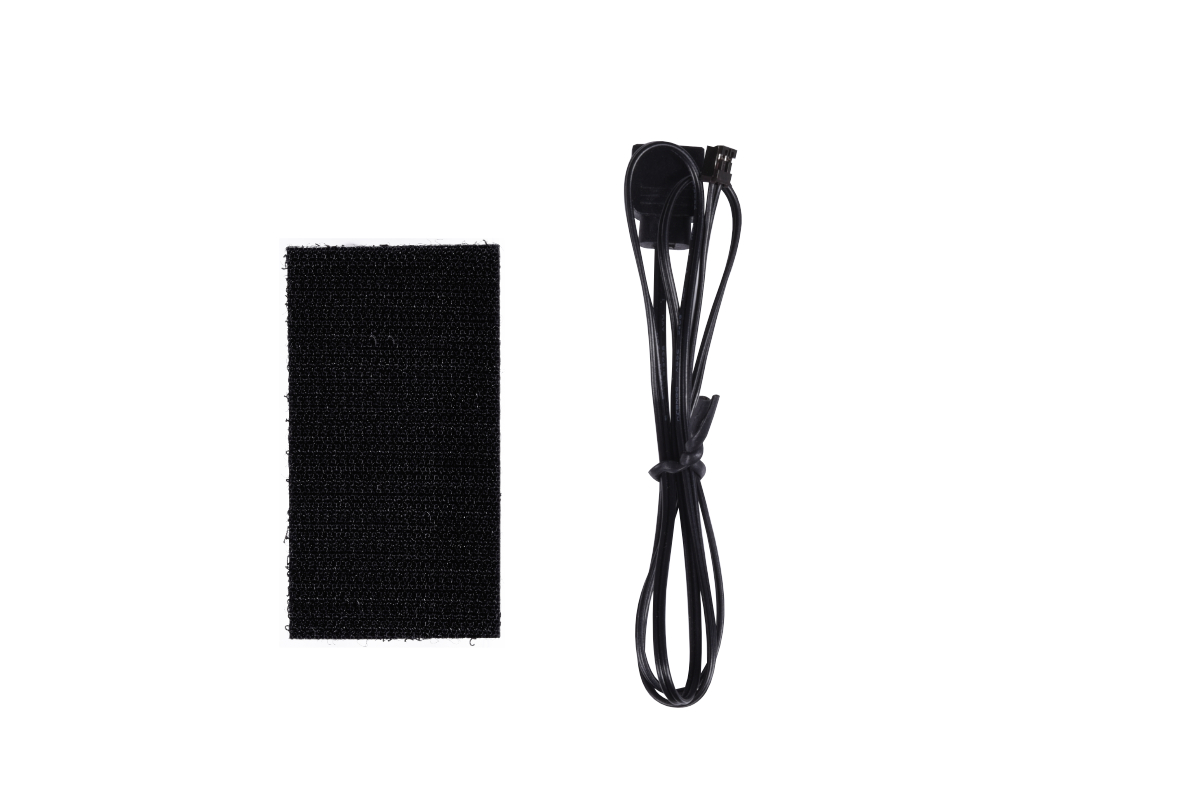

The scope of delivery includes a self-adhesive Velcro tape that allows the Core DRGB Splitter to be positioned anywhere in the case.



Technical data
Dimensions (L x W x H)91,9 x 46,43 x 12,5mm
Power supplyvia SATA Power Connector
Threads11x 3-Pin aRGB (5V) | 1x SATA (5V) | 1x 2-Pin (Splitter IN)
Maximum power consumption22,5W (4,5A)

Technical details mehr
Technical details
Farbe: schwarz
Abmessungen: 91,9 x 46,43 x 12,5mm
