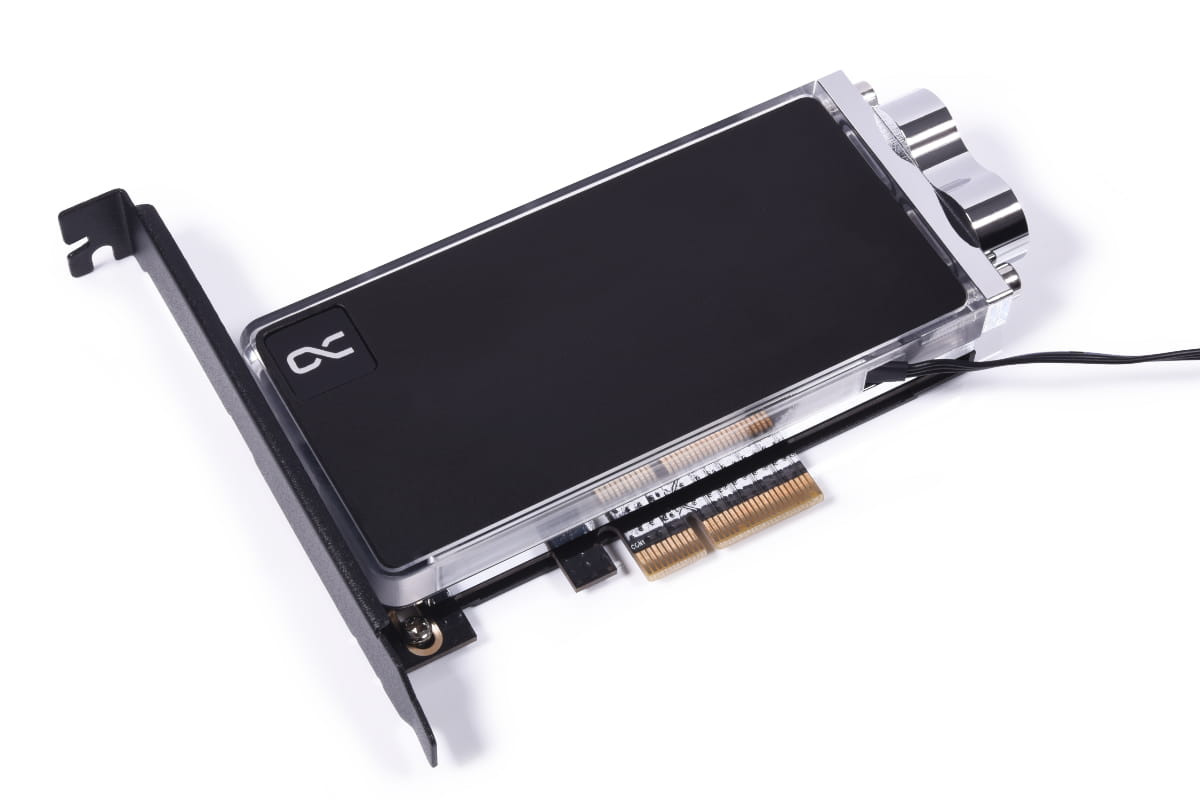

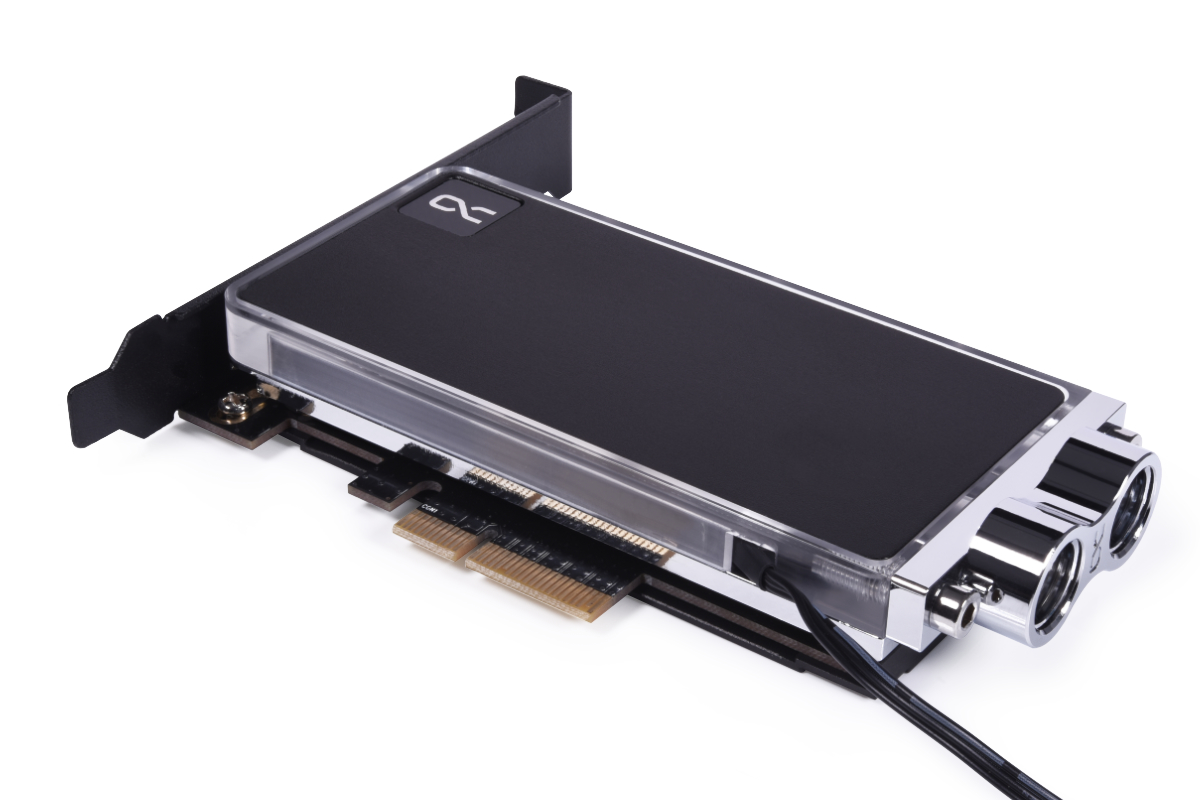

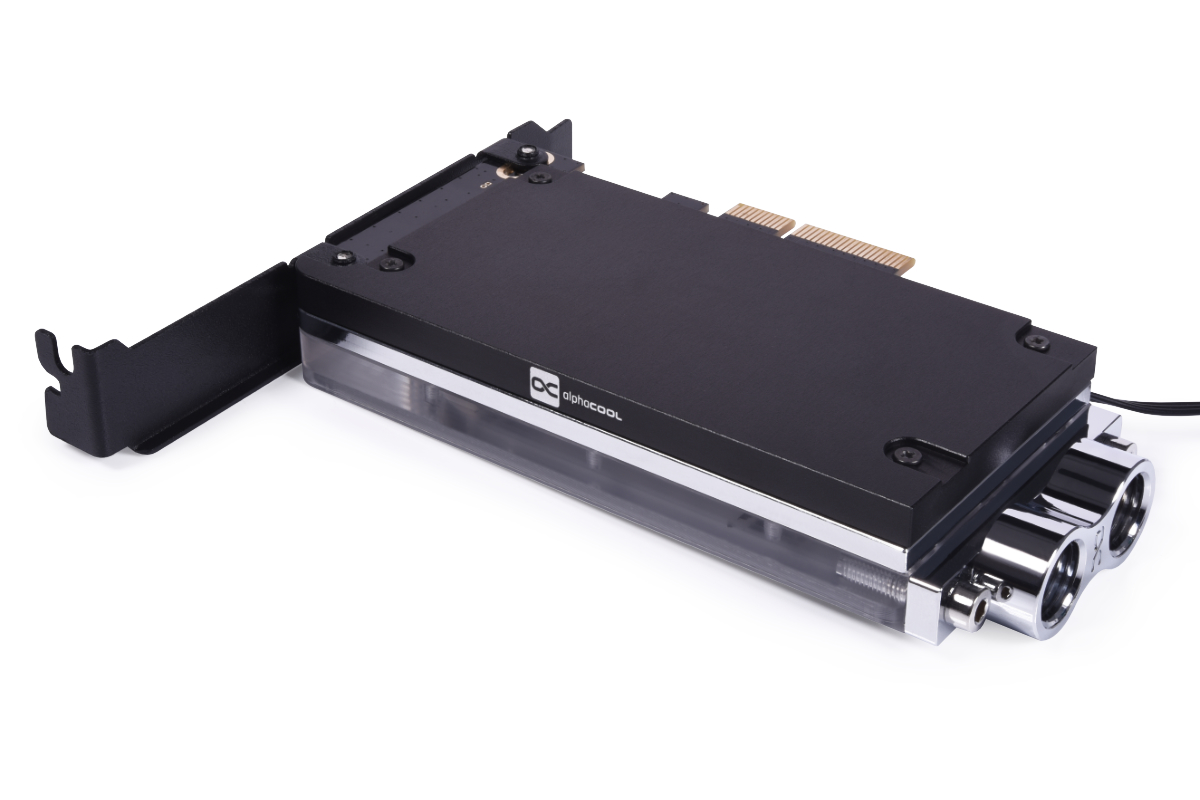

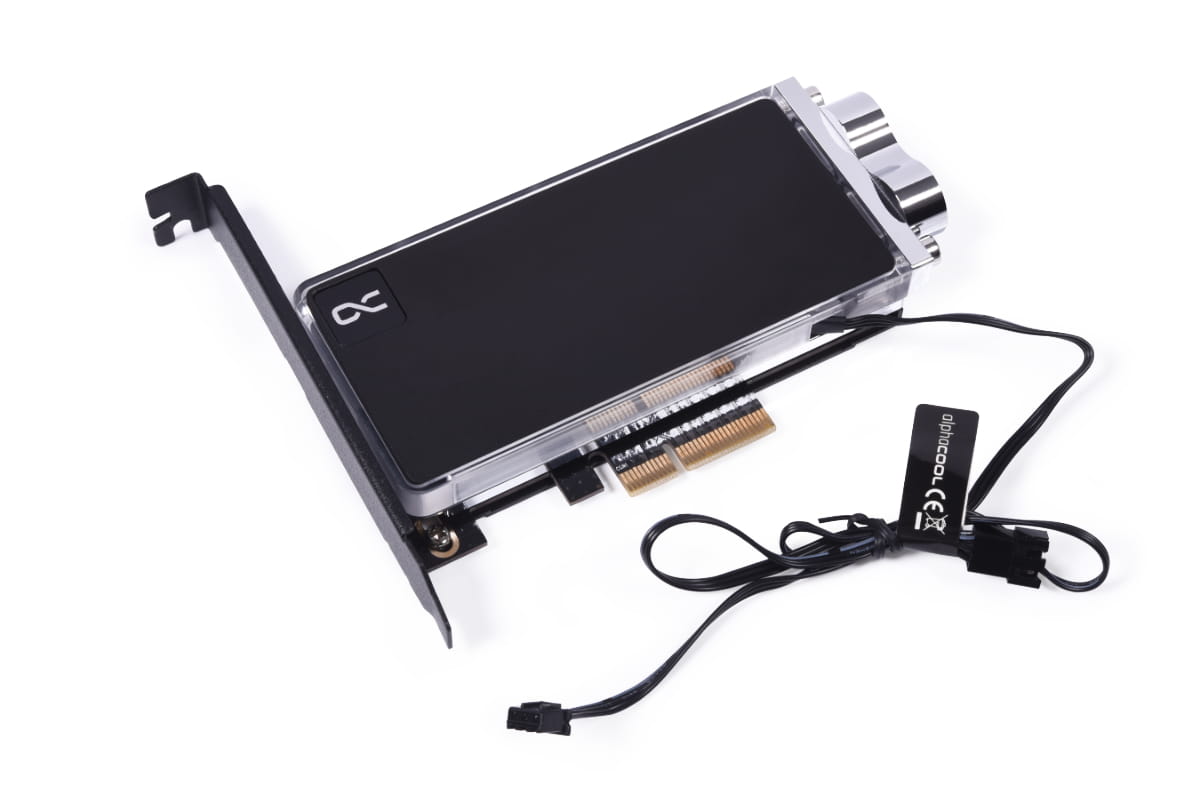

M.2 NVMe PCIe 4.0 SSD Liquid Cooler

WAH Alphacool Core M.2 NVMe PCIe 4.0 liquid cooler

Article no.: 13079
EAN: 4250197130790
Weight: 0,485 kg
Available: There are more than 50 units available
Images may differ slightly from the original

€99.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eisschicht Light thermal pad - 7W/mK 100x100x1mm

€14.98*

Alphacool Eisschicht Light thermal pad - 7W/mK 100x100x1.5mm

€12.98*

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€18.98*

Alphacool HF screw-on nozzle TPV metal - 12.7/7.6mm straight - black - kit of 6

€27.98*

Alphacool HF screw-on sleeve TPV metal - 90° rotatable 12.7/7.6mm - Black

€8.98*

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

SSDs in M.2 format are now standard PC equipment. The high transfer rates and extremely low... more

Close menu

Product information

SSDs in M.2 format are now standard PC equipment. The high transfer rates and extremely low access times allow faster and more effective working or gaming on the PC. Alphacool offers the Core M.2 NVMe PCIe 5.0 Liquid Cooler so that the full performance of the M.2 NVMe SSD can be used permanently. It is a useful addition to any water cooled system and ensures that the M.2 SSD memory can unleash its full potential.

Why an active M.2 cooler?
Due to their design, M.2 SSDs are only capable of delivering their maximum performance for a short time. The controller chip heats up extremely quickly and starts to throttle the performance of the M.2 SSD early on to avoid overheating. Independent tests have shown that during write operations, the transfer rates of uncooled M.2 SSDs can drop after just 30 seconds. With read processes, the throttling usually occurs a few seconds later. With the Alphacool Core M.2 NVMe PCIe 5.0 Liquid Cooler, the maximum performance of the SSD can be used over a significantly longer period of time. This is clearly noticeable during longer read and write processes.

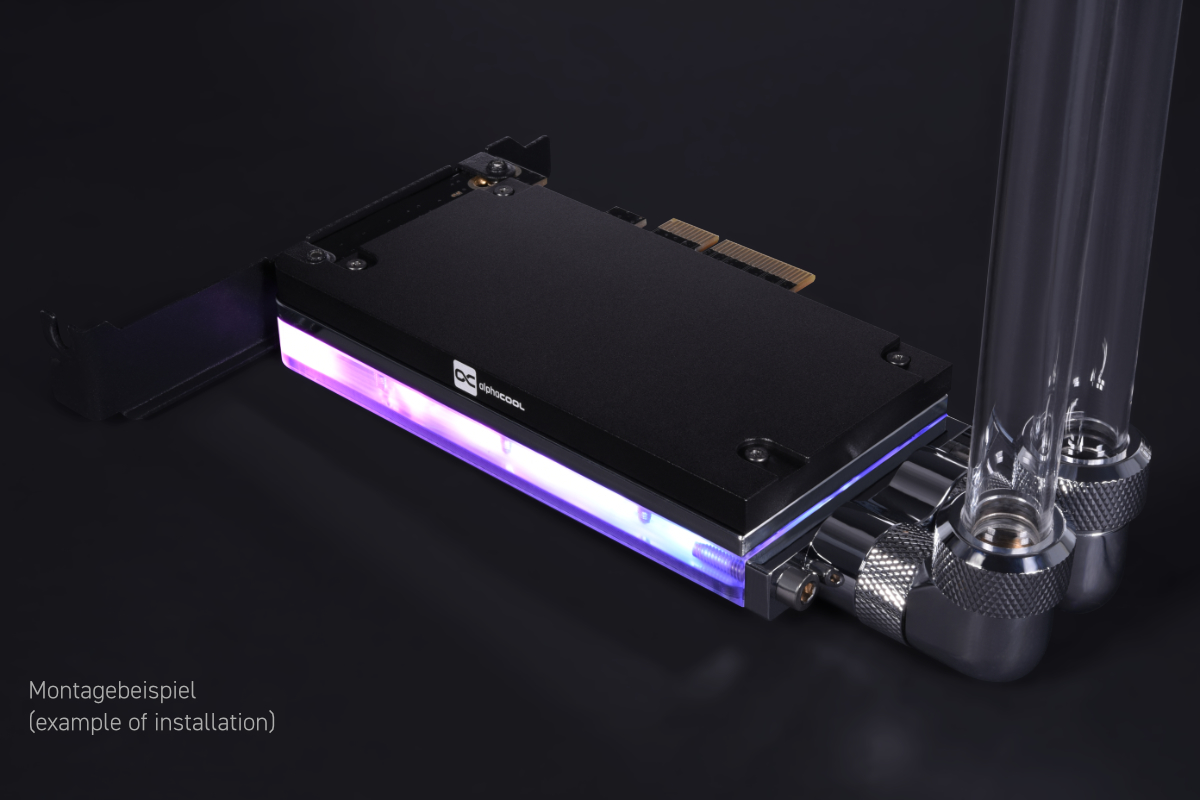

Mounting

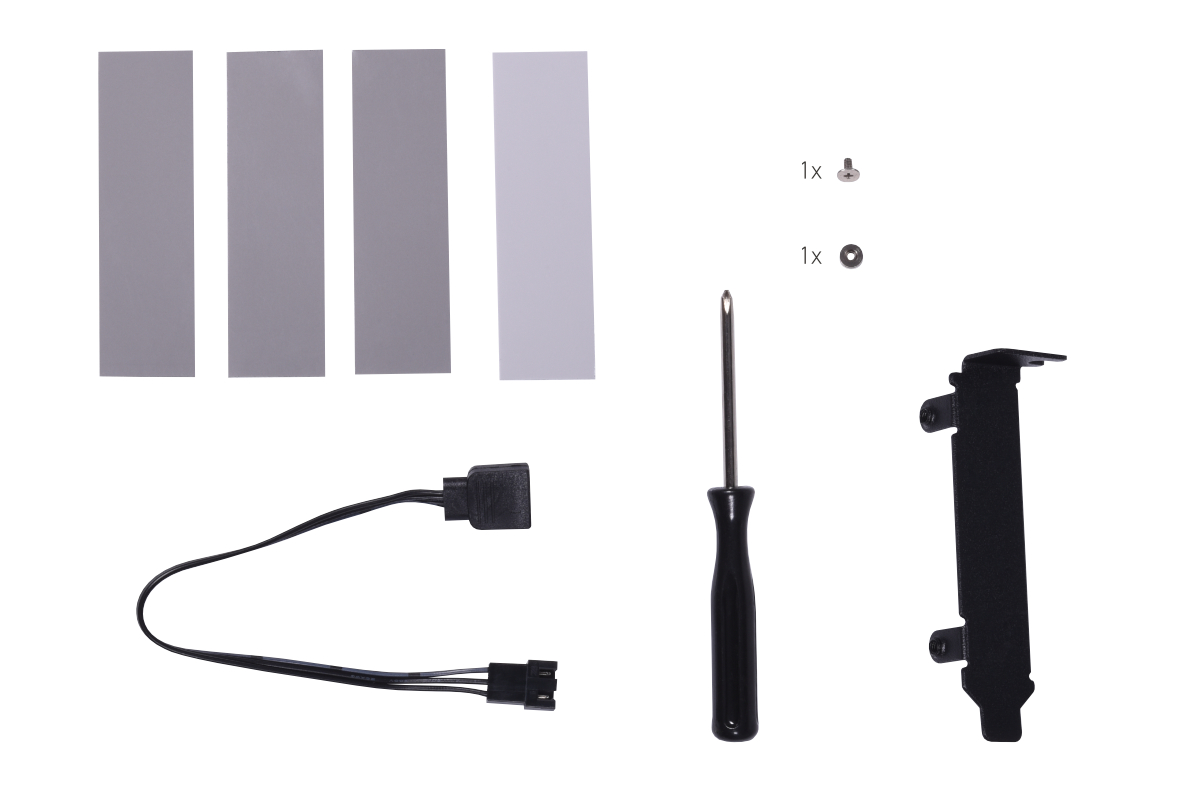

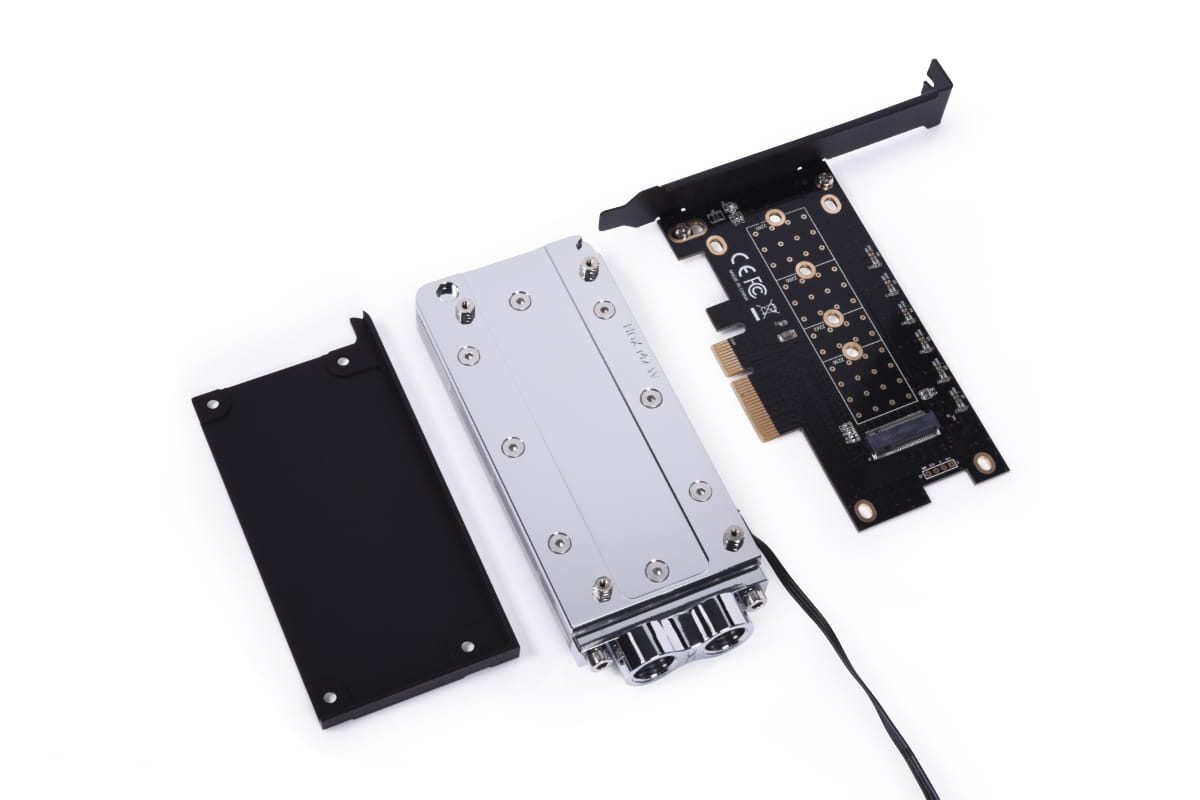

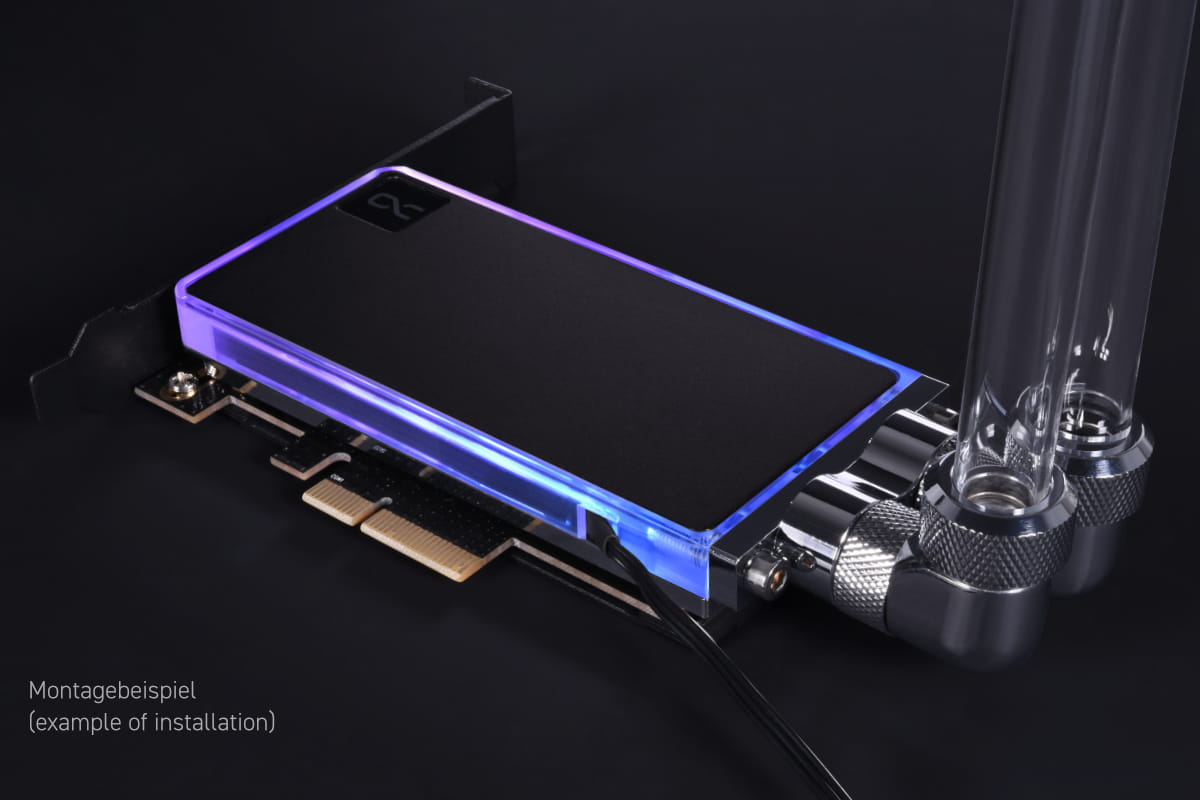

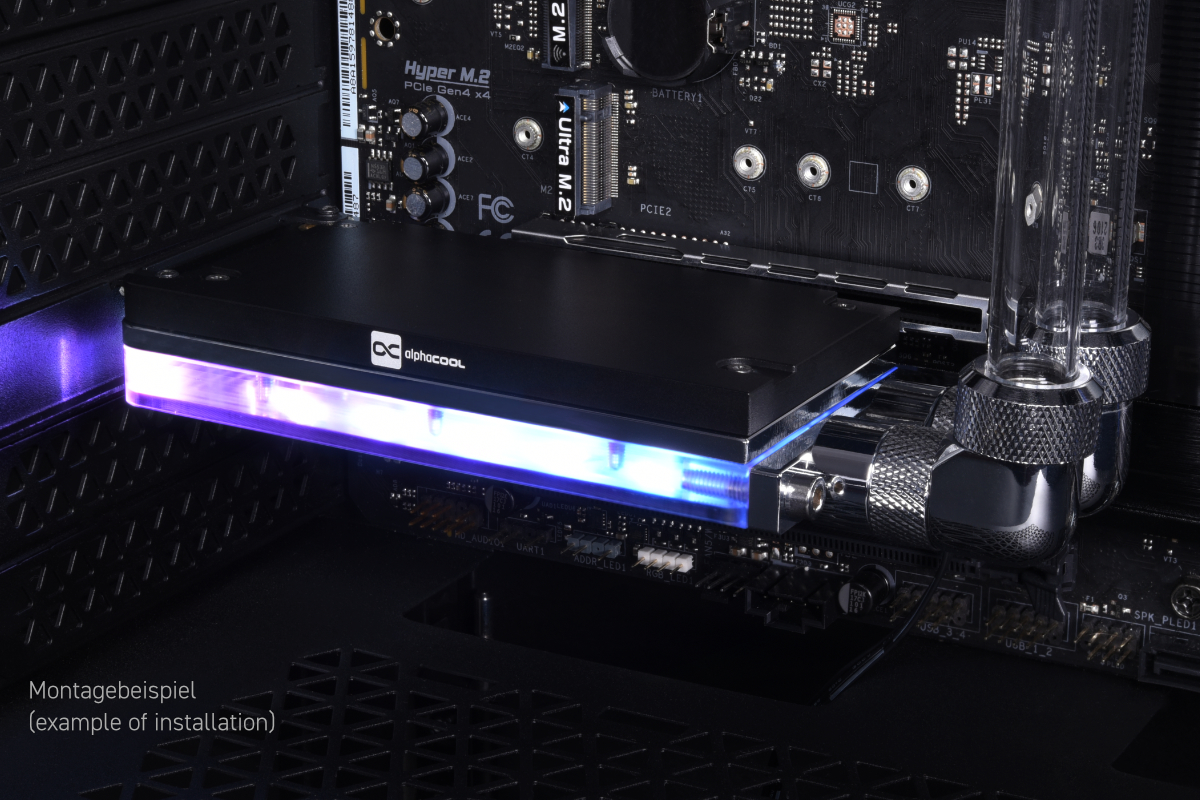

The Core Cooler is mounted in a free PCI Express x4 slot. It is compatible with M.2 NVMe SSDs that are populated on one or both sides. If the PCB is populated with memory chips on both sides, the 1 mm heat conduction pad is used on both sides. If memory chips are only installed on one side, then the 0.5 mm and 1 mm thermal pads are used on top of each other on the side without chips. Once the top and bottom of the SSD have been fitted with thermal pads, the SSD memory is inserted into the retaining clip of the M.2 NVMe PCIe 5.0 PCB and mounted on the cooler together with the backplate. The cooler itself can now be integrated into the water loop using the integrated G1/4" connections.

Copper instead of aluminium!
Alphacool only uses copper in its water coolers. The reason is simple: copper has almost twice the thermal conductivity of aluminium and is therefore the obviously better choice of material for a water cooler.

Brilliant lighting

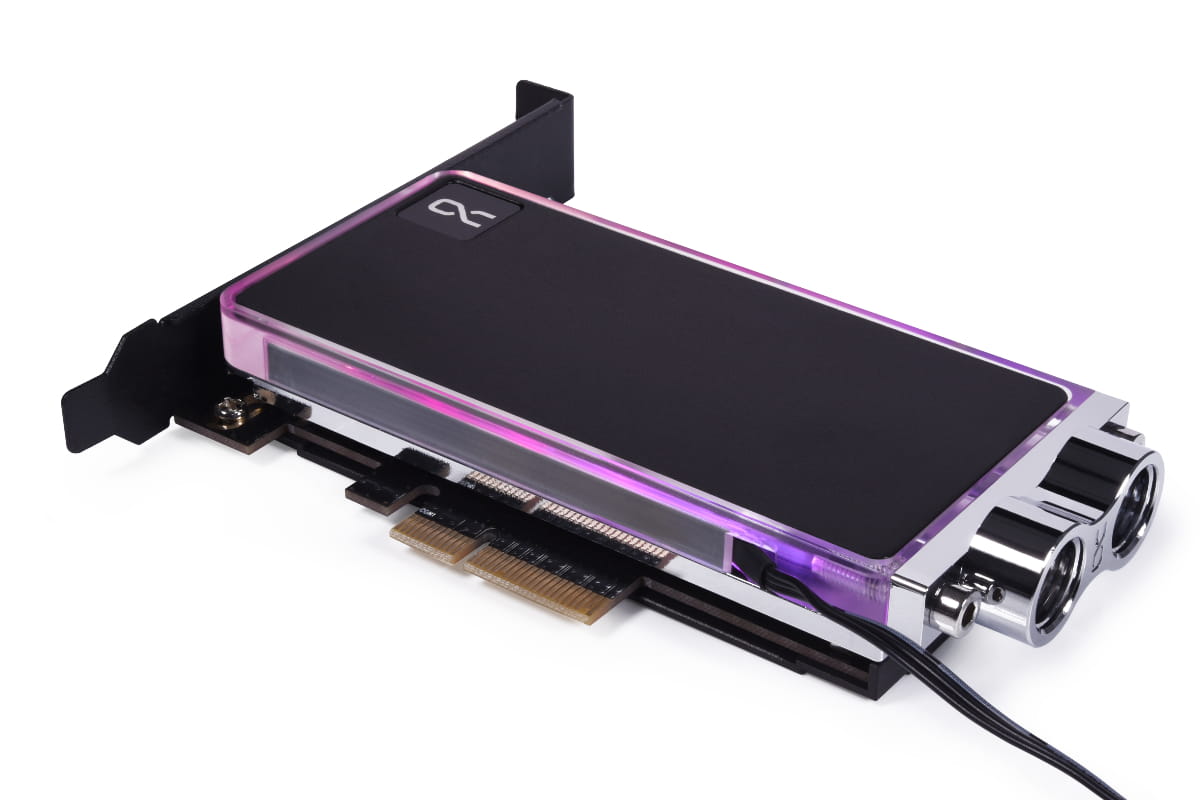

5 digitally addressable 5V RGB LEDs are installed in the cooler, which create a unique, very noble-looking illumination. The digital aRGB LED illumination is connected via a JST 3-pin connector. To control the aRGB lighting, the enclosed adapter must be connected to the 3-pin female connector and connected to a digital RGB controller or a digital RGB-capable mainboard. Additional digital aRGB LEDs can be connected to the remaining 3-pin male connector.

Note:
Also backward compatible to PCIe 4.0 and 3.0

Compatibility:
- M.2 NVMe PCIe 5.0 SSD
- Backward compatible to PCIe 4.0 and 3.0

Technical data
L x W x H	130,7 x 56 x 24,41mm
Material cooler	nickle-plated copper
Material cooler top	acrylic
Material backplate	aluminium
Water cooling connections	2x G1/4"
Thickness cooler bottom	4mm
Thermal conductivity thermal pads	3 W/mK
Illumination	digital aRGB LEDs
Power connector digital aRGB LEDs	3-Pin JST (cable length 39cm)
Power digital aRGB LEDs	5V
Number of digital aRGB LEDs	5
Pressure tested	0,8 Bar
Maximum working temperature	60°C
Weight	361g
Compatibility	One slot for M.2 NVMe PCIe 5.0 SSD

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
