M.2 2280 HDX SSD water cooler from Alphacool

WAH Alphacool HDX Apex Acetal M.2 2280 SSD Kühler

Article no.: 11968
EAN: 4250197119689
Weight: 0,084 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€30.00 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eisplateau anti-static work and assembly mat 120x60cm

€59.98*

Alphacool Eisbaer Quick-Connect Extension Kit

€21.98*

Alphacool Eisbaer GPX Extension Set (hose and connections)

€13.19*

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€18.98*

Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6

€16.98*

Alphacool HF screw-on sleeve TPV metal - 90° rotatable 12.7/7.6mm - Black

€8.98*

Alphacool Ultra Pure Water 1000ml

€6.98*

SSDs in M.2 format are becoming increasingly popular. The high transfer rates and extremely low... more

Close menu

Product information

SSDs in M.2 format are becoming increasingly popular. The high transfer rates and extremely low access times allow you to work or play on your PC faster and more effectively. To ensure that you can use the full performance of the M.2 2280 SSD permanently, Alphacool offers the HDX Apex Acetal M.2 2280 SSD cooler. It is a useful extension for any water circuit and ensures that the M.2 SSD memory can release its full potential.

Why an active M.2 cooler?
Due to their design, M.2 SSDs are only able to reach their maximum performance for a short period of time. The controller chip heats up extremely quickly and begins to throttle the performance of the M.2 SSD early on to prevent overheating. Independent tests have shown that during write operations, the transfer rates of uncooled M.2 SSDs can drop after just 30 seconds. During read operations, throttling usually occurs a few seconds later. With the Alphacool HDX Apex Acetal M.2 2280 SSD cooler, you can use the maximum performance of the SSD over a much longer period of time. This is clearly noticeable during longer read and write operations.

Assembly

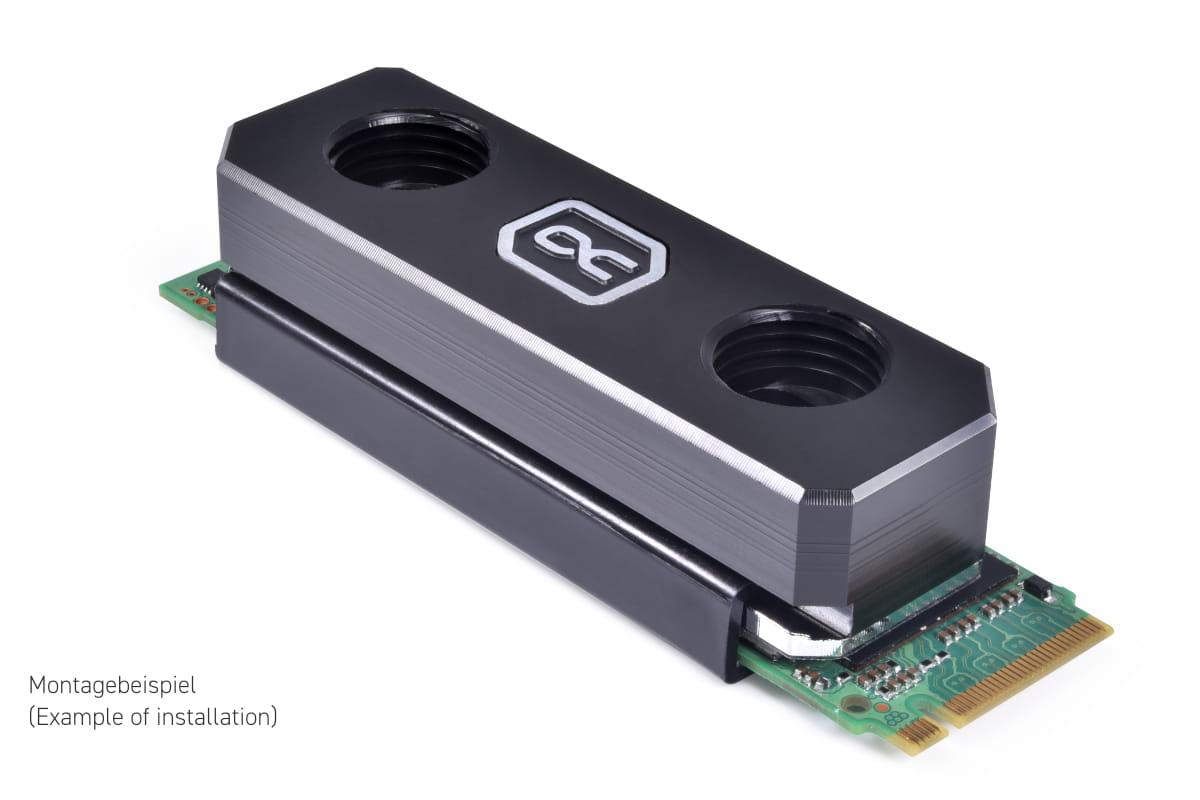

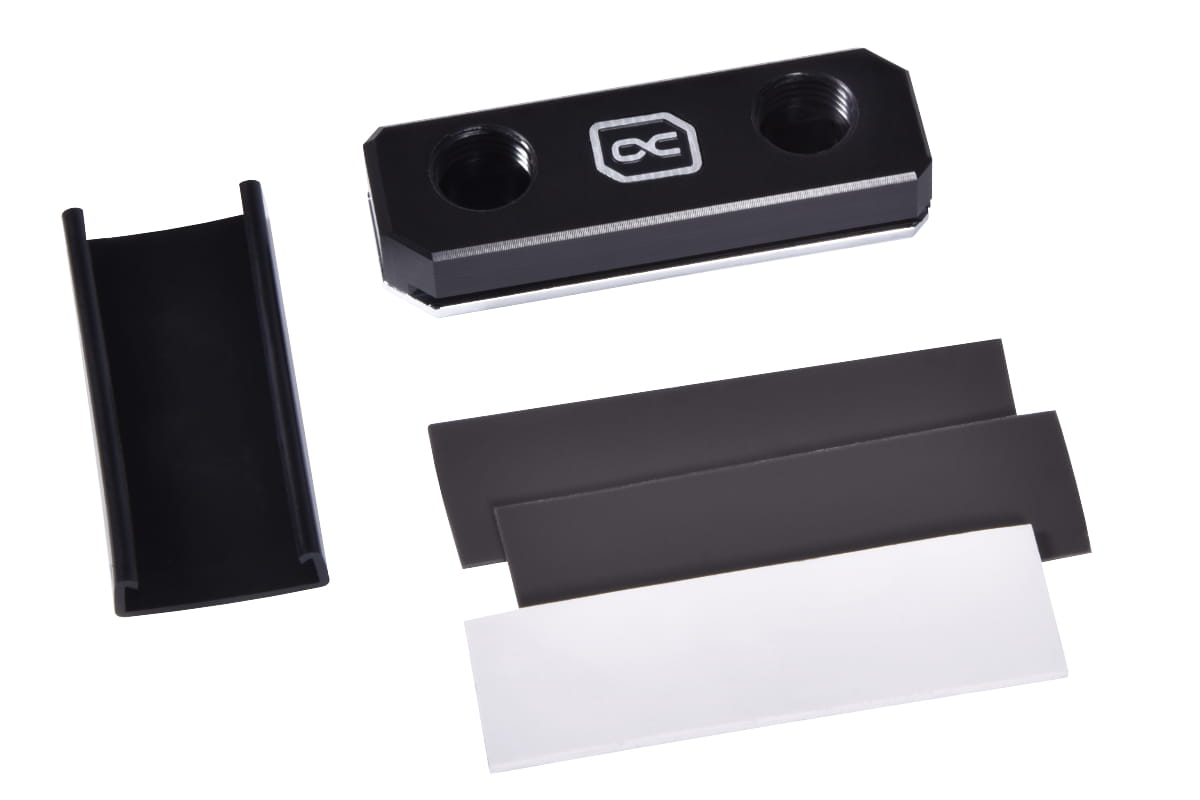

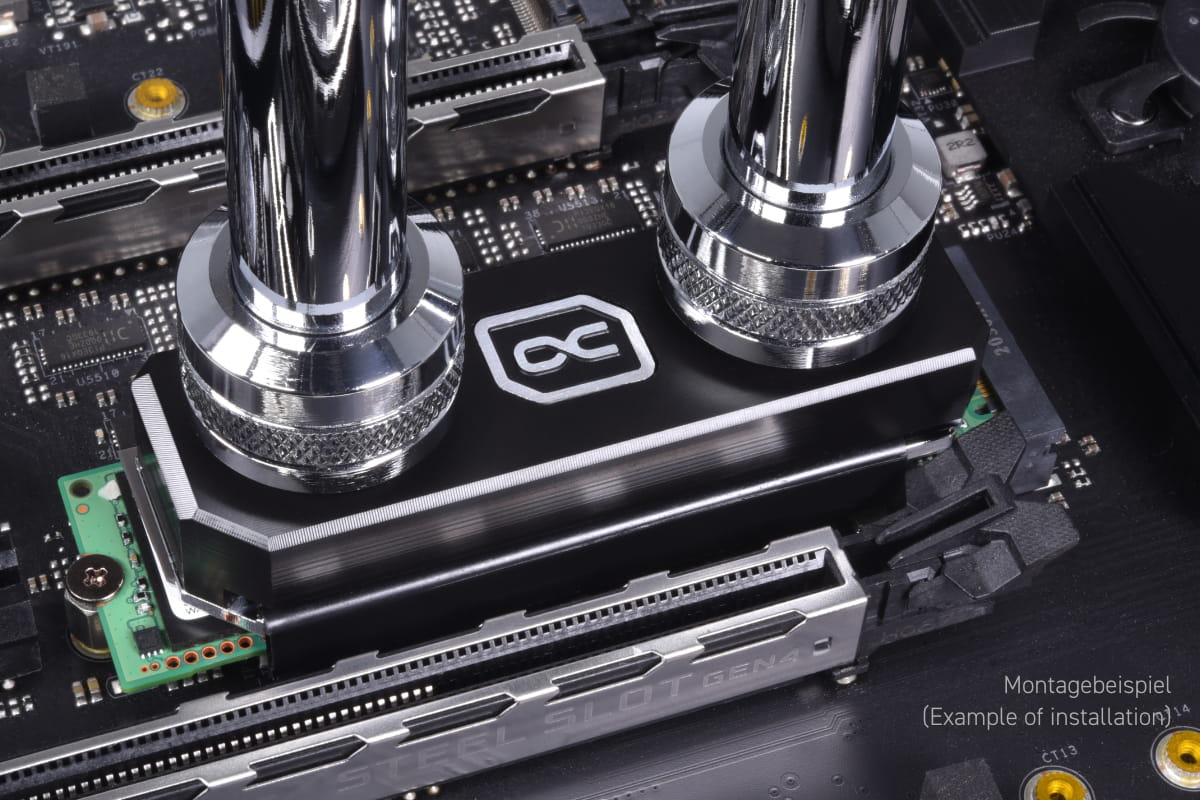

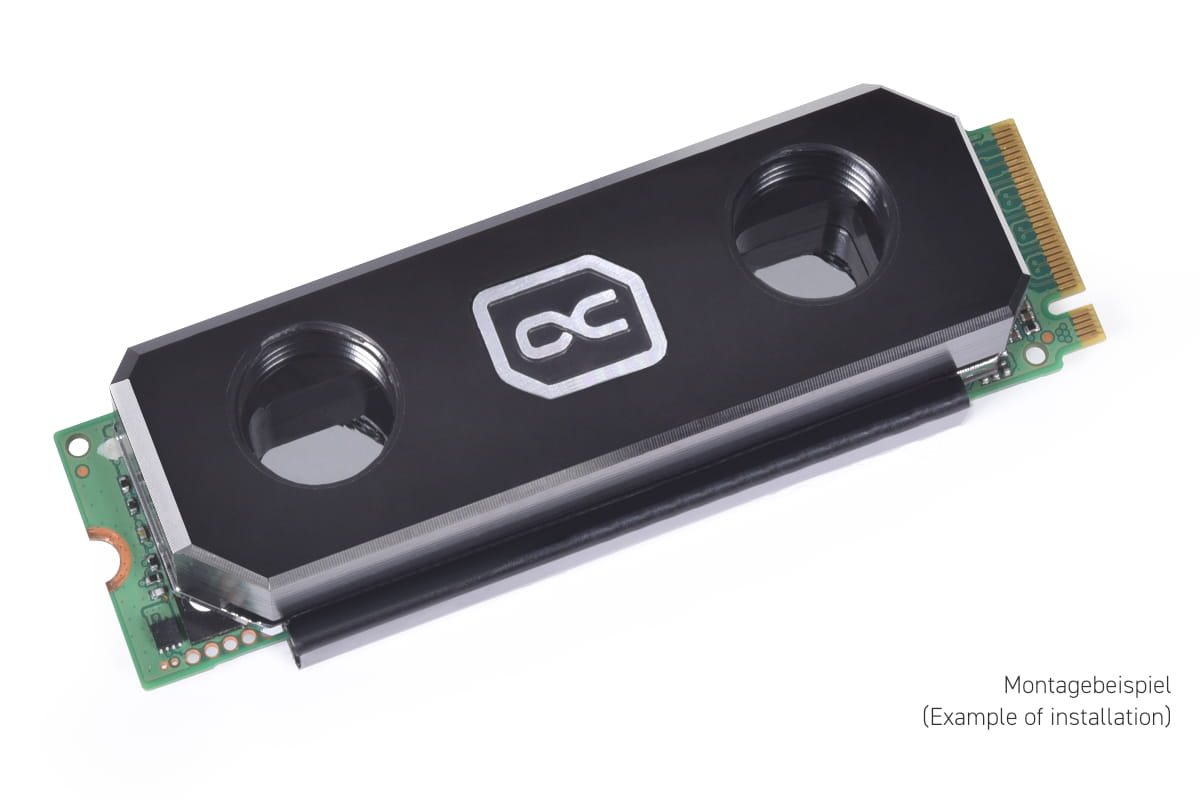

The HDX Apex Acetal cooler is compatible with M.2 2280 SSDs that are equipped on one or both sides. If the PCB is equipped with memory chips on both sides, the 0.5 mm thermal pad is used on both sides. If memory chips are only installed on one side, the 1.5 mm thermal pad is used on the side without chips. After the top and bottom of the SSD have been equipped with thermal pads, the SSD memory is pushed into the retaining clip and mounted under the cooler. Installation on the mainboard is then carried out as usual. The cooler can now be integrated into the water circuit using the existing G1/4" connections.

Copper instead of aluminum!
Alphacool only uses copper in its water coolers. The reason is simple: copper has almost twice the thermal conductivity of aluminum and is therefore obviously the better choice of material for water cooling.

Compatibility:
- M.2 2280 SSD

Technical data cooler
L x W x H	67.99x25.6x16.8mm
Radiator base material	nickel-plated copper
Material radiator top	Acetal
Material Clip	plastic
Connections	2x G1/4"
Thickness of radiator base	1.6mm
Thermal Conductivity Thermal Pads	3 W/mK
Pressure tested	0.8 bars
Maximum working temperature	60°C
Weight	43g
Color	black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
