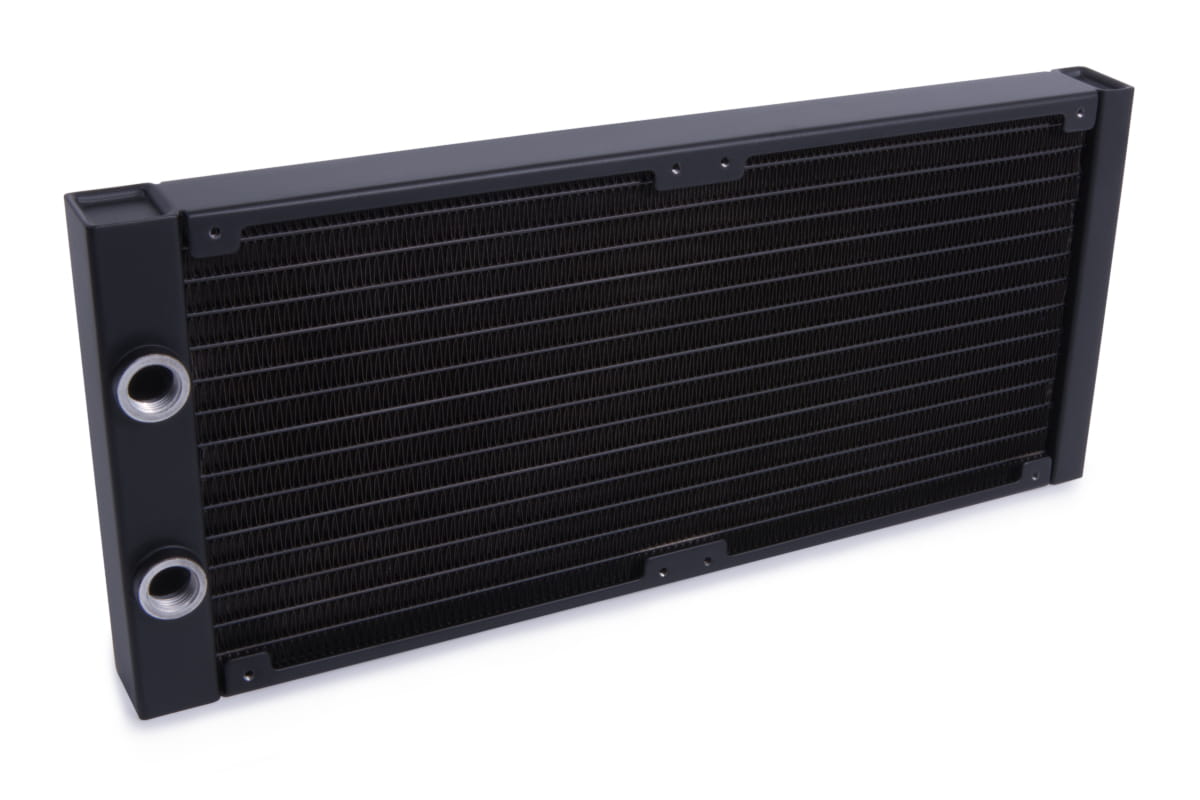

Aluminum industrial radiator for water cooling

RAD Alphacool ES Aluminium 280 mm T27 - (For Industry only)

Article no.: RAD
EAN: 4250197144292
Weight: 0,54 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€31.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€18.98*

Alphacool HF quick release coupling set TPV - Eisbaer compatible - Black

€9.98*

Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6

€16.98*

Alphacool HF screw-on sleeve TPV metal - 90° rotatable 12.7/7.6mm - Black

€8.98*

Alphacool Eisbaer TPV Extension Set 90° (hose and connections)

€18.49*

Alphacool Apex Liquid ECO 1000ml clear

€14.98*

The all-aluminium ES T27 and T38 radiators from Alphacool's ENTERPRISE SOLUTIONS series were... more

Close menu

Product information

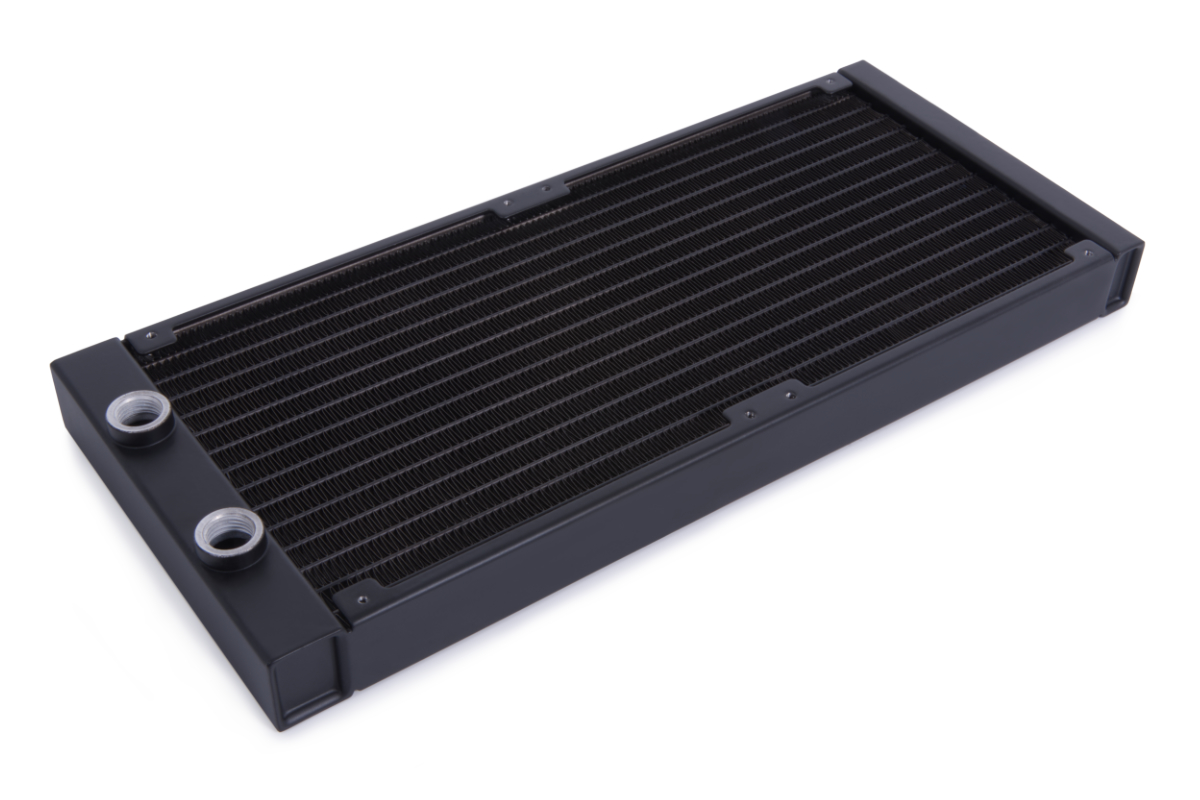

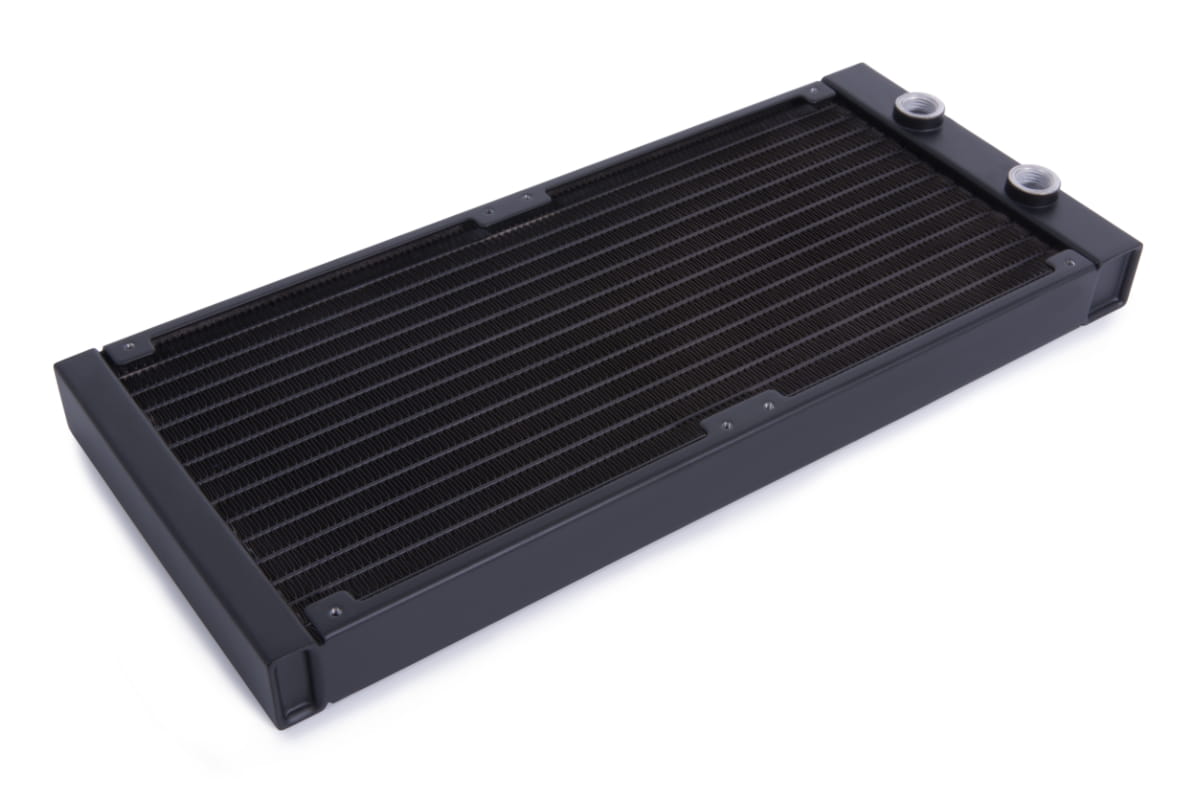

The all-aluminium ES T27 and T38 radiators from Alphacool's ENTERPRISE SOLUTIONS series were specially developed for use in the industrial range. Due to the low construction height of 27mm or 38mm, they find space in the smallest of spaces and enable the water cooling of technical equipment in the automotive industry, in mechanical engineering or in the production of films and videos.

High Performance
Compared to Alphacool's full copper models, all ES T27 and T38 aluminium radiators have additional cooling channels. This technical design allows a significant increase in cooling capacity without restricting the water flow within the radiator. The radiators have a high fin density and are particularly suitable for use with fans with high air pressure and air throughput. This achieves a significant increase in the performance of the water-cooled components.

Fitting and mounting options

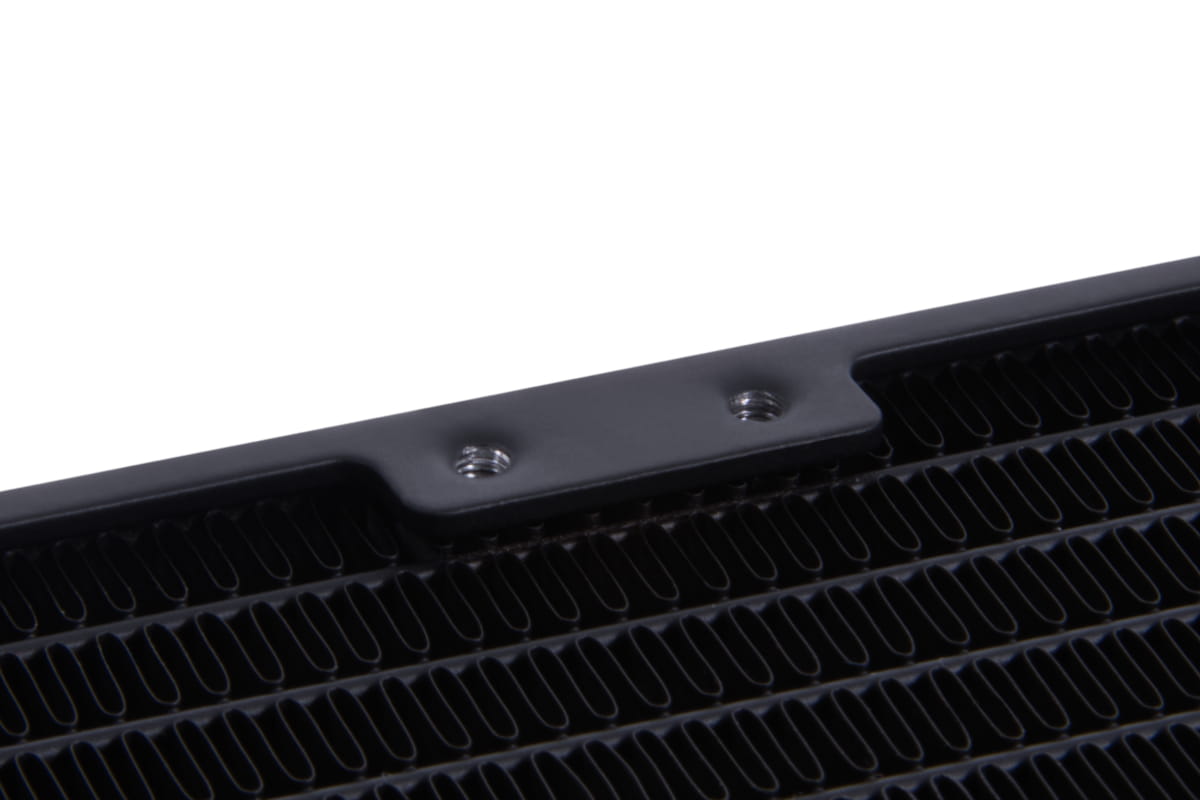

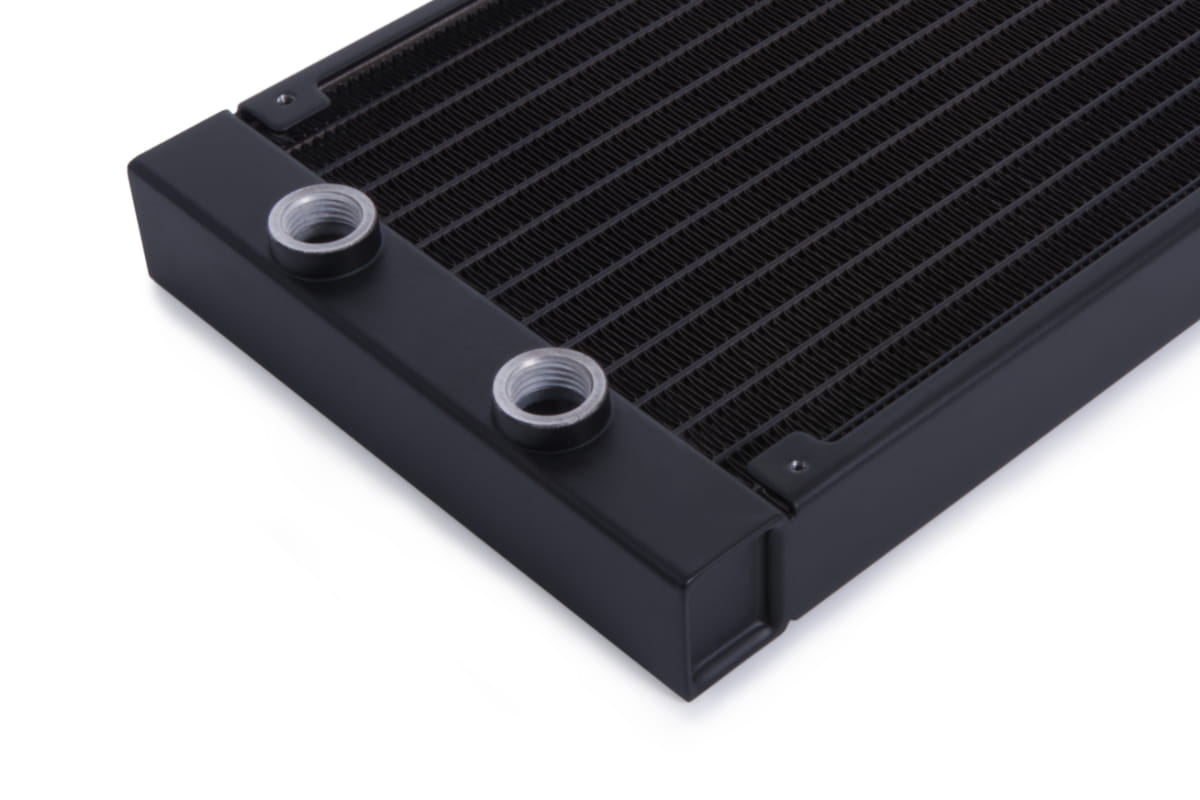

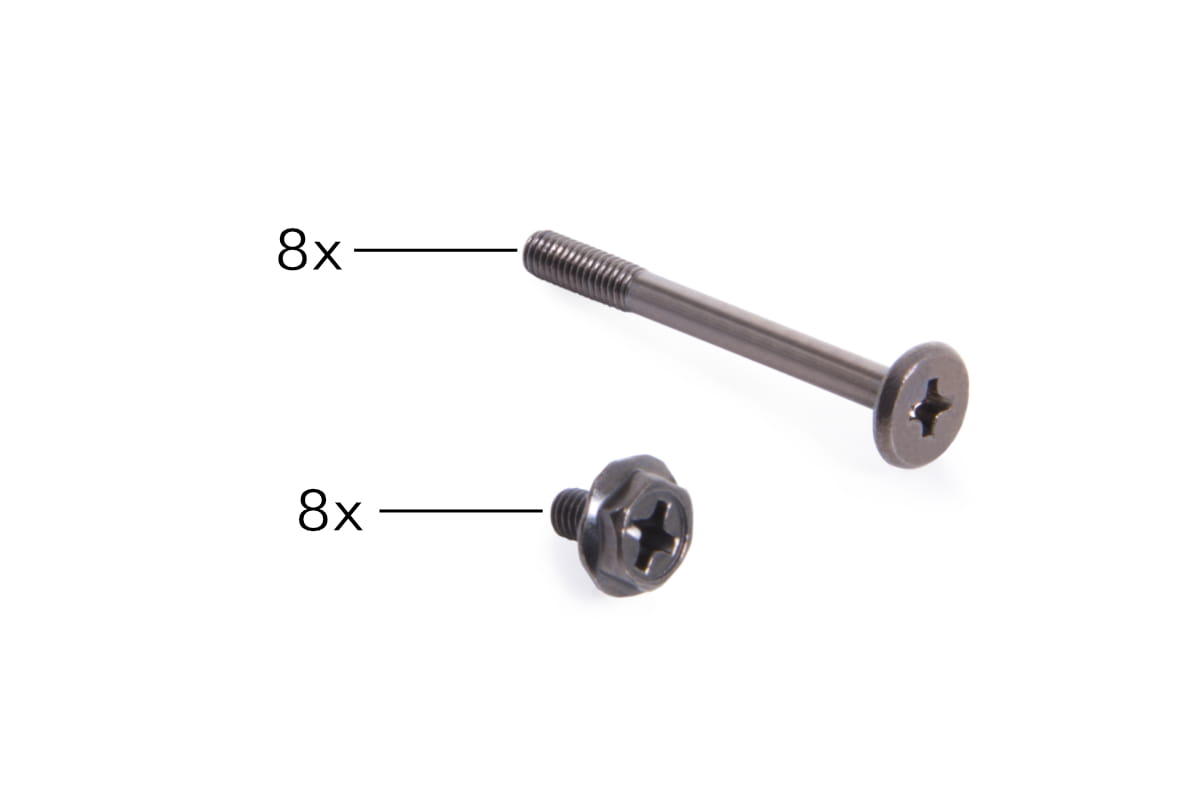

The radiator offers an inlet and outlet (IN/OUT) with G1/4" thread. Screws for case mounting (M3x5) and for fan mounting (M3x30) are included with the radiator. Additional screws are not required for single-sided fan mounting.

Important note

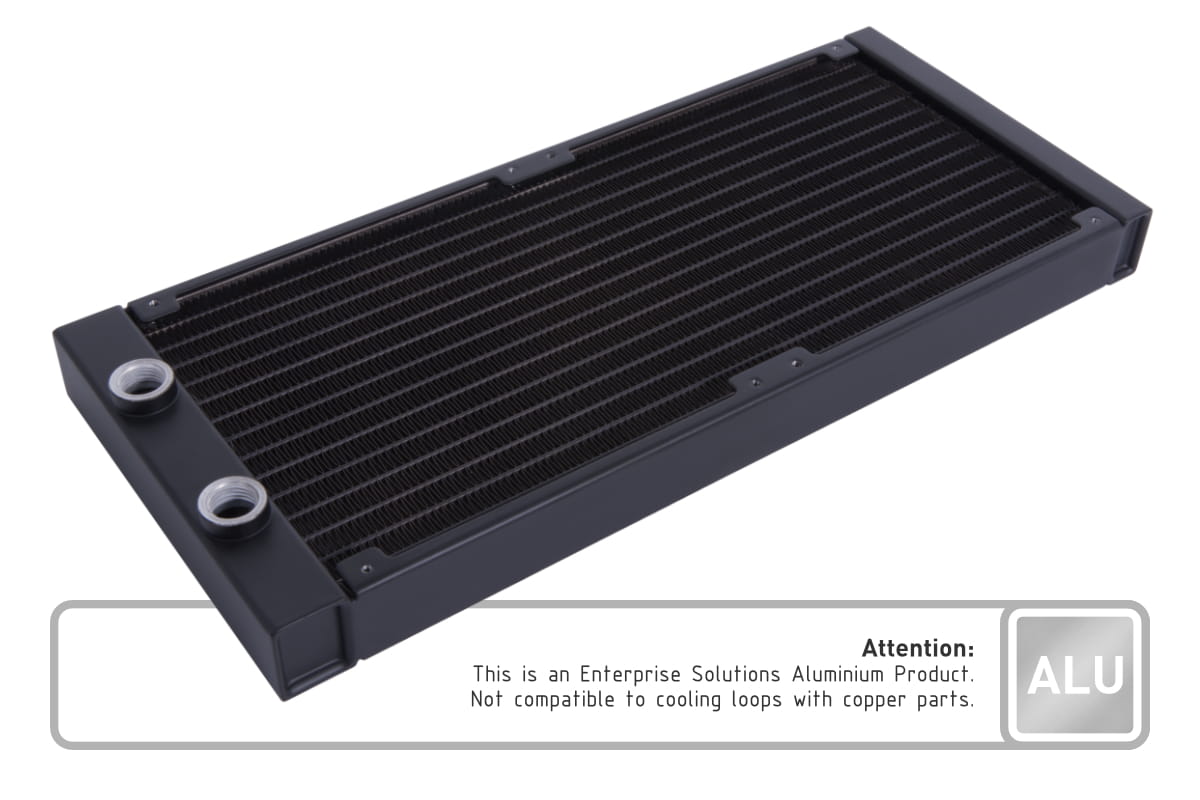

This is an Enterprise Solutions Aluminium product. The ES aluminium radiators must not be used together with copper water cooling products (radiators, fitting, etc.). Using aluminium & copper components together will cause severe damage to the liquid cooling loop.

Technical data
L x W x H	316 x 140 x 27 mm
Quantity of cooling channels	14
Material cooling fins, channels & prechamber	Aluminium
Material outer housing & threads	Aluminium
Fins per Inch	20
Threads	2x G1/4“
Thread size fan mounting	M3
Fan size	140 mm
Fan slots	2 one-sided / 4 double-sided
Max working temperature	90 °C
Pressure tested	0,8 bar
Weight	405 g
Color	Black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Anschluss:	2x G1/4"
Lüftergewinde:	M3
Lamellen:	Aluminium
Druckgetestet:	2 bar
Anzahl Lüfter:	2, 4
Dicke:	0 - 29mm
Kühlkanäle:	Aluminium
Lüftergröße:	140mm
Fins per inch:	20
Abmessungen (L x B x H):	316 x 140 x 27mm
Gehäuse:	Aluminium
