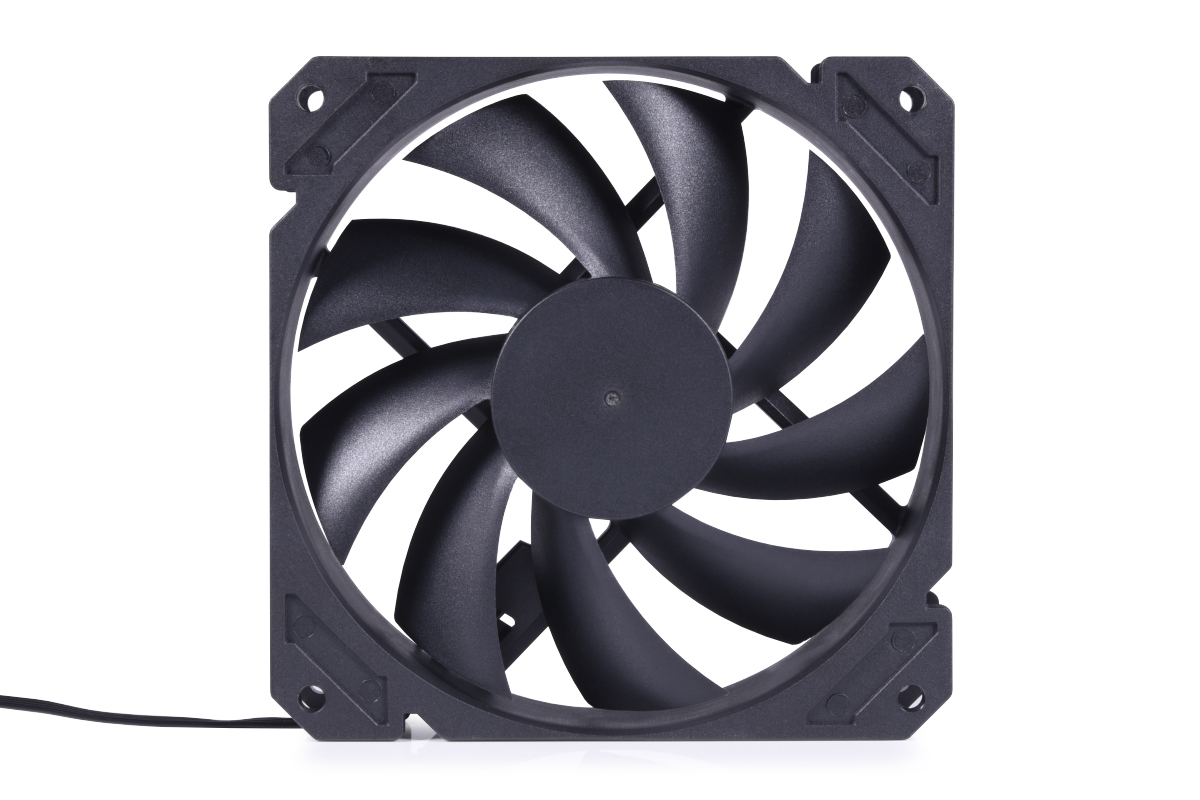

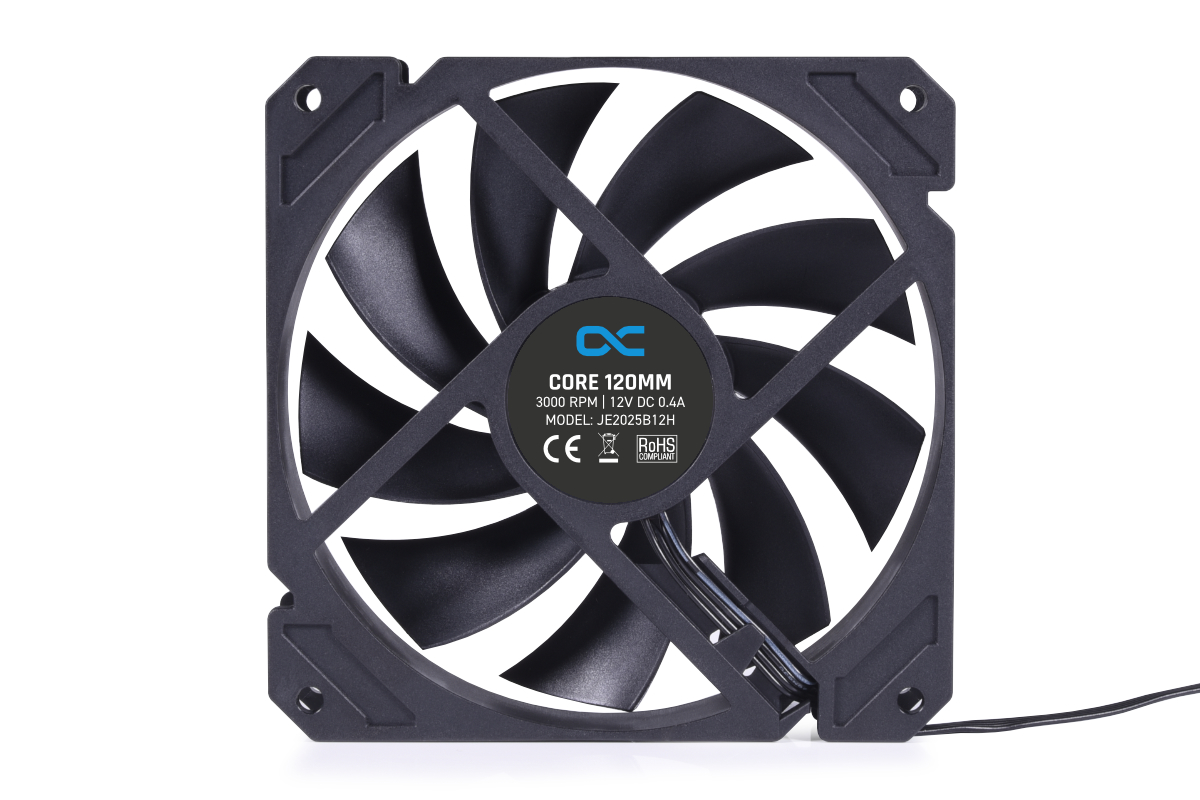

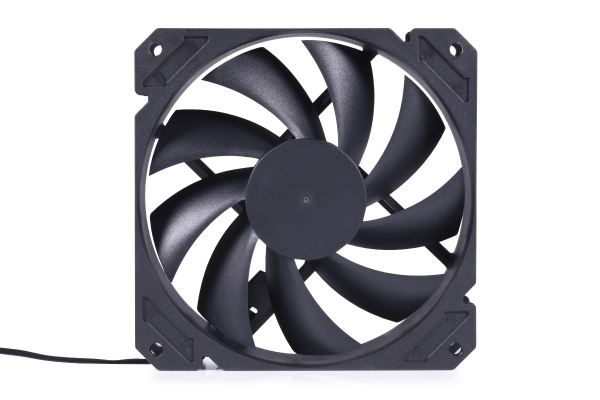

Alphacool Core 120mm fan PWM 3000rpm (120x120x25mm)

  • 24844
  • 4250197135863
  • 0,18 kg
  • Images may differ slightly from the original
€8.48 *

Prices incl. VAT plus shipping costs

ready for shipment in 1-3 days

Recommended accessories
Extra Price
1011110 Phobya Y-cable 4Pin PWM to 4x 4Pin PWM 60cm - black
1x
Phobya Y-cable 4Pin PWM to 4x 4Pin PWM 60cm - black
€6.97*
24830 Alphacool Shroud & decoupling 120mm (7mm thickness) incl. 4x M3x37mm Screws
1x
Alphacool Shroud & decoupling 120mm (7mm thickness) incl. 4x M3x37mm Screws
€4.98*

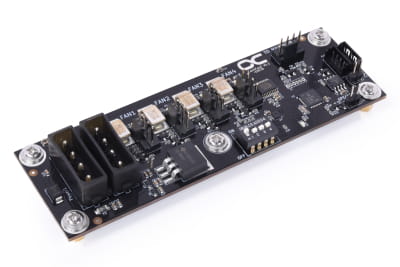

26158 Alphacool ES Guardian 4Port Powerfan Hub
1x
Alphacool ES Guardian 4Port Powerfan Hub
€49.99*
LZ Lüfterfilter 120mm Farbe schwarz
1x
Lüfterfilter 120mm Farbe schwarz
€3.29*

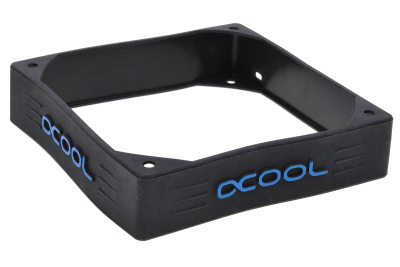

24685 Alphacool Susurro Antinoise Silicone Fan Frame - 120mm - universal
1x
Alphacool Susurro Antinoise Silicone Fan Frame - 120mm - universal
€3.97*
Alphacool's Core 120mm is a quiet and efficient fan with a wide control range up to 3000 rpm.... more
Product information

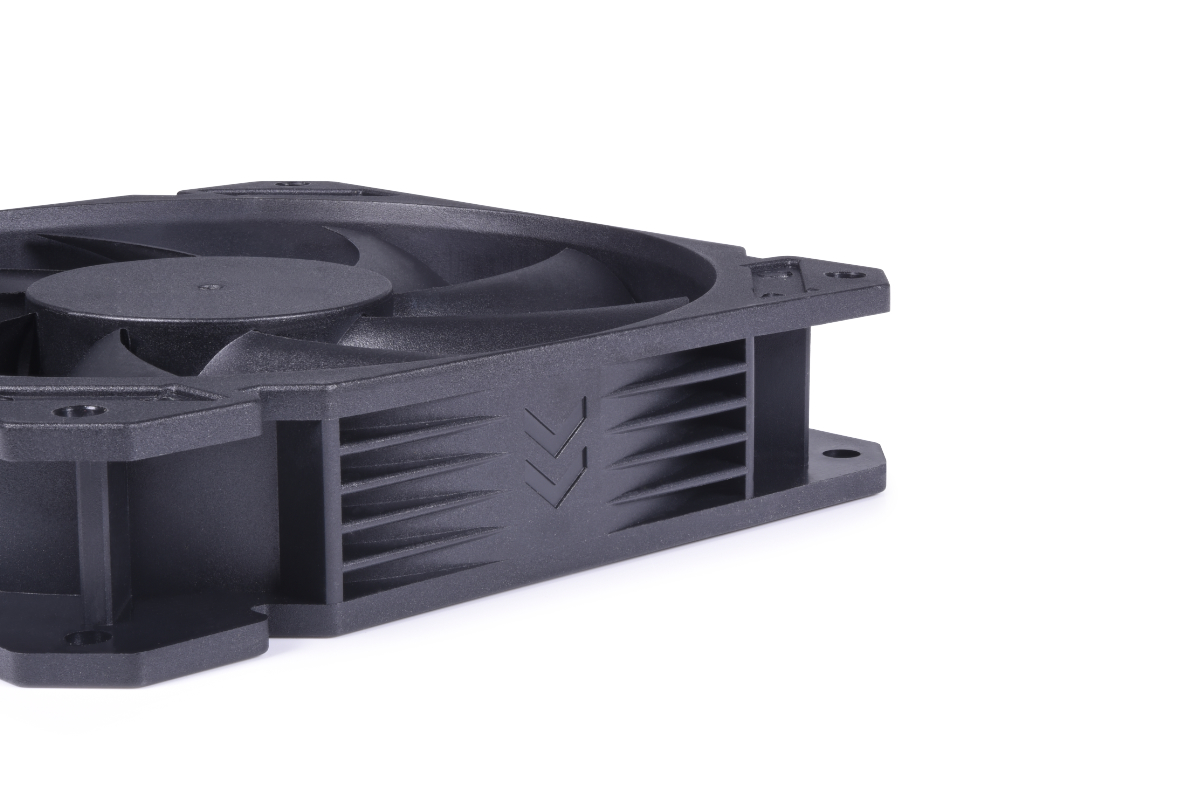

Alphacool's Core 120mm is a quiet and efficient fan with a wide control range up to 3000 rpm. The PWM controllable fan is not only suitable as a fan on CPU coolers or radiators. Due to its excellent performance values (throughput & static pressure), it can also be used as a case fan. The double-bearing fan axis is smooth running and enables a long service life as well as quiet operation. If you are looking for a powerful fan without aRGB illumination, you will find it in Alpacool's Core 120mm model!

Connections

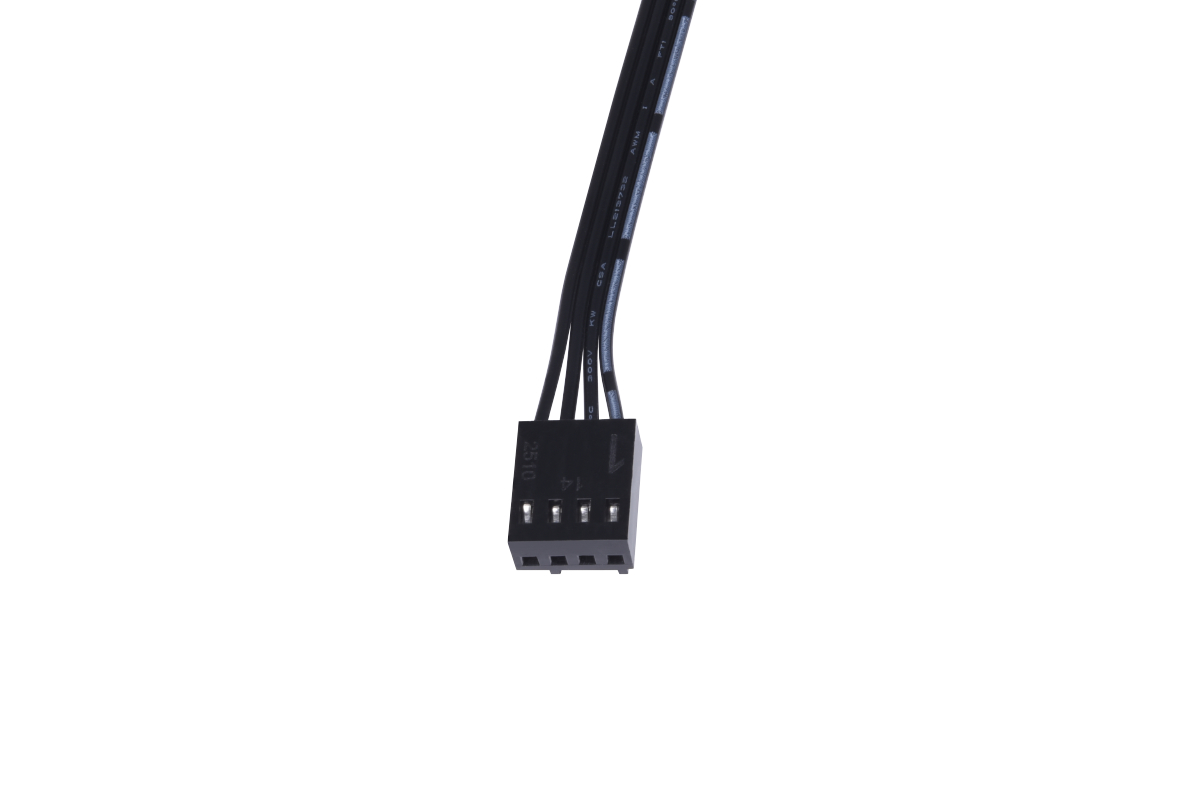

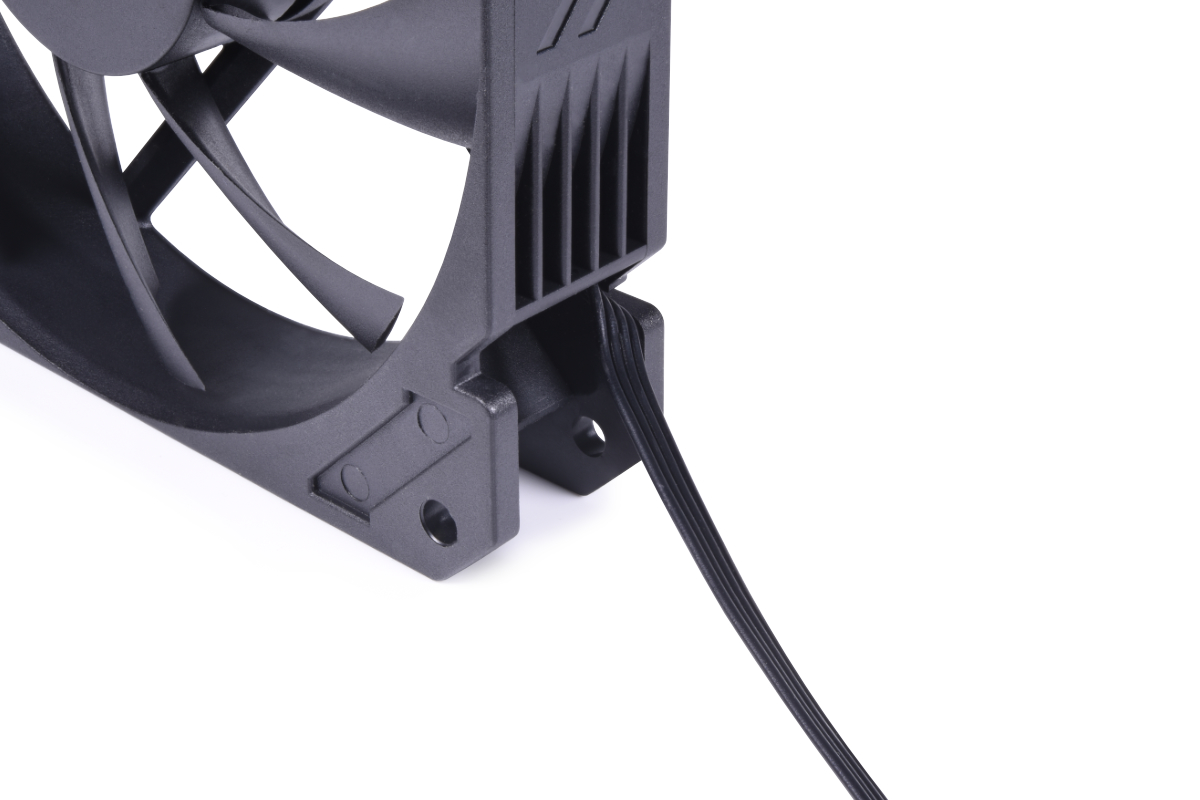

The fan is controlled via a 4-pin PWM connector. The cable is 40cm long. This allows the fan to be connected directly to the motherboard or a dedicated controller without the use of additional adapter cables or extensions.

Control range
The fan can be controlled from 0 to 3000 rpm via the 4-pin PWM connector. At maximum speed, it allows an airflow of 93.6 CFM combined with a high static pressure of 7.83mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system or for ventilating a case.



Technical data
Dimension (L x W x H)120 x 120 x 25mm
Materialsynthetic material (PBT UL94V-0)
Bearing TypeTwo Ball Bearing
Rated VoltageDC 12V
Operating VoltageDC 7-14V
Start-up Voltage7V
Rated Current0.25 (Max: 0.38) A
Rated Power3.0 (Max: 4.56) W
Rated Speed0 - 3000 rpm ±10%
Max. Air Flow93.6 CFM
Max. Static Pressure7.83mm-H2O
Noise level43.0 (Max:45.0) dBA
Life Expectance70000 h at 40 degrees celcius
Connection4-Pin PWM
Speed Control Modevia PWM
Operating Temperature-10~+70 degrees celcius
Other FeaturesTachometer Output, Auto Start, Soft Start, Waterproof Level IP22

Warranty: 3 years
🔗 Warranty Terms

Technical details mehr
Technical details
Farbe Rotor: schwarz;
Nennspannung: 12V DC
Nenndrehzahl: 3000 U/min
Stromanschluss: 4Pin
Lautstärkebereich: 30 - 49,9 dB(A)
Größe: 120mm
Abmessungen: 120 x 120 x 25mm
Farbe Rahmen: schwarz;
Hersteller: Alphacool
Lebensdauer (bei 25°C): 70.000 h
Druck: 7,83 mm H2O
Luftförderleistung: 93,6 CFM
Lautstärke: 43 dB(A)
