Alphacool NexXxoS 1080 NOVA copper radiator

RAD Alphacool NexXxoS UT60 Full Copper 1080mm Nova Radiator

Article no.: 14391
EAN: 4250197143912
Weight: 3,723 kg
Available: There are more than 10 units available
Images may differ slightly from the original

€179.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool HF screw-on nozzle TPV metal - 12.7/7.6mm straight - black - kit of 6

€27.98*

Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Deep Black Sixpack

€33.97*

Alphacool ice cyclone Aurora LUX PRO Digital RGB (200x200x25mm)

€14.98*

Alphacool Universal Feet for Radiators

€24.98*

Alphacool Nova 1080 fan cover 4x180mm - Black

€23.98*

Would you like a little more? Alphacool NexXxoS UT60 1080mm Nova! 350 x 350 x 60 mm of pure... more

Close menu

Product information

Would you like a little more?

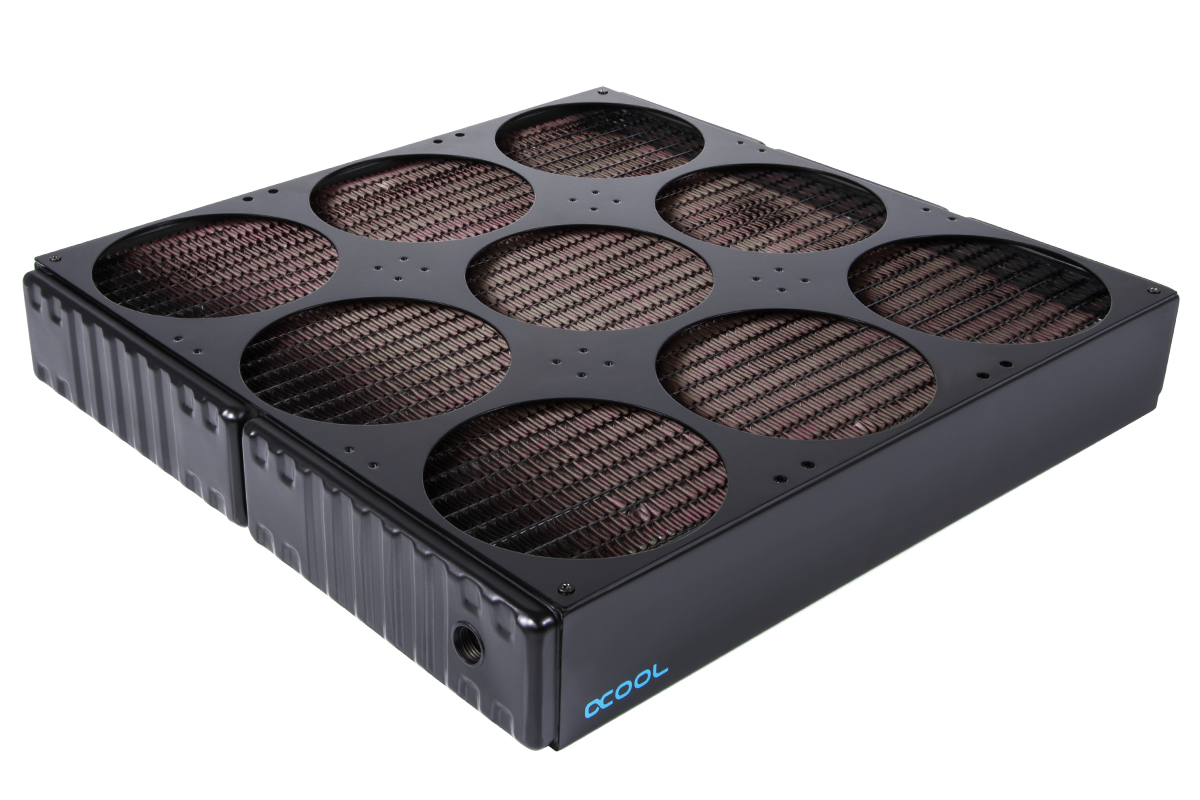

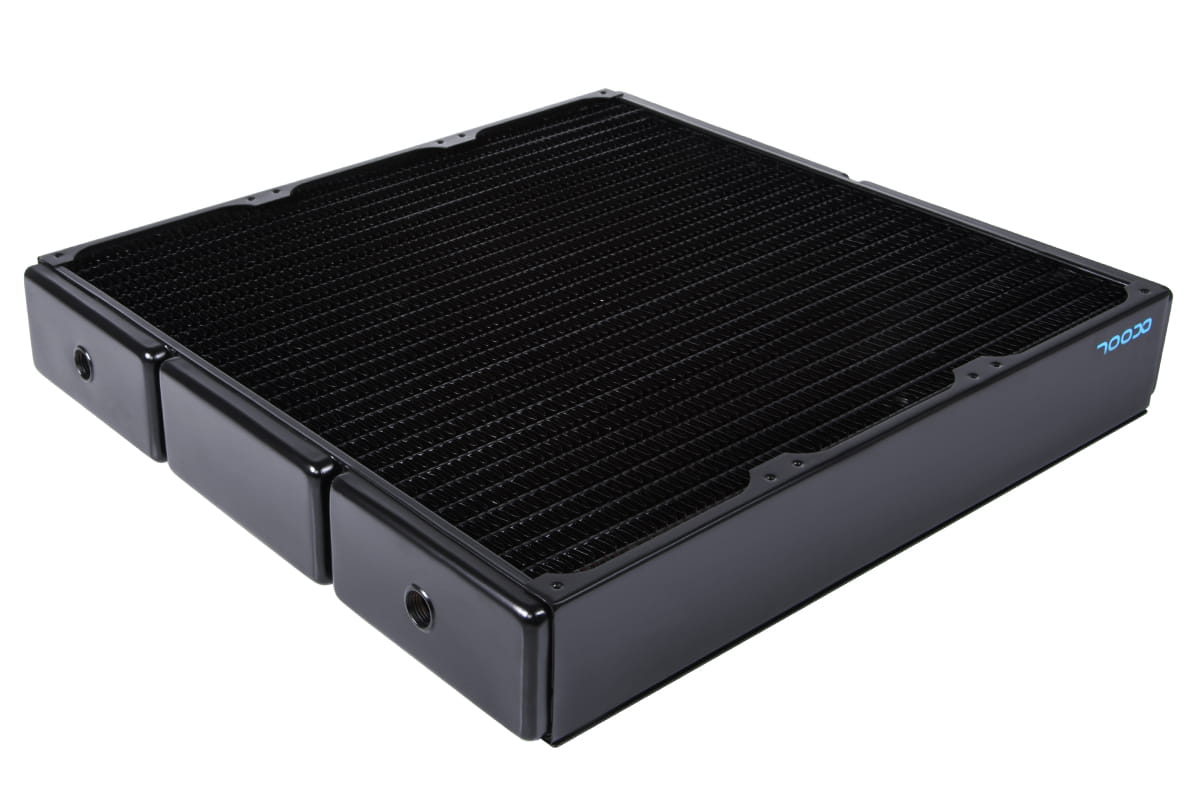

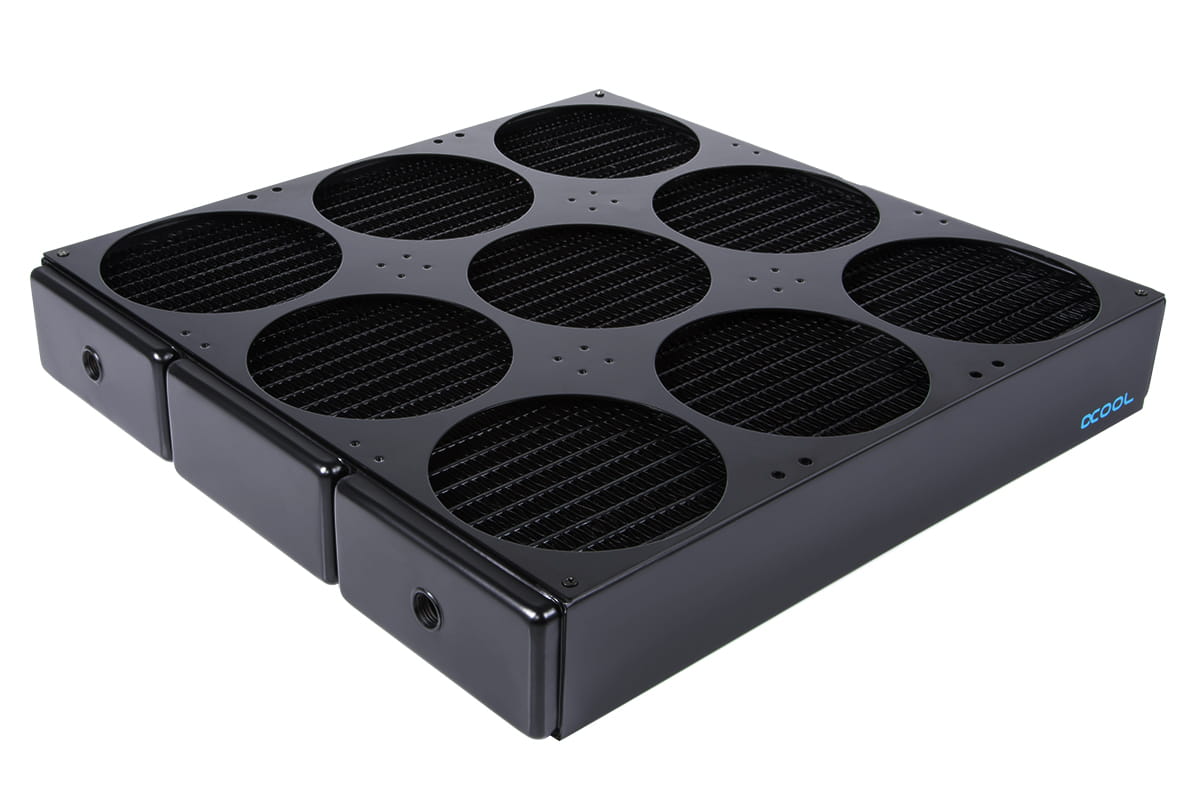

Alphacool NexXxoS UT60 1080mm Nova! 350 x 350 x 60 mm of pure cooling surface for nine 120mm fans.

Make No Compromises, Use Copper.
As usual, Alphacool also uses pure copper for the NexXxoS 1080 SuperNova Radiator. The end chambers, water channels and cooling fins are all made of copper and are a unique selling point worldwide. As a result, Alphacool radiators have been among the most popular and best on the market for many years, providing the perfect foundation for every water cooling system.

Full Cooling Capacity
To maximize the performance of a radiator, Alphacool reaches deep into its bag of tricks. Copper is the starting point. With a thermal conductivity of 400 W/(mK) for copper compared to 236 W/(mK) for aluminium, the winner is clear. Alongside this is the special fin density. Alphacool is one of the oldest companies in the field of water cooling and has carried out countless laboratory tests. The result, especially for such large radiators, is a fin spacing of 12 FPI. This means that the air flow is almost unobstructed as the air can pass through even without high pressure. However, the cooling capacity does not suffer from this, on the contrary. To use the airflow optimally, all cooling fins have small serrations. These are tiny flaps that guide the airflow in the desired direction and increase the surface area. In the case of radiators, they are barely 1 mm high, but still provide controlled air turbulence to increase cooling capacity and minimise airflow noise.

Which fans?

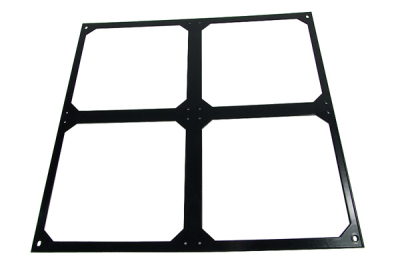

The 1080 Nova radiator has space for nine 120 mm fans on the mounting frame. If you want to operate the radiator passively, you can remove the mounting plate in order not to obstruct the natural airflow. Of course, the mounting plates for both types of fans can also be interchanged. This gives you more freedom when mounting the fans.

Connection options

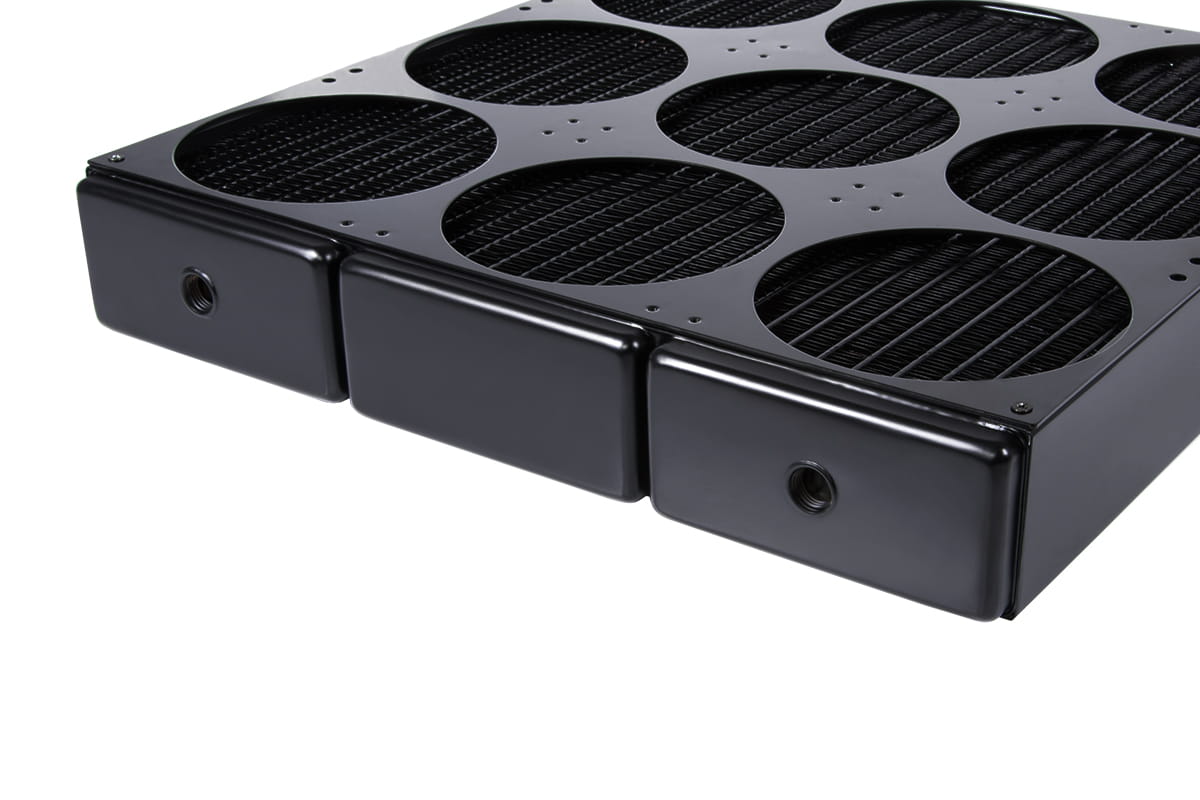

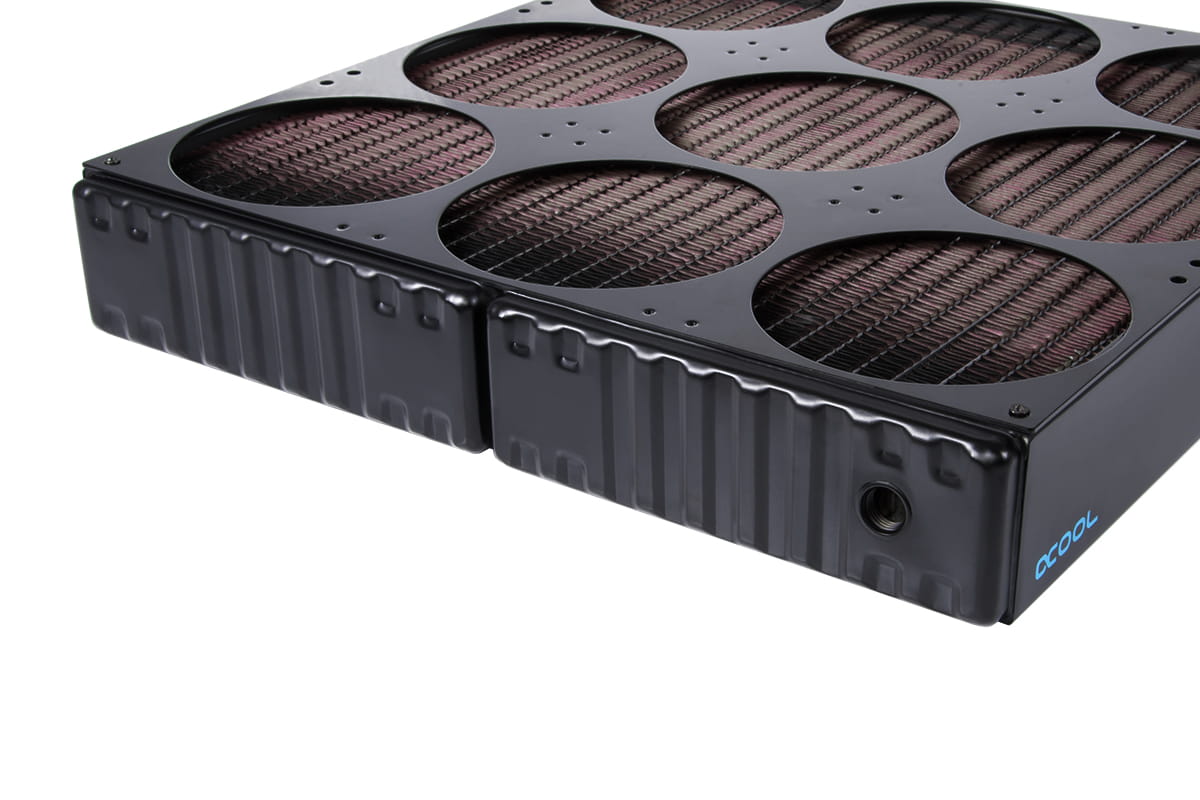

The Alphacool NexXxoS Nova Radiator offers two G1/4" threads for IN and OUT. A further G1/4" thread on the back of the radiator serves as a fill port. Alternatively, a temperature sensor or a drain port can also be attached here.

Technical data
Dimensions (L x W x H)	378 x 360 x 65mm
Quantity of cooling channels	84
Thickness	49 - 69mm
Cooling channels	Copper
Color	black
Fan thread	M3
Slats	Copper
Number of fans	9
Fan size	120mm
Housing	Steel
Pressure tested	0,8 bar
Manufacturer	Alphacool
Fins per inch	12
Connection	3x G1/4"

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Lamellen:	Kupfer
Kühlkanäle:	Kupfer
Gehäuse:	Stahl
Lüftergewinde:	M3
Druckgetestet:	1,5 bar
Fins per inch:	12
Dicke:	49 - 69mm
Anzahl Lüfter:	9
Lüftergröße:	120mm
Abmessungen (L x B x H):	378 x 360 x 65mm
Anschluss:	3x G1/4"
