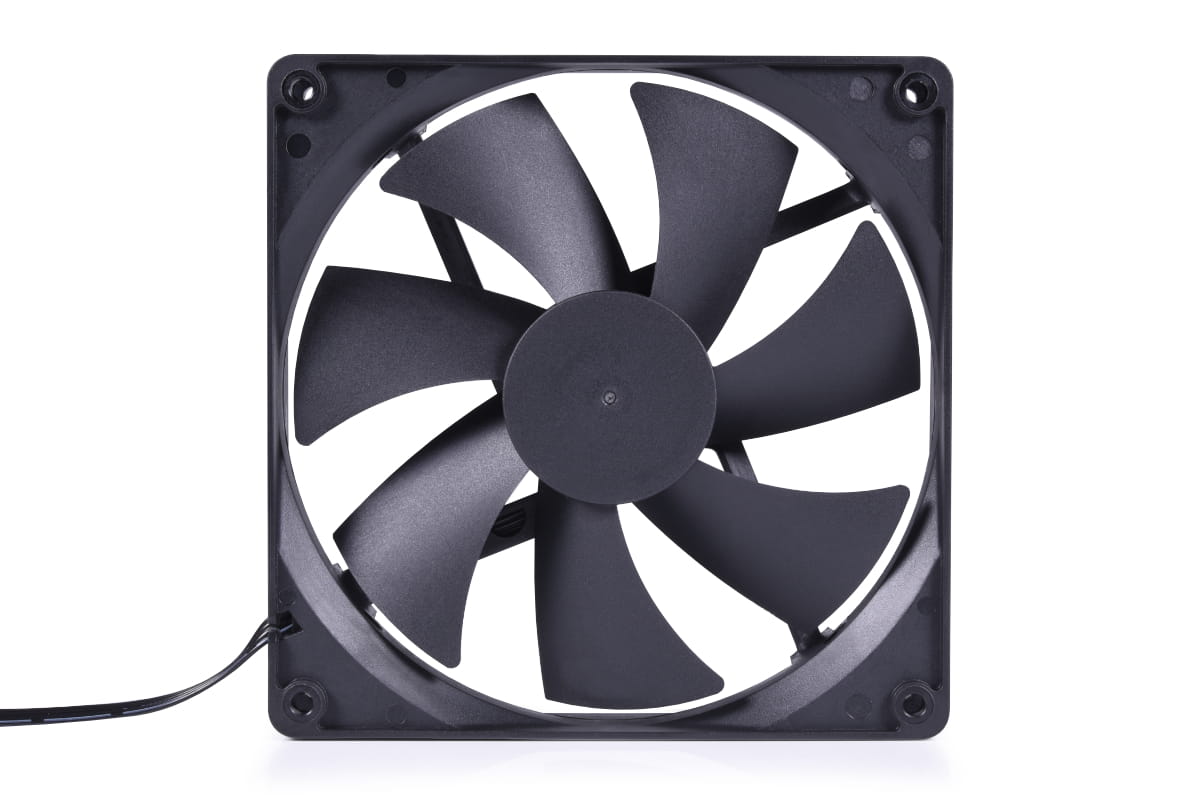

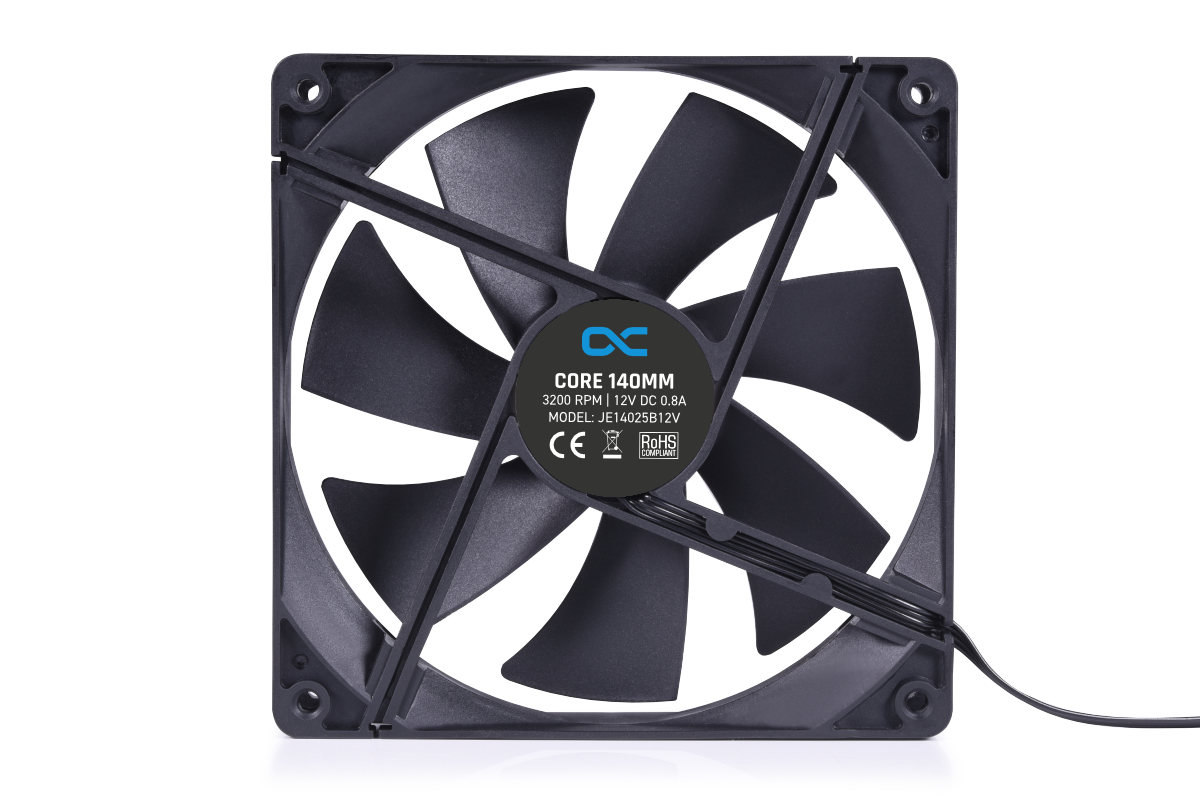

Alphacool Core 140mm fan PWM 3200rpm (140x140x25mm)

  • 24847
  • 4250197135917
  • 0,195 kg
  • There are more than 250 units available
  • Images may differ slightly from the original
€10.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
LK Phobya Y-cable 4Pin PWM to 4x 4Pin PWM - Black 60cm
1x
Phobya Y-cable 4Pin PWM to 4x 4Pin PWM - Black 60cm
€6.97*
RAB Alphacool NexXxos fan mounting screw M3 x 35 mm - 4 pieces
1x
Alphacool NexXxos fan mounting screw M3 x 35 mm - 4 pieces
€3.98*
RAB Alphacool Shroud & Decoupling 140mm (7mm thick) incl. 4x M3x37mm screws
1x
Alphacool Shroud & Decoupling 140mm (7mm thick) incl. 4x M3x37mm screws
€5.48*
CON Alphacool ES Guardian 4Port Powerfan Hub
1x
Alphacool ES Guardian 4Port Powerfan Hub
€49.99*
LZ fan grille for axial fan for 140mm chrome
1x
fan grille for axial fan for 140mm chrome
€2.69*
Alphacool's Core 140mm is a quiet and efficient fan with a wide control range up to 3200 rpm.... more
Product information

Alphacool's Core 140mm is a quiet and efficient fan with a wide control range up to 3200 rpm. The PWM controllable fan is not only suitable as a fan on CPU coolers or radiators. Due to its excellent performance values (throughput & static pressure), it can also be used as a case fan. The double-bearing fan axis is smooth running and enables a long service life as well as quiet operation. If you are looking for a powerful fan without aRGB illumination, you will find it in Alpacool's Core 140mm model!

Connections

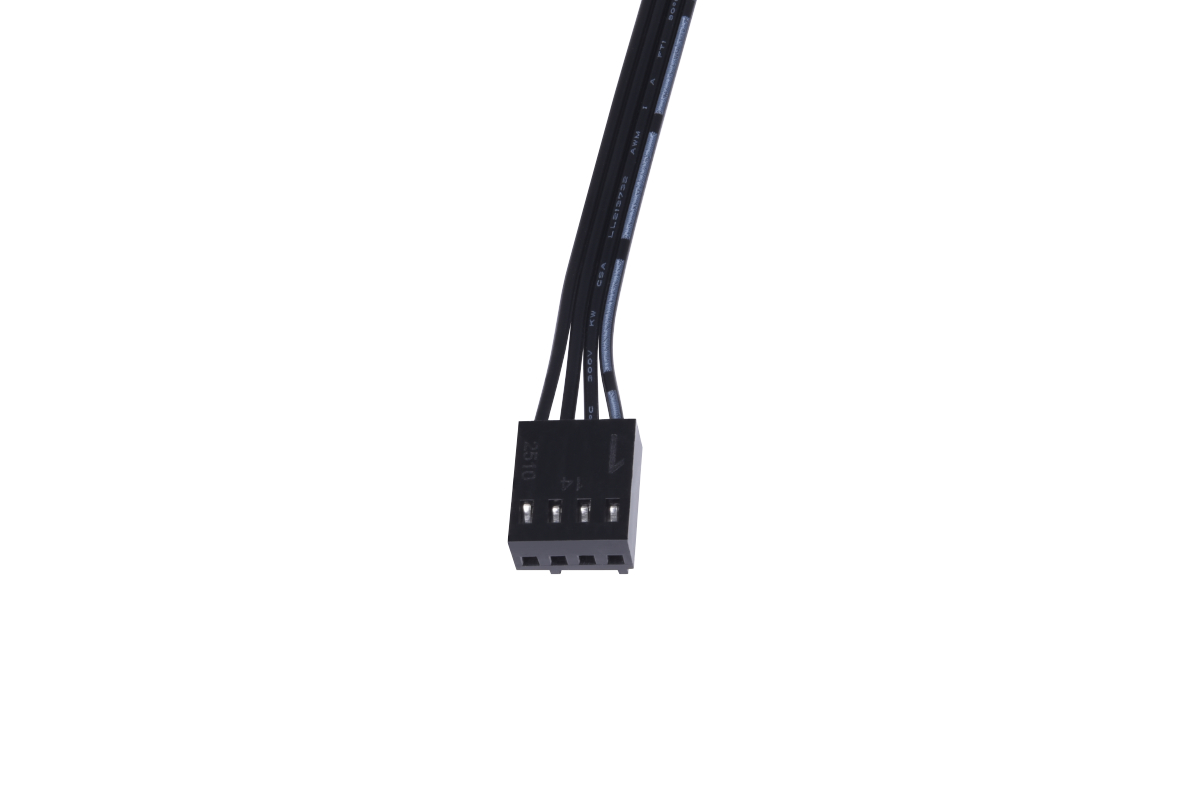

The fan is controlled via a 4-pin PWM connector. The cable is 40cm long. This allows the fan to be connected directly to the motherboard or a dedicated controller without the use of additional adapter cables or extensions.

Control range
The fan can be controlled from 0 to 3200 rpm via the 4-pin PWM connector. At maximum speed, it allows an airflow of 153.9 CFM combined with a high static pressure of 6.99 mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system or for ventilating a case.



Technical data
Dimension (L x W x H)140 x 140 x 25mm
Materialsynthetic material (PBT UL94V-0)
Bearing TypeTwo Ball Bearing
Rated VoltageDC 12V
Operating VoltageDC 7-14V
Start-up Voltage7V
Rated Current0.66 (Max: 0.75) A
Rated Power7.92 (Max: 9.00) W
Rated Speed0 - 3200 rpm ±10%
Max. Air Flow153.9 CFM
Max. Static Pressure6.99 mm/H2O
Noise level51.0 (Max: 53.0) dBA
Life Expectance70000 h at 40 degrees celcius
Connection4-Pin PWM
Speed Control Modevia PWM
Operating Temperature-10~+70 degrees celcius
Other FeaturesTachometer Output, Auto Start, Soft Start, Waterproof Level IP22

Warranty: 3 years
🔗 Warranty Terms

Technical details mehr
Technical details
Hersteller: Alphacool
Größe: 140mm
Abmessungen: 140 x 140 x 25mm
Nennspannung: 12V DC
Startspannung: 7V
Stromanschluss: 4Pin
Lebensdauer (bei 25°C): 70.000 h
Nenndrehzahl: 3400 U/min
Druck: 6.99 mm H2O
Luftförderleistung: 153.9 CFM
Lautstärke: 51 dB(A)
Lautstärkebereich: 50 - 69,9 dB(A)
Farbe Rahmen: schwarz
Farbe Rotor: schwarz
