L14 Alphacool Core 140mm Lüfter PWM 2000rpm (140x140x25mm)

L14 Alphacool Core 140mm Lüfter PWM 2000rpm (140x140x25mm)

L14 Alphacool Core 140mm Lüfter PWM 2000rpm (140x140x25mm)

L14 Alphacool Core 140mm Lüfter PWM 2000rpm (140x140x25mm)

L14 Alphacool Core 140mm Lüfter PWM 2000rpm (140x140x25mm)

L14 Alphacool Core 140mm Lüfter PWM 2000rpm (140x140x25mm)

L14 Alphacool Core 140mm Lüfter PWM 2000rpm (140x140x25mm)

L14 Alphacool Core 140mm Lüfter PWM 2000rpm (140x140x25mm)

L14 Alphacool Core 140mm Lüfter PWM 2000rpm (140x140x25mm)

L14 Alphacool Core 140mm Lüfter PWM 2000rpm (140x140x25mm)

Article no.: 24853
EAN: 4250197135894
Weight: 0,18 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€7.98 *

Prices incl. VAT plus shipping costs

in stock

1x

Phobya Y-cable 4Pin PWM to 4x 4Pin PWM - Black 60cm

€6.97*

1x

Alphacool NexXxos fan mounting screw M3 x 35 mm - 4 pieces

€3.98*

1x

Alphacool Shroud & Decoupling 140mm (7mm thick) incl. 4x M3x37mm screws

€5.48*

1x

Alphacool ES Guardian 4Port Powerfan Hub

€49.99*

1x

fan grille for axial fan for 140mm chrome

€2.69*

Alphacool's Core 140mm is a quiet and efficient fan with a wide control range up to 2000 rpm.... more

Product information

Alphacool's Core 140mm is a quiet and efficient fan with a wide control range up to 2000 rpm. The PWM controllable fan is not only suitable as a fan on CPU coolers or radiators. Due to its excellent performance values (throughput & static pressure), it can also be used as a case fan. The hydraulically mounted fan axis is smooth running and enables a long service life as well as quiet operation. If you are looking for a powerful fan without aRGB illumination, you will find it in Alpacool's Core 140mm model!

Connections

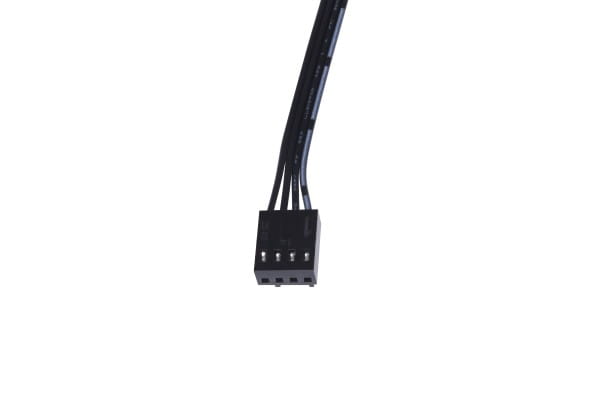

The fan is controlled via a 4-pin PWM connector. The cable is 40cm long. This allows the fan to be connected directly to the motherboard or a dedicated controller without the use of additional adapter cables or extensions.

Control range
The fan can be controlled from 0 to 2000 rpm via the 4-pin PWM connector. At maximum speed, it allows an airflow of 103.03 CFM combined with a high static pressure of 2.81 mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system or for ventilating a case.

Technical data
Dimension (L x W x H)	140 x 140 x 25mm
Material	synthetic material (PBT UL94V-0)
Bearing Type	hydraulic Bearing
Rated Voltage	DC 12V
Operating Voltage	DC 7-14V
Start-up Voltage	7V
Rated Current	0.45 (Max: 0.5) A
Rated Power	5.4 (Max: 6.0) W
Control Range	0 - 2000 rpm ±10%
Max. Air Flow	103.03 CFM
Max. Static Pressure	2.81 mm/H2O
Noise level	38.3 (Max: 40.0) dBA
Life Expectance	50000 h at 25 degrees celcius
Connection	4-Pin PWM
Speed Control Mode	via PWM
Operating Temperature	-10~+55 degrees celcius
Other Features	Tachometer Output, Auto Start, Soft Start, Waterproof Level IP22

Warranty: 3 years
🔗 Warranty Terms

Technical details mehr

Technical details

Technical details

Hersteller:	Alphacool
Größe:	140mm
Abmessungen:	140 x 140 x 25mm
Nennspannung:	12V DC
Startspannung:	7V
Stromanschluss:	4Pin
RPM Signalübertragung:	Ja
Lautstärkebereich:	30 - 49,9 dB(A)
Lebensdauer (bei 25°C):	50.000 h
Nenndrehzahlbereich:	0 - 2000 U/min
Druck:	2,81 mm H2O
Luftförderleistung:	103,03 CFM
Lautstärke:	38,3 dB(A)
Farbe Rahmen:	schwarz
Farbe Rotor:	schwarz
