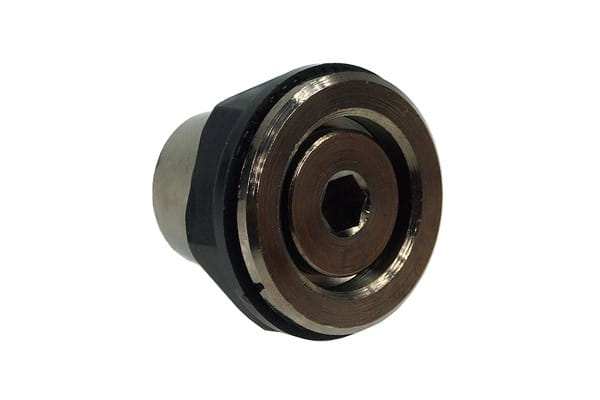

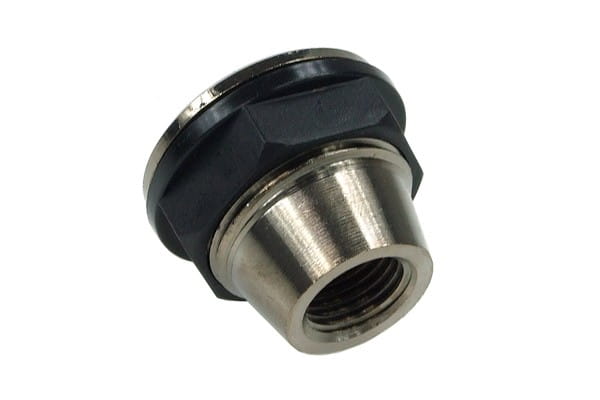

Fillport black nickel universal

Article no.: 45149
EAN: 4049469059804
Weight: 0,066 kg
Available: Akutell nicht Verfügbar - Mehr ist unterwegs
Images may differ slightly from the original

€8.49 *

Prices incl. VAT plus shipping costs

Liefertermin: in 12 - 13 Tagen

Universally applicable, black nickel-plated fill port for water cooling systems. The fill port... more

Close menu

Product information

Universally applicable, black nickel-plated fill port for water cooling systems. The fill port can then be connected to the expansion tank via a hose, allowing convenient filling and venting without having to take the PC apart, as the fill port can be installed on the top of a case, for example. The undercut O-ring in the collar of the fill port means that the fill port can be easily fixed in place and the fill port also seals cleanly.

Installation:

cut a 1" hole (2.54cm) in the lid or side of your case
Push the fillport into the opening
Secure the fillport with the plastic nut on the bottom
connect the hose to the expansion tank or T-piece
Secure the hose with a hose clamp or cable tie

Technical data:
Material: Brass
Thread: G1/4 inch (please order connection for the hose separately)
Scope of delivery: Fillport with screw plug, O-ring and fastening nut
Length: 25mm (upper side 3mm, lower side 22mm), without connectors
