Alphacool Eisblock Aurora Acryl RX 7900XT Reference with backplate

  • 13548
  • 4250197135481
  • 1,766 kg
  • There are more than 100 units available
  • Images may differ slightly from the original
€99.98 * €159.98 * (37.5% Saved)

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
ANS Alphacool Eiszapfen 16/10mm screw-on nozzle G1/4 - Chrome Sixpack
1x
Alphacool Eiszapfen 16/10mm screw-on nozzle G1/4 - Chrome Sixpack
€31.98*
ZSO Alphacool Eisplateau anti-static work and assembly mat 120x60cm
1x
Alphacool Eisplateau anti-static work and assembly mat 120x60cm
€59.98*
WAKZ Alphacool Aurora Vertical GPU Mount with Riser Cable
1x
Alphacool Aurora Vertical GPU Mount with Riser Cable
€74.98*
S16 Alphacool EPDM Tube 16/10 - Black 3m (9.84ft) Retailbox
1x
Alphacool EPDM Tube 16/10 - Black 3m (9.84ft) Retailbox
€18.98*
WAZ Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
WZS Alphacool spray bottle Core 500ml
1x
Alphacool spray bottle Core 500ml
€4.98*
The next generation - the Alphacool Eisblock Aurora water cooler for Radeon RX 7XXX graphics... more
Product information

The next generation - the Alphacool Eisblock Aurora water cooler for Radeon RX 7XXX graphics cards. In order to dissipate the enormous heat of this graphics card generation in the best possible way, numerous optimizations have been made to the water cooler compared to the previous model. The fin structure was adapted and enables a very good water flow while increasing the cooling surface. The modified jet plate with improved inflow engine ensures an optimal distribution of the water on the cooling fins.

Technical Highlights

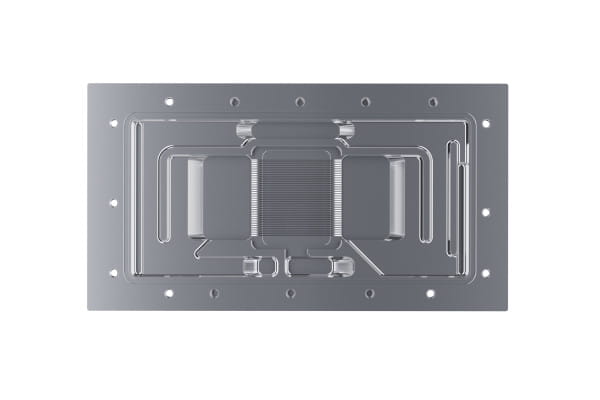

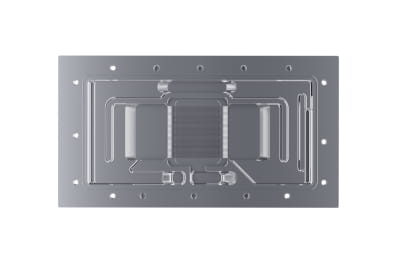

The fin structure of this Eisblock cooler generation was developed together with AMD board partners. The fin thickness is 0.4 mm, the distance between the cooling fins is 0.4 mm. This ensures a very good water flow while increasing the cooling surface. The jet plate has a revised inlay that spreads the water pressure better over the fins thus optimizing the heat absorption. The adjusted water inflow gives the water a better angle of inflow.

Chrome-plated copper
The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.

Design

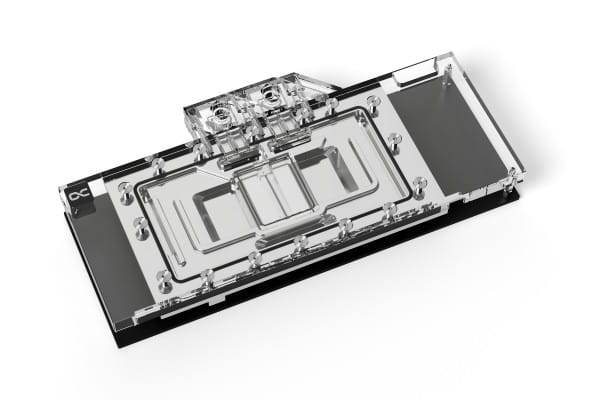

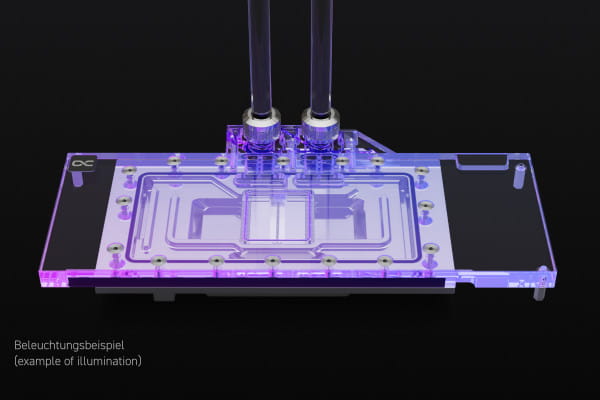

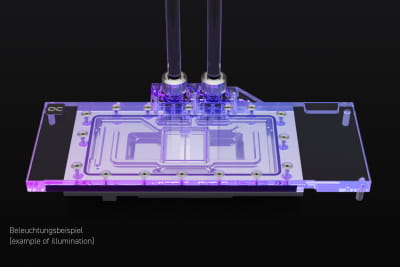

The Aurora design of the Radeon RX 7XXX Eisblock generation is visually calmer and simpler. Only one O-ring runs around the entire cooler. The design around the cooling fins and jetplate makes for a cleaner look. The illumination of the digitally addressable RGB LEDs is even better distributed throughout the cooler as a result of the chrome plating. The terminal's design is in line with the classic Aurora design.

Thermal paste & thermal pads
The included thermal compound is Alphacool's Subzero. With a thermal conductivity of 16 W/mK, it is one of the highest performing thermal pastes on the market. The electrically non-conductive thermal compund is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850,000 TF. Alphacool Soft Pads with 1mm thickness are used on the voltage converter and the graphics memory. The thermal conductivity of the pads is 7 W/mK. The pads for the back of the PCB are 3mm thick and have a thermal conductivity of 3 W/mK.



Compatibility:
- AMD Radeon RX 7900 XT, 20GB GDDR6
- ASRock Radeon RX 7900 XT, 20GB GDDR6
- Asus Radeon RX 7900 XT, RX7900XT-20G, 20GB GDDR6 (90YV0IU0-U0NM00)
- Biostar Radeon RX 7900 XT, 20GB GDDR6 (VA7906XM00)
- Gigabyte Radeon RX 7900 XT 20G, 20GB GDDR6 (GV-R79XT-20GC-B)
- PowerColor Radeon RX 7900 XT, 20GB GDDR6 (RX 7900 XT 20G)
- Sapphire Radeon RX 7900 XT, 20GB GDDR6 (21323-01-20G)
- XFX Radeon RX 7900 XT, 20GB GDDR6 (RX-79TMBABF9)



Technical data cooler
Dimensions (L x W x H)265,50 x 125,20 x 34,20mm
Material coolerchrome-plated copper
Material cooler topacrylic
Max working temperature60°C
Pressure tested0,8 bar
Threads4x G1/4"
Thickness cooling fins0,4mm
Distance cooling fins0,4mm
Illuminationdigital aRGB LEDs
Number of digital aRGB LEDs13
Power connector digital aRGB LEDs3-Pin JST
Power digital aRGB LEDs5V

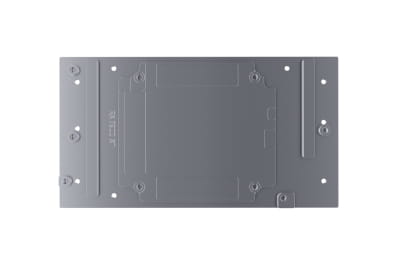

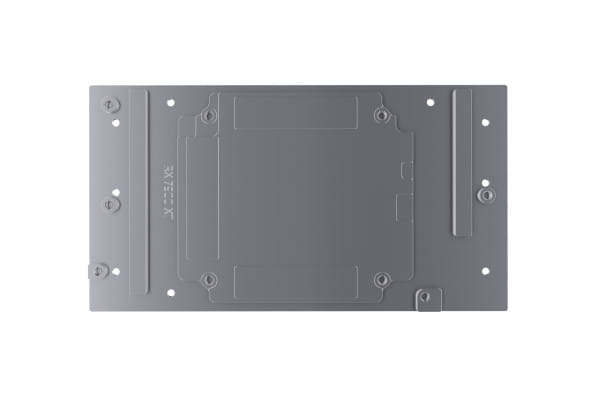

Technical data backplate
Dimensions (L x W x H)265,50 x 100,70 x 6mm
Materialaluminium
Colorblack

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Awards & Videos
Technical details mehr
Technical details
Hersteller: Alphacool
SLI kompatibel: Ja
Kühlertyp: Komplettkühler
Anschluss: 4x G1/4"
Hardware Hersteller: AMD
Material Deckel: Acryl
Abmessungen: 265,50 x 125,20 x 34,20mm
Material Bodenplatte: Kupfer
Hardware Modell: Radeon RX 7900XT
