Alphacool Eisblock Aurora Acryl GPX-A AMD Radeon 5700 XT Sapphire Nitro+

WAK Alphacool Eisblock Aurora Acryl GPX-A Radeon 5700 XT Nitro+ EOL

Article no.: 11753
EAN: 4250197117531
Weight: 1,313 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€49.98 * €129.97 * (61.54% Saved)

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Deep Black

€5.99*

Alphacool Eiszapfen 13mm HardTube screw-on nozzle G1/4 - Deep Black

€5.99*

Alphacool Eiszapfen 13mm HardTube screw-on nozzle 90° rotatable G1/4 - Deep Black

€8.98*

Alphacool Aurora Eiscontrol Addressable RGB Controller - Black

€15.98*

Alphacool connection cable 3Pin to 3pin Digital RGB - 15cm

€1.48*

The Alphacool Aurora Acryl GPX Eisblock combines style with performance and extensive digital... more

Close menu

Product information

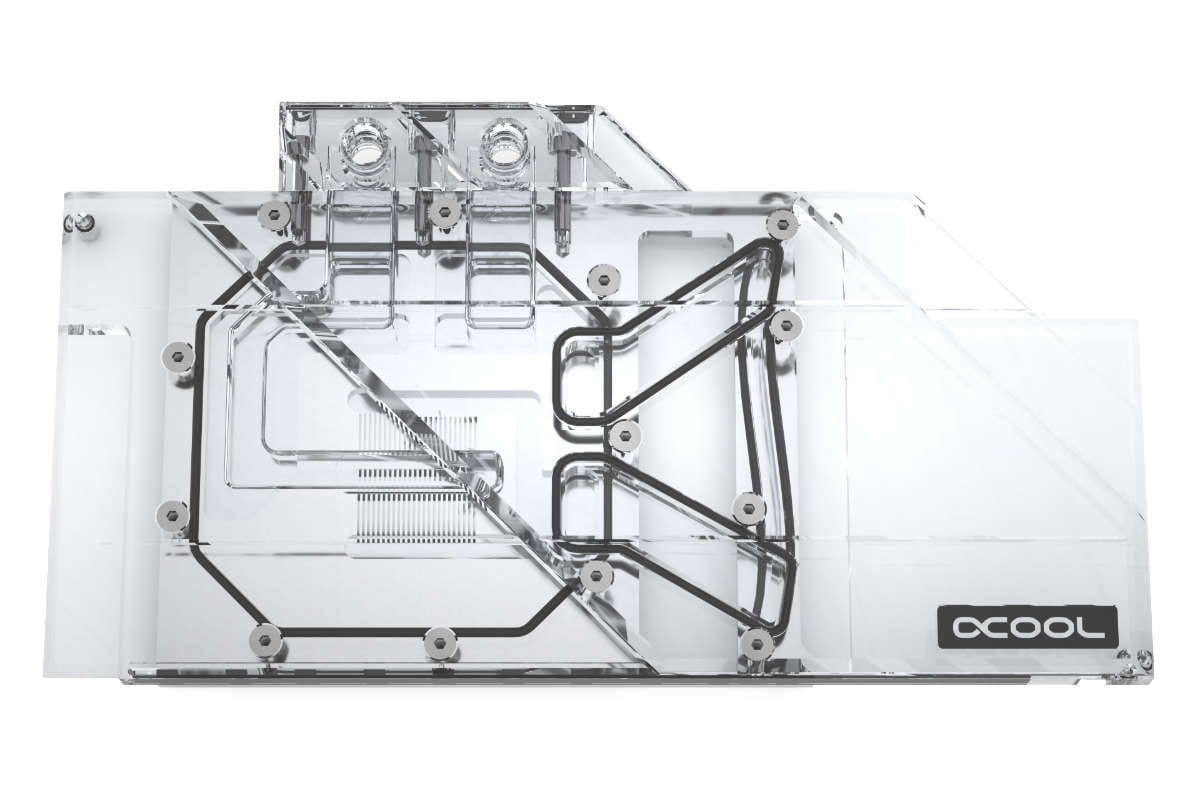

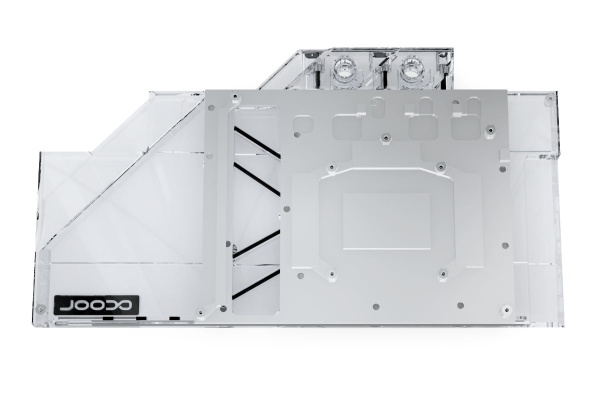

The Alphacool Aurora Acryl GPX Eisblock combines style with performance and extensive digital RGB
lighting. With experience of over 16 years, Alphacool the ability to create GPU blocks that represent high
quality and fantastic performance. This perfectly describes the Aurora Acryl GPX Eisblock

More Performance!
During the development of the EIsblock Aurora GPX graphic card GPU block, we wanted to further increase the performance. The first step was to move the cooler closer to the individual components by
reducing the thermal pads to a thickness of 1 mm. Next, we reduced the thickness of the nickel-plated
copper block. Instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also
been optimized. All important components such as the voltage transformers and the memory are now
significantly better and more effectively cooled by the water. All this ensures a significant increase in cooling performance.

New Design!

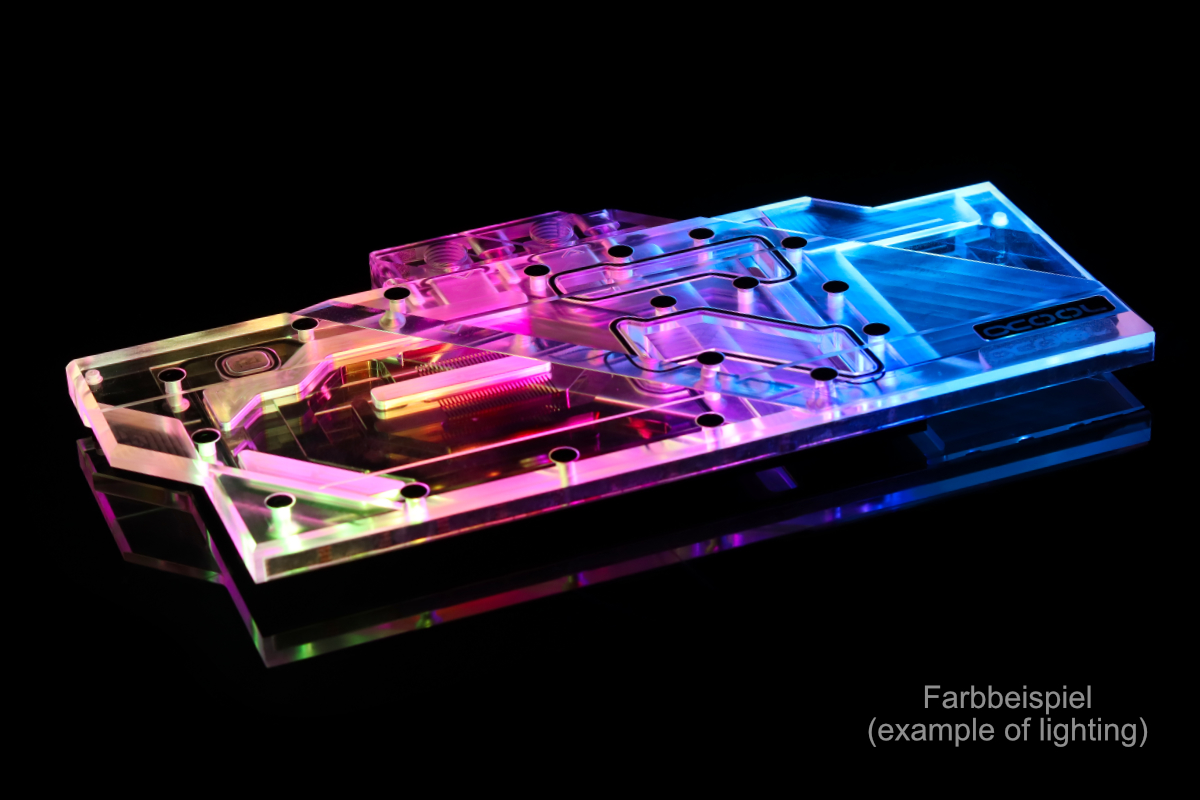

The Eisblock Aurora GPX cooler has been designed so that lighting is more important than the previous
models. The addressable digital RGB LEDs are embedded directly into the cooling block and run along
the entire cooling block. The effect is an illumination of the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular with all edges bevelled. This promotes
better light diffusion in the water cooler due to the reflections on these bevels. In addition, they create
various contours, which give the Aurora GPX Eisblock cooler its very own unique identity.

Copper or Aluminium?
Of course, Alphacool only uses copper for its water coolers. With the Aurora GPX Eisblock, the copper
is nickel-plated. Compared to its predecessor models, Alphacool has improved the nickel plating even further, which has considerably increased the acid resistance. This means that the nickel should resist flaking.
Why does Alphacool rely on copper instead of aluminium? Simply, copper has almost twice the thermal
conductivity of aluminium and is therefore clearly the better material for water cooling.

Is There Anything Else New?
The Eisblock Aurora GPX also relies on the new patented stop fittings, which sit flush with the surface of
the terminal. The Alphacool logo now sits in the corner on the top and is also fully illuminated. On the
front of the terminal you can see the corresponding names of the compatible graphic card types. Of
course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small triangles. They are easily recognizable and fit perfectly into the entire aesthetics of the graphic card water
cooler.

The Alphacool Aurora GPX Acryl is a complete redevelopment of the previous Alphacool graphics card
water coolers. No technical compromises were made, but the entire technical know-how flowed into the
development and implementation.

Compatibility:
- Sapphire Nitro+ Radeon RX 5700 XT 8G, 8GB GDDR6 (11293-03-40G)

Technical data GPU cooler
Dimension (B x T x H)	120,4 x 266,7 x 25,3 mm
Max working temperature	60 °C
Material cooler	nickel plated copper
Material top	acrylglass
Thikness of fins	0,6 mm
Threads	4 x G1/4“
Power supply Digital RGB	3-Pin 5V
Pressure tested	1,5 Bar
Color	transparent

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Anschluss:	2x G1/4"
SLI kompatibel:	Ja
Kühlertyp:	Komplettkühler
Hardware Hersteller:	AMD
Material Deckel:	Acryl
Material Bodenplatte:	Kupfer
Abmessungen:	260 x 141 x 23mm
Hinweis:	Kompatibel bis 16/13mm gerade, Kompatibel bis 19/13mm gewinkelt
Hardware Modell:	Radeon RX 5700, Radeon RX 5700XT
