Wasserkühlungs Radiator Alphacool NexXxoS 120 mm

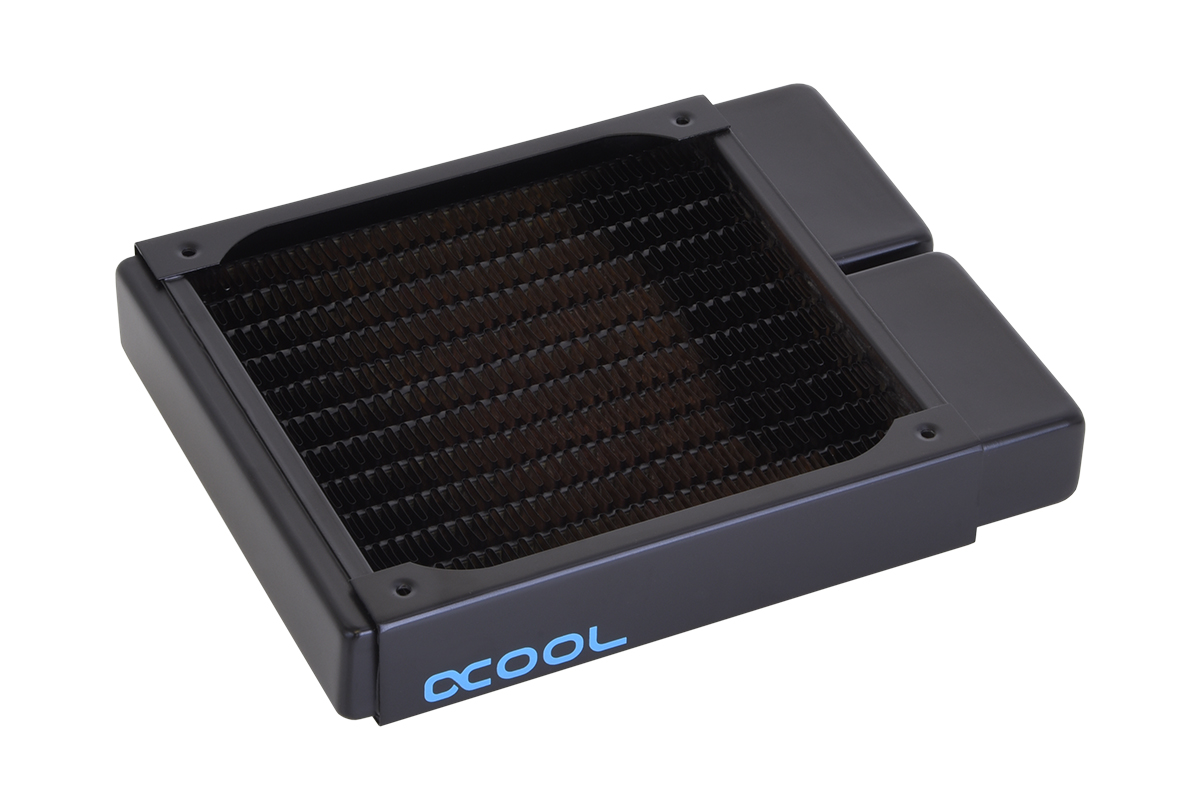

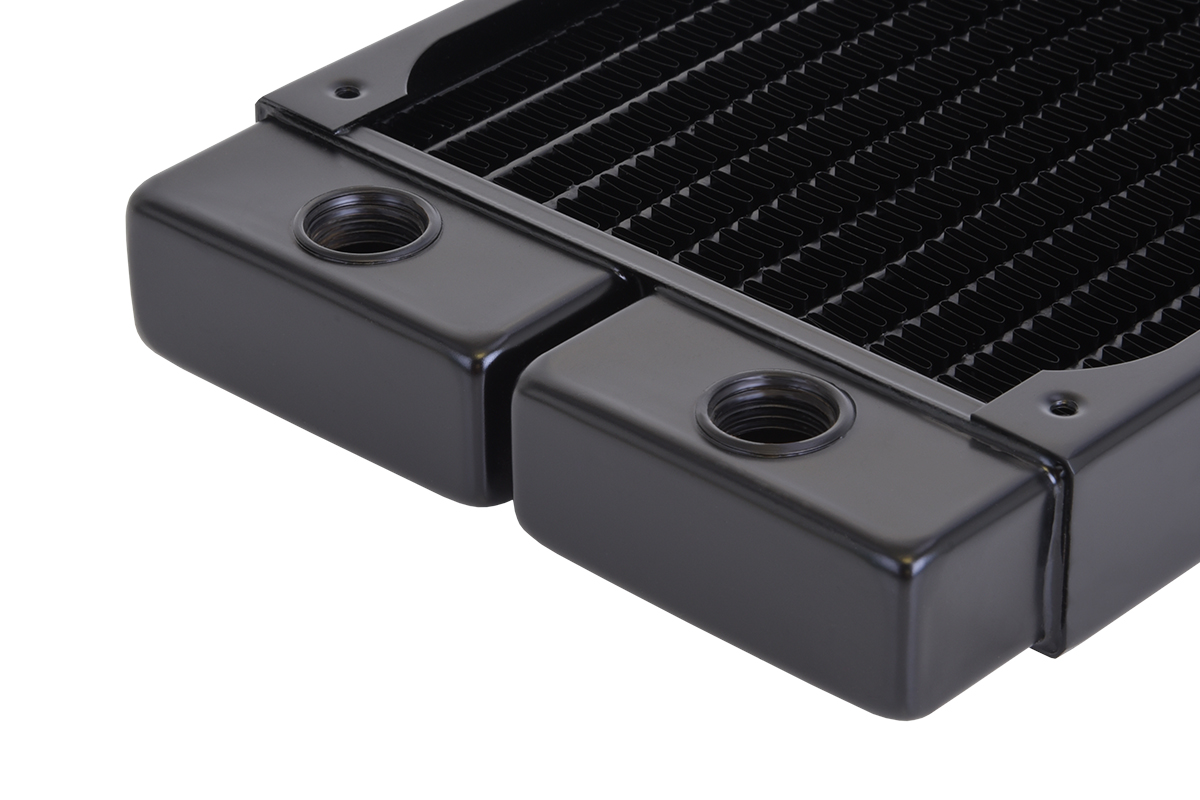

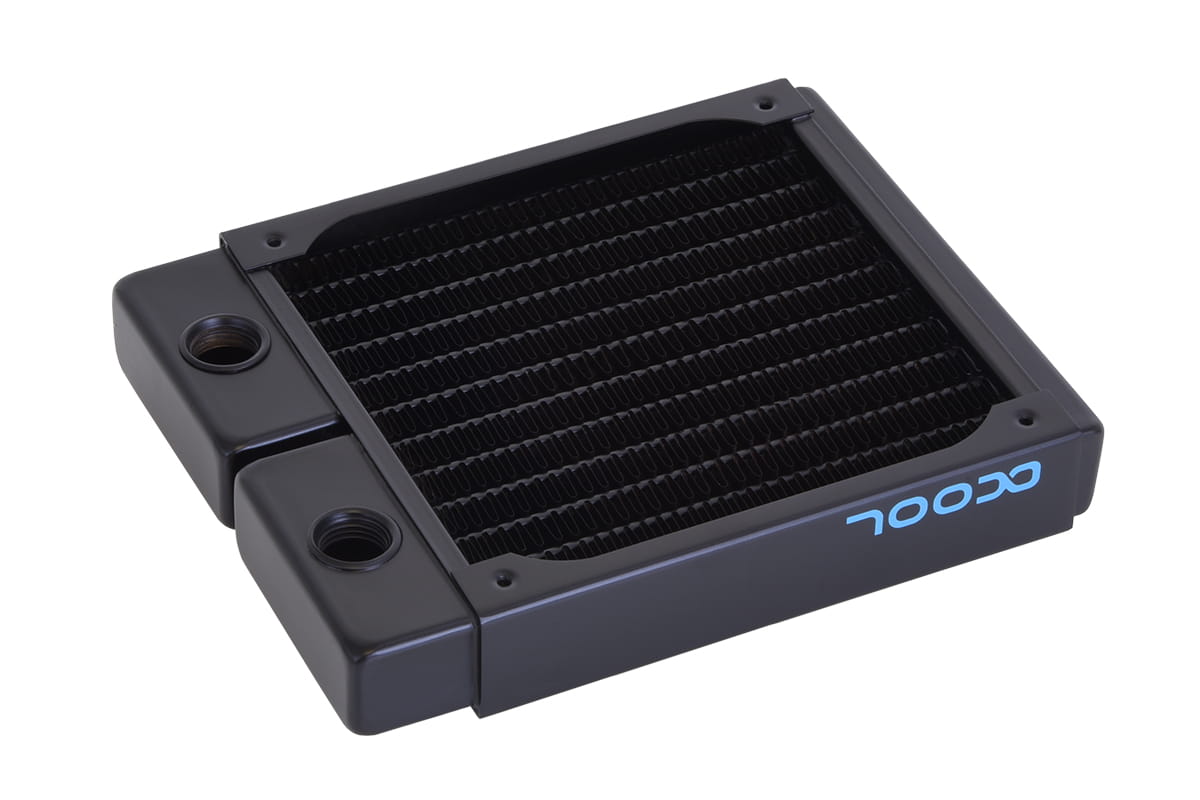

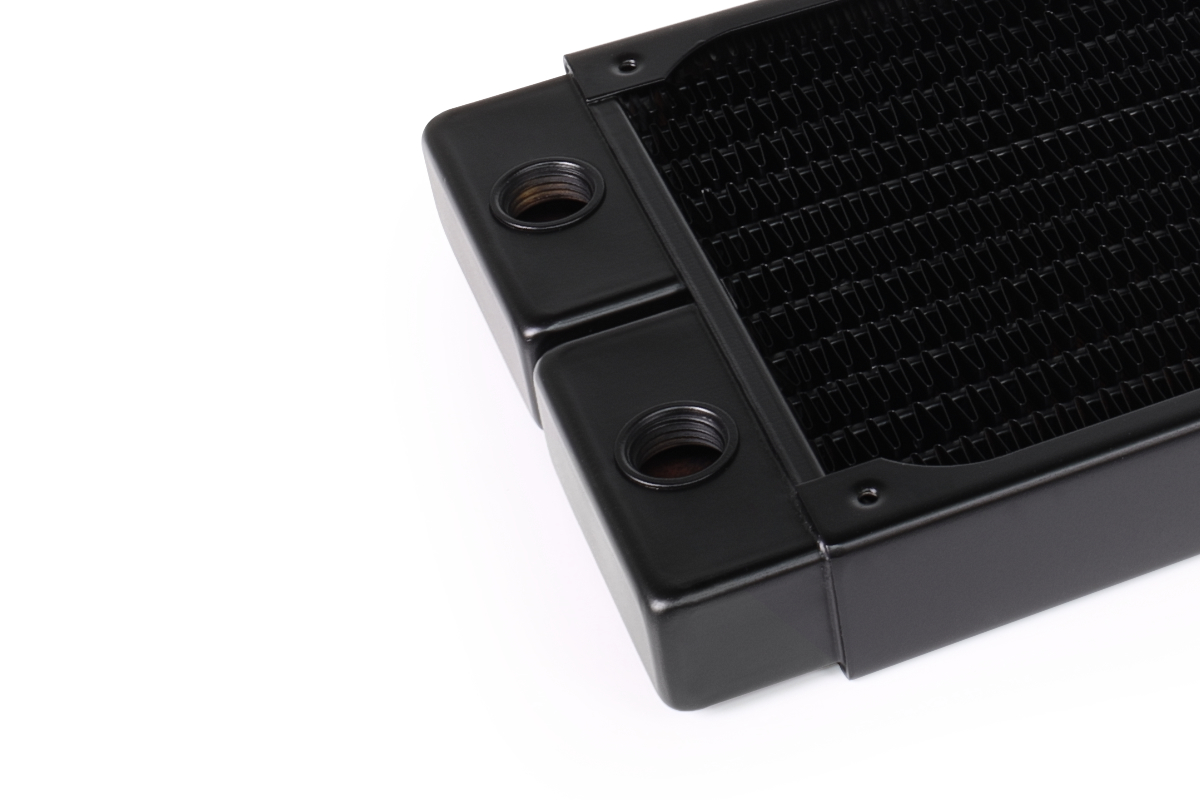

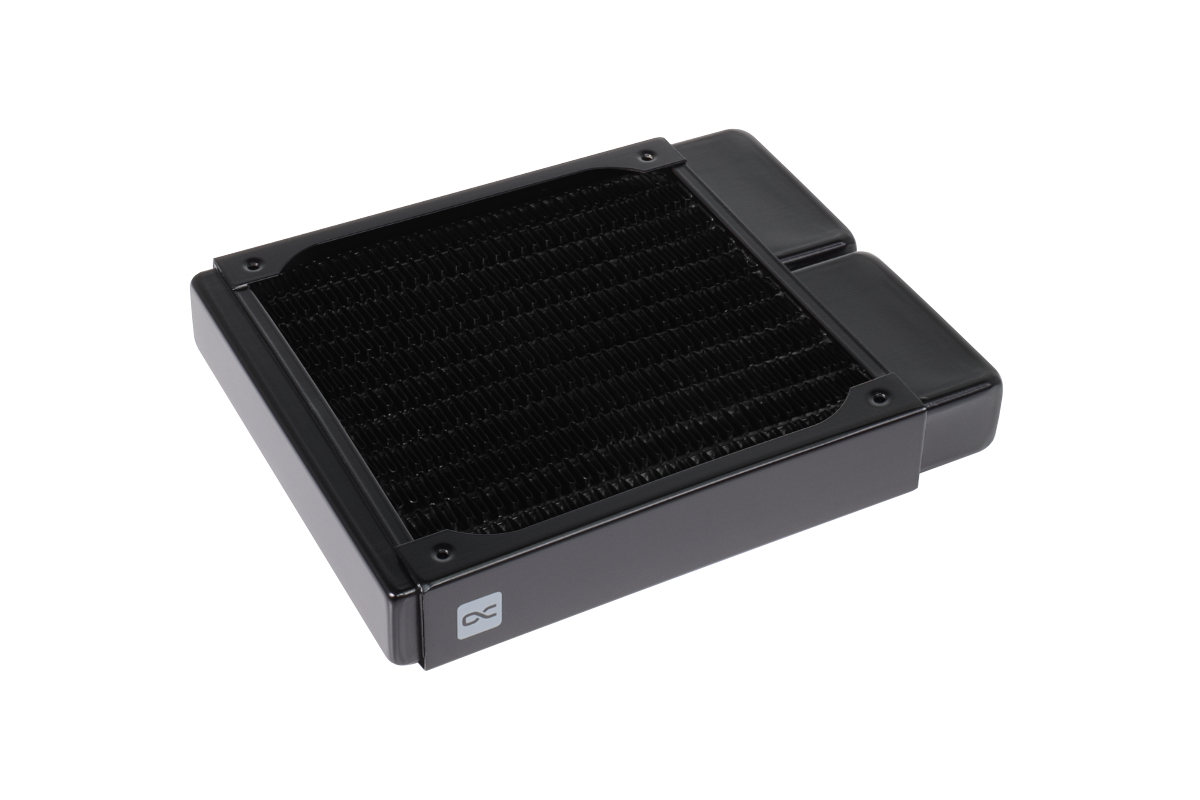

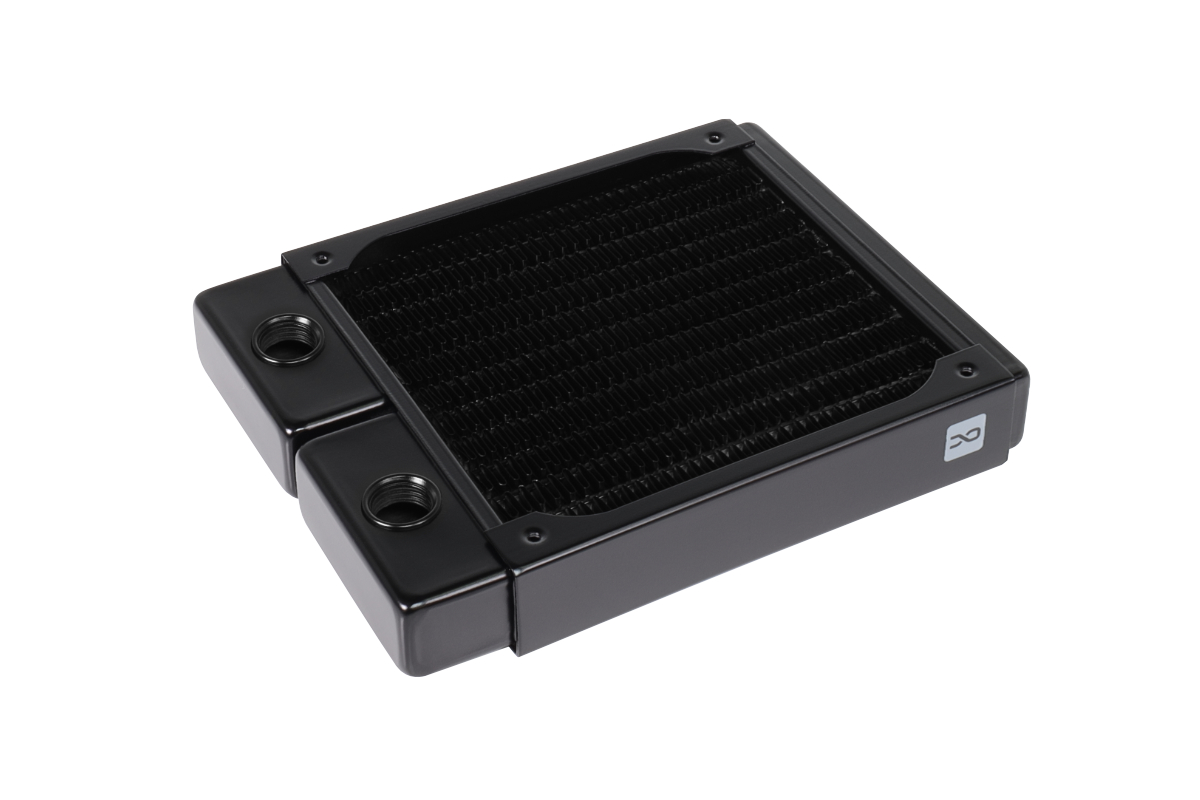

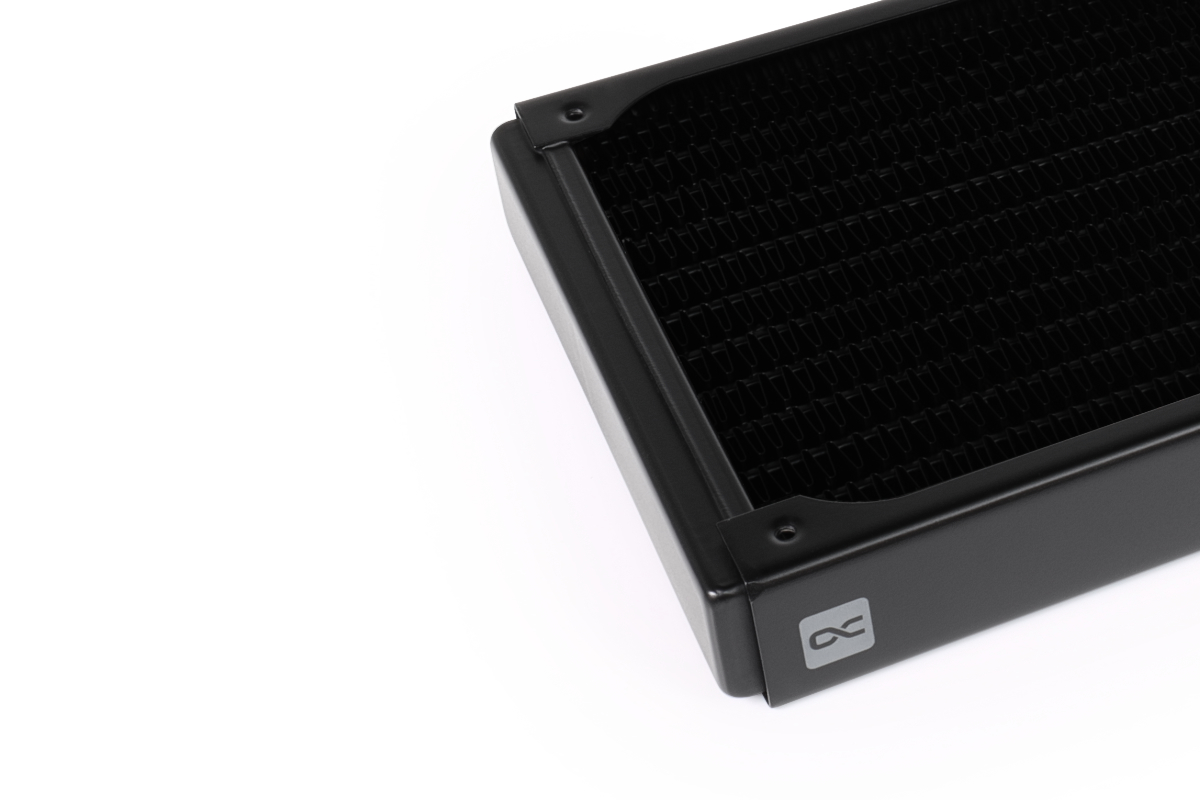

RAD Alphacool NexXxoS ST25 Full Copper 120mm Radiator

Article no.: 14352
EAN: 4250197143523
Weight: 0,5 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€36.99 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen screw plug G1/4 - Chrome

€2.48*

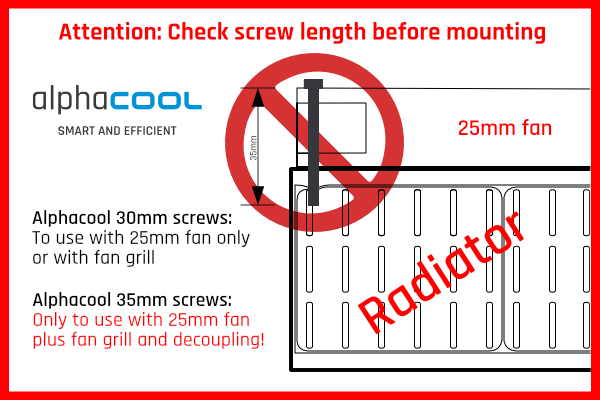

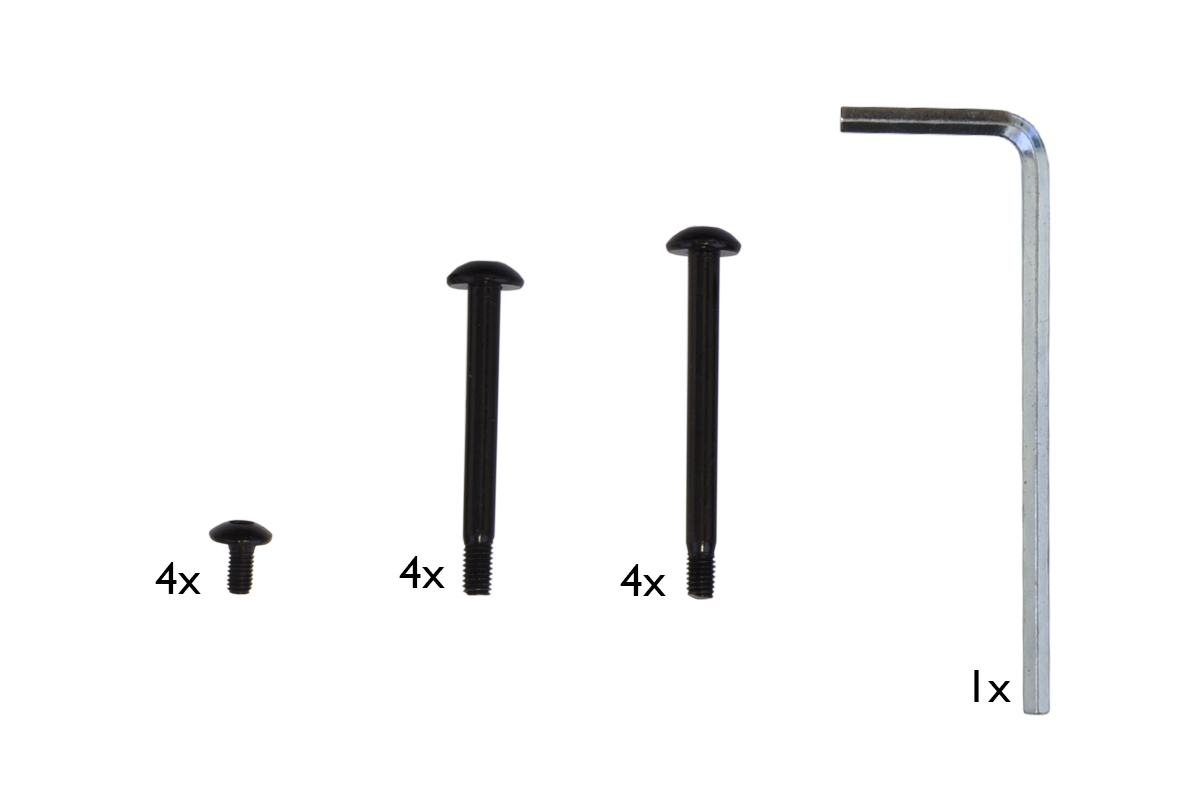

Alphacool NexXxos fan mounting screw M3 x 35 mm - 4 pieces

€3.98*

Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Deep Black Sixpack

€33.97*

Alphacool is an internationally renowned company in the field of water cooling solutions for... more

Close menu

Product information

Alphacool is an internationally renowned company in the field of water cooling solutions for both industrial and home users. To ensure that customers receive the best products available, Alphacool is constantly developing new products and making improvements to existing products.

Make No Compromises, Use Copper.
As usual, Alphacool uses pure copper for the NexXxoS ST25 slim radiators. The end chambers, the water channels and the cooling fins are all made of copper, a unique selling point worldwide. No other manufacturer relies on pure copper for all these components combined. As a result, Alphacool has been producing one of the most popular and highest performing radiators on the market for many years, providing the perfect foundation for every water cooling system.

Full Cooling Capacity
To maximize the performance of a radiator, Alphacool reaches deep into its bag of tricks. Copper is the starting point. With a thermal conductivity of 400 W/(mK) for copper compared to 236 W/(mK) for aluminium, the winner is clear. Alongside this is the special fin density. Alphacool is one of the oldest companies in the field of water cooling and has carried out countless laboratory tests. The result is a fin spacing of 15 FPI. This means that the air flow is only slightly obstructed as the air can pass through even without high pressure. However, the cooling capacity does not suffer from this, on the contrary. To use the airflow optimally, all cooling fins have small serrations. These are tiny flaps that guide the airflow in the desired direction and increase the surface area. In the case of radiators, they are barely 1 mm high, but still provide controlled air turbulence to increase cooling capacity and minimise airflow noise.

Compact
The ST25 slim radiators offer the ideal liquid cooling solution for Mini-PCs or SSF (Small Form Factor) systems. Due to the extremely flat design, the NexXxoS ST25 radiators are ideal for such small cases and due to the reduced size, they give you the extra space you need to work in the case.

Technical Data
L x W x H	151 x 120 x 25,5 mm (+/- 3%)
Quantity of cooling channels	12
FPI	15
Material cooling fins	Copper
Material chambers	Copper
Material cooling channels	Copper
Material threads	Brass
Material outer housing	stainless steel
G 1/4“ threads	2 x
For fan size	120 mm
Possible fan assembly	1 x one-sided / 1 x both-sided
Pressure tested	0,8 bar

Warranty: 10 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Fins per inch:	15
Housing:	Steel;
Cooling channels:	Copper
Slats:	Copper
Fan thread:	M3
Fan size:	120mm;
Dimensions (L x W x H):	151 x 120 x 25,5mm
Connection:	2x G1/4"
Number of fans:	1;
Thickness:	0 - 29mm
Pressure tested:	0,8 bar
Color:	Black
