CORE 1 CPU Wasserkühler für AMD und Intel

WAC Alphacool Apex 1 CPU Kühler LGA 1700/1851

Article no.: 13851
EAN: 4250197138512
Weight: 1,257 kg
Available: Currently there are 2 available - More is on the way
Images may differ slightly from the original

€169.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Chrome Sixpack

€33.97*

Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Deep Black Sixpack

€33.97*

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

Alphacool Core Geforce RTX 4090 Founders Edition with Backplate

€139.98*

Alphacool Core Distro Plate 420 Left VPP/D5 with VPP Apex Pump

€269.98*

The Alphacool Apex series represents maximum cooling performance, exceptional design, and... more

Close menu

Product information

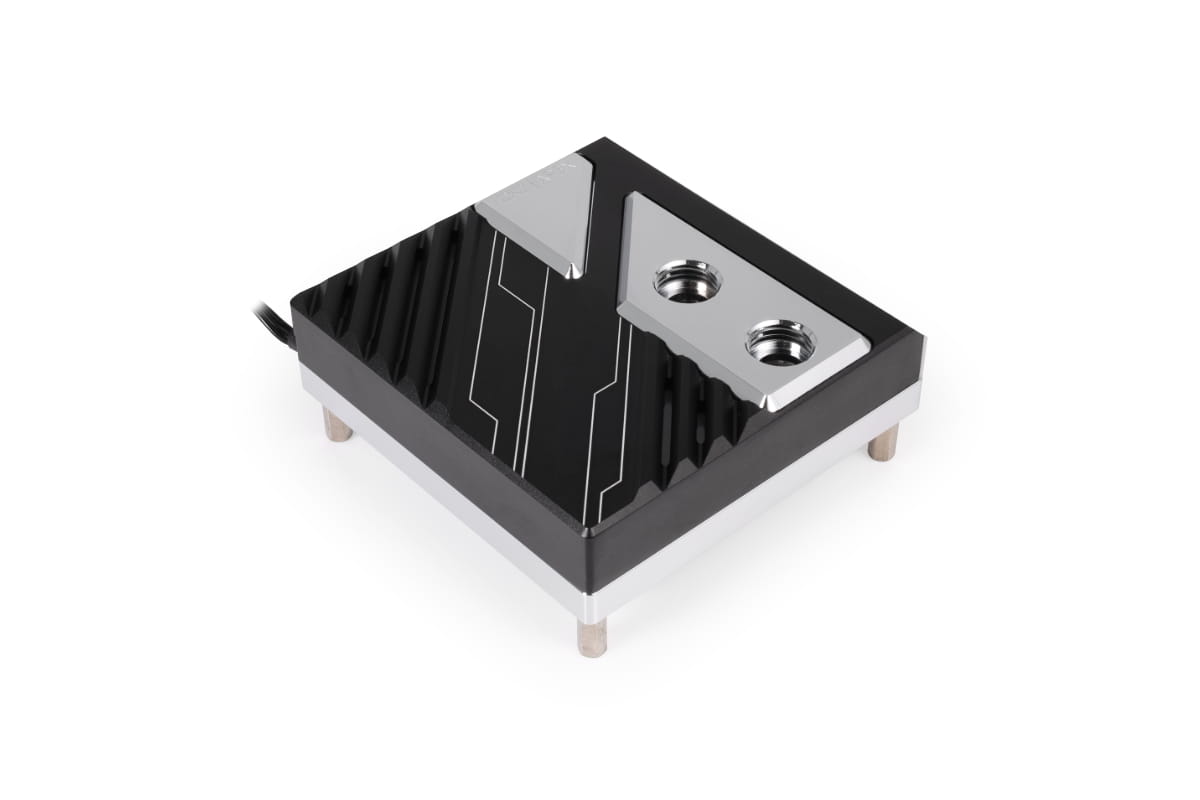

The Alphacool Apex series represents maximum cooling performance, exceptional design, and premium material selection for high-end custom water cooling systems. The Alphacool Apex 1 is the first CPU water block in the Apex series and combines all its unique features in a robust CPU cooler.

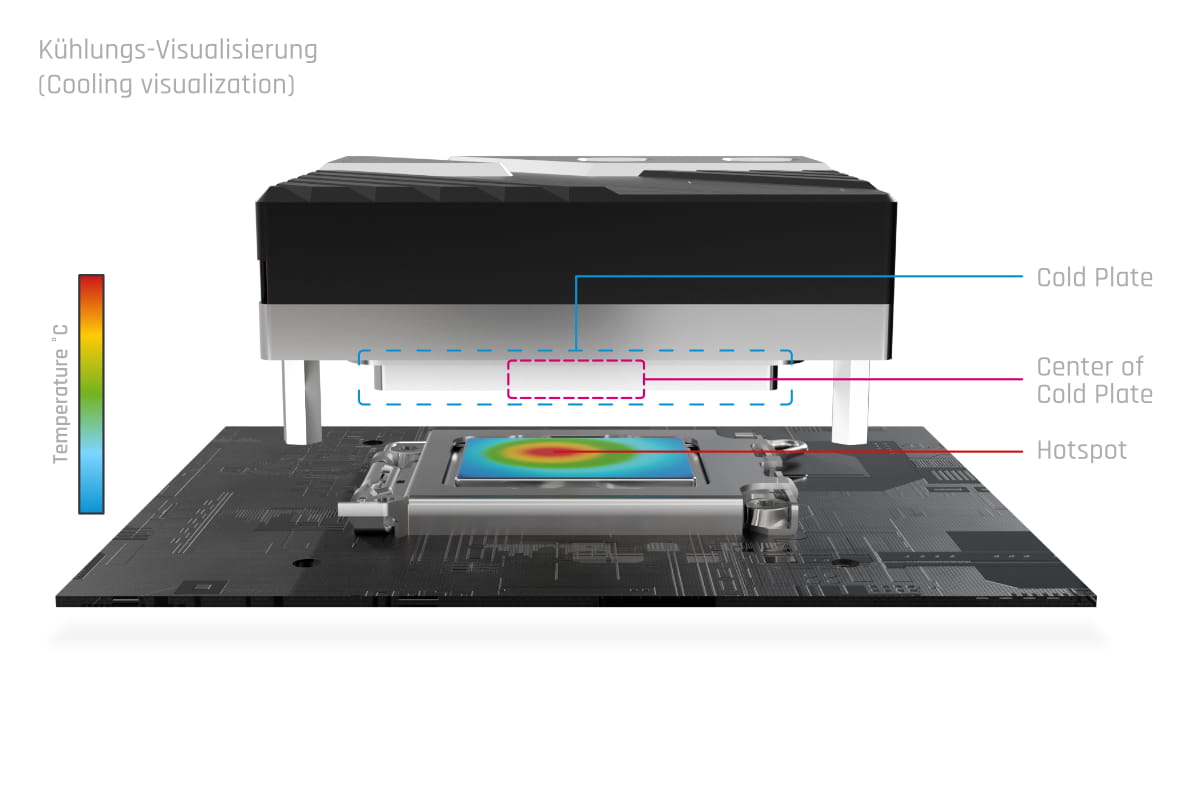

In the Intel version of the Apex 1 CPU cooler, the cooler fully covers the entire socket and CPU, including its hotspot, ensuring exceptional cooling performance. Alphacool relies on its proven cross-slot technology and introduces the 3D Jetplate 2.0, an evolution of the original 3D Jetplate. The improved design of the Jetplate creates higher water pressure. Additionally, a pre-chamber located before the 3D Jetplate 2.0 calms the incoming water and evenly distributes it across the Jetplate and the cooling fins beneath the cooler base.

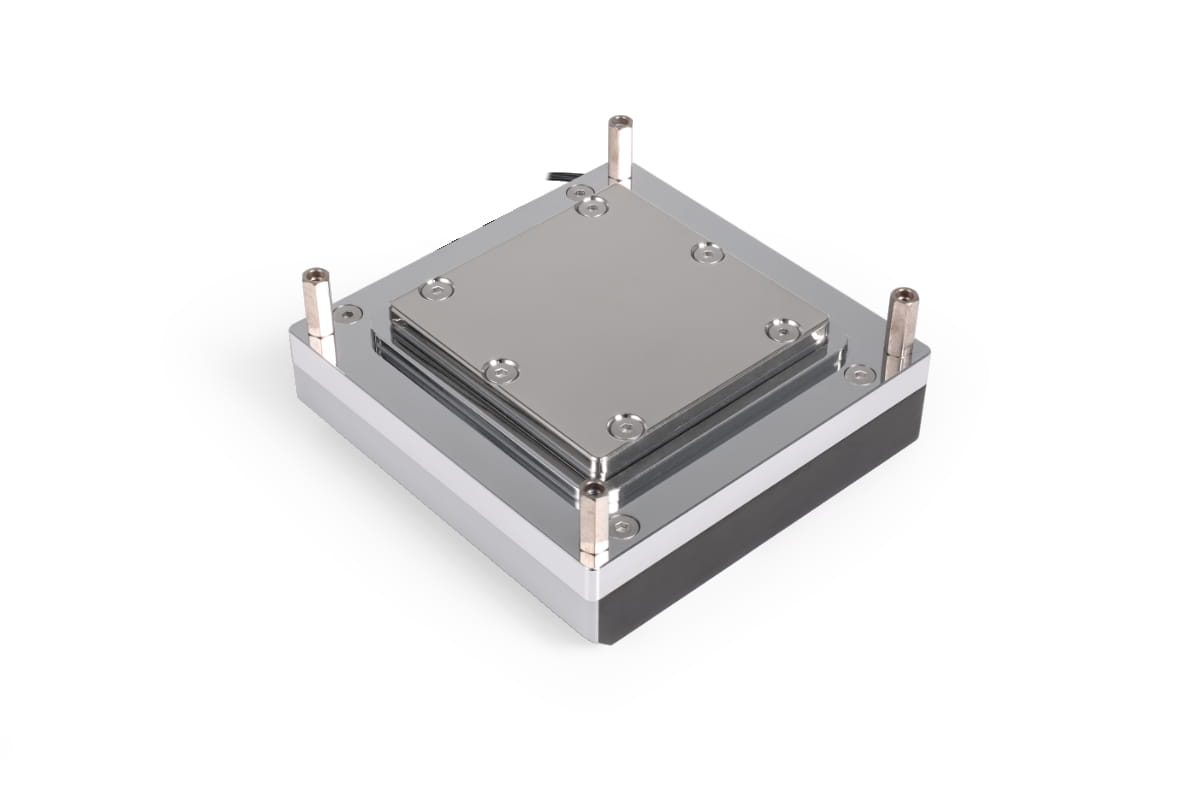

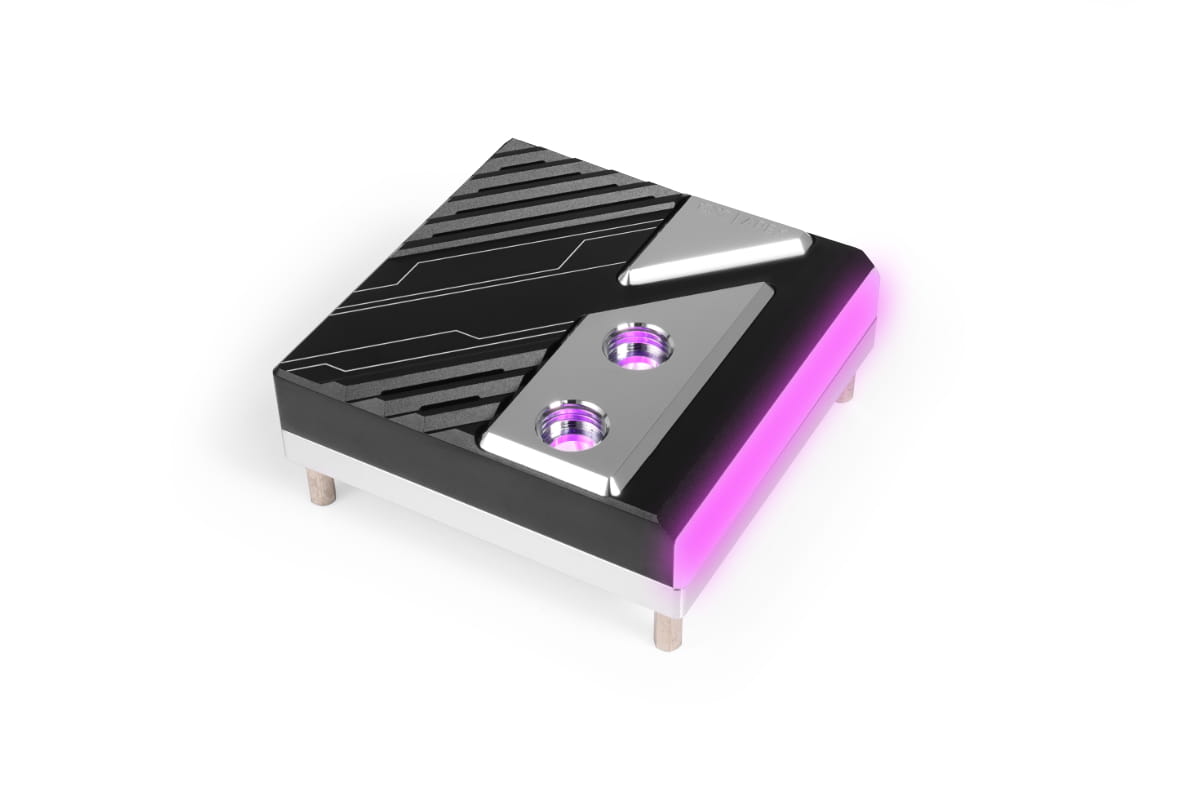

The lower part of the Apex 1 CPU cooler is crafted from a solid block of copper. The connection section is made from brass, and both components are precisely CNC-machined from their respective material blocks. The cooler is assembled with an aluminum cover that nearly encloses the entire unit. Fine Apex design elements on the top surface allow the uniform illumination of the aRGB lighting to shine through. Moreover, an additional lighting element on the right side of the cooler emits a diffused glow towards the RAM slots.

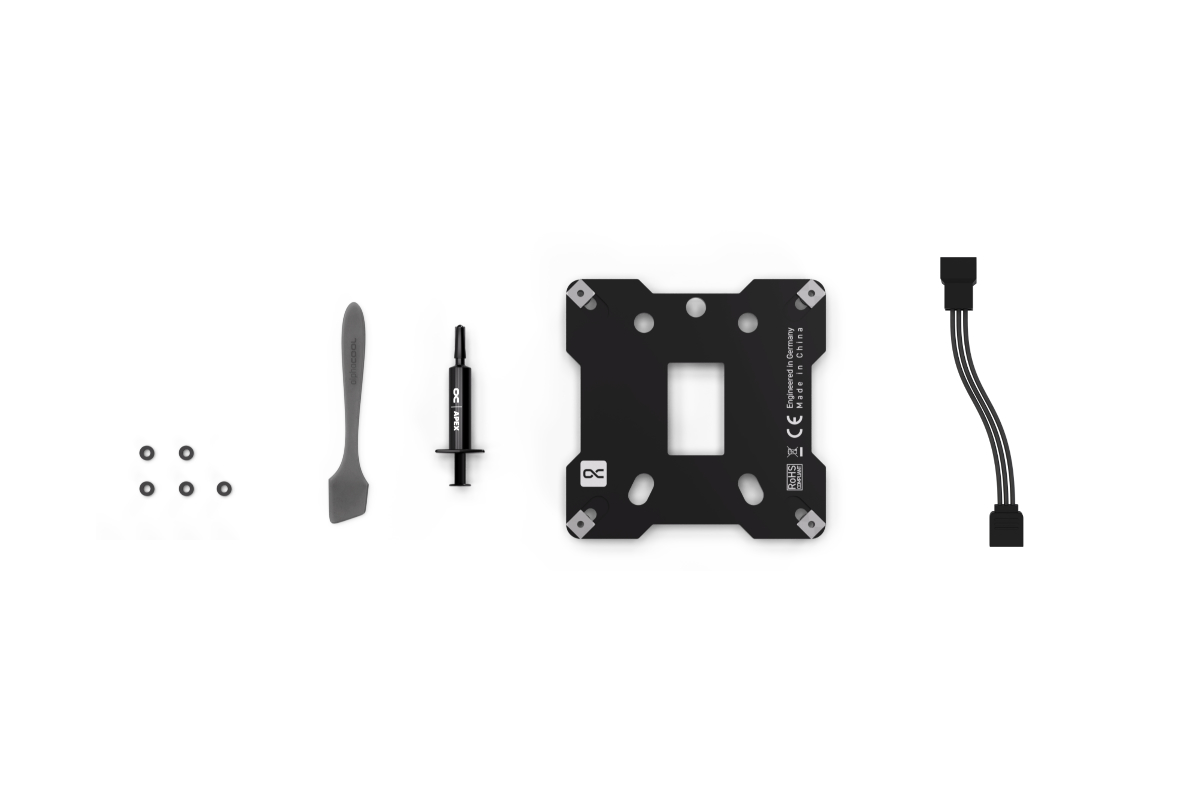

The Apex 1's cooling block is specifically designed to cover both the CPU socket and the mounting holes, giving it a sleek and seamless appearance. Despite this sophisticated design, installation remains straightforward: the cooler is positioned on the top of the motherboard while the backplate is secured from underneath using screws.

Compatibility:
Intel: LGA 1700 / LGA 1851

Technical data
Dimensions (L x W x H)	88,00 x 88,00 x 32,30mm
Cooler material	Nickel plated copper
Material cooler top	Aluminum
Material threads	Nickel plated brass
Threads	2x G1/4“
Fin thickness	0,4mm
Fin distance	0,4mm
Pressure tested	0,8 bar
Maximum operating temperature	60°C
Weight	890g
Color	Base: Black \| Accent: Chrome

Warranty: 5 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Anschluss:	2x G1/4"
Material Bodenplatte:	Kupfer vernickelt
Material Deckel:	Aluminium
Sockel:	Intel LGA 1700, Intel LGA 1851
Abmessungen (L x B x H:	88,00 x 88,00 x 32,30mm
