Kühler für Threadripper, Ryzen & Intel LGA 3647

WAC Alphacool Eisbaer Pro Aurora (Solo) - Digital RGB

Article no.: 13000
EAN: 4250197130004
Weight: 0,906 kg
Verfügbar: Es sind noch mehr als 5 Artikel verfügbar
Images may differ slightly from the original

€84.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool HF 13/10 compression fitting G1/4 - deep black sixpack

€27.98*

Alphacool VPP Apex Pump - G1/4 inner thread including Eisdecke D5 - Acetal V.3

€79.98*

Alphacool NexXxoS ST30 Full Copper 360mm radiator V.2

€79.98*

Alphacool Rise Aurora 120 mm fan (120x120x25mm)

€11.98*

Alphacool Apex Liquid ECO 1000ml clear

€14.98*

Alphacool tubing AlphaTube HF 13/10 (3/8"ID) - clear

€6.98*

The Alphacool Eisbaer Pro Aurora offers a much larger cooling surface than the normal Eisbaer... more

Close menu

Product information

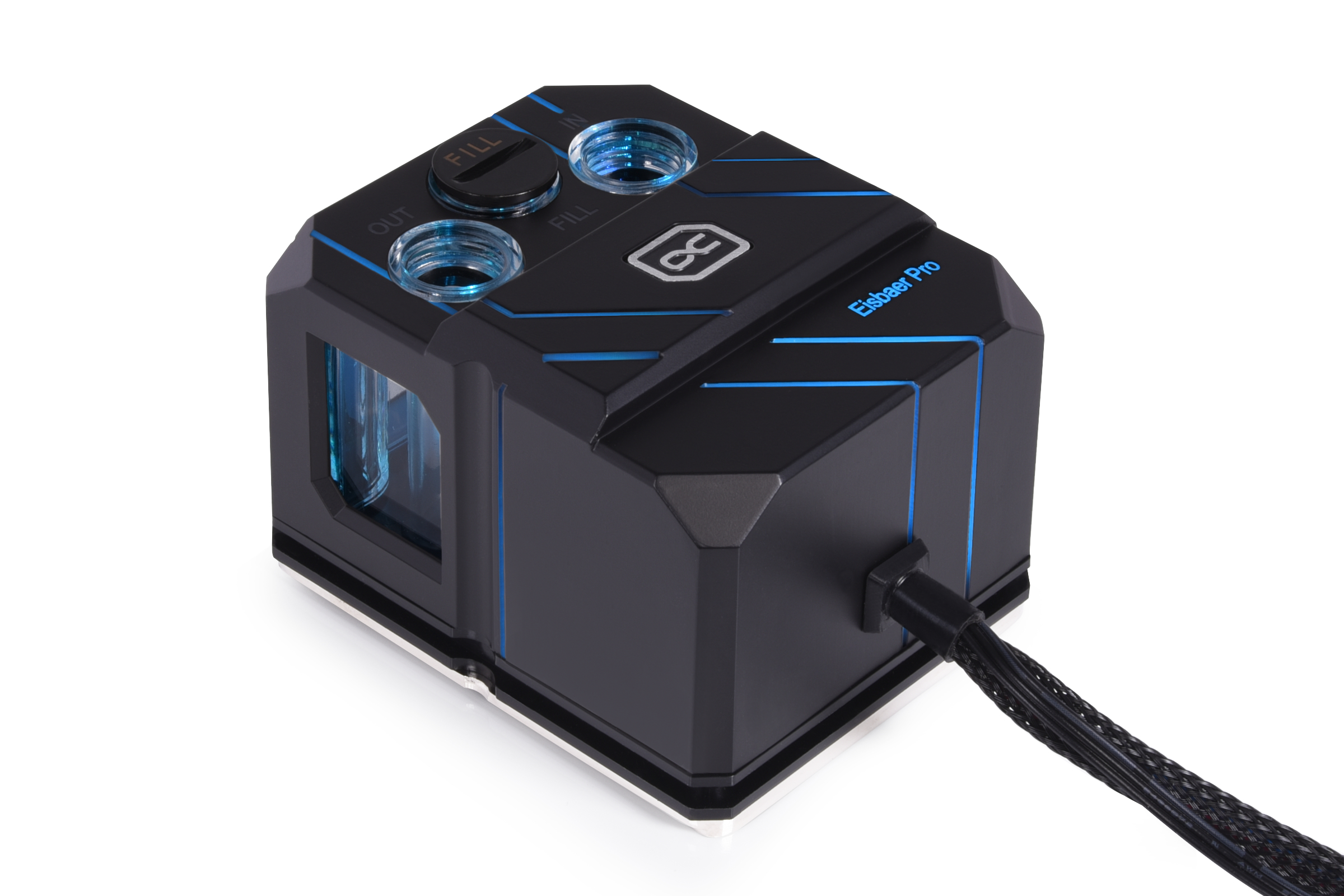

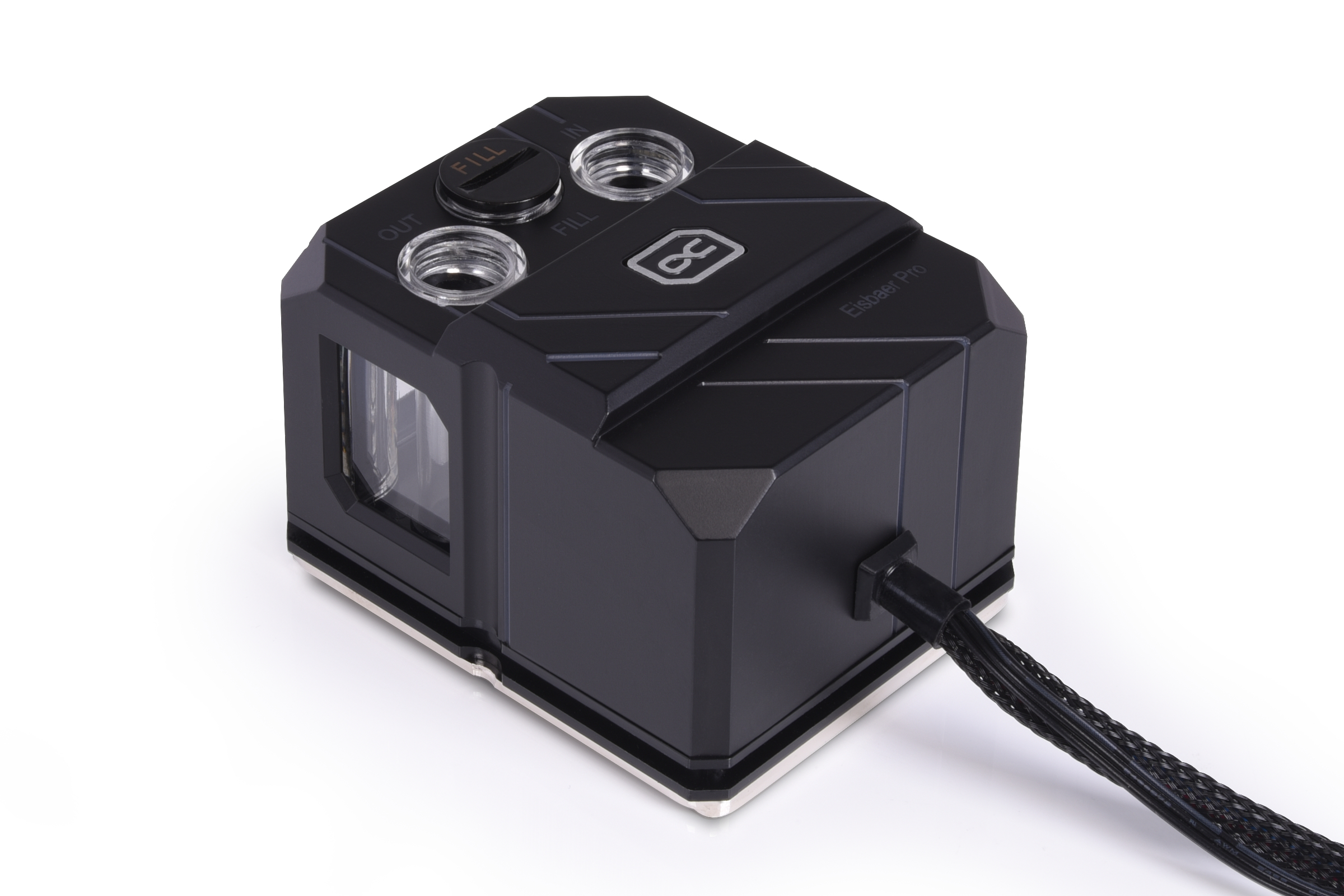

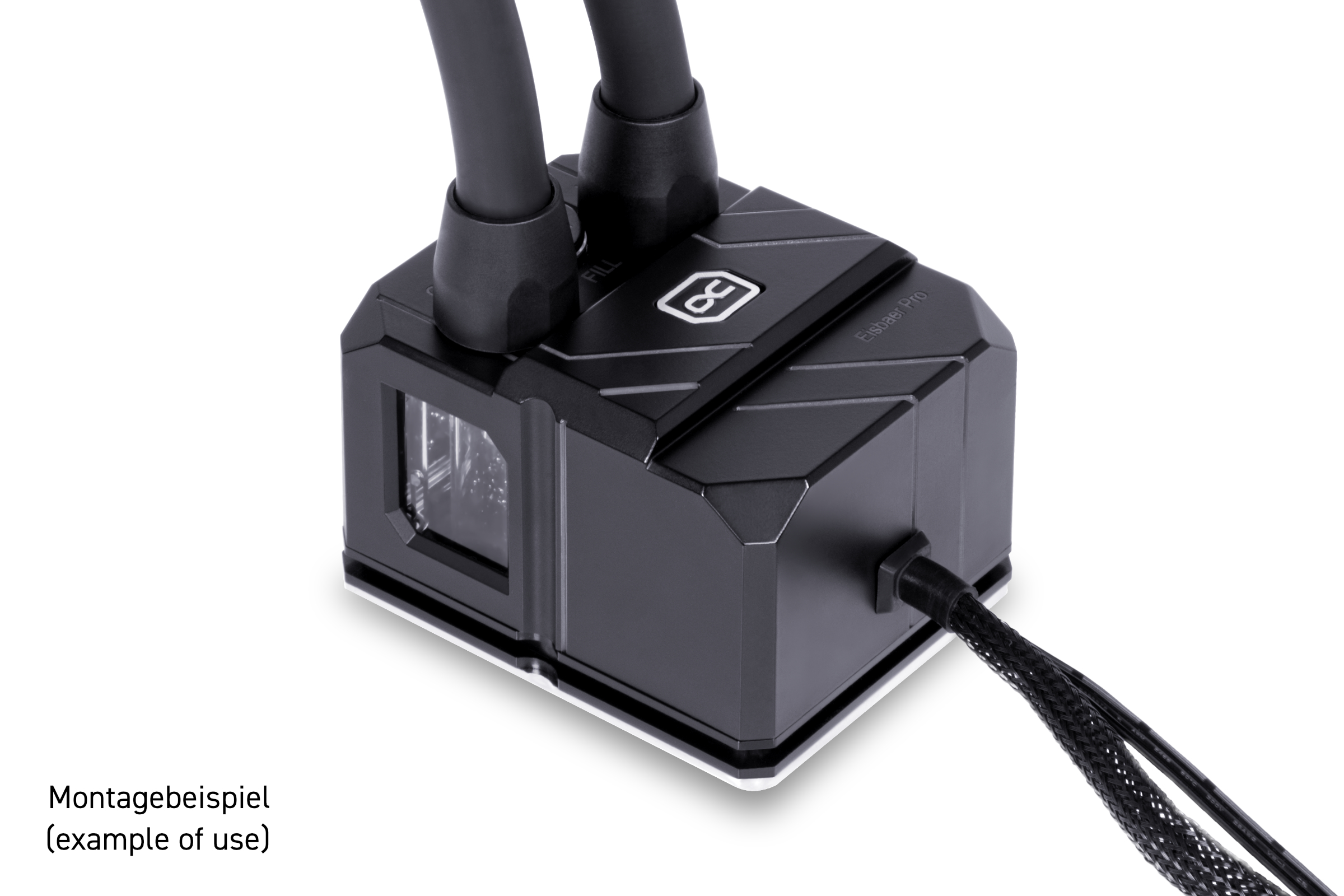

The Alphacool Eisbaer Pro Aurora offers a much larger cooling surface than the normal Eisbaer Aurora. It was specially developed for extremely large CPU DIEs and fully covers processors such as the AMD Threadripper but also the AMD Ryzen CPUs. The Eisbaer Pro has also been designed for the Intel Socket 3647 to ensure the best possible cooling performance of the entire CPU. The Eisbaer Pro Aurora is a true multi-talent. Expandable, fully compatible with DIY water cooling components and it is the optimal solution for the most powerful processors on the market.

Large cooling surface

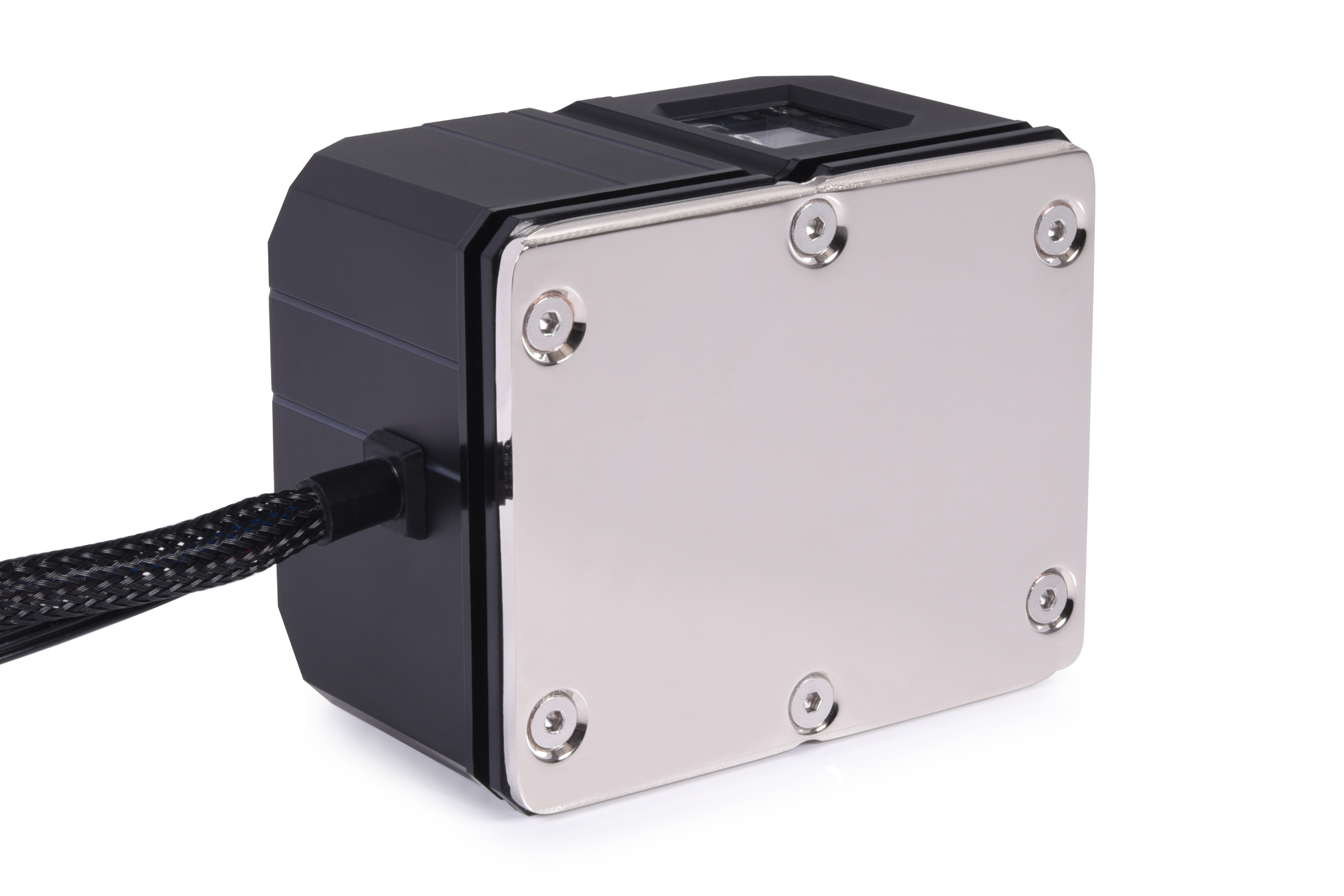

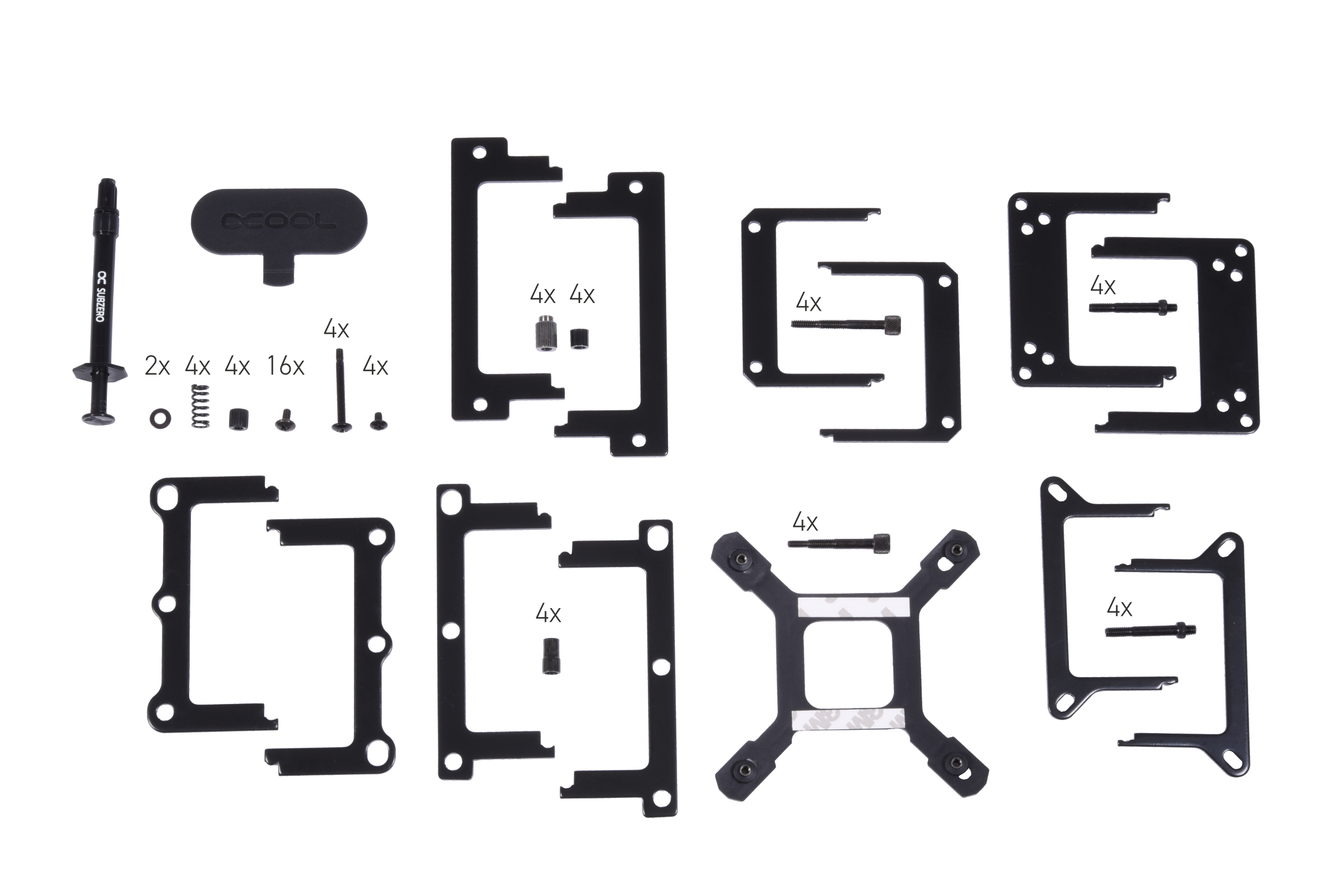

The cold plate bottom covers the entire surface of the respective processors. The area of the cooling fins exceeds all known processor cores with an area of around 55 x 42mm. This ensures that all hotspots of a CPU are directly covered and thus optimally cooled. With the included AM4 bracket, cooling an AMD Ryzen processor is also child's play. The cooling fins are 0.4mm thick and also have an optimal distance of 0.4mm between them. In total there are 58 cooling fins on the bottom of the cooler. The bottom of the cooler is only 3mm thick, which allows the heat to reach the water and be dissipated as quickly as possible.

Pump
The Eisbaer Pro Aurora cooler uses the very compact and small DC-LT 2 pump. It offers enough power to integrate other components such as a GPU water cooler or radiator into the water circuit.

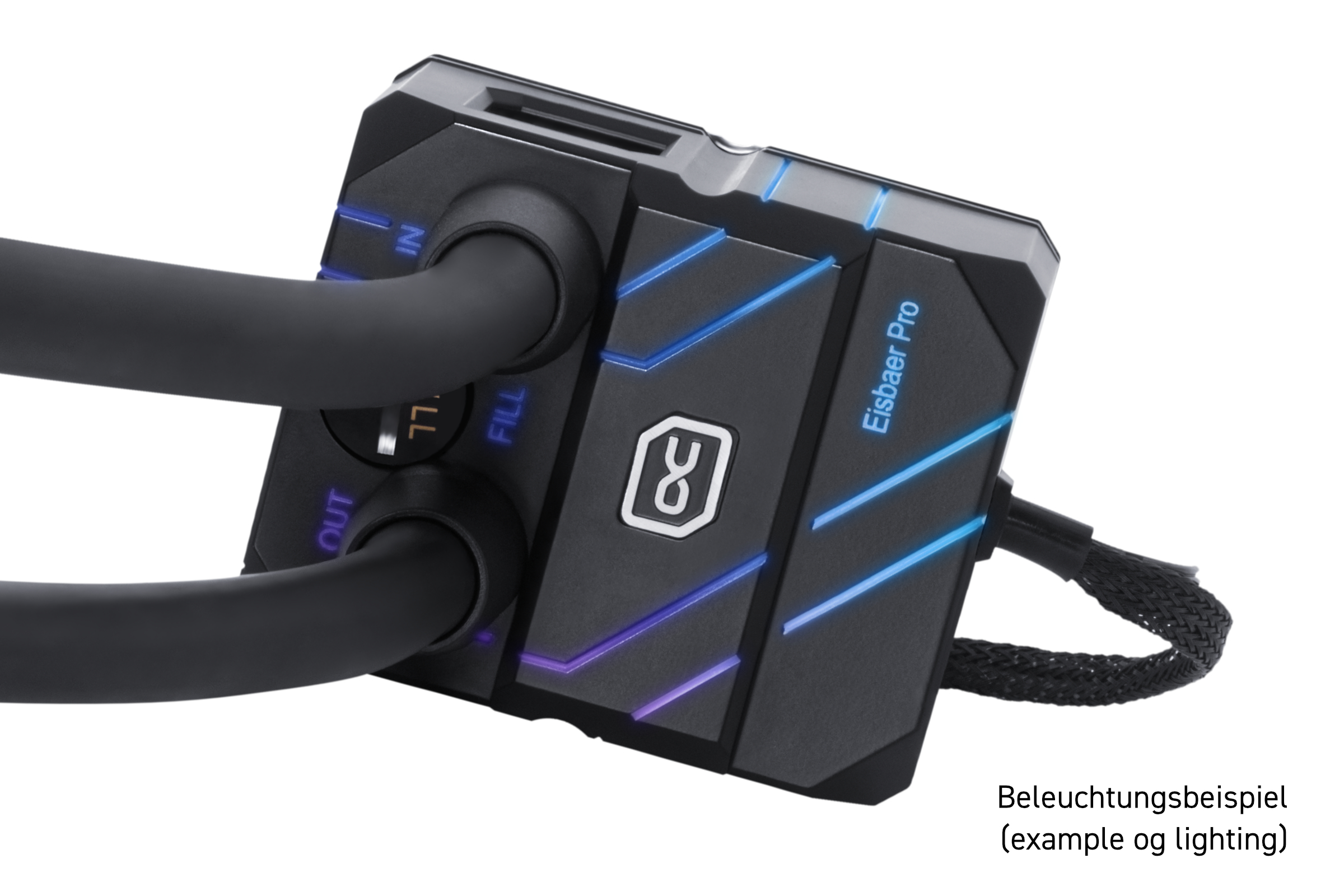

Lighting
The entire Eisbaer Pro Aurora cooler is equipped with addressable, digital RGB LEDs. This makes it a real eye-catcher in the case. Of course, all digital RGB LEDs can be controlled as desired. Depending on the controller, almost all effects are possible.

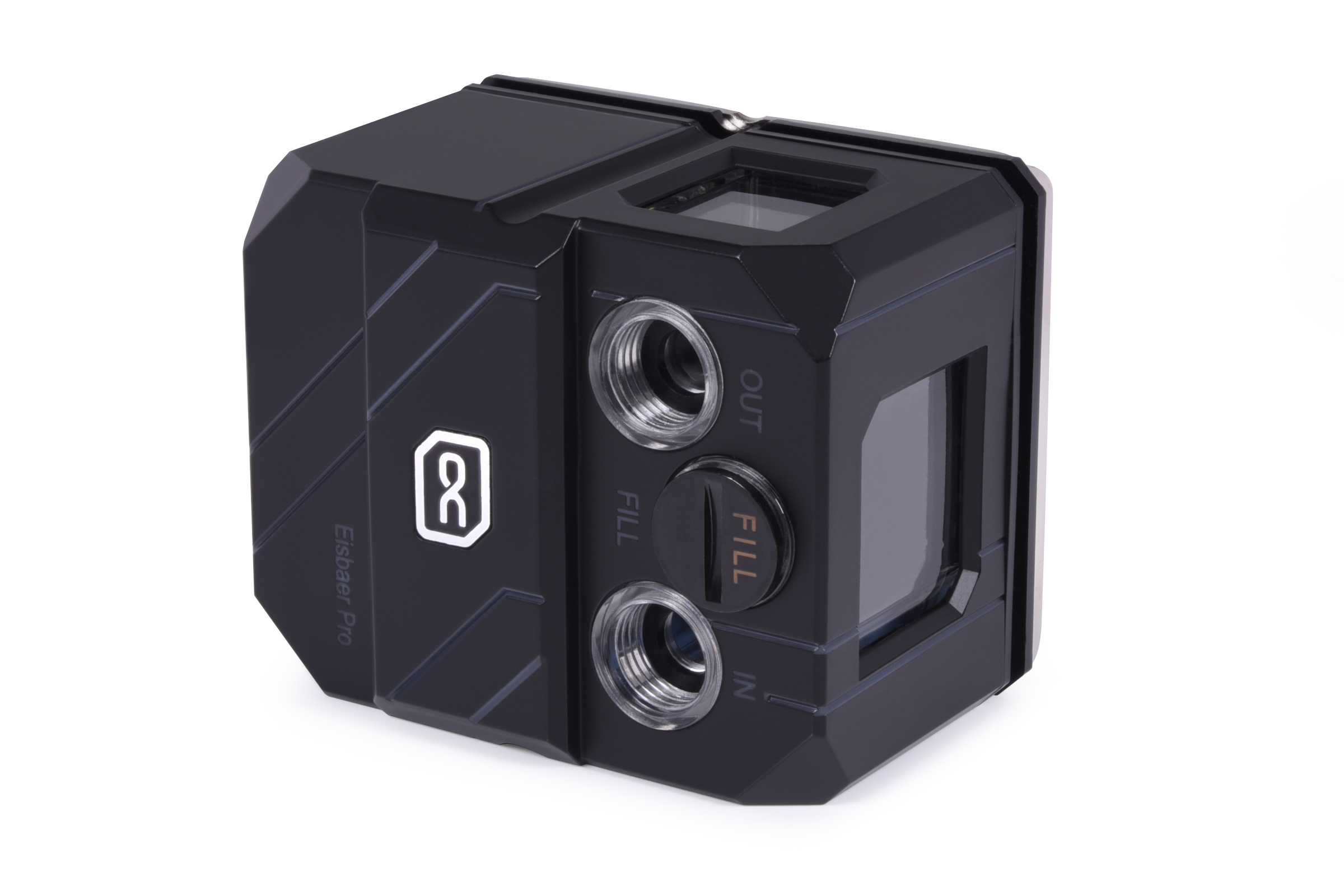

Usable fittings
Connections that are too large mean that the fill port can no longer be used. We recommend the following:
- up to and including 13/10 without restriction
- 16/10 only in angled version
- Connections larger than 16/10 should not be used

With the Alphacool LGA 4677 Mounting Bracket (article no.: 13764), this cooler is also compatible with the Intel socket LGA 4677.

Compatibility:
AMD: AM4 / AM5 / SP3 / SP6 / sTR5 / sWRX8 / TR4
Intel: LGA 1700 / LGA 2011 / LGA 2011-3 / LGA 2066 / LGA 3647 / LGA 4189 (optional) / LGA 4677 (optional)

Technical data cooler with pump
L x W x H	64 x 79 x 54,3mm
Material cooler bottom	nickel plated copper
Material cooler top	acrylic
Threads	2x G1/4“ (+ 1x Fillport G1/4“)
Pump type	DC-LT2
Pump speed	2600 rpm (+/- 10%)
Head of delivery	1 m
Maximum flow	72 L/h
Voltage	6-13,5V DC
Power consumption	3,2W
Pressure tested	0,8 Bar
Maximum working temperature	60°C
Number of LEDs	10x Digital aRGB LEDs

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Material Deckel:	Acryl
Abmessungen (L x B x H:	64 x 79 x 54,3mm
Anschluss:	2x G1/4“ (+ 1x Fillport G1/4“)
Material Bodenplatte:	Kupfer
Sockel:	AMD AM4, AMD AM5, AMD SP3, AMD SP6, AMD sWRX8, AMD TR4, AMD TR5, Intel 2011(-3), Intel LGA 1700, Intel LGA 1851, Intel LGA 3647, Intel LGA 4189, Intel LGA 4677
