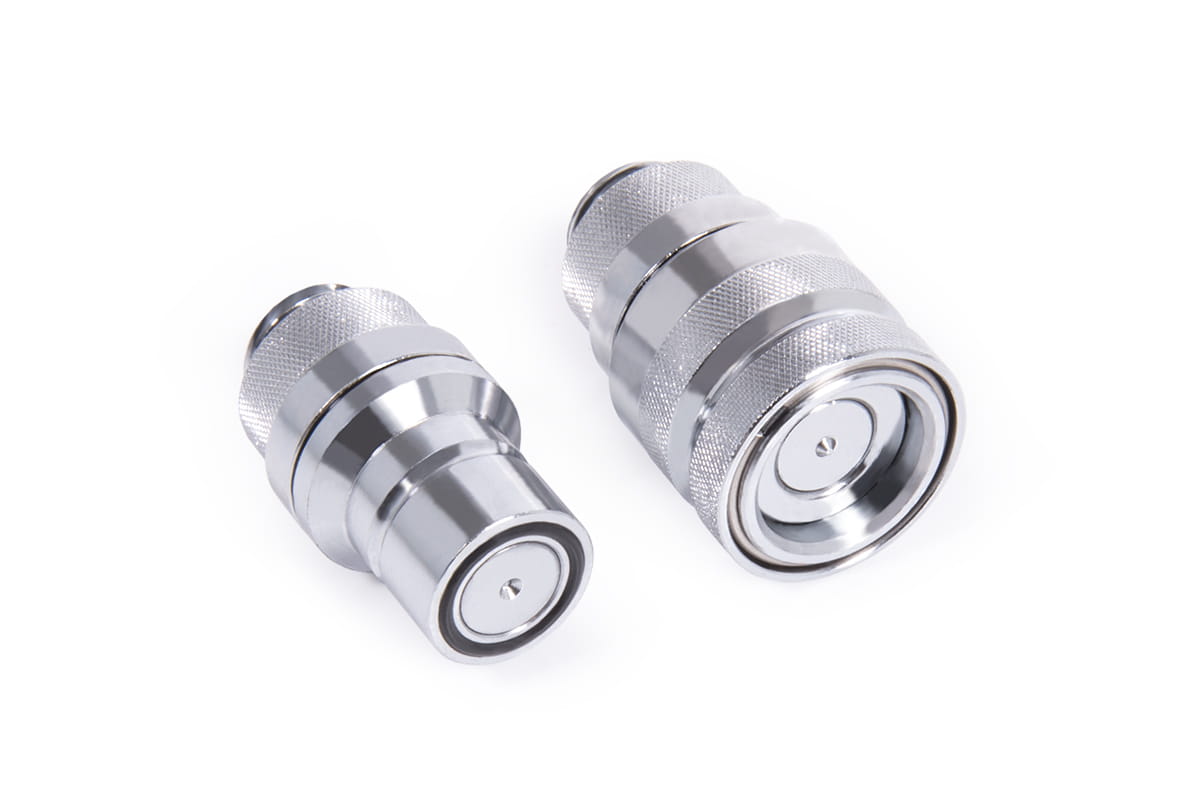

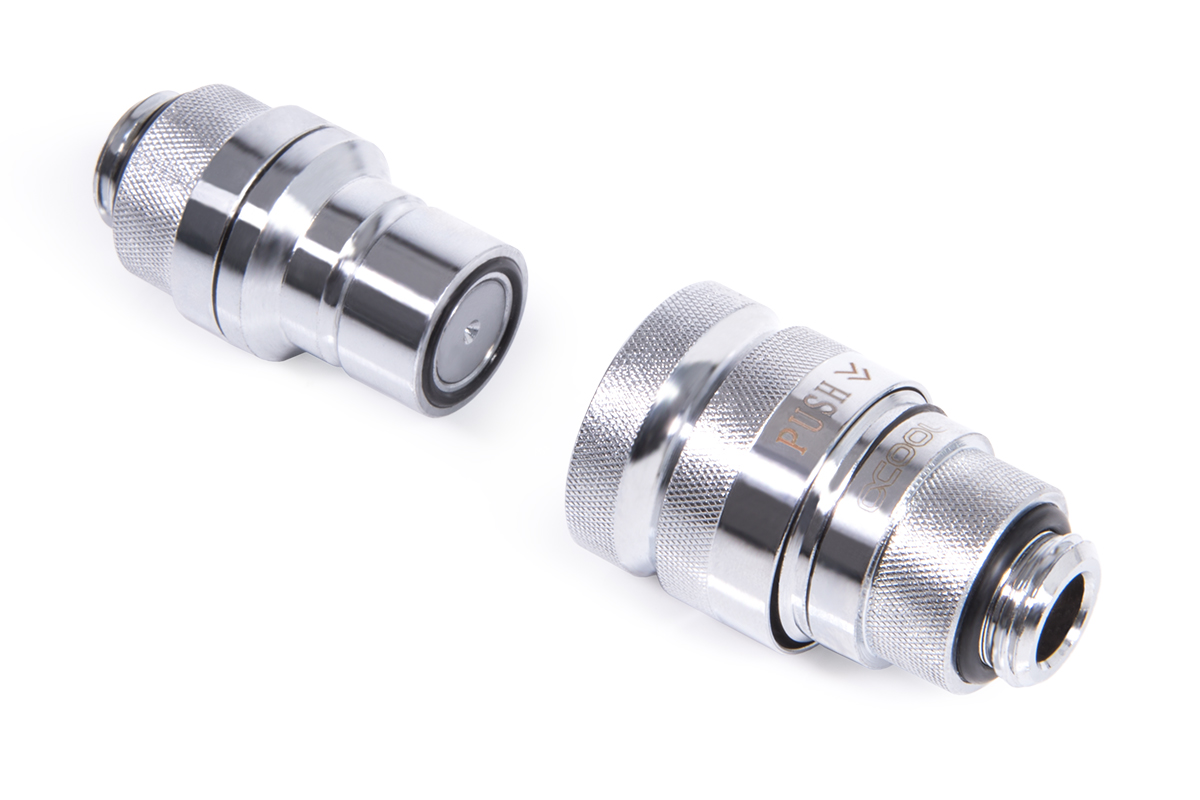

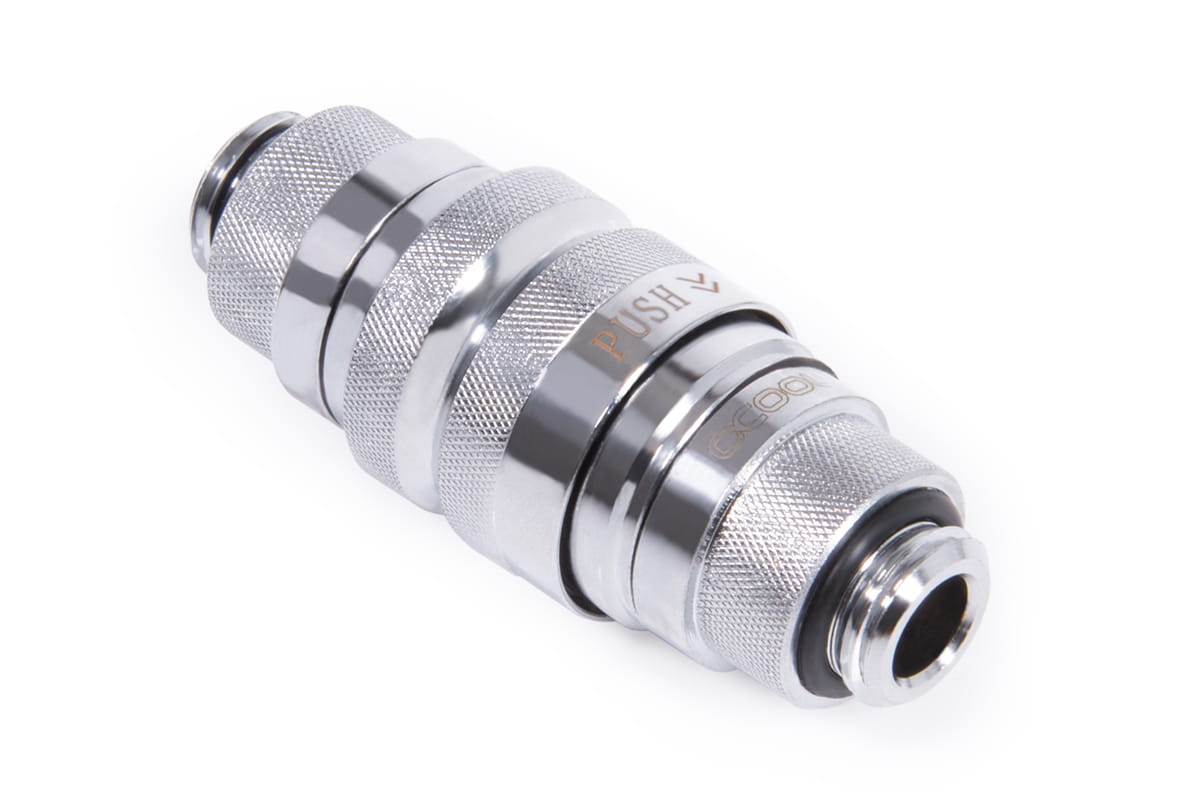

Alphacool Eiszapfen quick release coupling set G1/4 AG - Chrome

  • 17560
  • 4250197175609
  • 0,103 kg
  • There are more than 50 units available
  • Images may differ slightly from the original
€29.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
ANK Alphacool Eiszapfen quick release connector G1/4 IG - Chrome
1x
Alphacool Eiszapfen quick release connector G1/4 IG - Chrome
€14.98*
ANK Alphacool Eiszapfen quick release coupling G1/4 IG - Chrome
1x
Alphacool Eiszapfen quick release coupling G1/4 IG - Chrome
€16.98*
ANK Alphacool Eiszapfen quick release connector bulkhead G1/4 IG - Chrome
1x
Alphacool Eiszapfen quick release connector bulkhead G1/4 IG - Chrome
€14.98*
ANK Alphacool Eiszapfen quick release coupling Schott G1/4 IG - Chrome
1x
Alphacool Eiszapfen quick release coupling Schott G1/4 IG - Chrome
€16.98*
ANK Alphacool Eiszapfen quick release coupling set G1/4 AG - Deep Black
1x
Alphacool Eiszapfen quick release coupling set G1/4 AG - Deep Black
€29.98*
The Eiszapfen series represents the high-end variant of the Alphacool product range. It is... more
Product information

The Eiszapfen series represents the high-end variant of the Alphacool product range. It is intended to appeal to enthusiasts and professional users and offer them the best in quality, functionality and design.

How much water comes out when connecting?
Thanks to a sophisticated closure and sealing system and the NDSL (no drip, no splash, no leak) technology, the water loss when opening the quick-release fastener is minimal. Only a tiny drop of water comes out. The fastener is easily released by pulling on the connecting ring. The counterpart then jumps out of the quick-release fastener by itself. To connect, simply put both pieces together. The whole thing is child's play and can be done by any user.

The Alphacool Eiszapfen quick release fasteners are available in different versions, but they can all be combined with each other.


Technical data (set):
L x D: 62.5 x 24 mm
Total net weight: 95 g
Material: Brass
Connections: 2 x G1/4“ AG
Thread length: 5 mm
Type of quick release: Push In

Technical data (plug):
L x D: 36.5 x 20.5 mm
Total net weight: 32 g

Technical data (clutch):
L x D: 39.5 x 24 mm
Total net weight: 63 g


Download data sheet PDF: Alphacool Eiszapfen quick release coupling set G1/4 AG - Chrome

Technical details mehr
Technical details
1. Seite: G1/4" Innengewinde
2. Seite: G1/4" Innengewinde
Gewindelänge: 5mm
Hersteller: Alphacool
Drehbar: Ja - 360°
Material: Messing
Farbe: chrom
