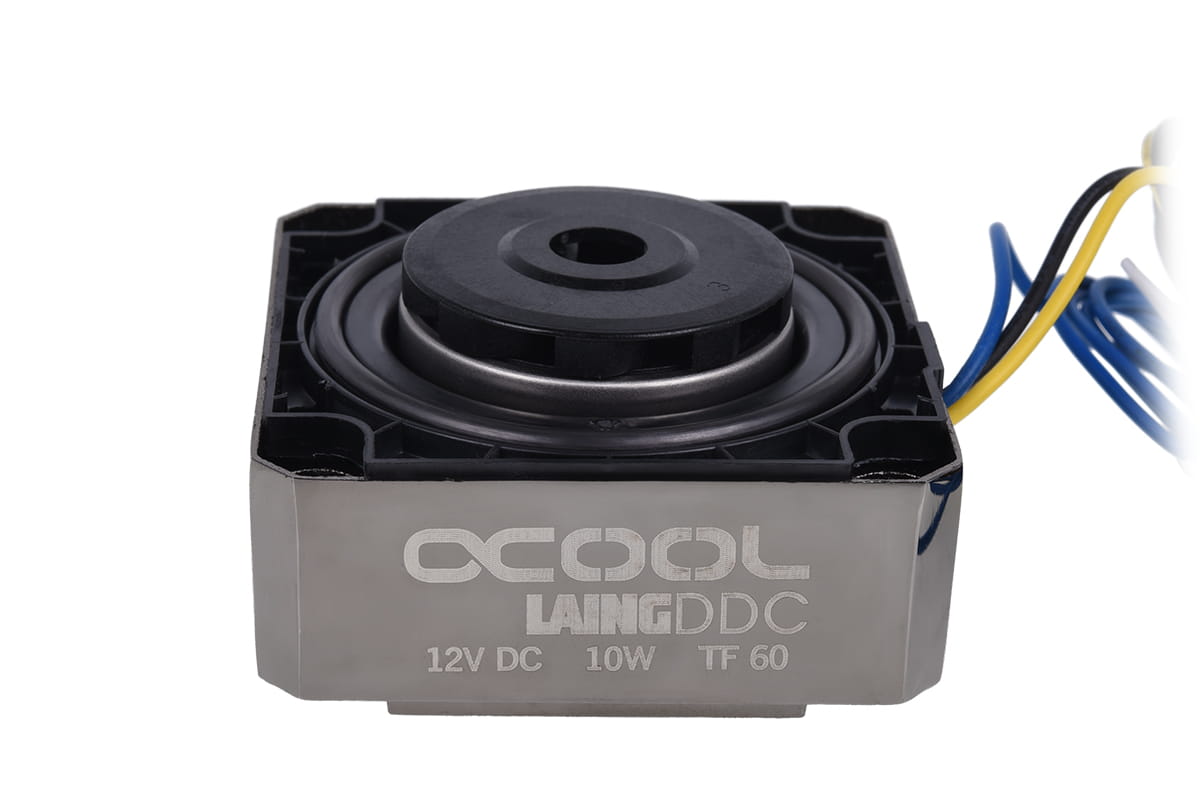

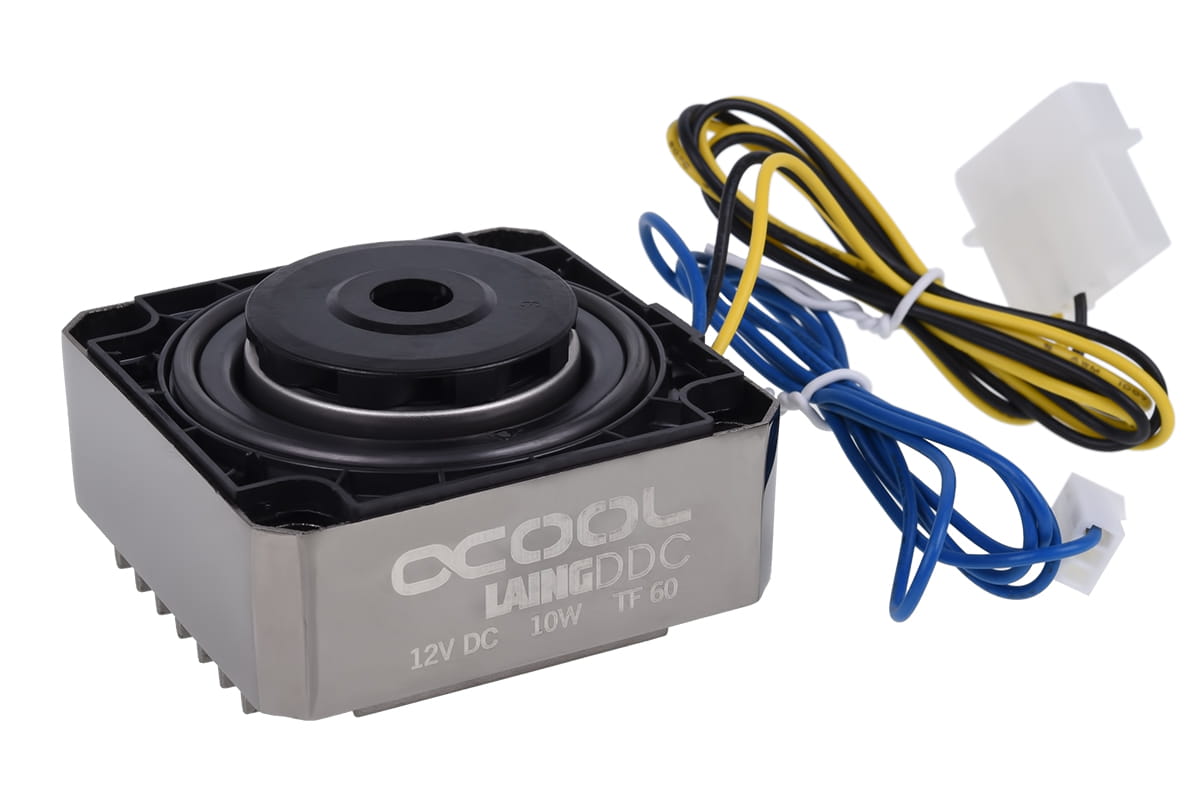

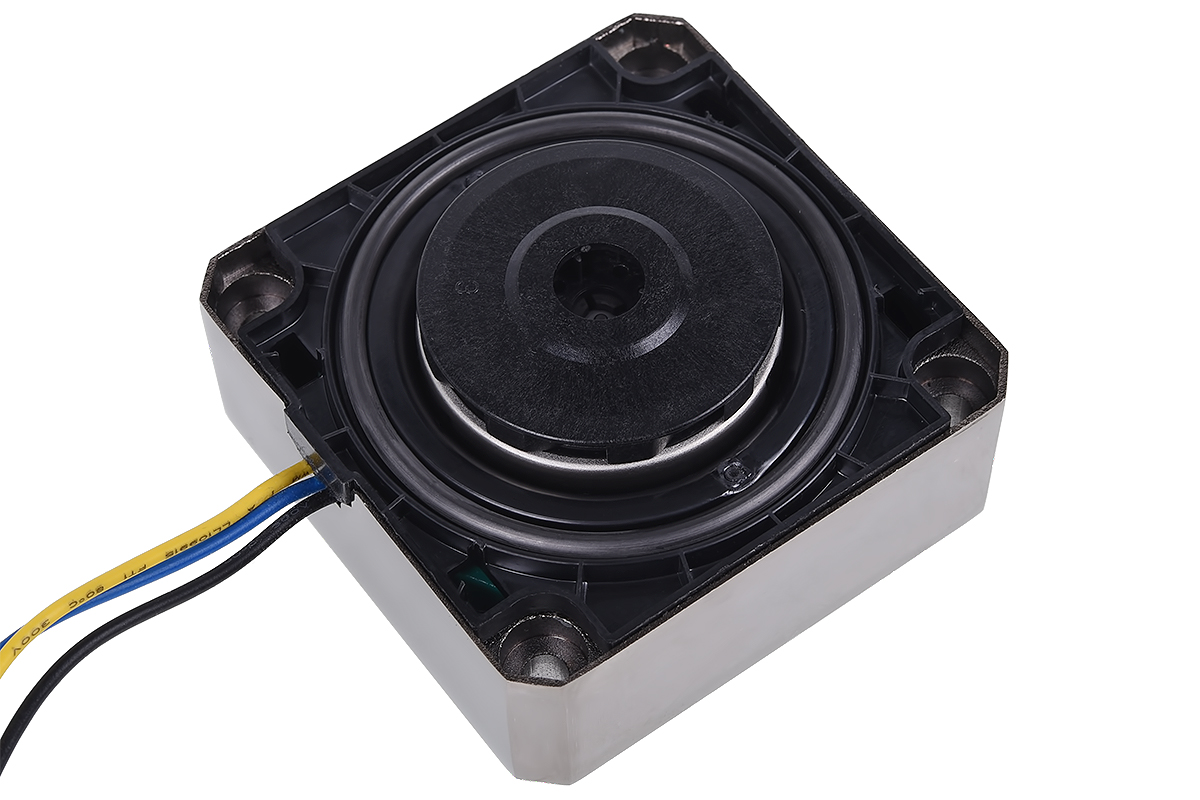

Alphacool Laing DDC310 - Single Edition - black

PUM Alphacool Laing DDC310 - Single Edition - schwarz

Article no.: 13179
EAN: 4250197131797
Weight: 0,331 kg
Available: Akutell nicht Verfügbar - Mehr ist unterwegs
Images may differ slightly from the original

€55.98 * €78.52 * (28.71% Saved)

Prices incl. VAT plus shipping costs

Liefertermin: in 2 - 3 Wochen

Alphacool Eisdecke Laing DDC Acetal attachment V.2

€29.98*

Alphacool Eisdecke Laing DDC Acrylic Top V.2

€29.98*

Alphacool Eisdecke DDC/D5 expansion tank individually for Alphacool Eisdecke

€29.98*

Alphacool's new Low Noise Edition of the Laing DDC for absolute silence! The Laing DDC pump... more

Close menu

Product information

Alphacool's new Low Noise Edition of the Laing DDC for absolute silence!

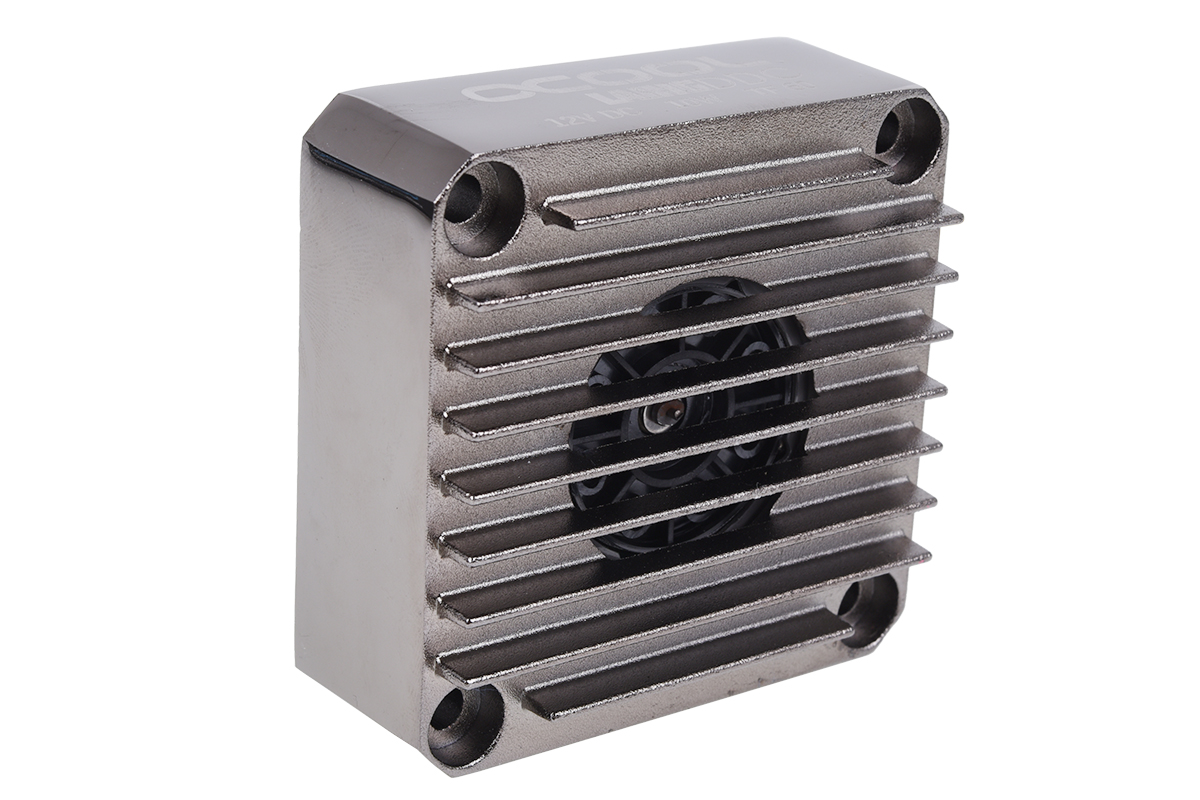

The Laing DDC pump is one of the best known pumps in the watercooling industry. Recently we have been working with Laing to take the DDC to the next level. The new Laing DDC310 was designed with a perfect balance of power and silence in mind. Unlike other versions with the plastic base we have revised the design with new superbly tuned brass housing which aids the pumps cooling and guarantees longer life especially when placed in areas with limited airflow.

This new housing promises a longer life of the pump. Through the cooling fins and air flow as well as an internal thermal pad attached directly to the pump board maximum cooling is achieved.

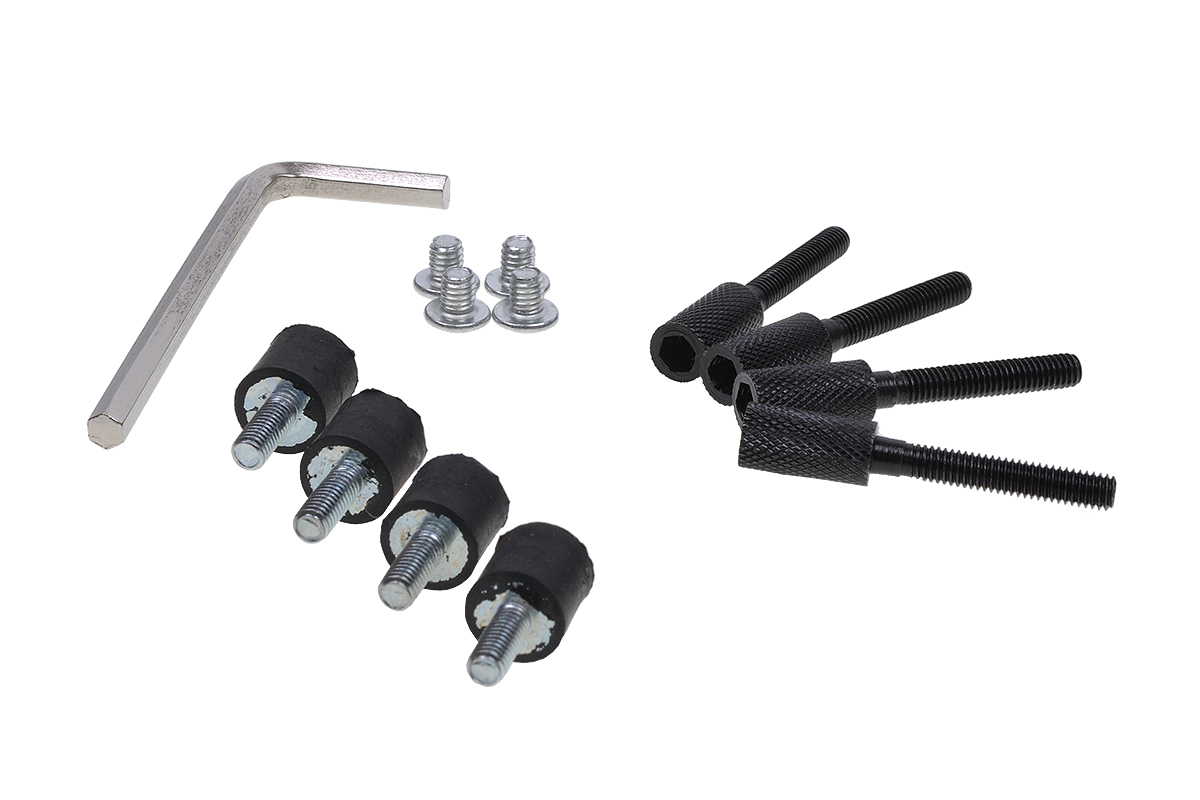

Another feature is the included decoupling option. If a pump top with a M4 threaded mounting hole, such as the Alphacool Laing DDC Acetal top is present. The special M4 screws can be screwed directly into the decoupling set and then into the case.

The pump also comes as standard with an anti-vibration mounting system . Available in black nickel and silver nickel.

This pump should be the first choice for your watercooling system.

Technical data
Dimensions (L x W x H)	62 x 62 x 30mm
Material	Stainless steel, Carbon (FH821Z2), Ceramic (Al2O3 99,5%), Luranyl KR 2403 GW T4 (PPE+PS) , Fortron 1140L4 (PPS)
Weight	170g
Speed	3250 rpm
Max power consumption	8W
Voltage	12V DC

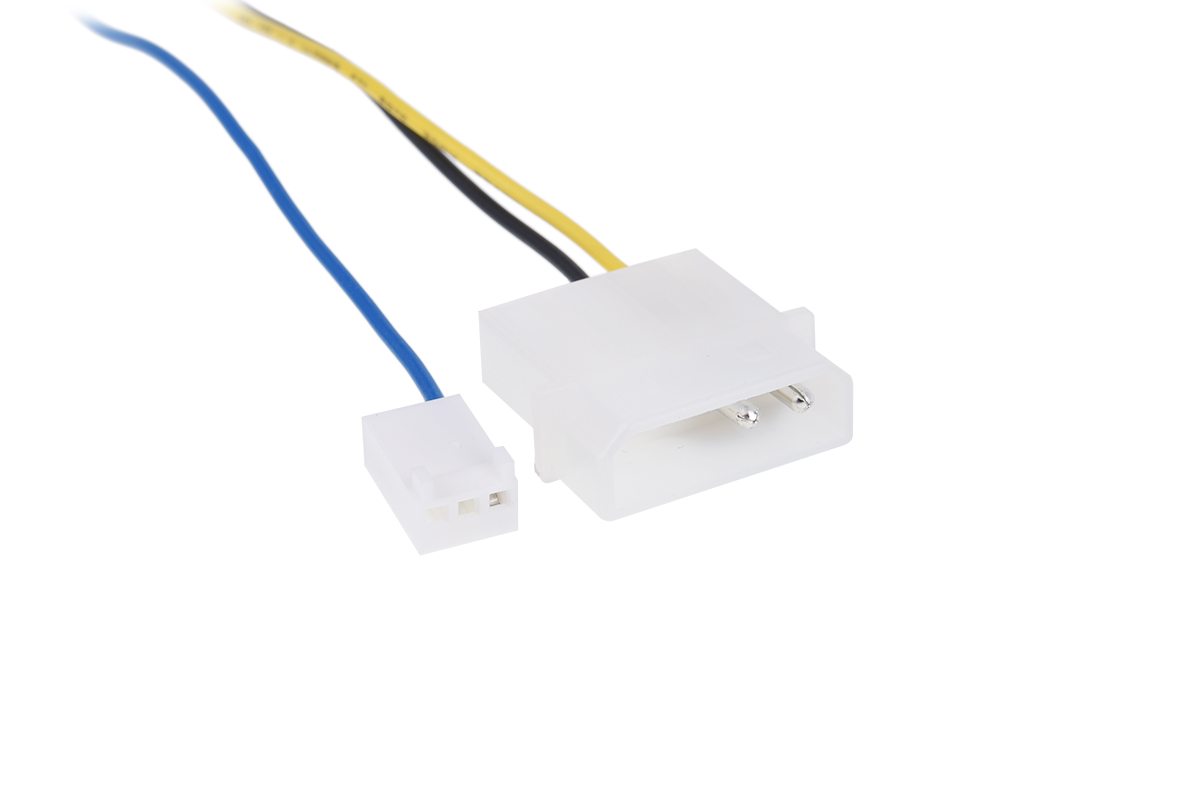

Power connector	4-Pin Molex
Tacho-Signal	yes (3-Pin Molex)
Max. working temperature ambiente	10°C - 50°C
Max. working temperature water	10°C - 60°C
Max. head of pump	2,28m
Max. flow	200 L/h
Max. pressure [bar]	0,2
Color	black
Revision	DDC4.CF-XTXXWX-01 BP54

Warranty: 5 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Manufacturer:	Alphacool
Dimensions:	62 x 62 x 30mm
Maximum discharge head:	Good (2 to 4m), Standard (less than 2m)
Maximum system temperature:	60°C
Maximum flow:	200 l/h, 480 l/h
Color:	Matte silver
Tension:	12V DC
Power connection:	4Pin
Weight:	170g
Water outlet:	Unavailable
Water inlet:	Unavailable
Approved liquids:	Water/glycol mixture
Power consumption:	8W
Material:	Aluminum oxide, Brass, Hard coal
