Alphacool ES Reservoir 2U - DDC version

Article no.: 15376
EAN: 4250197153768
Weight: 0,468 kg
Available: There are more than 50 units available
Images may differ slightly from the original

€76.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€18.98*

Alphacool HF quick release coupling set TPV - Eisbaer compatible - Black

€9.98*

Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6

€16.98*

Alphacool HF screw-on sleeve TPV metal - 90° rotatable 12.7/7.6mm - Black

€8.98*

Alphacool ES Laing DDC310 Pump - Single black plastic bottom

€64.98*

The Alphacool ES 2U Reservoir is a development for the Enterprise Solution series. It has an... more

Close menu

Product information

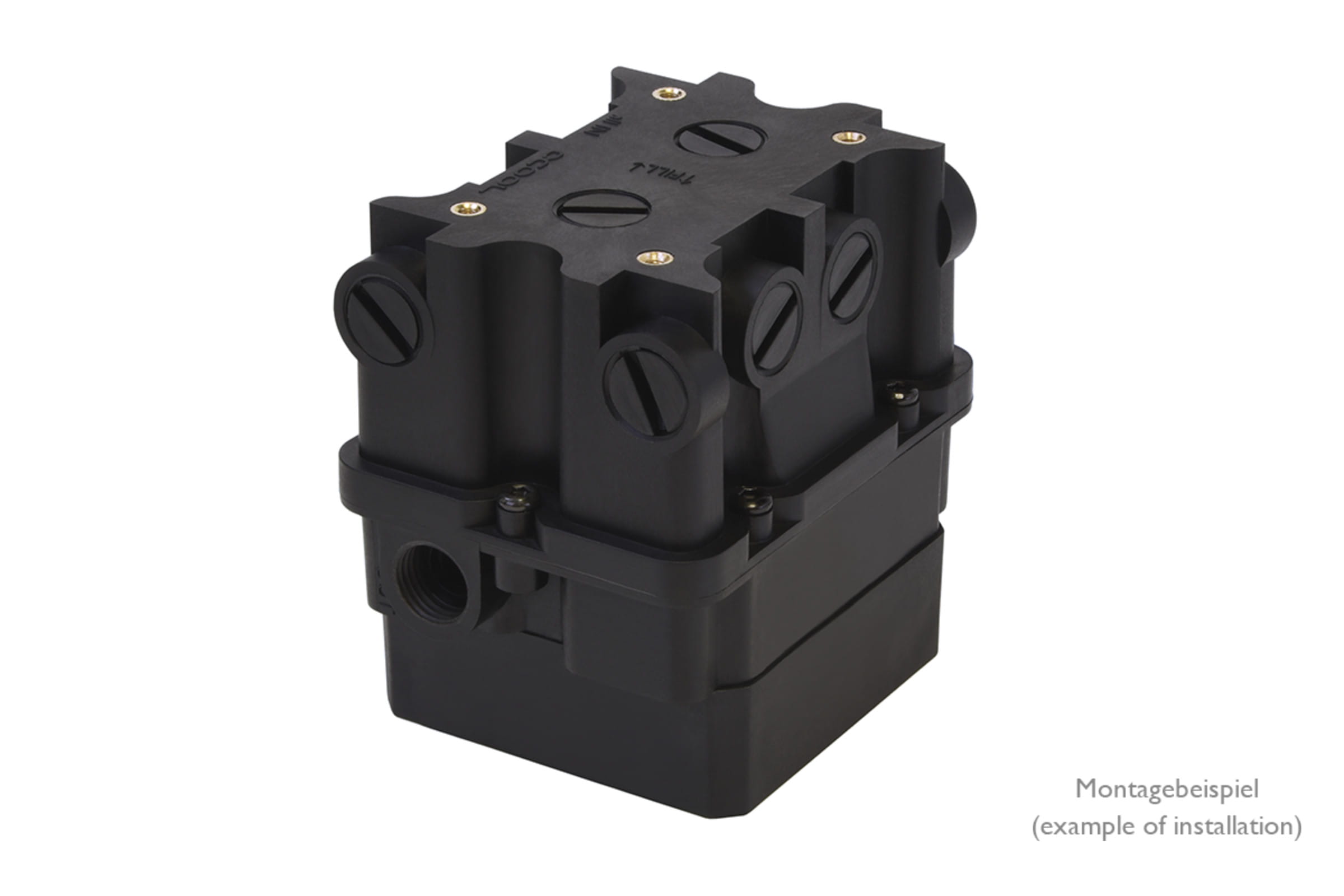

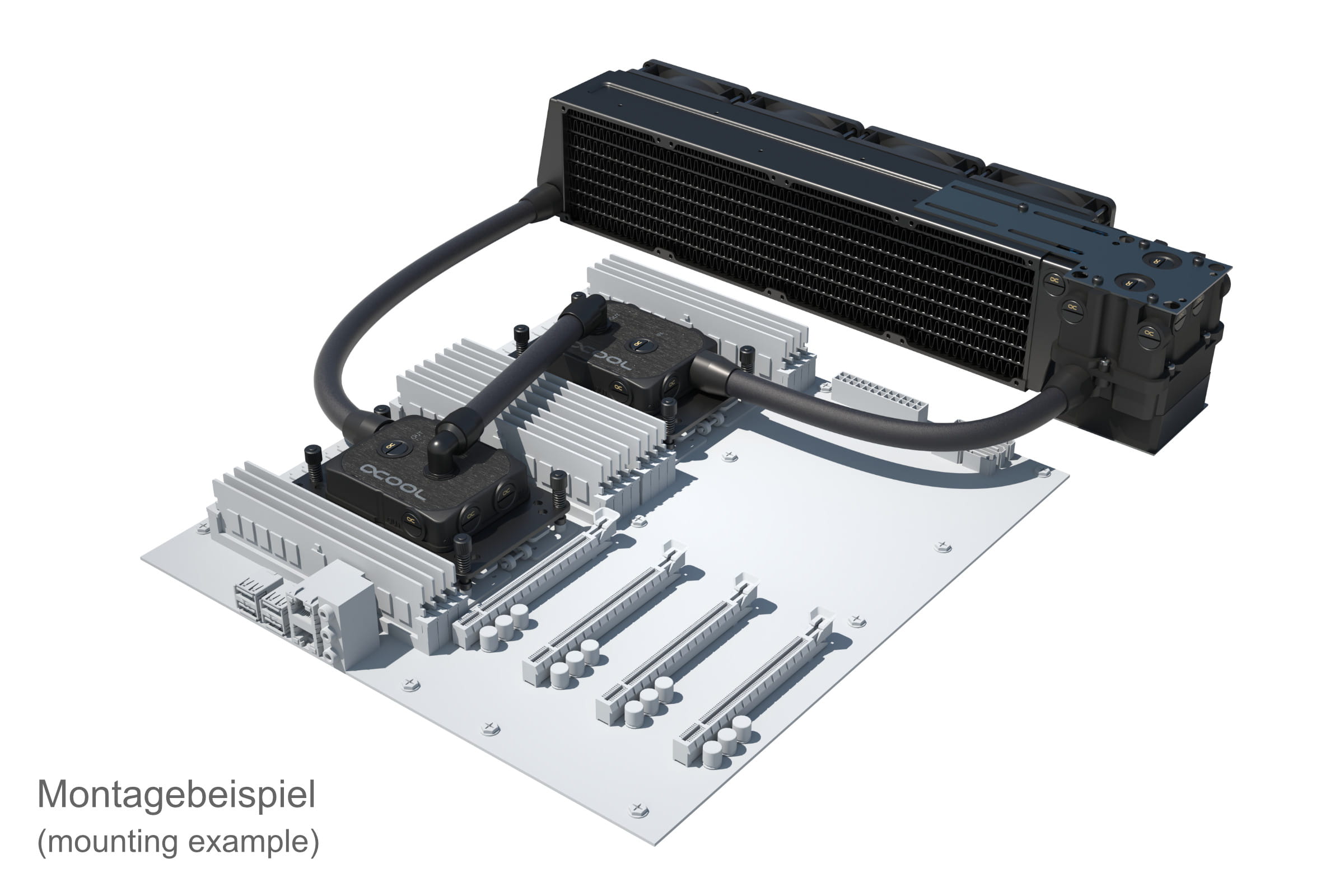

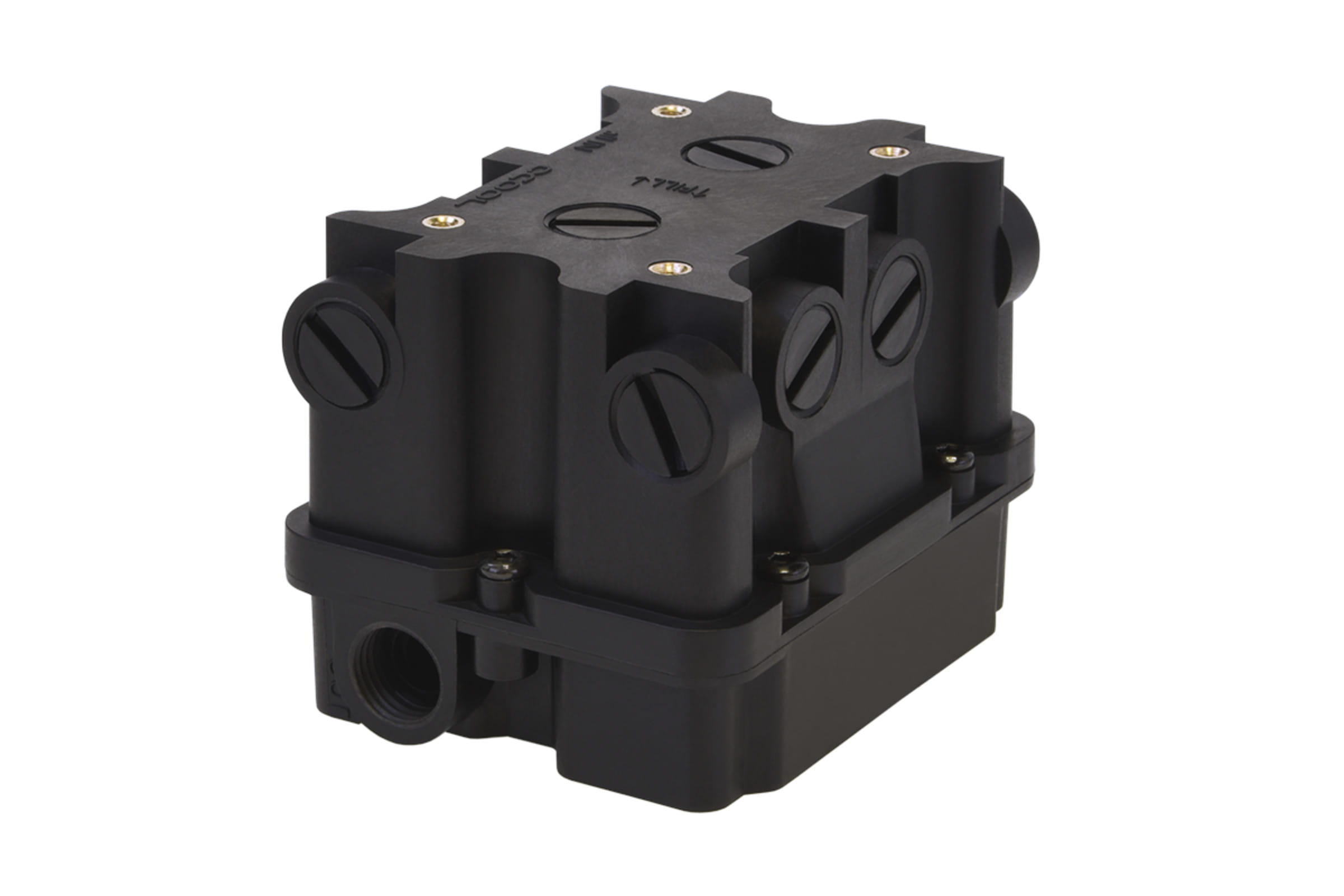

The Alphacool ES 2U Reservoir is a development for the Enterprise Solution series. It has an integrated pump top for the powerful DDC pump and offers many connection and mounting options. The combination of all these features provides a perfect solution for 2U server racks and workstations.

Extensive connection options

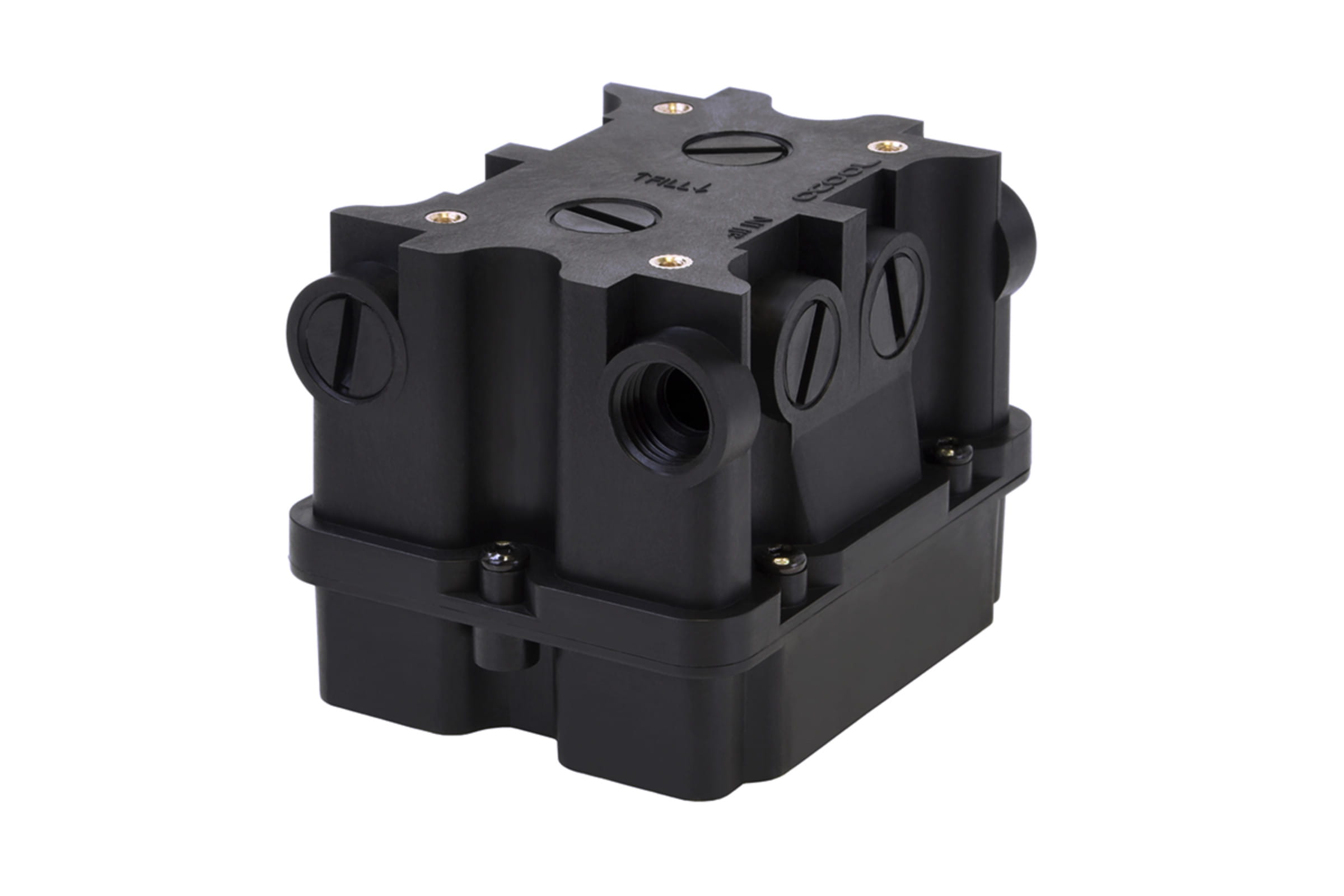

The ES 2U Reservoir has a total of 10 inputs and one output. All connections use a G1/4" thread. There are 2 inputs on each side and on top. Using the top inputs allows you to fill the reservoir perfectly. One inlet is used to fill in the liquid while the second inlet is used to allow the air to escape during filling. Thanks to the extensive connection possibilities there are various options to position the expansion tank in a server rack.

Mounting Options Directly on the Radiator

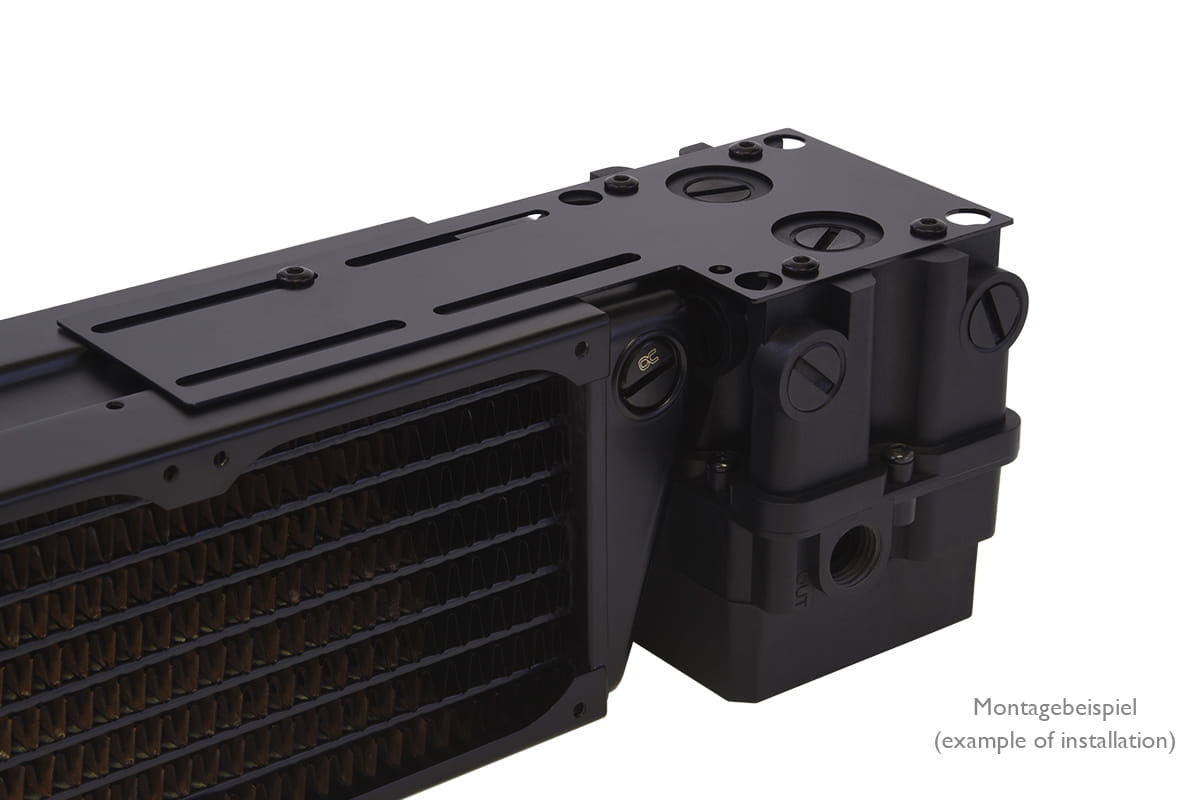

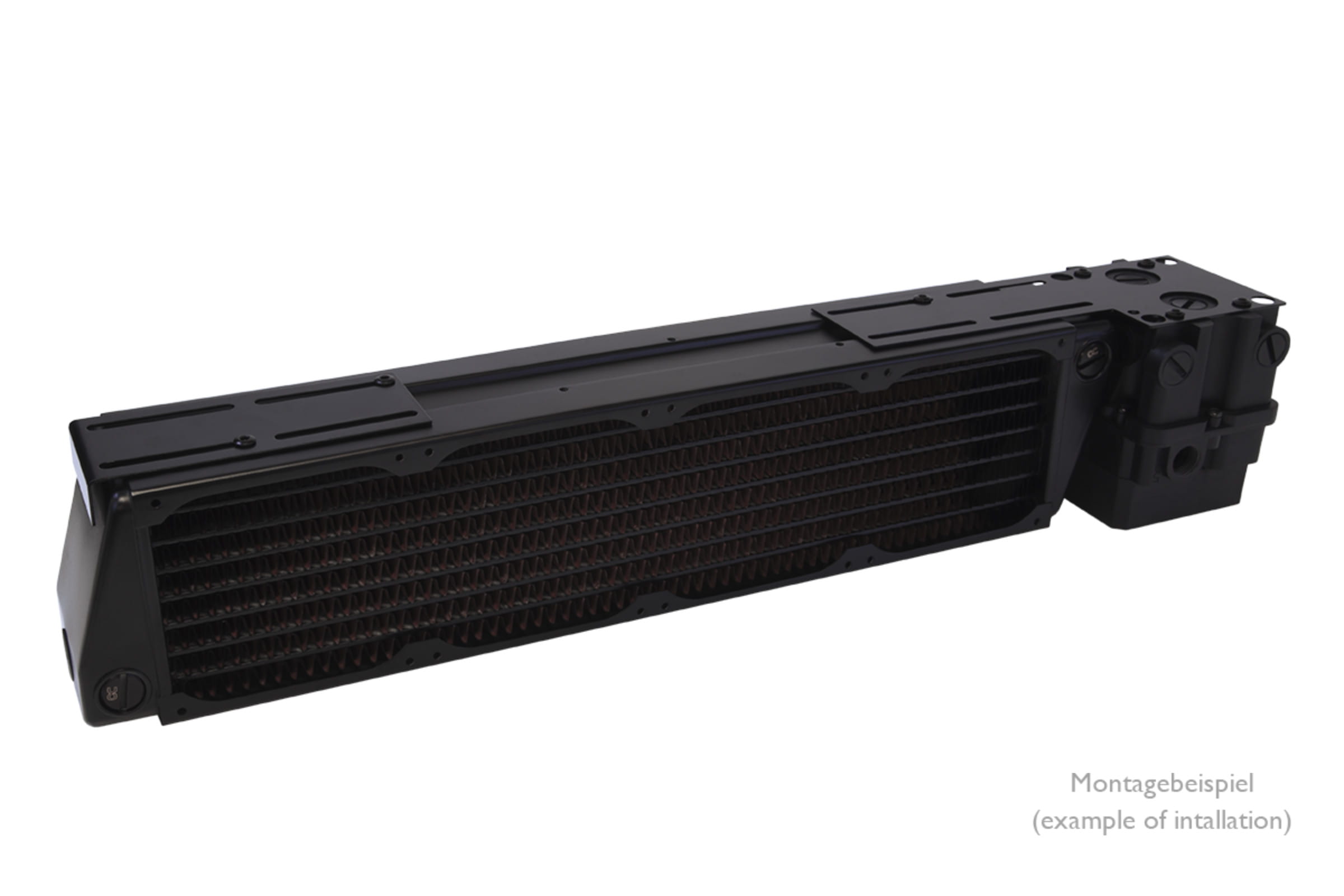

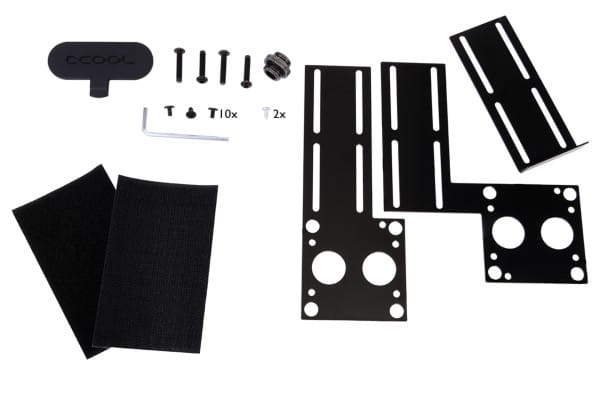

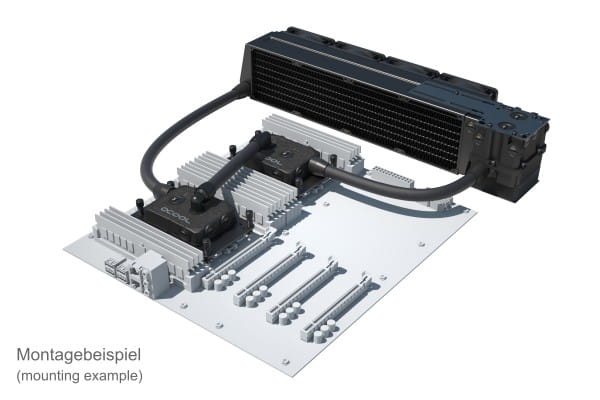

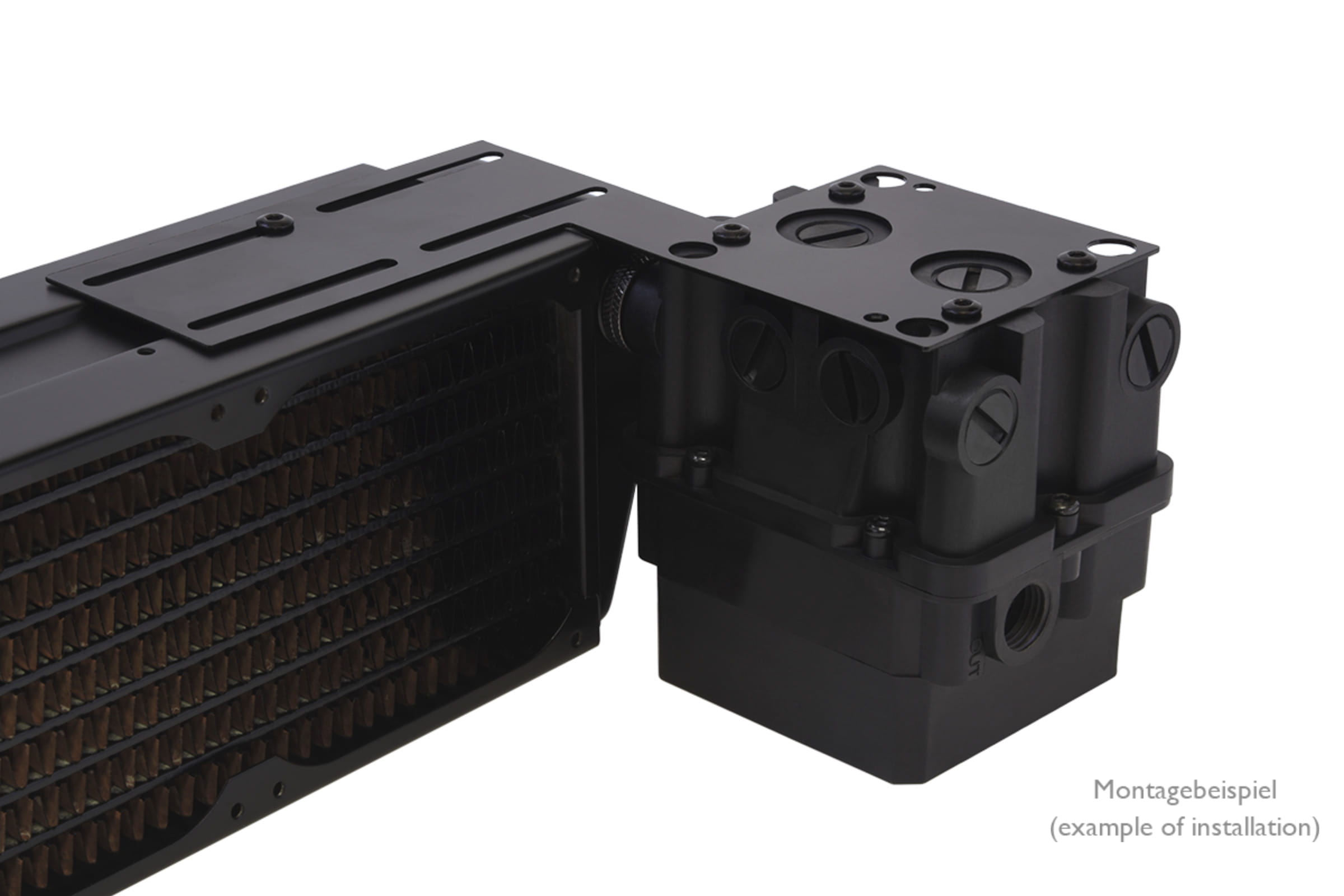

Ideally, the ES 2U expansion tank is mounted directly on the radiator. For this purpose, three mounting frames and a double nipple fitting are included in the package. The double nipple is used as a direct connection with an Alphacool NexXxoX radiator of the X-Flow series. The reservoir is then attached directly to the radiator using the enclosed mounting brackets. The Alphacool NexXxoS X-Flow radiators naturally have suitable mounting holes for this. This type of mounting makes it possible to position the radiator and reservoir either next to each other or offset in front of the radiator. The corresponding options are listed in detail in the instructions.

Further Mounting Options and Pump Installation

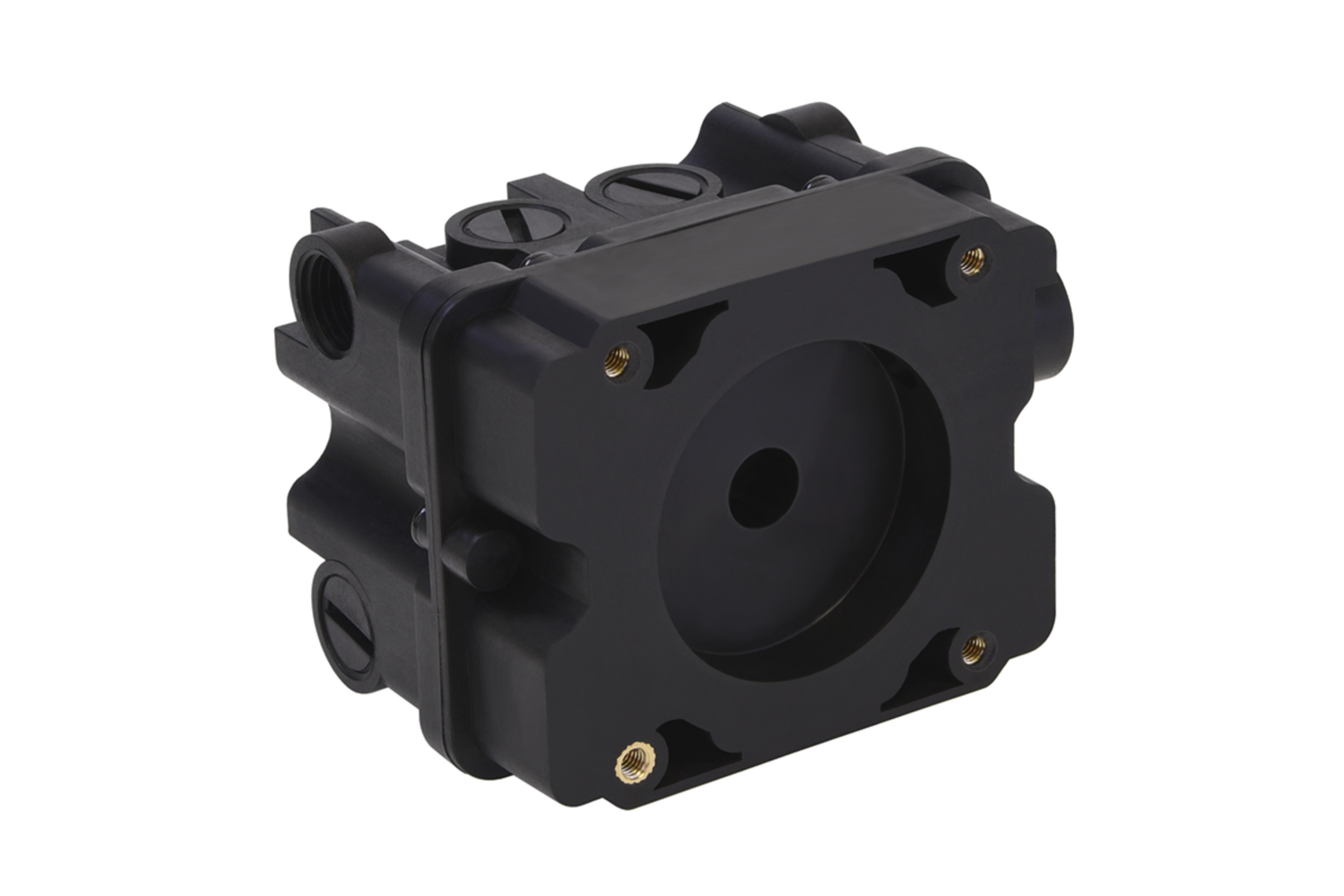

If the ES 2U reservoir is not to be mounted directly on the radiator, it can of course be fastened to any part of the case using the Velcro sheet provided. In this case, one part of the Velcro fastener is stuck to the bottom of the reservoir and the other part to any place in the server rack. To install the pump into the pump top only 4 screws and an O-ring are needed. The O-ring is placed on the reservoir, the pump is put on and fixed with four screws. The entire Alphacool ES Reservoir 2U is then ready for use.

The Alphacool ES 2U Reservoir - DDC version is an extremely compact reservoir especially for 2U server racks with extensive connection and mounting options.

Technical details
Material	Acetal
Preinstalled pump	No
Connector	G1/4" inner thread
Fillport	G1/4" inner thread
LED hole	Not available
Pump compatibility	For DDC
Model of reservoir	1x 3,5" Bayres
Color	black

Technical data
W x D x H	62 x 80 x 60 mm
Net weight	93 g
Maximum working temperature	60 °C
Connections	11 x G1/4“
Pressure tested	0,8 Bar

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Pumpe vorinstalliert:	Nein
Anschluss:	G1/4" Innengewinde
Fillport:	G1/4" Innengewinde
LED Bohrungen:	nicht vorhanden
Behältertyp:	Sonstige Behälter
Pumpenkompatibilität:	für DC-LT
Material:	Acetal
