120 mm Serverlüfter mit PWM Steuerung

L12 Alphacool ES 120mm 1.000-4.000rpm Fan V1.1 ( 120x120x25mm ) - Two Ball Bearing - PWM

Article no.: 24860
EAN: 4250197135764
Weight: 0,22 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€22.98 *

VAT and shipping costs are displayed in the shopping cart

in stock

The Alphacool ES fans have been specially developed for use in servers and workstations and,... more

Close menu

Product information

The Alphacool ES fans have been specially developed for use in servers and workstations and, unlike usual, do not offer a 2 or 3-pin DC power connection, but a 4-pin PWM control.

PWM control
Instead of the usual 2 cables or the 3-pin connector Alphacool now also uses a 4-pin PWM connector for enterprise fans, which is supported by more and more server mainboards. Via the 4-pin PWM connector, the fan always receives full voltage and is controlled by pulse width modulation. This allows the fan to be controlled over a much wider speed range. A considerable amount of energy can be saved whilst controlling the fans in server racks and with 0% PWM control, the fans can even be stopped completely. The fan also offers a soft start, which increases the service life of the fan and reduces the risk of injury. At speeds of several thousand revolutions per minute, no parts of the body should get between the fan blades.

Double ball bearings
Unlike classic plain bearing, Alphacool ES fans have a double ball bearing for increased service life under full load. Double ball bearings are generally regarded as the highest quality bearings in terms of durability and quality. This also ensures a high level of running smoothness in terms of minimal vibration.

Protection circuits
All Alphacool Enterprise fans have multiple protection circuits. If the fans are blocked, they automatically try to restart at re-duced speed after a few seconds. Thanks to the soft start, including the emergency start function, the fan can be blocked for up to 72 hours without suffering damage. In case of wrong polarity when connecting the fan, a burn-out of the electronics for at least 5 seconds is impossible. If the fan is connected incorrectly for a short time, this is no problem. The Alphacool ES fans for servers and workstations offer an extremely high air flow and an extremely high static pressure. They are therefore ideal for use on radiators or as particularly powerful case fans.

Technical data
Dimensions	120 x 120 x 25 mm
Bearing type	Two ball bearings
Rated voltage	12 V DC
Operating voltage	7-14 V DC
Start-up voltage	7 V DC or lower at 25 °C
Rated current	0.53 A; maximum 0.67 A
Rated power	6.36 W; maximum 8.04 W
Rated speed	4000 rpm ±10%
Maximum airflow	119.80 CFM
Maximum static pressure	12,67 mm H2O
Noise level	49.5 dB(A); maximum 51.5 dB(A), measured at rated voltage from 1 m in a quiet room with background noise below 18 dB(A)
Expected service life	70,000 hours at 40 °C
Motor poles	4
Rotation direction	Anticlockwise
Integrated functions	FG tachometer output, Automatic restart, Soft start, PWM speed control
Ingress protection	IP22
Locked-rotor protection	The fan switches off automatically 1-3 seconds after a rotor lock at rated voltage. It then attempts to restart every 2-6 seconds. No damage is specified after 72 hours in the locked condition.
Reverse-polarity protection	Open-circuit protection when VCC and GND are exchanged
Insulation resistance	At least 10 MOhm at 500 V DC between the housing and both lead wires
Dielectric strength	500 V AC for 1 minute at 1 mA between the housing and both lead wires
Main materials and connection (frame, impeller, bobbin)	PBT, UL 94 V-0
Main materials and connection (lead wires)	UL 1007, 26 AWG, 300 ±10 mm, excluding connector

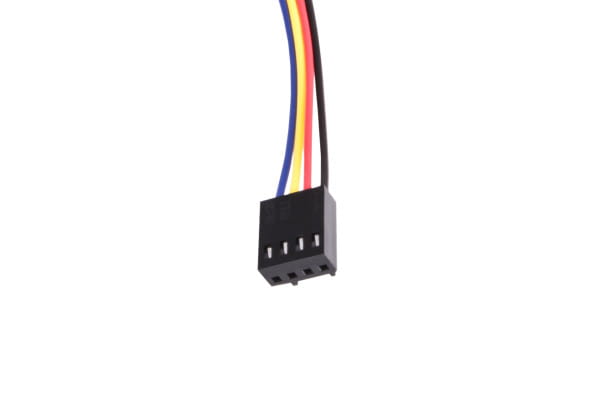

Main materials and connection (connector)	2510-4P
Operating range	-10 to +70 °C; 15-90% RH
Storage range	-20 to +85 °C; 15-90% RH
Model designation	JE1225B12V

Warranty: 3 years
