Fullcover water cooler for the Geforce RTX 3070 FE

WAK Alphacool Eisblock Aurora Acryl GPX-N RTX 3070 Founders Edition mit Backplate PHT EOL

This product is currently not available.

Article no.: 11946
EAN: 4250197119467
Weight: 1,07 kg
Available: Akutell nicht Verfügbar
Images may differ slightly from the original

€62.97 * €149.98 * (58.01% Saved)

Prices incl. VAT plus shipping costs

Liefertermin: in 6 - 7 Wochen

Alphacool Eisblock XPX CPU - polished clear version

€39.98*

Alphacool Aurora Eiscontrol Addressable RGB Controller - Black

€15.98*

Alphacool Digital RGB LED Y-cable 3-way with JST connector - Black 30cm

€6.99*

Alphacool Eiszapfen PRO 13mm HardTube Fitting G1/4 - Deep Black Sixpack

€33.97*

Alphacool Eiszapfen screw plug V.2 G1/4 - Chrome

€2.98*

The Alphacool Eisblock Aurora Acryl GPX-N RTX 3070 combines style with performance and extensive... more

Close menu

Product information

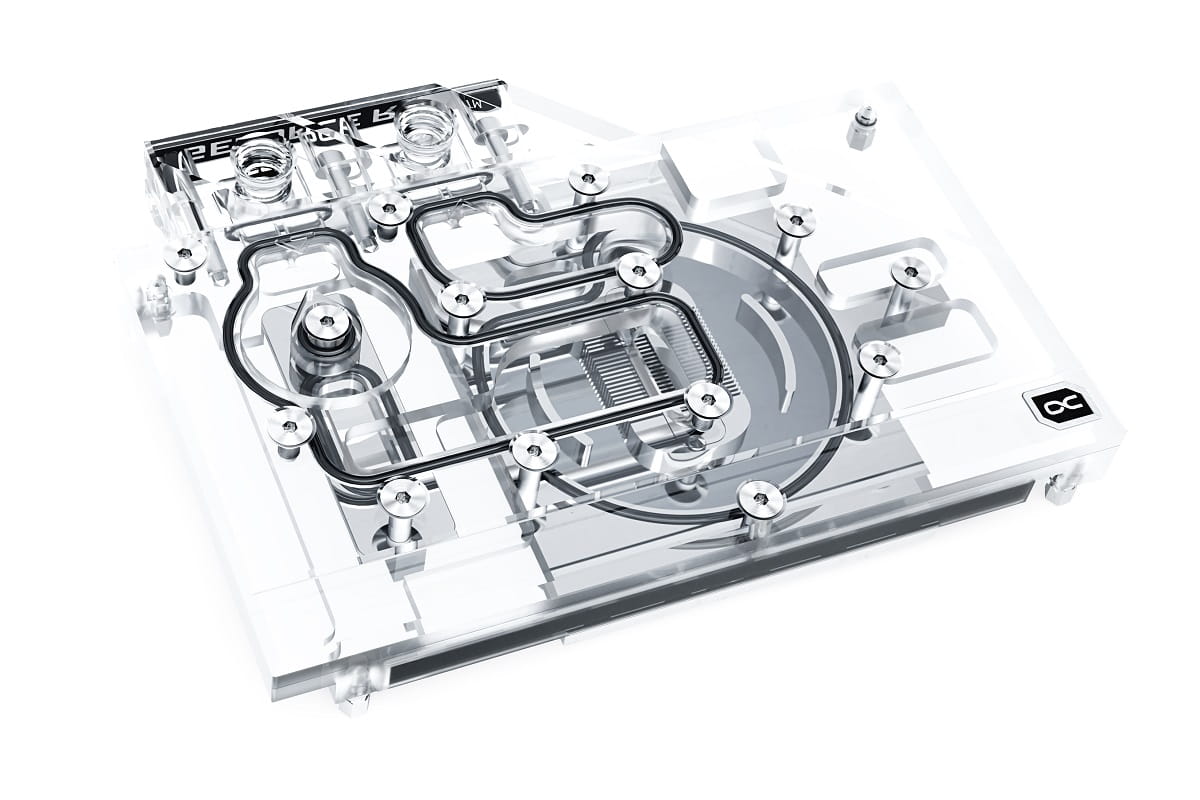

The Alphacool Eisblock Aurora Acryl GPX-N RTX 3070 combines style with performance and extensive digital RGB lighting. Over 17 years of experience have gone into this graphics card water cooler and represent the current pinnacle of Alphacool product development.

More performance!
When developing the Eisblock Aurora GPX-N RTX 3070 graphics card water cooler, emphasis was naturally placed on increasing performance. In the first step, the cooler was brought closer to the individual components by reducing the thermal pads to a thickness of 1 mm. In the second step, the chrome-plated copper block was also made thinner. Instead of the previous 7 mm, it is now only 5.5 mm thick. The water flow within the cooler has also been optimized. All important components such as the voltage converters and the RAM are now cooled much better and more effectively by the water. All of this ensures a significant increase in cooling performance.

New design!

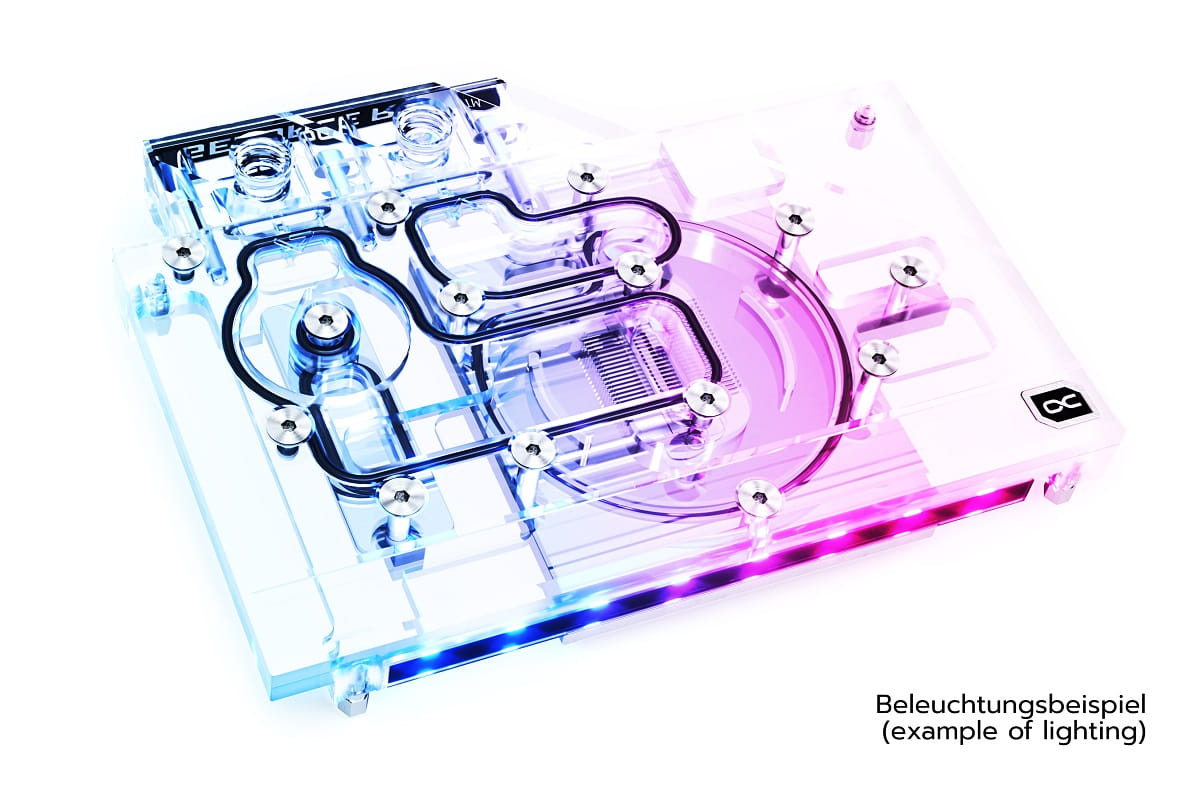

The Eisblock Aurora GPX-N RTX 3070 cooler was fundamentally designed in such a way that the lighting is more in the foreground than in previous models. The addressable digital RGB LEDs are embedded directly in the cooling block and they run along the sides of the entire cooling block. The effect is lighting that encloses the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular, with all edges bevelled. The result is better light scattering in the water cooler due to the reflections on these bevels. They also create various contours that give the Eisblock Aurora GPX-N RTX 3070 cooler its very own visual touch.

Copper or aluminum?
Alphacool naturally only uses copper in its water coolers. The Eisblock Aurora GPX-N RTX 3070 has chrome-plated copper. Compared to previous models, however, Alphacool has further improved the type of chrome plating, which has significantly increased acid resistance. This should prevent the chrome plating from flaking off. And why does Alphacool use copper instead of aluminum? Copper simply has almost twice the thermal conductivity of aluminum and is therefore clearly the better material for water cooling.

Are these all the new things?
The Eisblock Aurora GPX-N RTX 3070 graphics card water cooler also uses the new patented locking screws, which are flush with the surface of the terminal. The Alphacool logo is now in the corner on the top and is also fully illuminated. The corresponding designations of the compatible graphics card types can be seen on the front of the terminal. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small, discreet triangles. They are easily recognizable and fit perfectly into the overall visual line of the graphics card water cooler.

The Alphacool Aurora GPX-N RTX 3070 Acryl is in every respect a complete development of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how was incorporated into the development and implementation.

Compatibility:
- NVIDIA GeForce RTX 3060 Ti Founders Edition, 8GB GDDR6, HDMI, 3x DP (900-1G142-2520-000)
- NVIDIA GeForce RTX 3070 Founders Edition, 8GB GDDR6, HDMI, 3x DP (900-1G142-2510-000)
- NVIDIA GeForce RTX 3070 Ti Founders Edition, 8GB GDDR6X, HDMI, 3x DP (900-1G143-2515-000)

Technical data cooler
Dimensions (L x W x H)	122.5x169.5x24.5mm
Radiator base material	Chrome-plated copper
Material radiator top	Acrylic
Connections	4x G1/4“
Thick cooling fins	0.6mm
lighting	Digital RGB LEDs
Power connection Digital RGB LEDs	3-Pin JST
Voltage Digital RGB LEDs	5V
Maximum working temperature	60°C

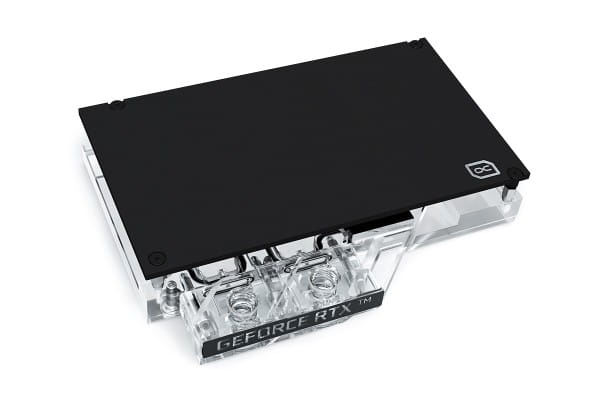

Technical data backplate
Dimensions (L x W x H)	98x169.5x6mm
material	aluminum
Color	Black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Manufacturer:	Alphacool
Cooler type:	Complete cooler
Material base plate:	Copper
Material Lid:	Acrylic
SLI compatible:	Yes
Dimensions:	169,5 x 122,5 x 24,5mm
Connection:	4x G1/4"
Hardware manufacturers:	NVIDIA
Hardware model:	RTX 3070
Notice:	Compatible up to 16/13mm straight, Compatible up to 19/13mm angled
