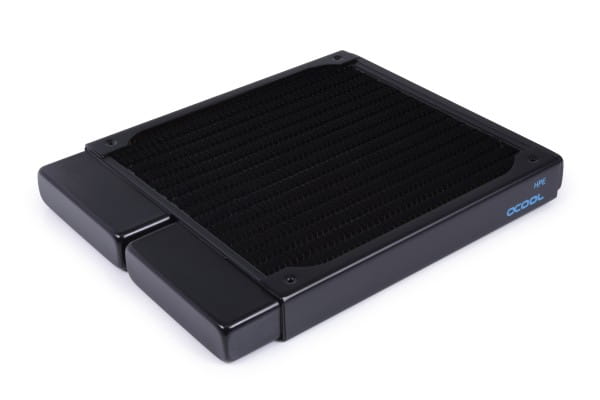

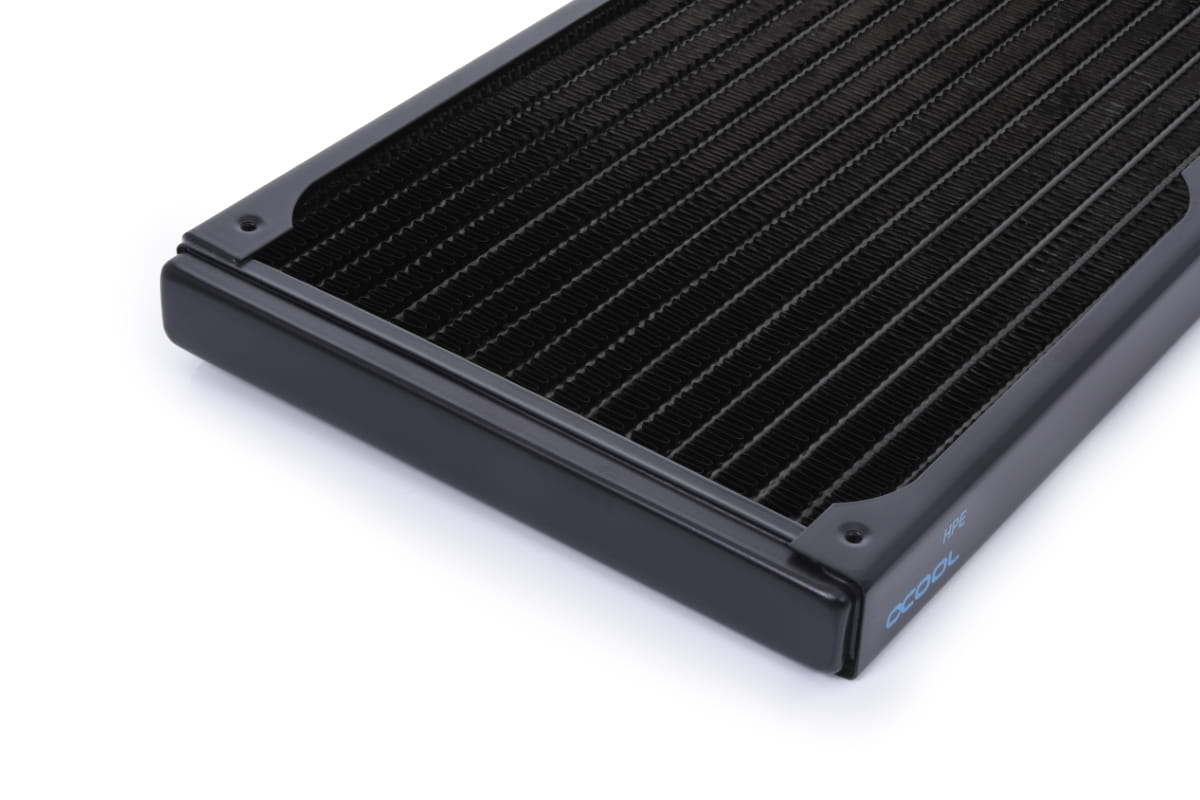

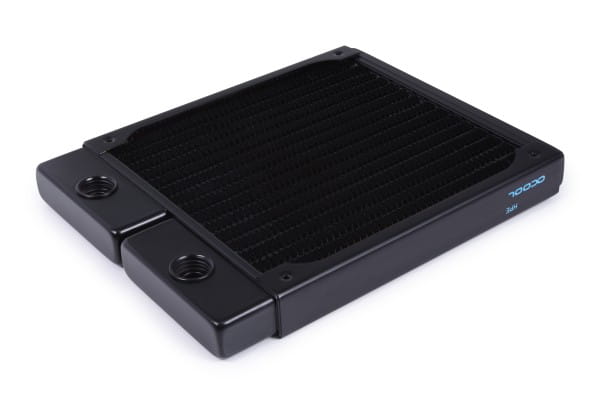

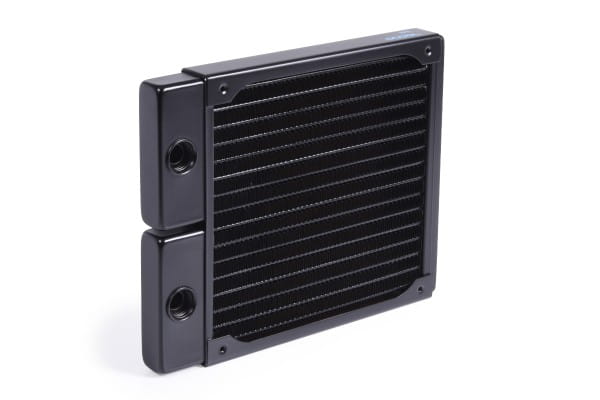

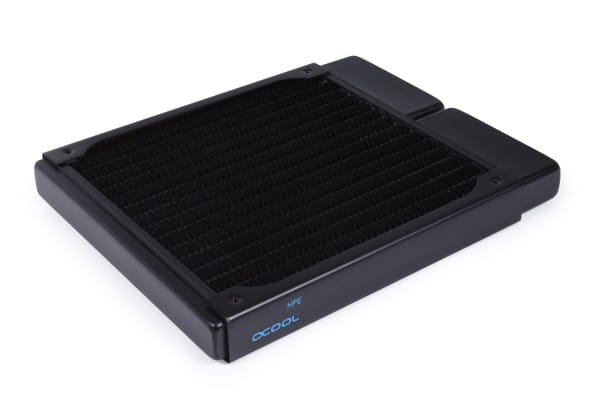

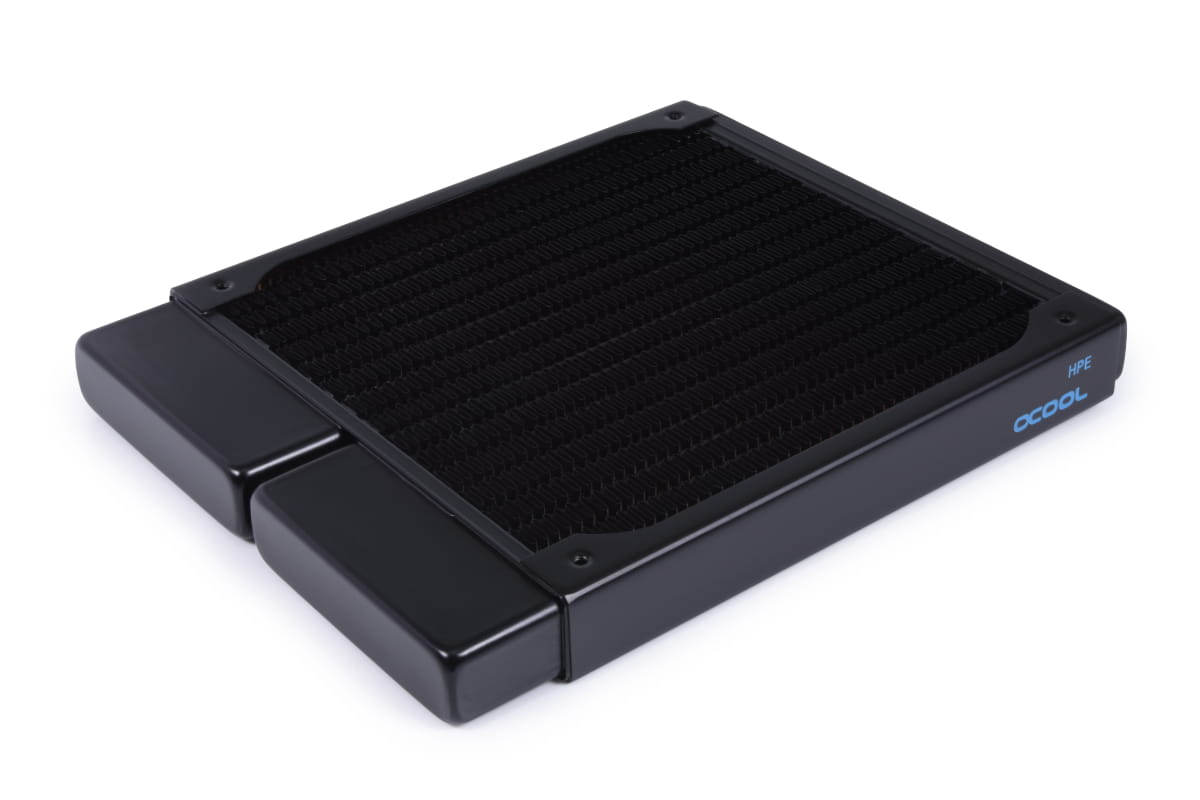

Alphacool NexXxoS HPE-20 Full Copper 140mm Radiator

  • 14443
  • 4250197144438
  • 0,486 kg
  • Images may differ slightly from the original
€63.98 *

Prices incl. VAT plus shipping costs

ready for shipment in 1-3 days

Recommended accessories
Extra Price
18605 Alphacool tube AlphaTube TPV 12,7/7,6 - black matte 3,3m (10ft) retail box
1x
Alphacool tube AlphaTube TPV 12,7/7,6 - black matte 3,3m (10ft) retail box
€18.98*
17454 Alphacool HF compression Fitting TPV Metall - 12,7/7,6mm Straight - Black - 6pcs Kit
1x
Alphacool HF compression Fitting TPV Metall - 12,7/7,6mm Straight - Black - 6pcs Kit
€27.98*
17455 Alphacool HF compression fitting TPV Metall - 90° rotatable 12,7/7,6mm - Black
1x
Alphacool HF compression fitting TPV Metall - 90° rotatable 12,7/7,6mm - Black
€8.98*
24807 Alphacool Eiszyklon Aurora LUX PRO Digital RGB (140x140x25mm)
1x
Alphacool Eiszyklon Aurora LUX PRO Digital RGB (140x140x25mm)
€12.98*
18651 Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
15394 Alphacool Core 200 Aurora reservoir D5/VPP Acetal/Acryl
1x
Alphacool Core 200 Aurora reservoir D5/VPP Acetal/Acryl
€49.98*
For more than a decade, Alphacool has dominated the market with the NexXxoS Full Copper radiator... more
Product information

For more than a decade, Alphacool has dominated the market with the NexXxoS Full Copper radiator series. Our extensive portfolio of radiator variants is unique in the world. Just like our manufacturing process, which allows us to produce all water-carrying parts and the cooling fins out of pure copper. As a result, the NexXxoS series offers the highest thermal conductivity of any radiator on the market. Thanks to their exceptional performance, the radiators can easily dissipate even extremely high waste heat and have become essential in many areas of the cooling industry.

The next step in evolution: NexXxoS HPE Full Copper Radiator!
The NexXxos Full Copper HPE Radiator uses the same materials as previous NexXxos models, but takes it a step further technically. Due to the condensed internal structure, the number of water channels and copper fins could be increased. Thus, a larger volume of water is in direct contact with the cooling fins and the heat transfer is enormously improved. The higher number of fin rows and their shortening also makes much more efficient use of the cooling surface. Comparison tests with the conventional NexXxos radiator have shown that a performance increase of 4.5K is possible when using the HPE radiator. At higher ambient temperatures and higher fan speeds, the performance gap with the normal NexXxoS radiators even increases progressively, reaching a possible performance increase of up to 6K.

Space-saving & flexible to use
The compact slim radiators can be mounted very flexibly in even the tightest cases thanks to their low overall height of only 20mm.

Connection options & mounting

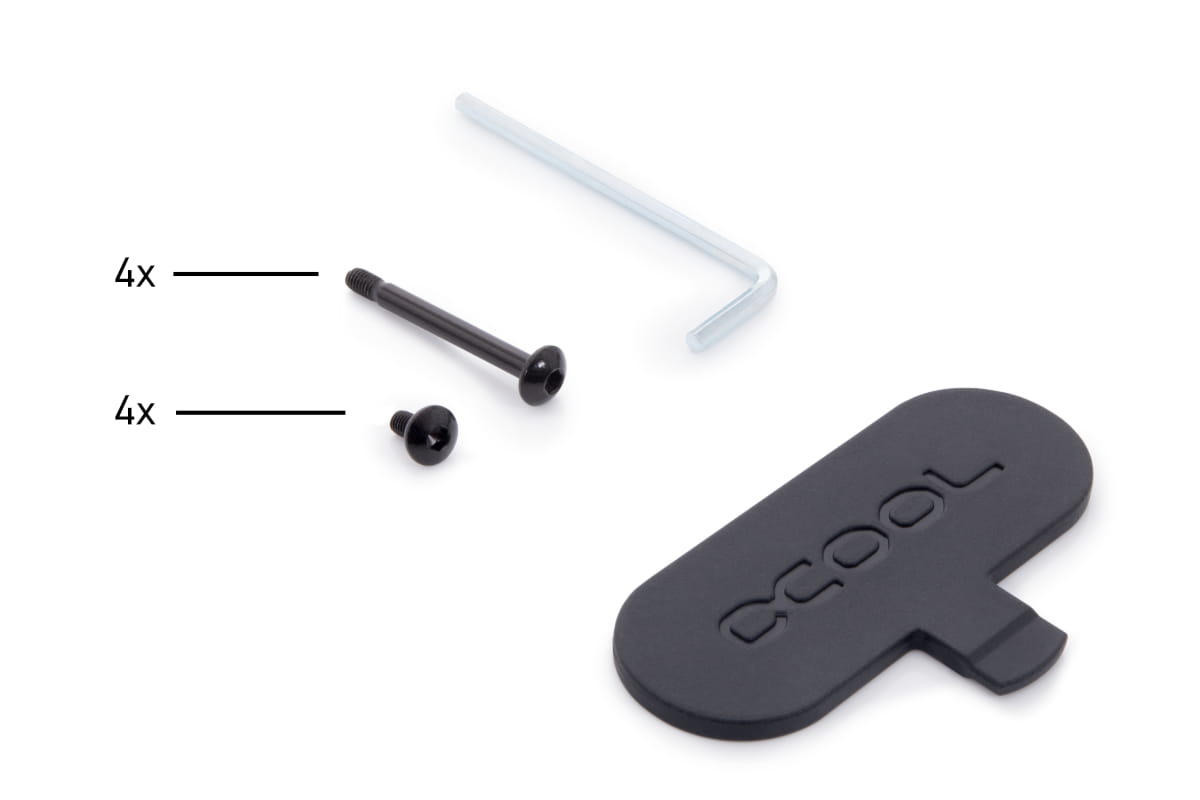

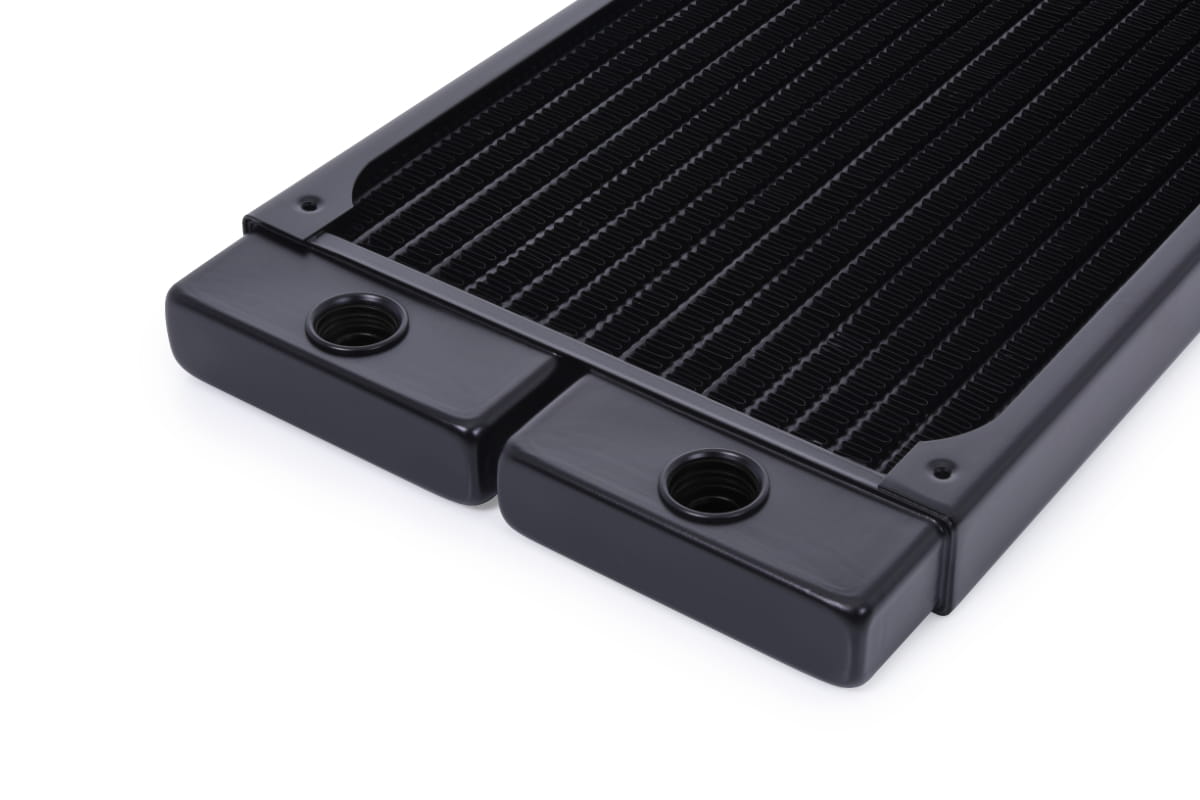

The NexXxoS HPE radiator has one IN and OUT connection with G1/4" threads in the pre-chamber area. All screws for mounting in the case and for mounting the fans are included with the radiator. Additional screws are not usually required.










Technical data radiator
L x W x H171 x 140 x 20mm
Material cooling fins, pre-chambers & channelscopper
Material threadsbrass
Material outer housingstainless steel
Threads2x G1/4" IN/OUT (max. 5mm thread length)
Possible fan size140mm
Possible fan assembly1x one-sided / 2x both-sided
Thread size fan mountingM3
Pressure tested0,8 Bar
Maximum working temperature60°C
Fin density19 FPI
Weight359g
Colorblack

Warranty: 10 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Lamellen: Kupfer
Kühlkanäle: Kupfer
Farbe: schwarz
Anschluss: 2x G1/4"
Lüftergewinde: M3
Hersteller: Alphacool
Druckgetestet: 0,8 bar
Dicke: 0 - 29mm
Fins per inch: 19
Anzahl Lüfter: 1;2;
Lüftergröße: 140mm;
Abmessungen (L x B x H): 171 x 140 x 20mm
Gehäuse: Stahl;
