Alphacool Eiszyklon Aurora LUX PRO Digital RGB (140x140x25mm)

  • 24807
  • 4250197136167
  • 0,22 kg
  • Images may differ slightly from the original
€12.98 * €19.98 * (35.04% Saved)

Prices incl. VAT plus shipping costs

ready for shipment in 1-3 days

Recommended accessories
Extra Price
15360 Alphacool Aurora Eiscontrol addressable RGB controller - black
1x
Alphacool Aurora Eiscontrol addressable RGB controller - black
€15.98*
18602 Alphacool Digital RGB LED y-cable 3-times with JST male connector 60cm - black
1x
Alphacool Digital RGB LED y-cable 3-times with JST male connector 60cm - black
€8.98*
24808 Alphacool Eiszyklon Aurora LUX PRO 2 Digital RGB (120x120x25mm)
1x
Alphacool Eiszyklon Aurora LUX PRO 2 Digital RGB (120x120x25mm)
€12.98*
18619 Alphacool Eis-Matrix II - Adapter 5-Pin auf PWM + 5V Digital RGB (3pcs)
1x
Alphacool Eis-Matrix II - Adapter 5-Pin auf PWM + 5V Digital RGB (3pcs)
€4.47*
You may have already seen the Alphacool Eiszyklon Aurora LUX Pro fan on the Alphacool Eisbaer... more
Product information

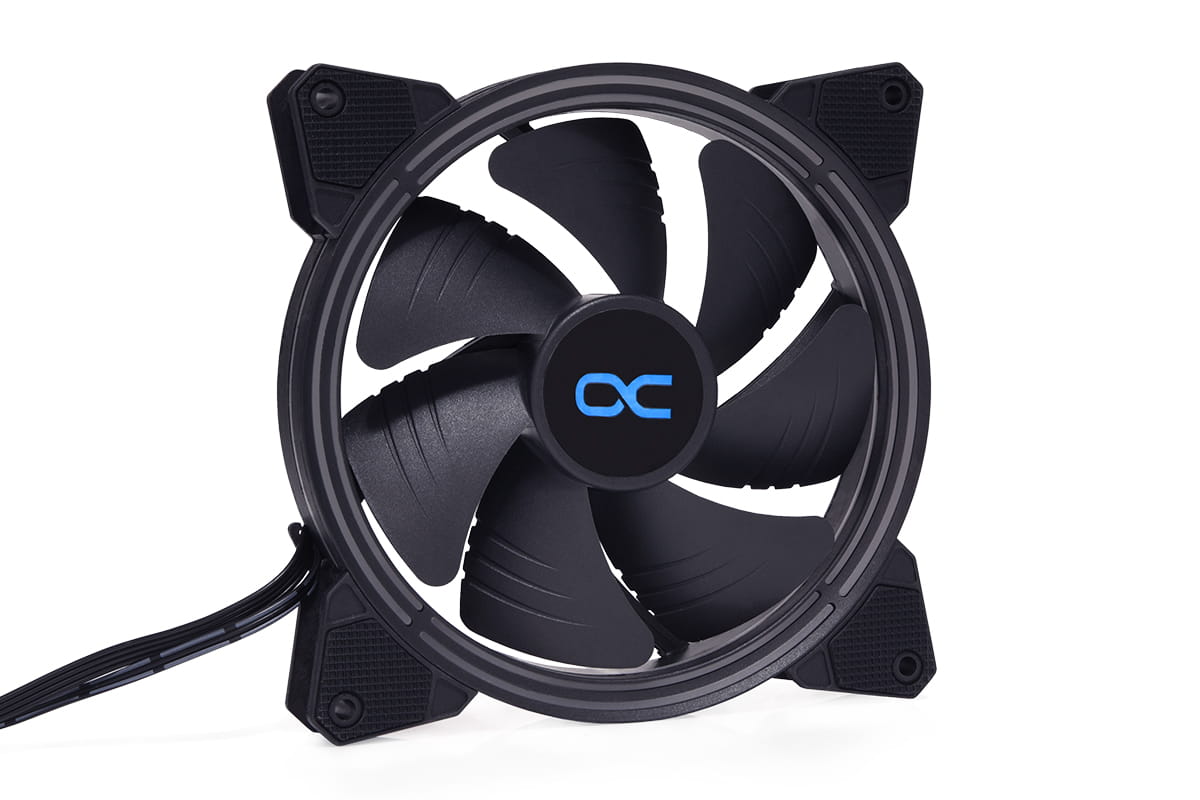

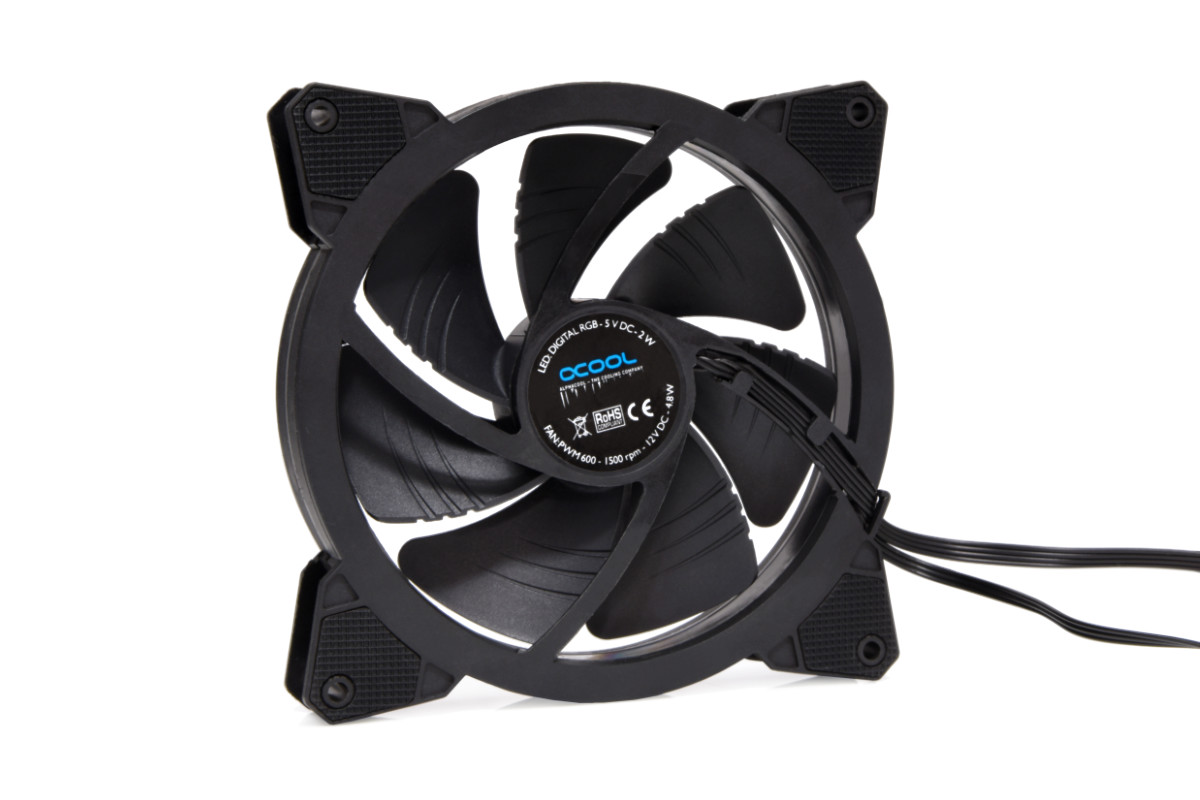

You may have already seen the Alphacool Eiszyklon Aurora LUX Pro fan on the Alphacool Eisbaer Aurora series. It offers a wide control range as well as outstanding digital RGB LED lighting. The individually controllable 5V aRGB LEDs paired with the special design of the fan frame create unique effects.

Ingenious Lighting

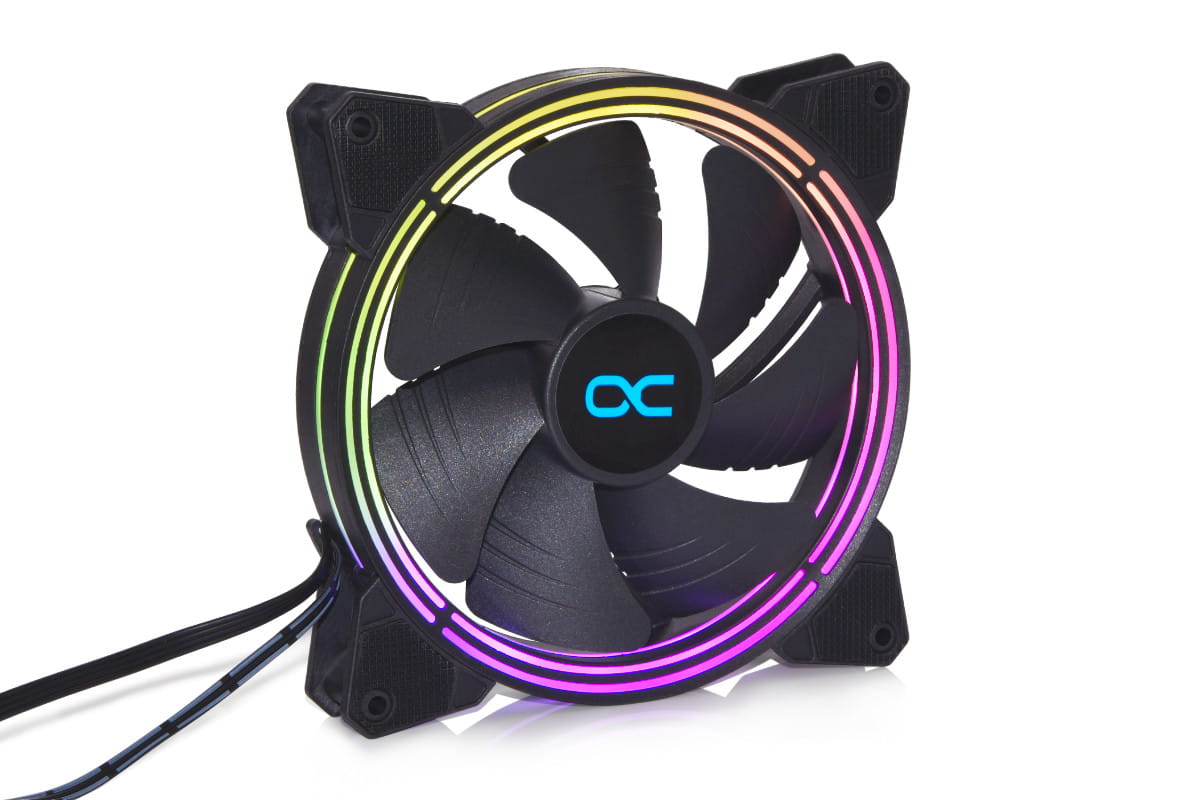

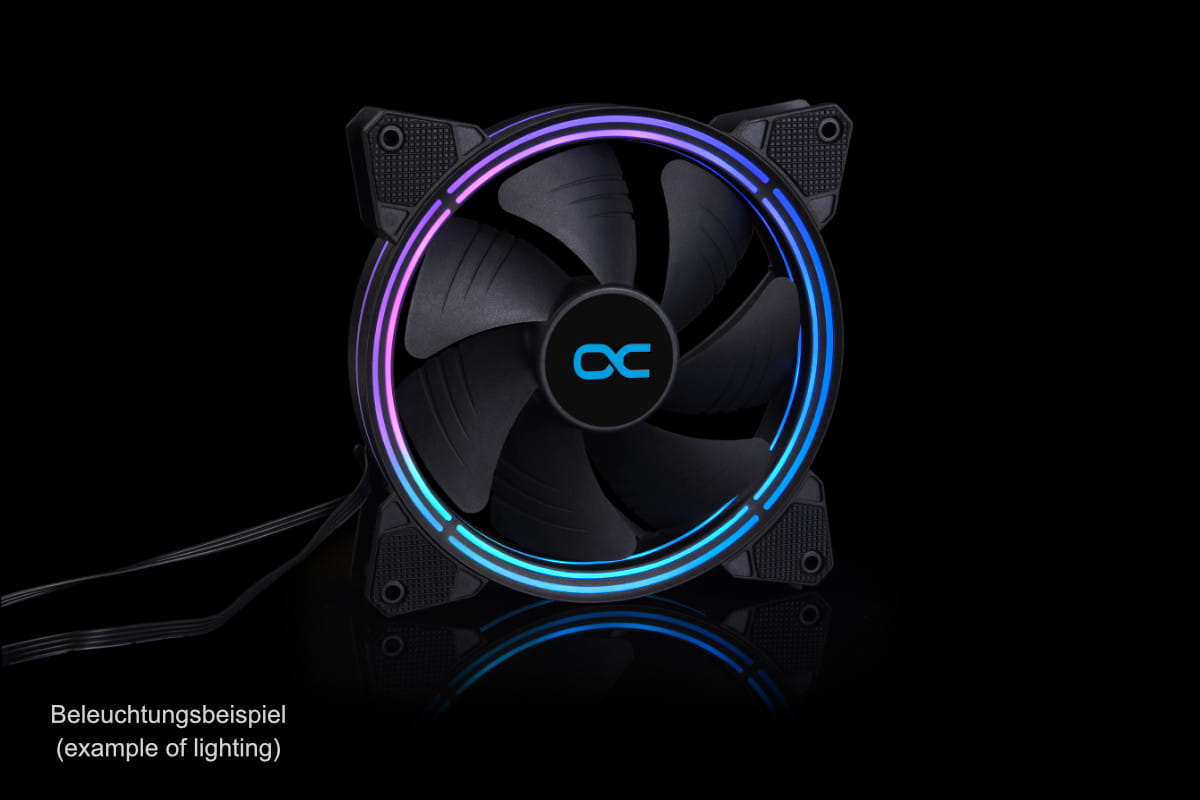

The frame is equipped with digital addressable 5V RGB LEDs which illuminate the whole frame. The frame is not completely transparent, but the illumination is done through narrow slits in four places. On the upper side there are two rows of these slits. Each narrow frame runs along the inside and outside of the frame. This creates a unique illumination which looks very noble. Thanks to the recessed light diffusers the light is distributed evenly. This means that Individual LEDs are no longer visible.

Wide Control Range and Silent

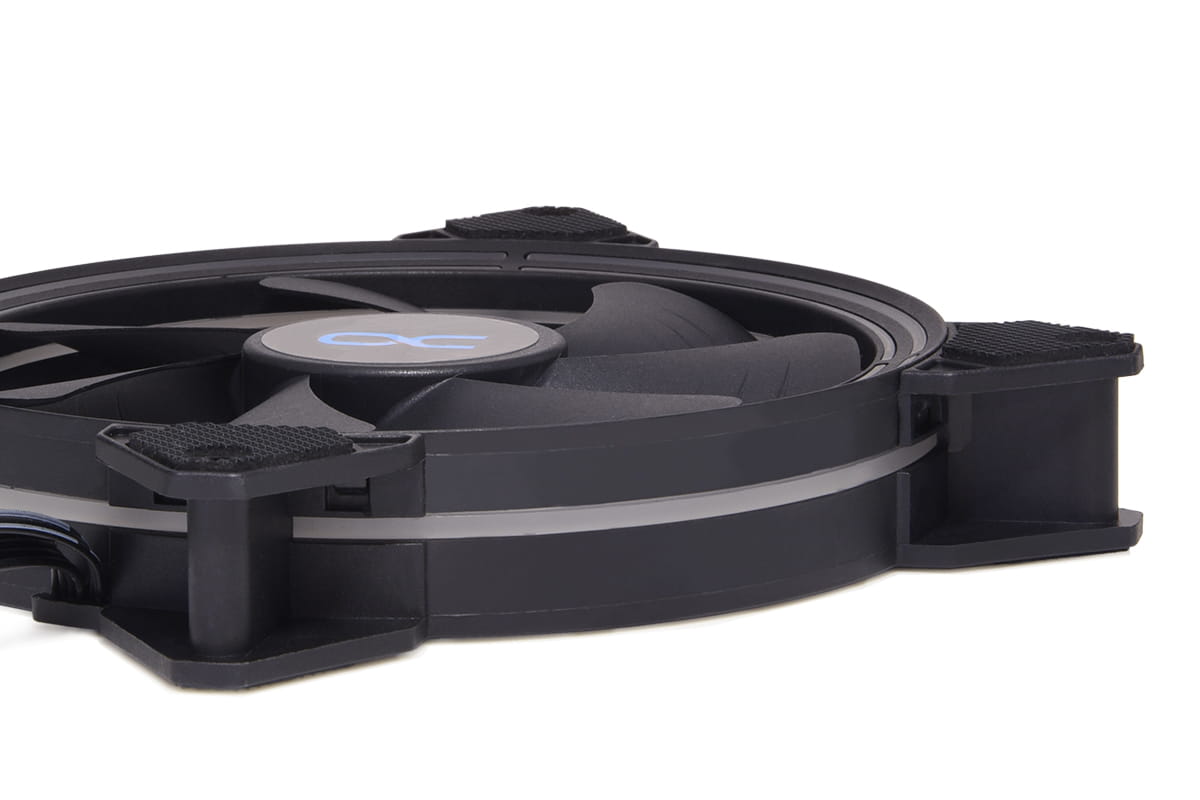

The fan can be controlled from 600 to 1500 rpm via the 4-pin PWM connector. At 600 rpm the fan is almost silent, but still offers a good airflow rate as well as a high static pressure. Therefore, the fan can also be used very well on radiators for a water cooling system. Thanks to the high airflow, the fan is also ideal for ventilating a case. Decouplers are also found directly on the frame. The soft foam padding reduces the transmission of vibrations to the case. A further plus point for the silent capability of the fan.

Connections?

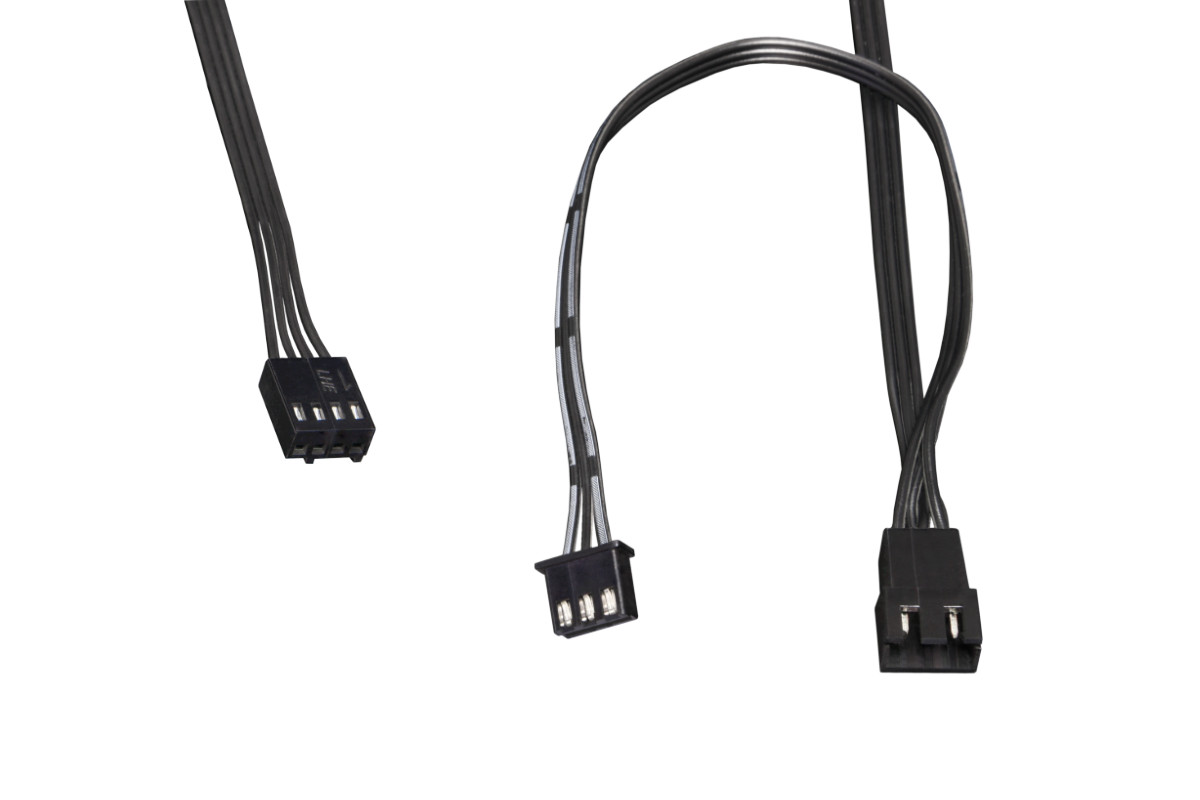

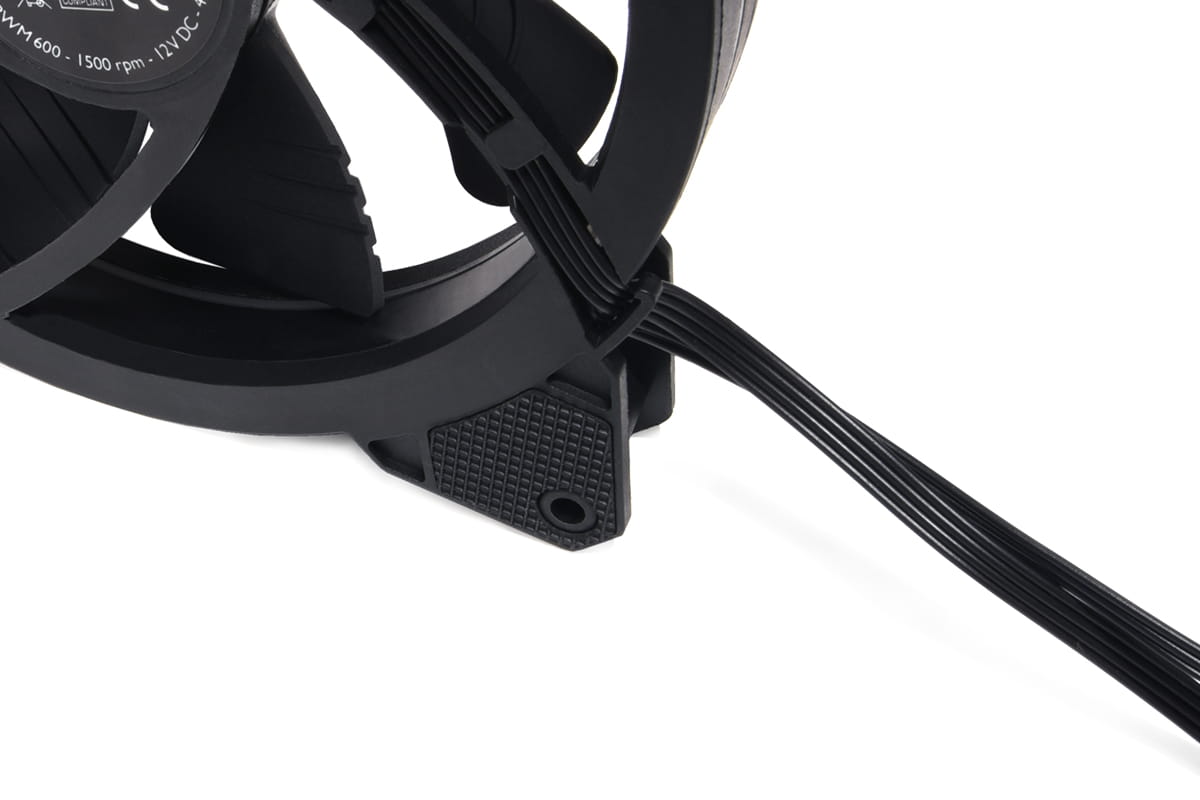

The fan is controlled via a 4-pin PWM connector. The cable is 50 cm long. This allows the fan to be connected to the mainboard or a special controller without any additional adapter cables or extensions. The digital aRGB LED lighting is controlled via a JST 3-pin connector.



Technical data
Speed600-1500 RPM
Static pressure1,6 mm/H2O
Air flow rate71 m³/h
BearingsHydraulic
Fan connector4-Pin PWM
Connection Digital aRGB3-Pin JST + 3-Pin 5V
Quantity Digital aRGB LED16
Dimensions140 x 140 x 25 mm
Net weight180 g
Max working temperature60 °C
Power consumption2 W
Noise12-38 dB(A)
MTBF50.000h

Technical details mehr
Technical details
Farbe Rotor: schwarz;
Farbe Rahmen: schwarz
Nennspannung: 12V DC
Lebensdauer (bei 25°C): 50.000 h
RPM Signalübertragung: Ja
LED: RGB
Nenndrehzahlbereich: 1000 - 1450 U/min
Luftförderbereich: 50 - 99 m³/h [2]
Hersteller: Alphacool
Stromanschluss: 4Pin
Lautstärkebereich: 10 - 19,9 dB(A)
Größe: 140mm [9]
Abmessungen: 140 x 140 x 25mm
Druck: 1,60mm H2O
Leistungsaufnahme: 2W
Nenndrehzahl: 600-1500 U/min
Luftförderleistung: 71 m³/h
Lautstärke: 12-38 dB(A)
