GPU water cooler RTX 5090 Gaming 1-slot design

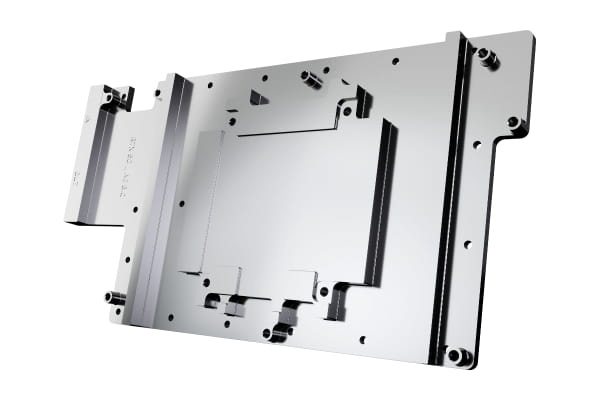

WAK Alphacool ES Geforce RTX 5090 Gaming 1-Slot Design

Article no.: 10292
EAN: 4250197102926
Weight: 1,42 kg
Available: Akutell nicht Verfügbar - Mehr ist unterwegs
Images may differ slightly from the original

€249.98 * €299.98 * (16.67% Saved)

Prices incl. VAT plus shipping costs

Delivery date: in 3 - 4 weeks

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€19.98*

Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6

€17.98*

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

Alphacool Core 1 Aurora Silver

€119.98*

Alphacool expands its Enterprise series with the latest 1-slot water coolers for the current... more

Close menu

Product information

Alphacool expands its Enterprise series with the latest 1-slot water coolers for the current Nvidia GeForce RTX generation. These solutions are specifically designed for use in server enclosures and workstations, enabling efficient cooling even in densely packed systems.

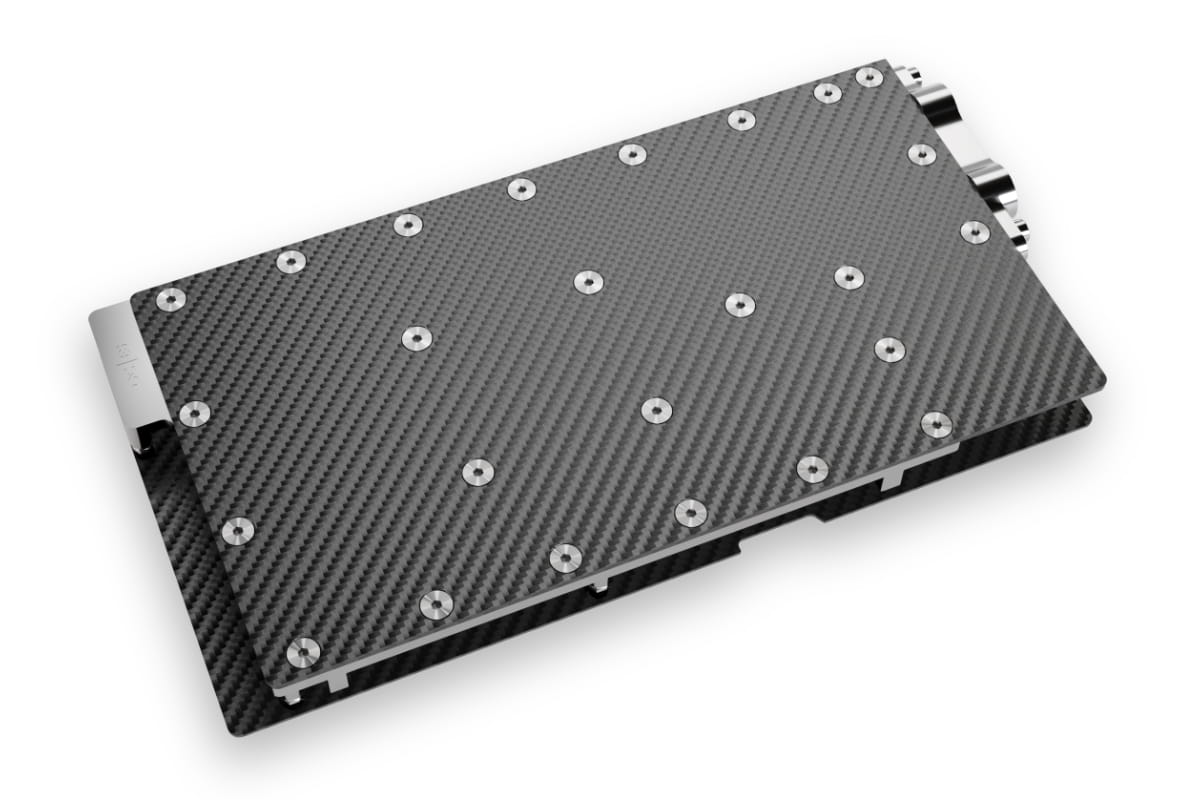

By employing a thin yet extremely robust carbon plate, these coolers have been designed as 1-slot units without compromising the integrity of the copper block. Paired with rear-placed brass connectors, multiple coolers can be easily stacked on top of each other or side by side within a server case. This thoughtful design saves space, simplifies tubing, and allows for seamless integration into the water circuit.

All water-bearing parts are made from high-quality copper, which offers nearly twice the thermal conductivity of aluminum. Additionally, the copper is chrome-plated rather than nickel-plated, providing extra protection for the cooler. Chrome plating is more resistant to acids, scratches, and other damage, effectively preventing the chipping of coatings.

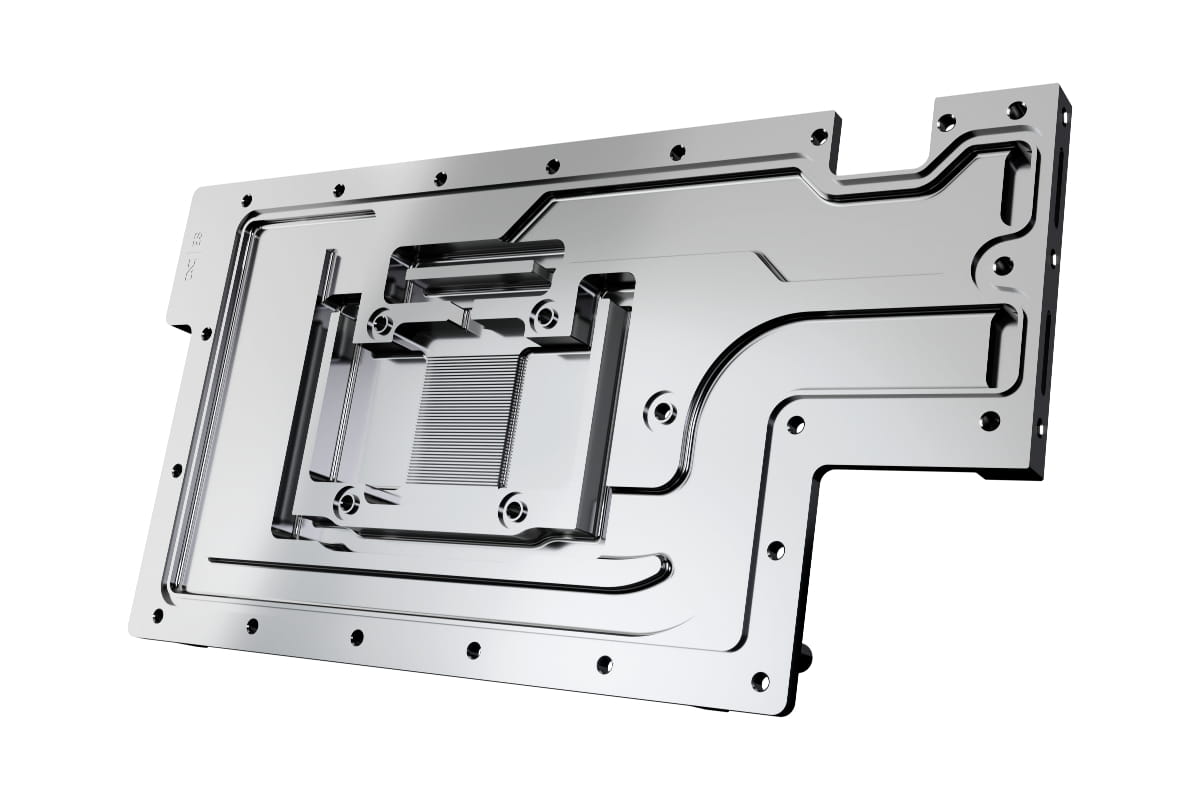

The GPU water cooler has undergone a complete technical overhaul. To optimize cooling performance, the spacing between the cooler and the components on the PCB was redefined and tested. The water flow was simulated using state-of-the-art software and validated through practical trials. These extensive tests led to improvements in the cooler base and nozzle, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.

Compatibility:
- Gigabyte AORUS GeForce RTX 5090 MASTER 32G (GV-N5090AORUS M-32GD)
- Gigabyte AORUS GeForce RTX 5090 MASTER ICE 32G (GV-N5090AORUSM ICE-32GD)
- Gigabyte GeForce RTX 5090 GAMING OC 32G (GV-N5090GAMING OC-32GD)
- Gigabyte GeForce RTX 5090 WINDFORCE 32G (GV-N5090WF3-32GD)
- Gigabyte GeForce RTX 5090 WINDFORCE OC 32G (GV-N5090WF3OC-32GD)

Technical data cooler
Dimensions total (L x W x H)	255,00 x 128,00 x 19,20mm
Material cooler	chrome-plated copper
Material cooler top	Carbon
Material terminal	Brass
Material Connection thread	Brass
Max working temperature	60°C
Pressure tested	2,0 bar
Threads	2 x G1/4"
Thickness cooler bottom	3,25mm
Thickness cooling fins	0,4mm
Distance cooling fins	0,4mm

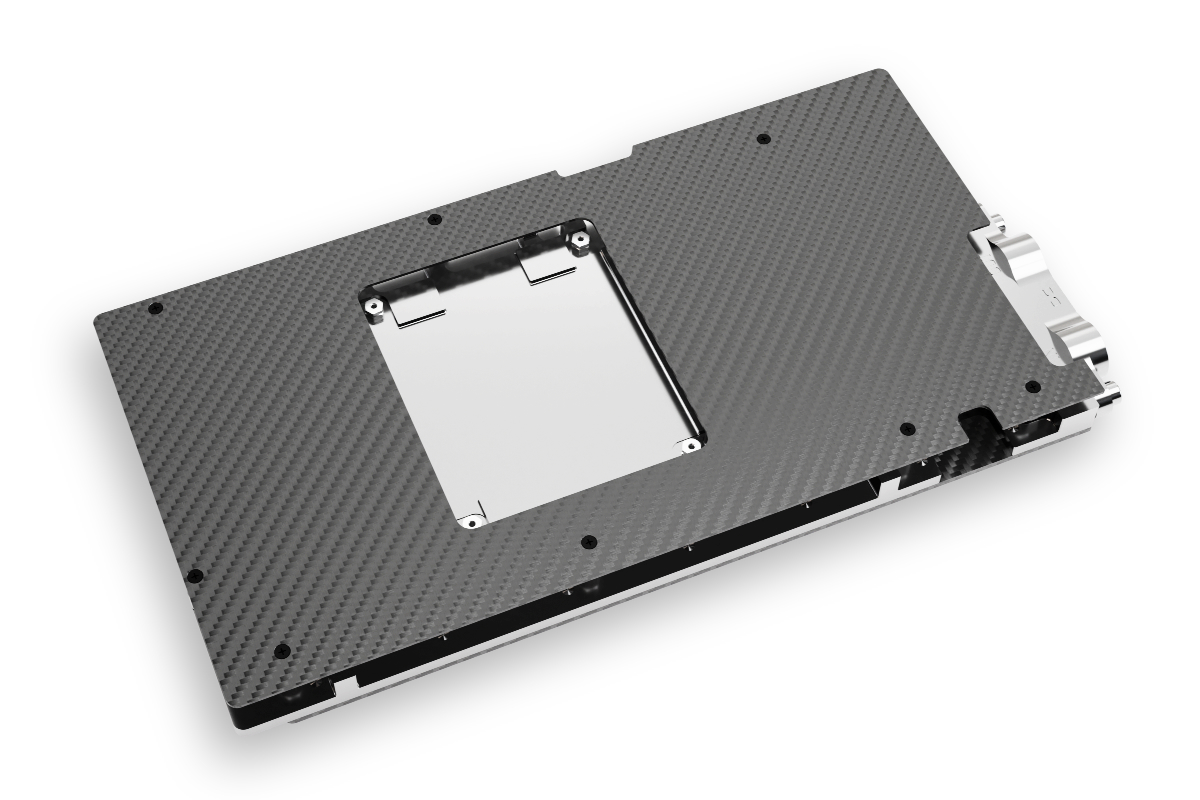

Technical data backplate
Dimensions (L x W x H)	244,50 x 128,00 x 3mm
Thickness backplate without spacers	1mm
Material	Carbon

Warranty: 3 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Material base plate:	Nickel-plated copper
Material Lid:	Acrylic;
Dimensions:	255,00 x 128,00 x 19,20mm
Connection:	2x G1/4"
Hardware manufacturers:	NVIDIA
Hardware model:	RTX 5090;
