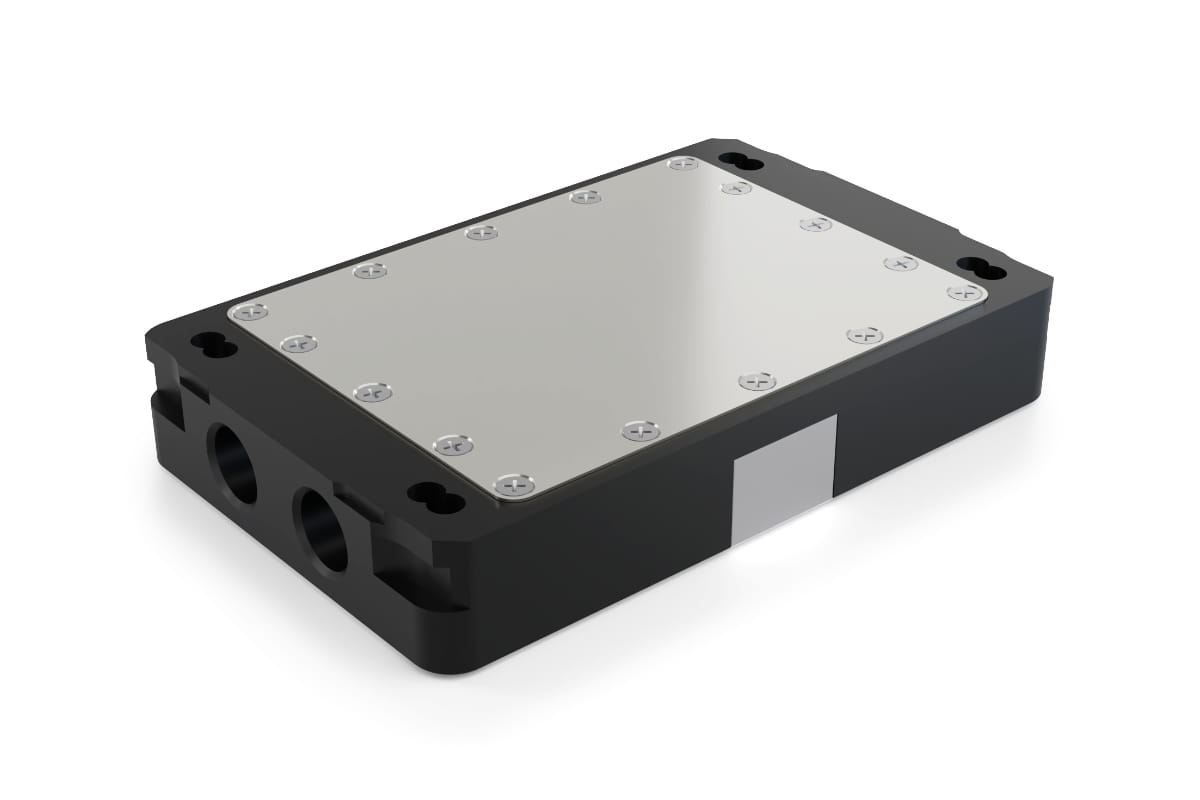

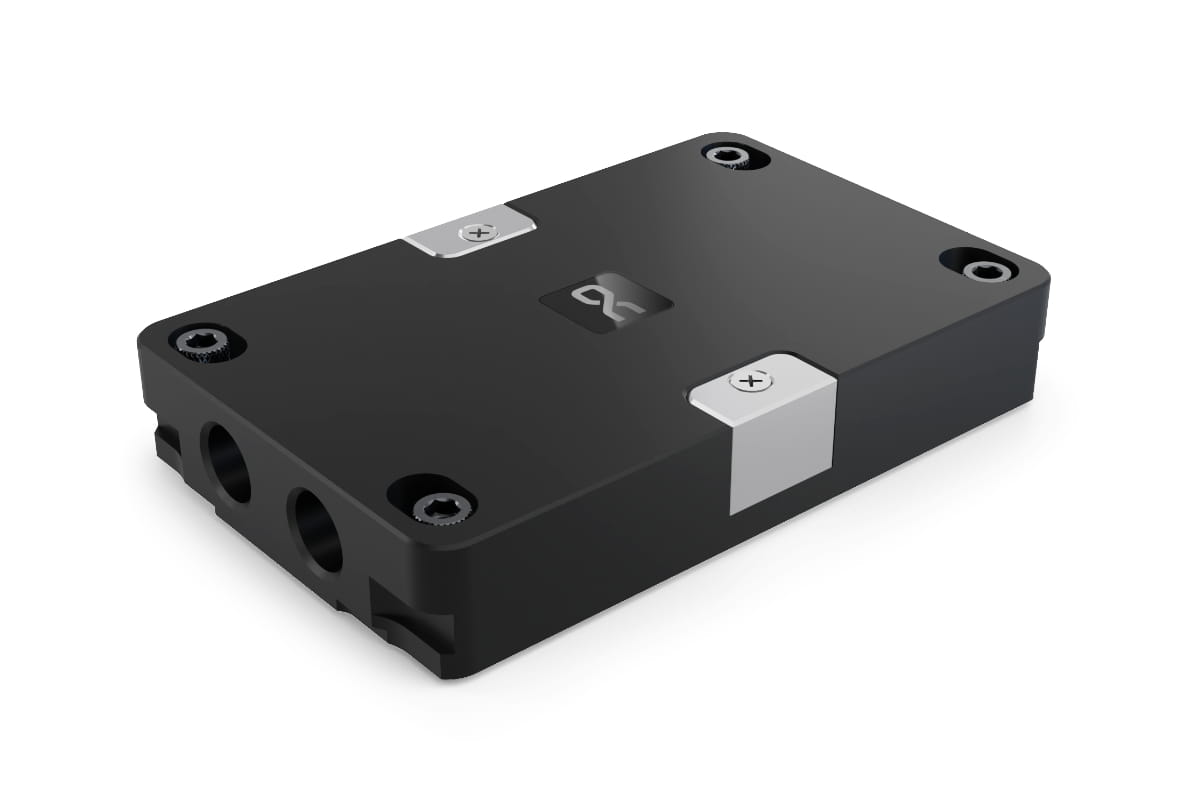

Alphacool ES Stream LGA 4677 1U

WAC Alphacool ES Stream LGA 4677 / SP5 LGA 6096 1U

Article no.: 10230
EAN: 4250197102308
Weight: 0,545 kg
Available: Akutell nicht Verfügbar - Mehr ist unterwegs
Images may differ slightly from the original

€125.98 *

Prices incl. VAT plus shipping costs

Delivery date exceeded

Attention:

Get a 12% Christmas discount. The discount granted is visible in the shopping cart.

^*1

^*1 Offer valid until 31/12/2025

The Alphacool ES Stream CPU Cooler was specially developed for powerful processors on Intel's... more

Close menu

Product information

The Alphacool ES Stream CPU Cooler was specially developed for powerful processors on Intel's socket LGA 4677 in server and workstation systems. With the supplied bracket, the Alphacool ES Stream CPU cooler now also supports the SP5 socket from AMD. A new feature is that for the first time the water is distributed over the cooler base via four nozzles. With the help of this nozzle technology, all cores of the processor are optimally covered and thus cooled more effectively and with greater precision. Thanks to the change from one to four nozzles, the ES Stream CPU cooler is able to reliably dissipate waste heat of up to 600 watts.

Performance-oriented!
The cooler base has been optimized specifically for the large processor cores. The four nozzles of the ES Stream are not milled, but naturally incorporated into the cooler. The organic water flow ensures a smooth water flow and thus increases the cooling performance. The entire cooler is made of nickel-plated copper. Copper has almost twice the thermal conductivity of aluminum and is therefore particularly suitable for server or workstation systems.

Optimized for space!

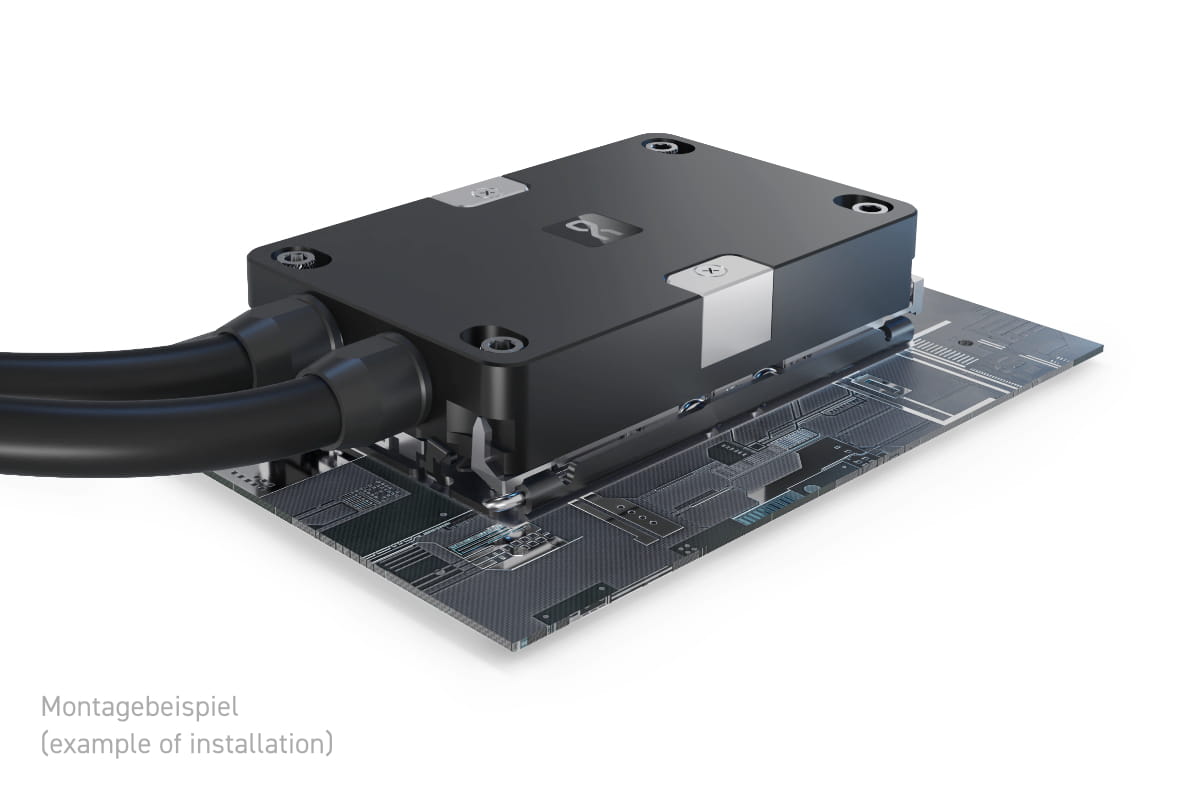

Despite the large cooler base and the four nozzles, the ES Stream is compact and flat. In order to mount the cooler in server racks without any issues, the connections are located on the top to save room.

Thermal paste
The included thermal paste is Alphacool's Subzero with a thermal conductivity of 16 W/mK. The electrically non-conductive Thermal Grease is particularly well suited for high contact pressures, but can still be processed perfectly due to the viscosity of 3,000,000 mPa. s.

Compatibility:

Technical data
Dimensions (L x W x H)	118,50 x 75,50 x 20,50 mm
Material cooler top	Acetal
Material cooler	nick plated copper
Cooling capacity	up to 600W
Pressure tested	8 bar
Max working temperature	60 °C
Threads	2 x G1/4“
Fin thickness	0,4mm
Fin distance	0,4mm
Color	black, silver

Technical details mehr

Technical details

Hersteller:	Alphacool
Base:	AMD SP5;Intel LGA 4677;
Dimensions (L x W x H:	118,50 x 75,50 x 20,50mm
Connection:	2x G1/4"
Material base plate:	Nickel-plated copper
Material Lid:	Acetal;
