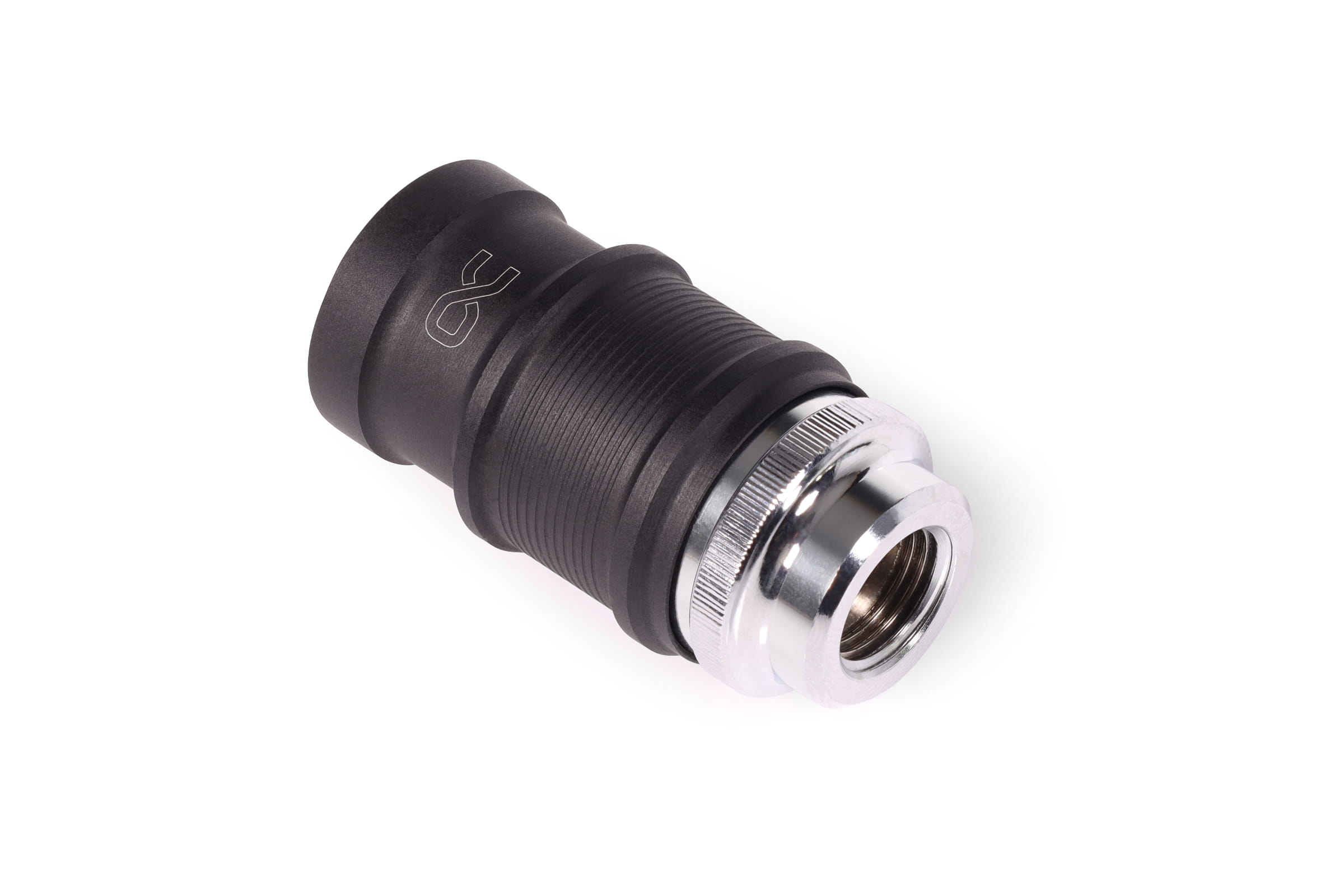

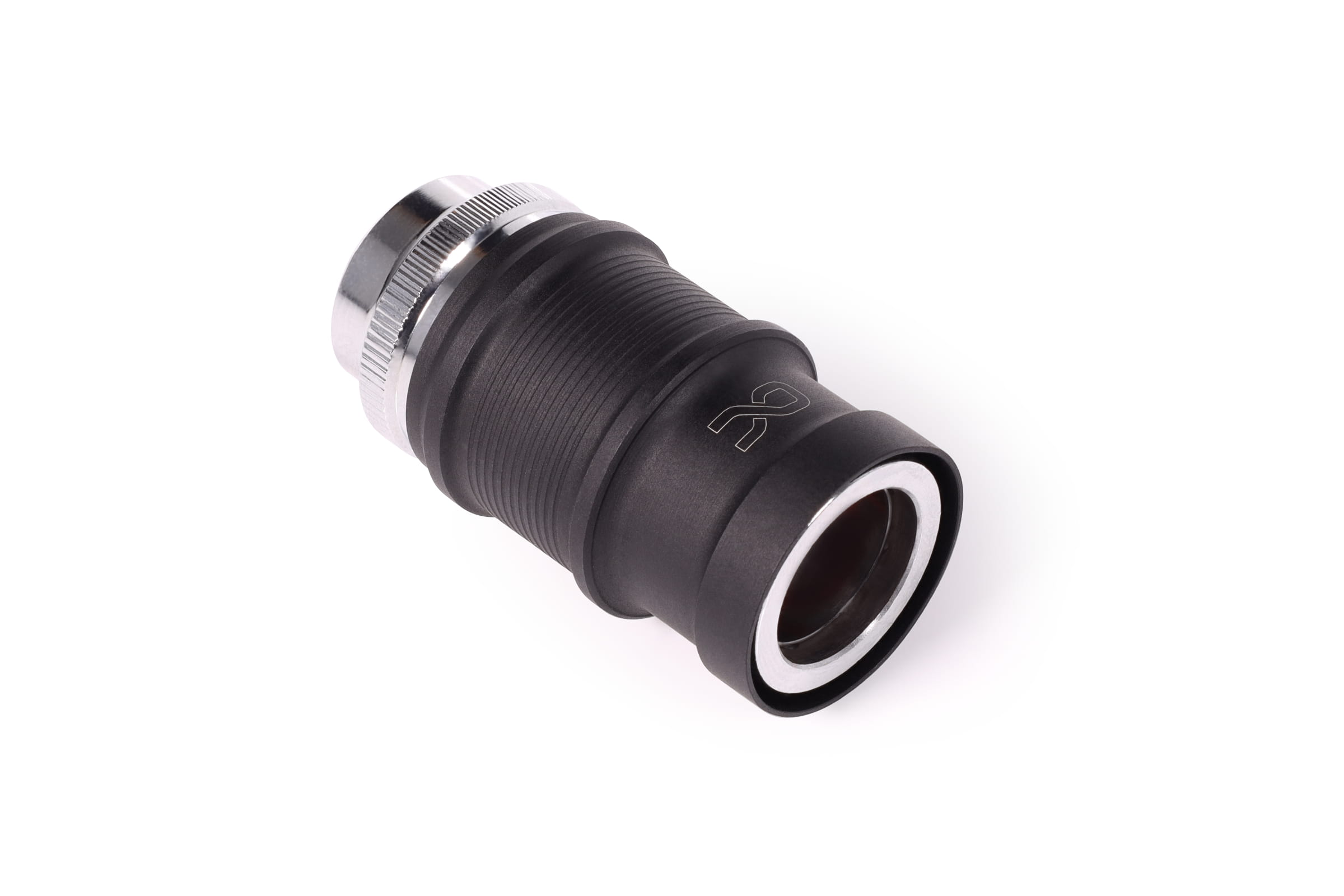

ES Schnellverschluss PushIn Female IG

ANK Alphacool ES Schnellverschluss BLH1A PushIn Female IG

Article no.: 13883
EAN: 4250197138833
Weight: 0,116 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€20.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool ES 4U - 19" - ServerRack - Watercooling ready

€339.98*

Alphacool ES 2U - 19" - ServerRack - Watercooling ready

€289.98*

Alphacool ES Orbiter Filling Station

€399.98*

Alphacool ES Liquid GL50 (-40°C) 5000ml

€79.98*

Alphacool ES deionized water (ultrapure water) 5000ml

€69.98*

The Alphacool ES quick-release connector is optimized for use in server and workstation systems.... more

Close menu

Product information

The Alphacool ES quick-release connector is optimized for use in server and workstation systems. It is characterized by precise manufacturing quality, excellent water flow and a secure click mechanism for sealing.

Maximum flow rate
Other quick couplings can negatively affect the flow of water. The quick coupling has therefore been fundamentally redesigned so that the water flow is hardly disrupted. Particular emphasis was placed on minimal processing tolerances.

Quick and easy
The ES quick connectors from Alphacool simplify the assembly of server and workstation systems. Thanks to the convenient handling, complex systems can be connected quickly and easily. To open the quick-release fastener, the outer ring is pulled back. The seal closes immediately and prevents coolant from escaping. To lock the quick-release fasteners, simply push them into each other. A clicking noise confirms secure locking.

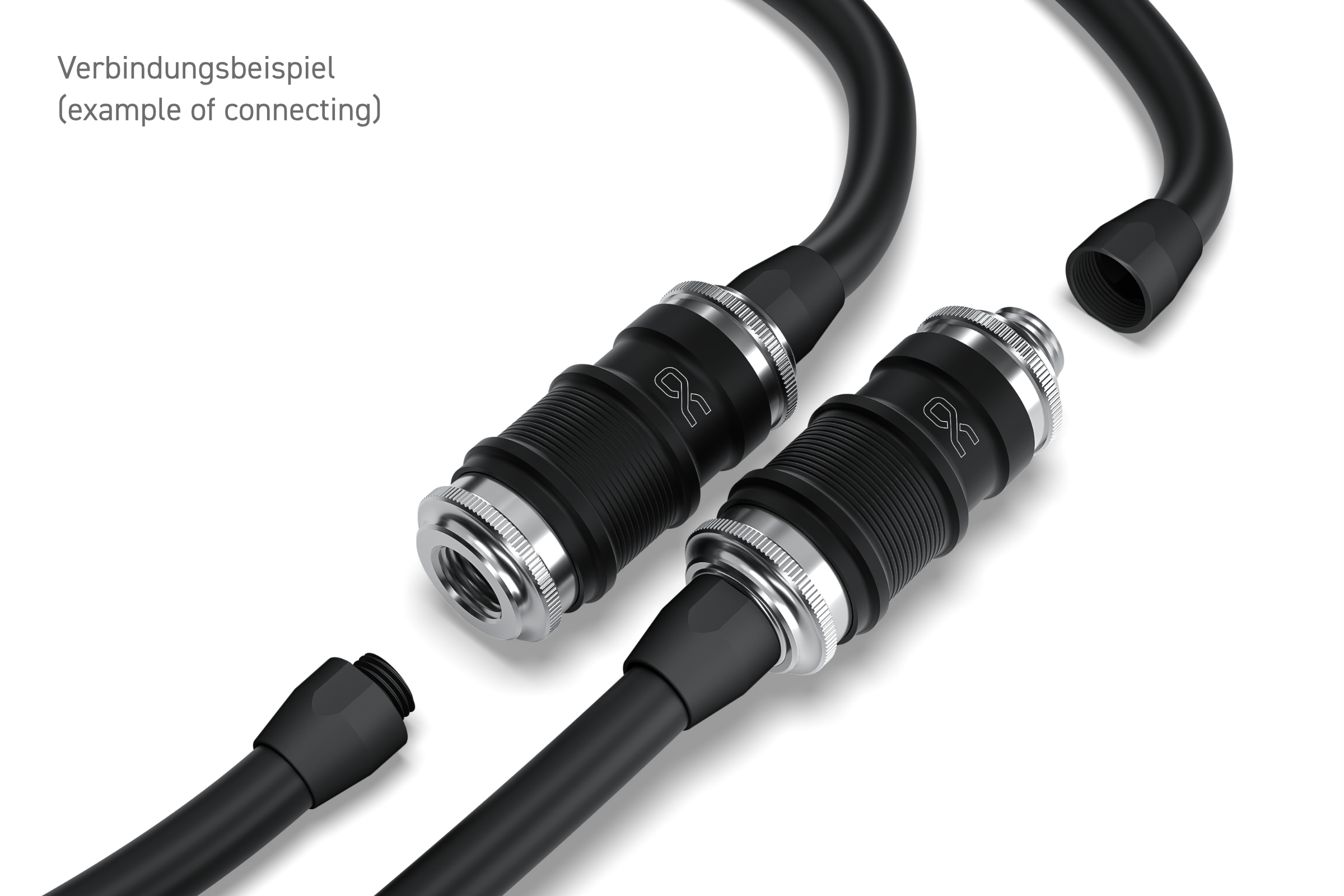

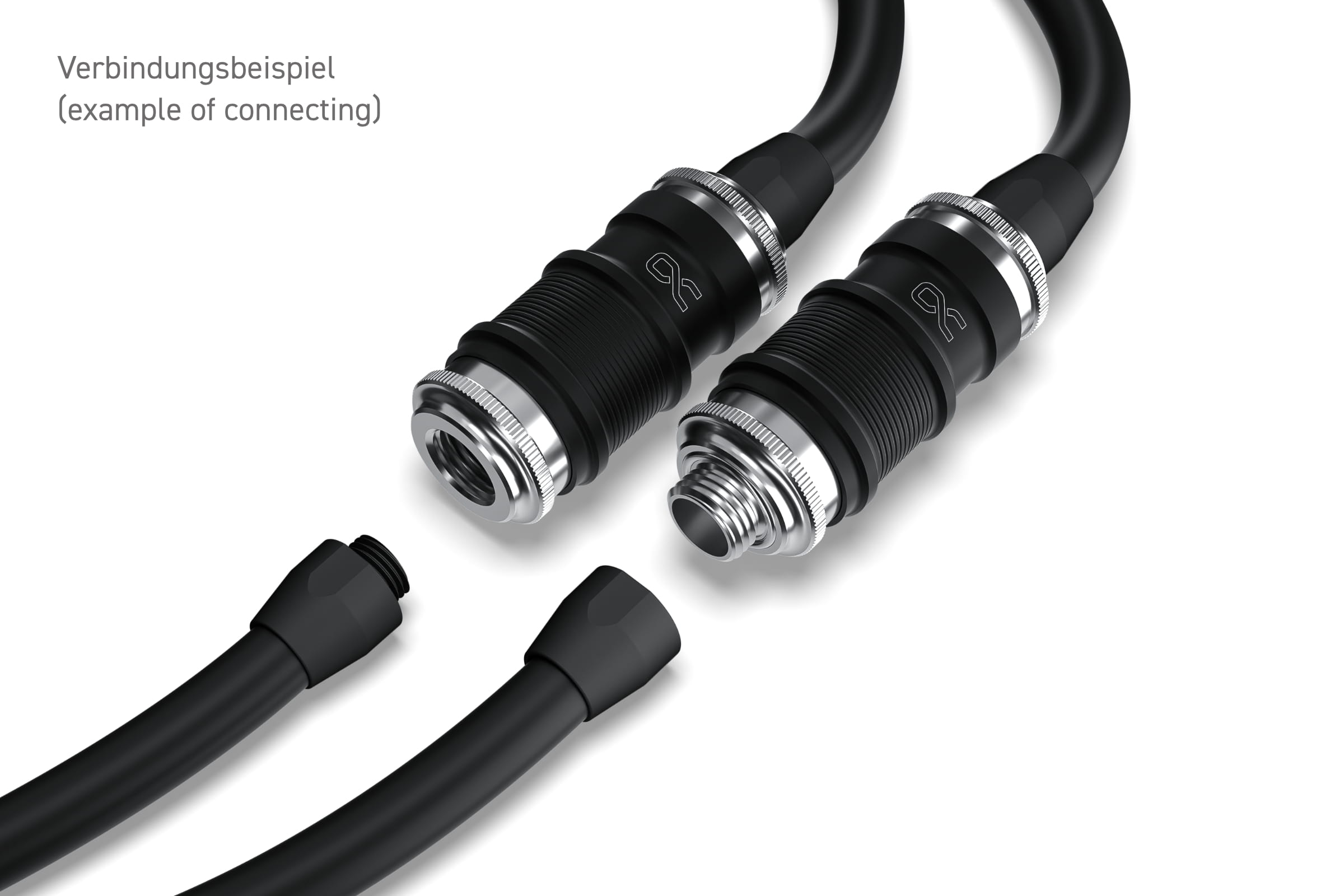

A quick-release fastener always consists of two fittings. You always need the right counterpart to create a complete quick release fastener. With this product you only get 1 half of the quick-release fastener.

Note: To avoid damaging the O-ring, do not open or close the quick-release fastener when it is dry.

Technical data
Dimensions (L x D)	52 x 28mm
Weight	95g
Materiel	nickel-plated brass, plastic
Thread	1x 1/4" IT
Color	chrome, black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

1. Seite:	G1/4" Innengewinde
Drehbar:	Nein
Hersteller:	Alphacool
Kompatibilität:	weiche Schläuche (PVC, Silikon, Neoprene)
Farbe:	chrom, mattschwarz
Material:	Messing vernickelt
