Alphacool ES quick release BLH1A PushIn Set IT-IT with bulkhead fitting

  • 13877
  • 4250197138727
  • 0,203 kg
  • There are more than 100 units available
  • Images may differ slightly from the original
€34.97 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
GHE Alphacool ES 4U - 19" - ServerRack - Watercooling ready
1x
Alphacool ES 4U - 19" - ServerRack - Watercooling ready
€339.98*
GHE Alphacool ES 2U - 19" - ServerRack - Watercooling ready
1x
Alphacool ES 2U - 19" - ServerRack - Watercooling ready
€269.98*
RAK Alphacool ES Orbiter Filling Station
1x
Alphacool ES Orbiter Filling Station
€399.98*
WAZ Alphacool ES Liquid GL50 (-40°C) 5000ml
1x
Alphacool ES Liquid GL50 (-40°C) 5000ml
€79.98*
WAZ Alphacool ES deionized water (ultrapure water) 5000ml
1x
Alphacool ES deionized water (ultrapure water) 5000ml
€69.98*
The Alphacool ES quick-release connector is optimized for use in server and workstation systems.... more
Product information

The Alphacool ES quick-release connector is optimized for use in server and workstation systems. It is characterized by precise manufacturing quality, excellent water flow and a secure click mechanism for sealing.

Maximum flow rate
Other quick couplings can negatively affect the flow of water. The quick coupling has therefore been fundamentally redesigned so that the water flow is hardly disrupted. Particular emphasis was placed on minimal processing tolerances.

Quick and easy

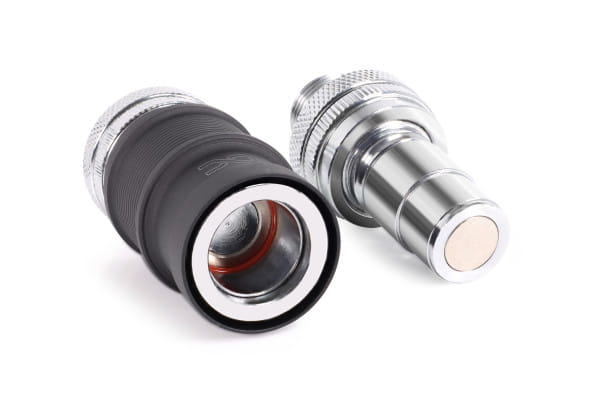

The ES quick connectors from Alphacool simplify the assembly of server and workstation systems. Thanks to the convenient handling, complex systems can be connected quickly and easily. To open the quick-release fastener, the outer ring is pulled back. The seal closes immediately and prevents coolant from escaping. To lock the quick-release fasteners, simply push them into each other. A clicking noise confirms secure locking.

Function of the bulkhead fitting
The bulkhead fitting makes it possible to feed a tube through a hole for example in the casing. It is securely attached to the housing using a lock nut. Standard 1/4" tube connections can then be connected.

Note: To avoid damaging the O-ring, do not open or close the quick-release fastener when it is dry.



Technical data
Dimensions (L x D)77 x 28mm
Weight170g
Materielnickel-plated brass, plastic
Thread2x 1/4" IT
Colorchrome, black
Pressure test8 bar

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
1. Seite: G1/4" Innengewinde
2. Seite: G1/4" Innengewinde
Drehbar: Nein
Hersteller: Alphacool
Kompatibilität: weiche Schläuche (PVC, Silikon, Neoprene)
Farbe: chrom, mattschwarz
Material: Messing vernickelt
