AIO water cooling for RTX 3080/3090 XC3 Ultra

WAK Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 XC3 Ultra Gaming mit Backplate EOL

Article no.: WAK
EAN: 4250197119610
Weight: 1,34 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€73.61 * €159.97 * (53.99% Saved)

Prices incl. VAT plus shipping costs

in stock

Alphacool NexXxoS ST30 Full Copper 360mm Radiator V.2

€79.98*

Alphacool ice cyclone Aurora LUX PRO Digital RGB (140x140x25mm)

€11.98*

and Conditions Alphacool Eisbecher Aurora D5 Acetal/Glass - 250mm

€99.98*

Alphacool Eisbaer TPV Extension Set (hose and connections)

€15.39*

Alphacool Apex Liquid ECO 1000ml clear

€14.98*

The Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 XC3 Ultra Gaming combines style with... more

Close menu

Product information

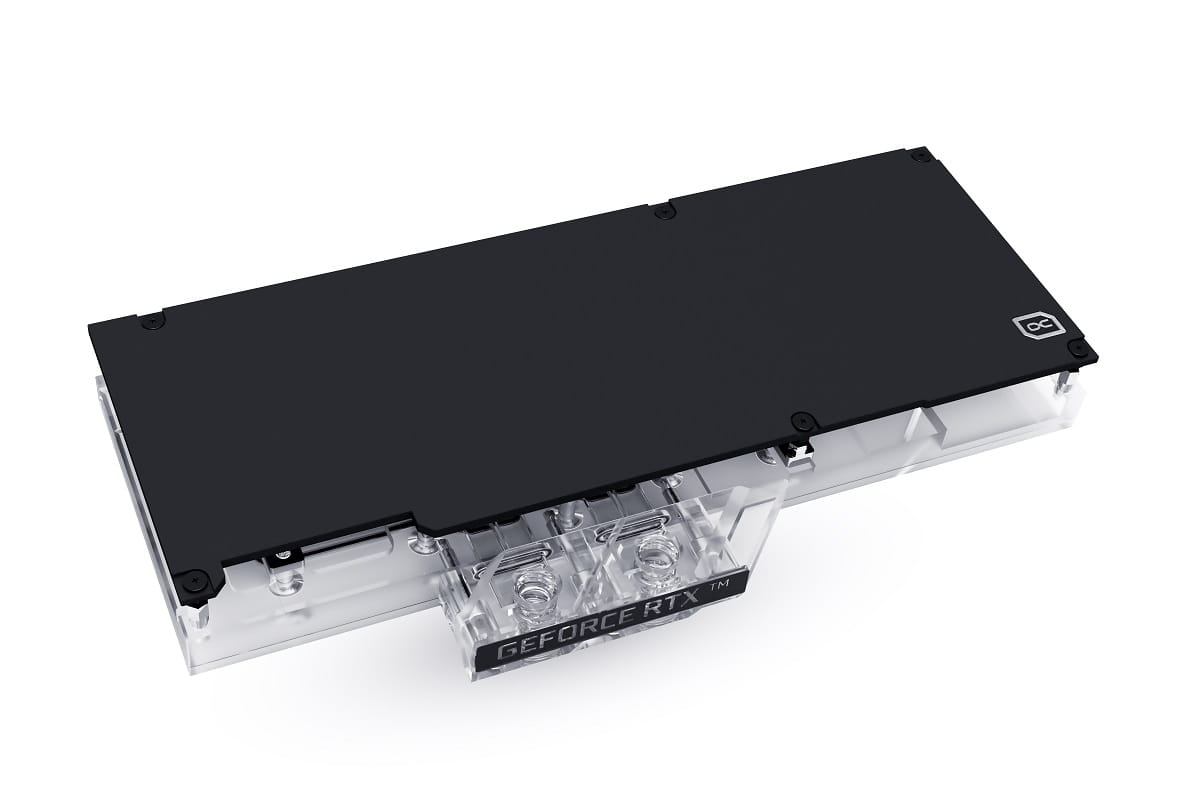

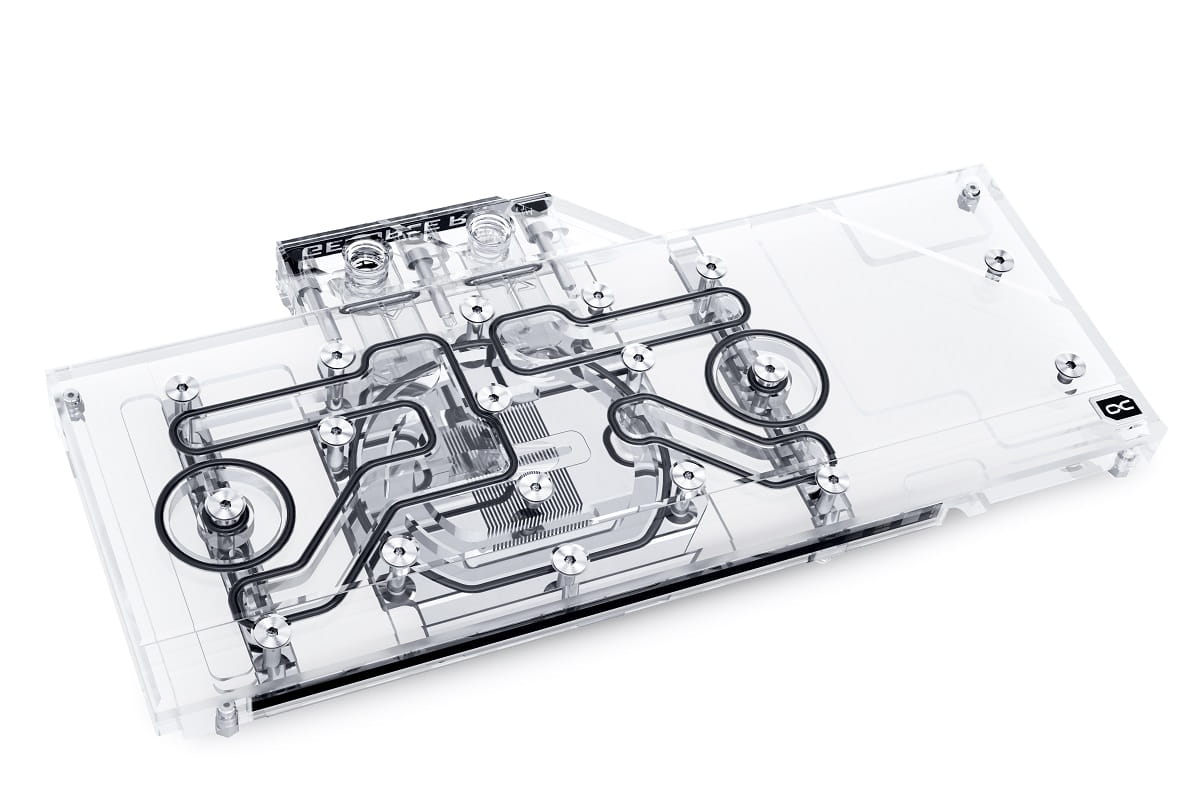

The Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 XC3 Ultra Gaming combines style with performance and extensive digital RGB lighting. Over 17 years of experience have been incorporated into this graphics card water cooler and represent the current pinnacle of Alphacool product development.

More performance!
When developing the Eisblock Aurora GPX-N RTX 3080/3090 XC3 Ultra Gaming graphics card water cooler, emphasis was naturally placed on increasing performance. In the first step, the cooler was brought closer to the individual components by reducing the thermal pads to a thickness of 1 mm. In the second step, the nickel-plated copper block was also made thinner. Instead of the previous 7 mm, it is now only 5.5 mm thick. The water flow within the cooler has also been optimized. All important components such as the voltage converters and the RAM are now cooled much better and more effectively by the water. All of this ensures a significant increase in cooling performance.

New design!

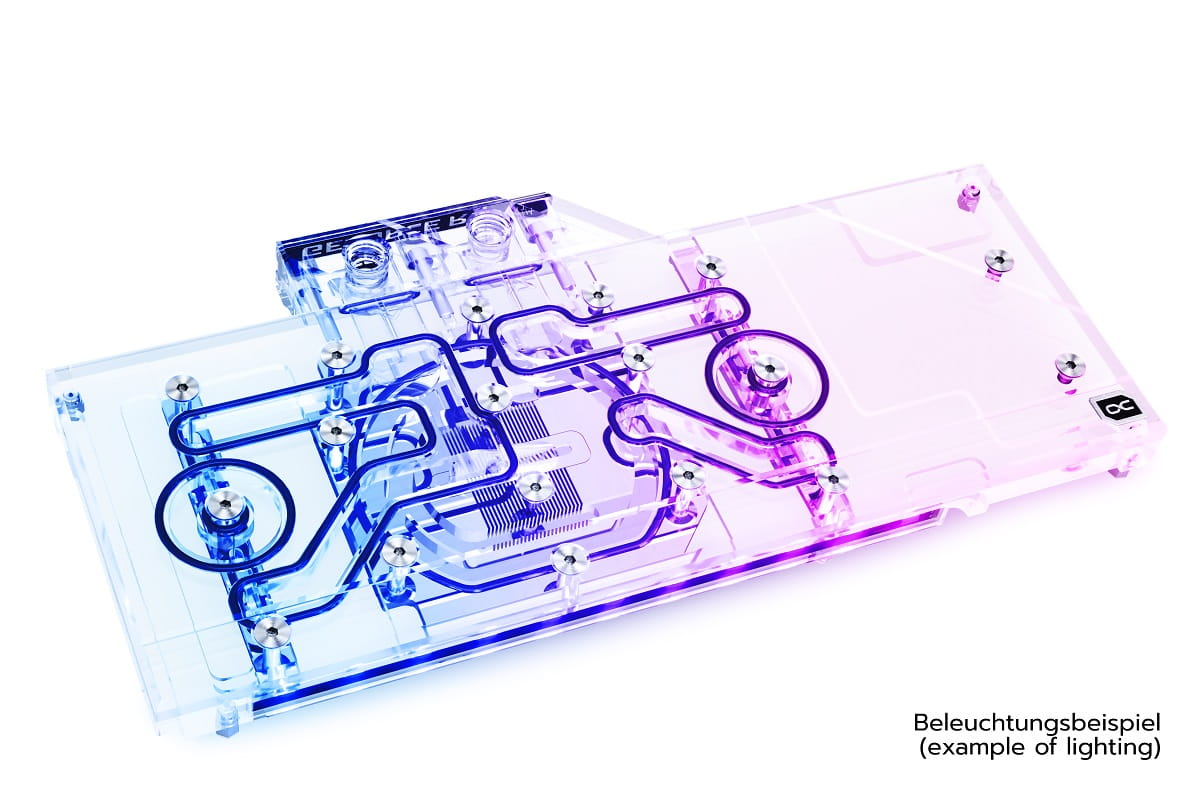

The Eisblock Aurora GPX-N RTX 3080/3090 XC3 Ultra Gaming cooler was fundamentally designed so that the lighting is more in the foreground than in previous models. The addressable digital RGB LEDs are embedded directly in the cooling block and they run along the sides of the entire cooling block. The effect is lighting that encloses the entire cooling block. No corner or edge remains unlit by the aRGB LEDs. The new design is more angular, with all edges bevelled. The result is better light scattering in the water cooler due to the reflections on these bevels. They also create various contours that give the Eisblock Aurora GPX-N RTX 3080/3090 XC3 Ultra Gaming cooler a very unique visual touch.

Copper or aluminum?
Alphacool, of course, only uses copper in its water coolers. The Eisblock Aurora GPX-N RTX 3080/3090 XC3 Ultra Gaming has nickel-plated copper. Compared to previous models, Alphacool has improved the type of nickel plating, which has significantly increased acid resistance. This should prevent nickel plating from flaking. And why does Alphacool use copper instead of aluminum? Copper simply has almost twice the thermal conductivity of aluminum and is therefore clearly the better material for water cooling.

Are these all the new things?
The Eisblock Aurora GPX-N RTX 3080/3090 XC3 Ultra Gaming graphics card water cooler also uses the new patented locking screws, which are flush with the surface of the terminal. The Alphacool logo is now in the corner on the top and is also fully illuminated. The corresponding designations of the compatible graphics card types can be seen on the front of the terminal. Of course, these are also fully illuminated by the digital LEDs. IN and OUT are now marked by small, discreet triangles. They are easily recognizable and fit perfectly into the overall visual line of the graphics card water cooler.

The Alphacool Aurora GPX-N RTX 3080/3090 XC3 Ultra Gaming Acrylic is in every respect a complete further development of the previous Alphacool graphics card water coolers. No technical compromises were made, but the entire technical know-how was incorporated into the development and implementation.

Technical data:
L x W x H: 125 x 264 x 24.5 mm
Radiator base material: Nickel-plated copper
Material cooler top: Acrylic
Connections: 4 x G1/4“
Thickness cooling fins: 0.6 mm
Lighting: Digital RGB LEDs
Power connector Digital RGB LEDs: 3-Pin JST
Voltage Digital RGB LEDs: 5V

Graphics card configurator: Click here!
Compatibility list: Nvidia cards

Compatibility:
RTX 3080TI
EVGA GeForce RTX 3080 Ti XC3 Ultra Gaming (12G-P5-3955-KR)
EVGA GeForce RTX 3080 Ti XC3 Gaming, 12GB GDDR6X, HDMI, 3x DP (12G-P5-3953-KR)

RTX 3080
EVGA GeForce RTX 3080 XC3 Black Gaming, 10GB GDDR6X, HDMI, 3x DP (10G-P5-3881-KR)
EVGA GeForce RTX 3080 XC3 Ultra Gaming, 10GB GDDR6X, HDMI, 3x DP (10G-P5-3885-KR)

Download data sheet PDF: Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 XC3 Ultra Gaming with Backplate
Download manual PDF: Alphacool Eisblock Aurora Acryl GPX-N RTX 3080/3090 XC3 Ultra Gaming with Backplate

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Hardware Hersteller:	NVIDIA
SLI kompatibel:	Ja
Kühlertyp:	Komplettkühler
Anschluss:	4x G1/4"
Material Deckel:	Acryl
Abmessungen:	169,5 x 122,5 x 24,5mm
Material Bodenplatte:	Kupfer
Hinweis:	Kompatibel bis 16/13mm gerade, Kompatibel bis 19/13mm gewinkelt
Hardware Modell:	RTX 3070
