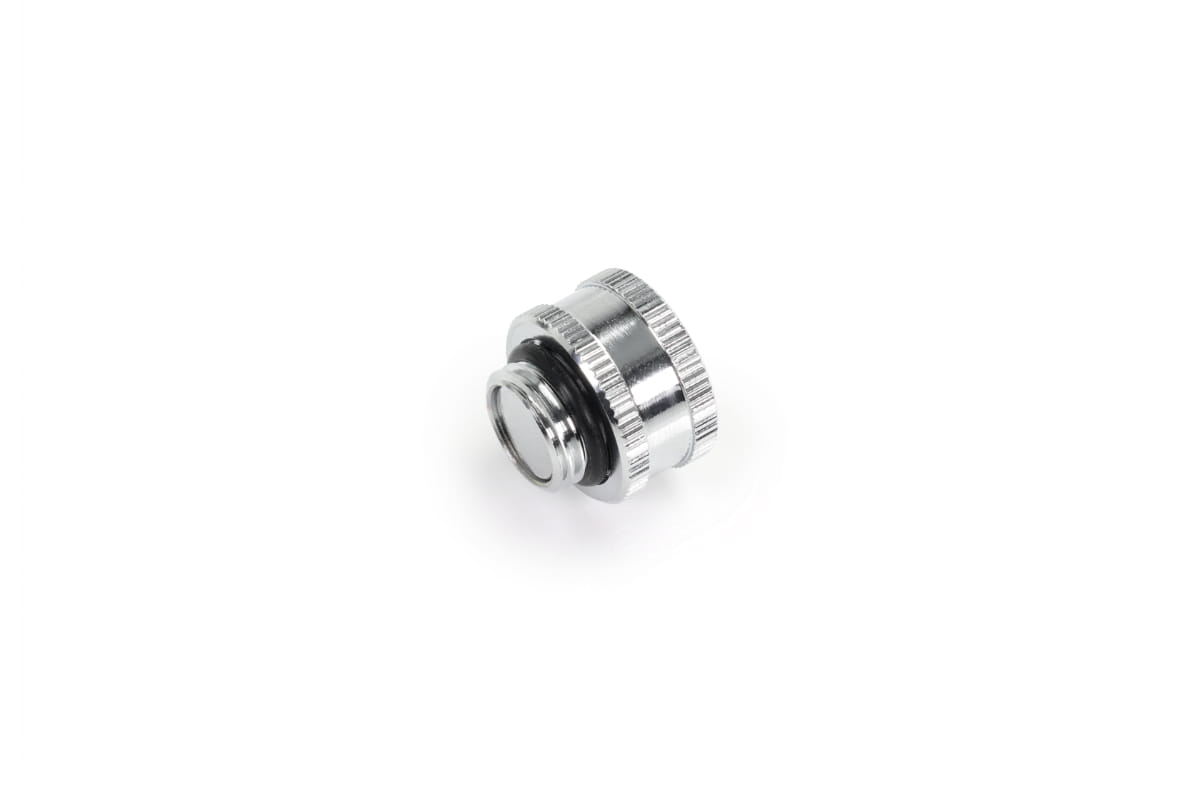

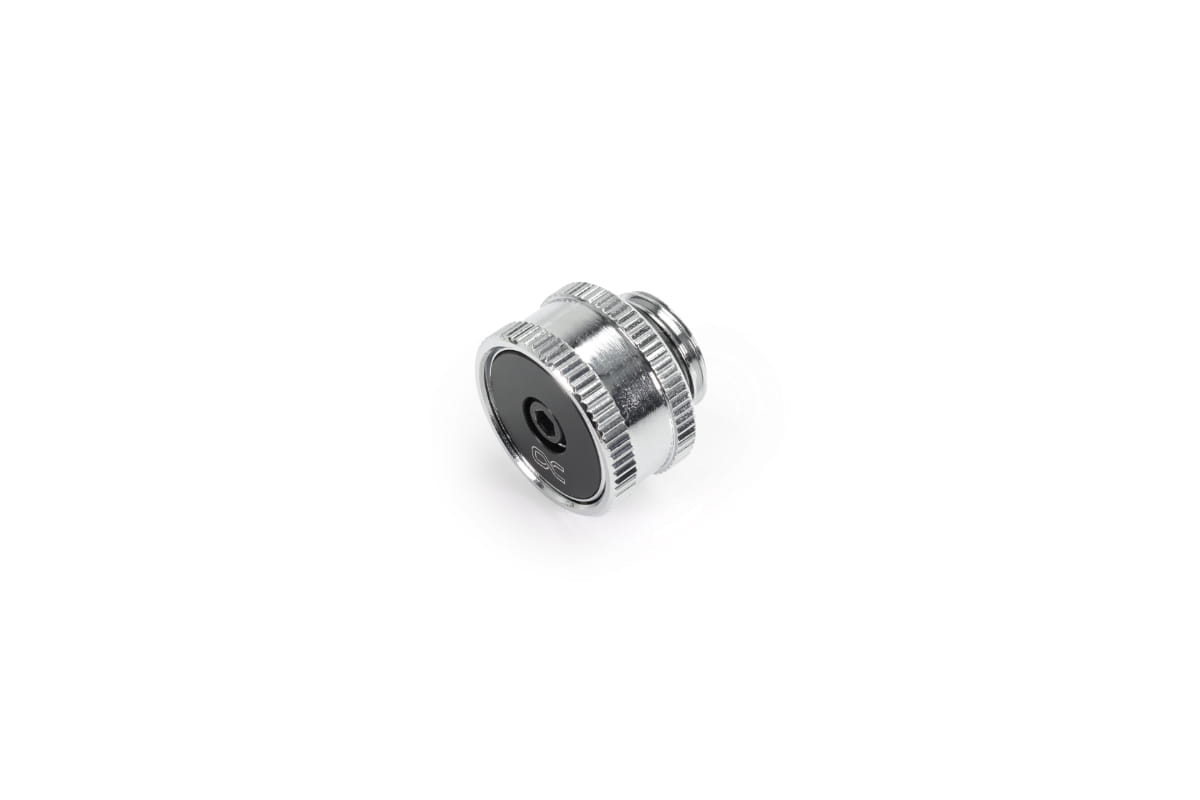

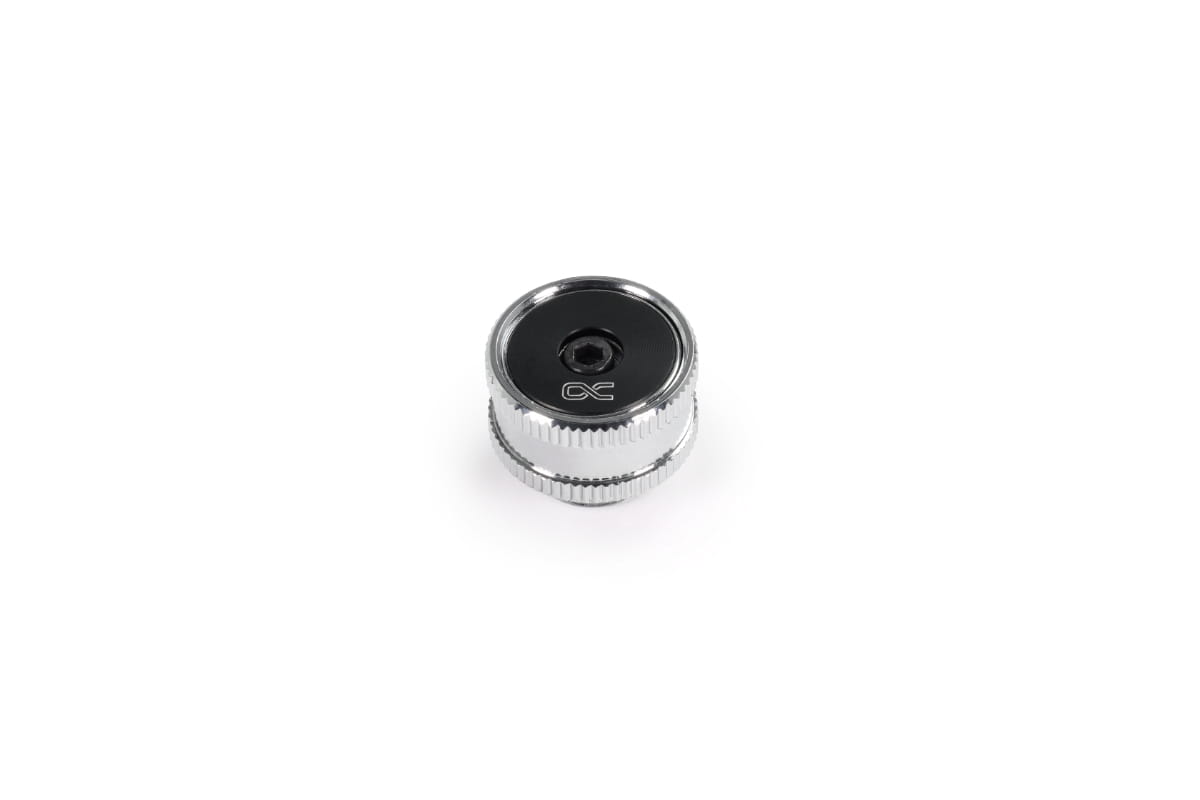

Alphacool Eiszapfen Überdruckventil G1/4

Article no.: 14669
EAN: 4250197146692
Weight: 0,02 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€10.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€19.98*

Alphacool ES Quick Release BLH1A PushIn Set IT-IT

€36.98*

Alphacool ES Quick Release BLH1A PushIn Set OT-OT

€36.98*

The Alphacool ES Pressure Valve is designed to manage pressure fluctuations in closed-loop water... more

Close menu

Product information

The Alphacool ES Pressure Valve is designed to manage pressure fluctuations in closed-loop water cooling systems. Developed for use in servers, workstations, and industrial environments, it safeguards individual components from excessive pressure build-up.

Thanks to its compact dimensions—just 20.0 mm in height and 16.0 mm in diameter—the valve is well-suited for installations where space is limited. The G1/4" thread ensures straightforward integration into existing cooling circuits. Installation is versatile, allowing the valve to be positioned where it most effectively contributes to system reliability.

Engineered for continuous use under demanding conditions, the valve features a durable housing that resists both thermal and mechanical stress. Its precision valve mechanism guarantees reliable performance throughout its entire operational lifespan.

Technical specifications
Type:	Pressure equalizing valve to limit the pressure increase in the closed system
Dimensions:	20,0 mm x 16,0 mm
Material Valve body:	brass (CuZn39Pb3)
Compression spring material:	stainless steel (X10CrNi18-8)
Material O-ring:	NBR Shore 70
Working pressure:	2bar
Burst pressure:	4bar
Working temperature (in degrees Celcius):	-20 ~ +100
Recommended liquids:	water, deionized water, glycol water, propanediol water etc.
Thread type:	G1/4’, external thread 5mm
Weight:	18g
Color:	silver/black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Fitting Map

You can find an interactive map of all alphacool fittings here.
