Alphacool Eiszapfen 16mm HardTube screw nozzle 90 degrees rotatable G1/4 - Chrome

ANS Alphacool Eiszapfen 16mm HardTube Anschraubtülle 90° drehbar G1/4 - Chrome

Article no.: ANS
EAN: 4250197173940
Weight: 0,072 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€8.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool's Eiszapfen connection series is the high-end version of the proven connections! All... more

Close menu

Product information

Alphacool's Eiszapfen connection series is the high-end version of the proven connections!

All the requirements that a connection has to meet are met here: high flow, shape, workmanship and color. Uncompromising development and production have made the icicles what they are. Two versions are available in brilliant chrome and matte, deep black, which fit perfectly into any system.

Using special processes, the coatings are firmly bonded to the substrate, ensuring the longevity of the intense colors and preventing the coating from flaking. Each connection now also has the Alphacool logo, which makes it unmistakable in addition to its special shape!

The bevelled edges of the union nut press the O-ring very tightly onto the HardTube, making it sit even more securely than in its predecessors. This ensures greater safety during transport.

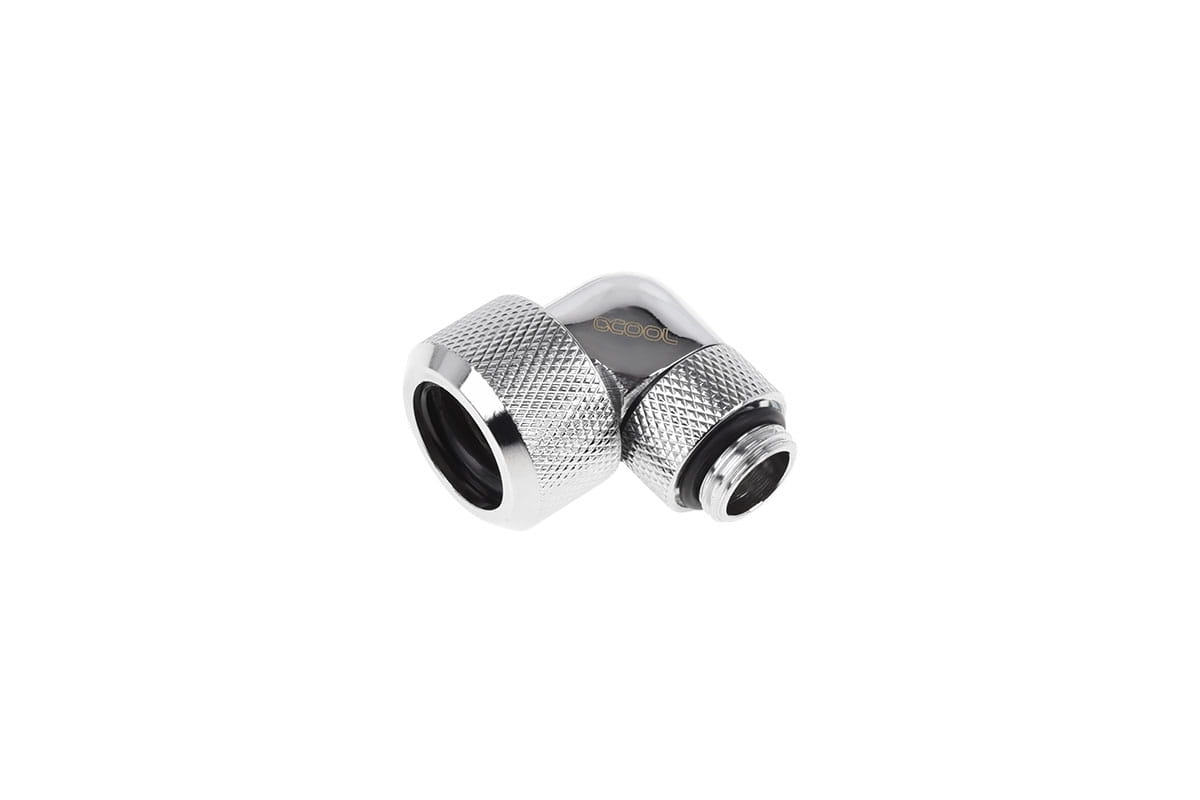

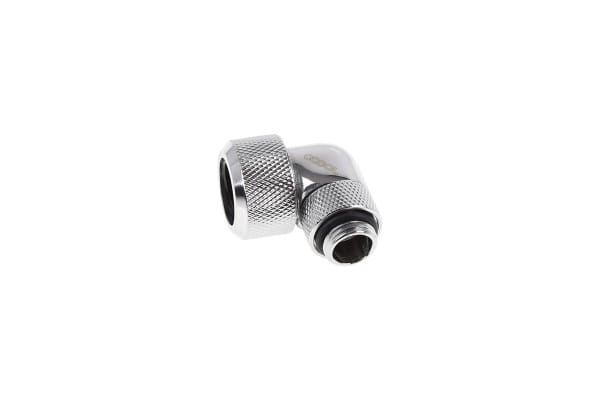

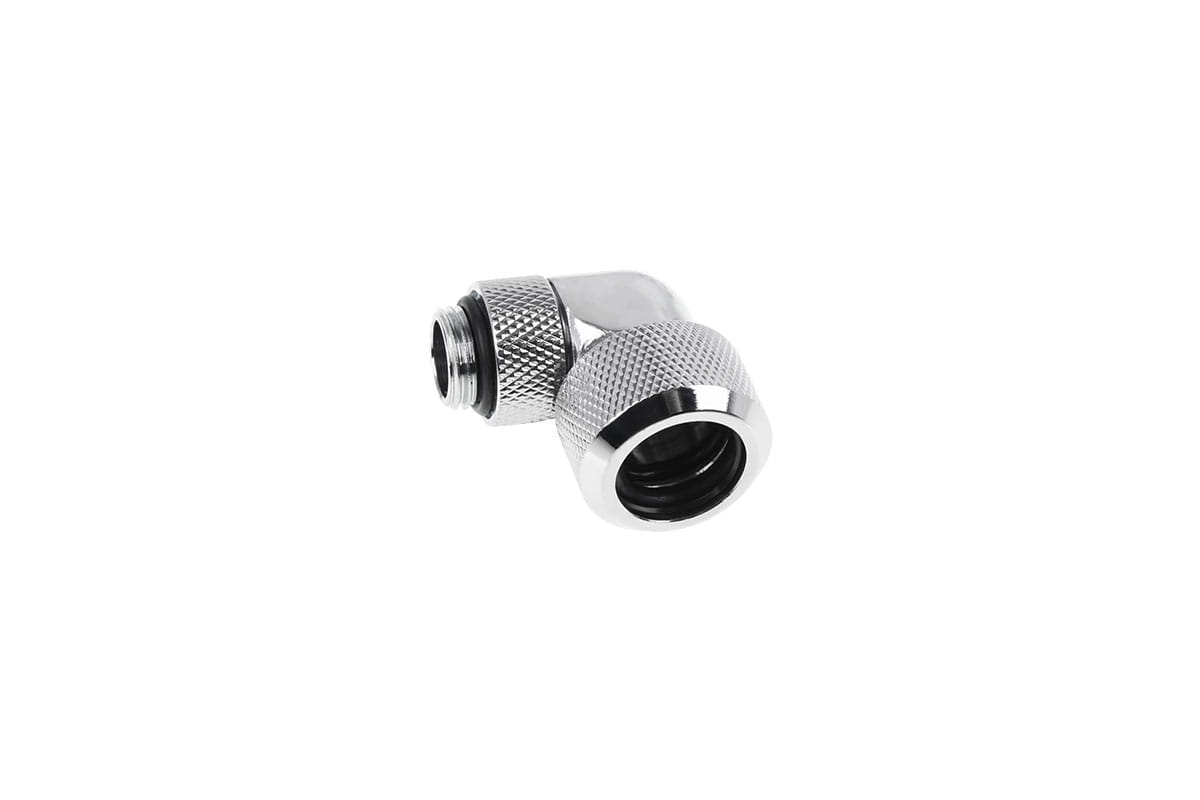

Design: 90° screw-on nozzle 16mm
This connector has a 1/4" thread on one side and is therefore compatible with 95% of all components. The other side is suitable for a 16mm acrylic and brass tube. In the middle, this connector is angled at 90° to avoid complicated hose routes. For maximum flexibility, the side with the thread can be rotated.

Technical details

Material: Brass
Color: Chrome

dimension

Length: 45mm
Width: 29mm

Scope of delivery

1x Alphacool Eiszapfen 16mm HardTube screw-on nozzle 90° rotatable G1/4 for acrylic brass tubes - Chrome

Fitting Map
Here you will find an interactive overview of all Alphacool connections.

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Gewindelänge:	5mm
Hersteller:	Alphacool
1. Seite:	G1/4" Außengewinde
Spezifikation:	Form: 90° gewinkelt
Drehbar:	Ja - 360°
2. Seite:	16/10mm (ID 3/8" OD 5/8")
Material:	Messing
Farbe:	chrom
Kompatibilität:	Acrylrohre, Messingrohre
