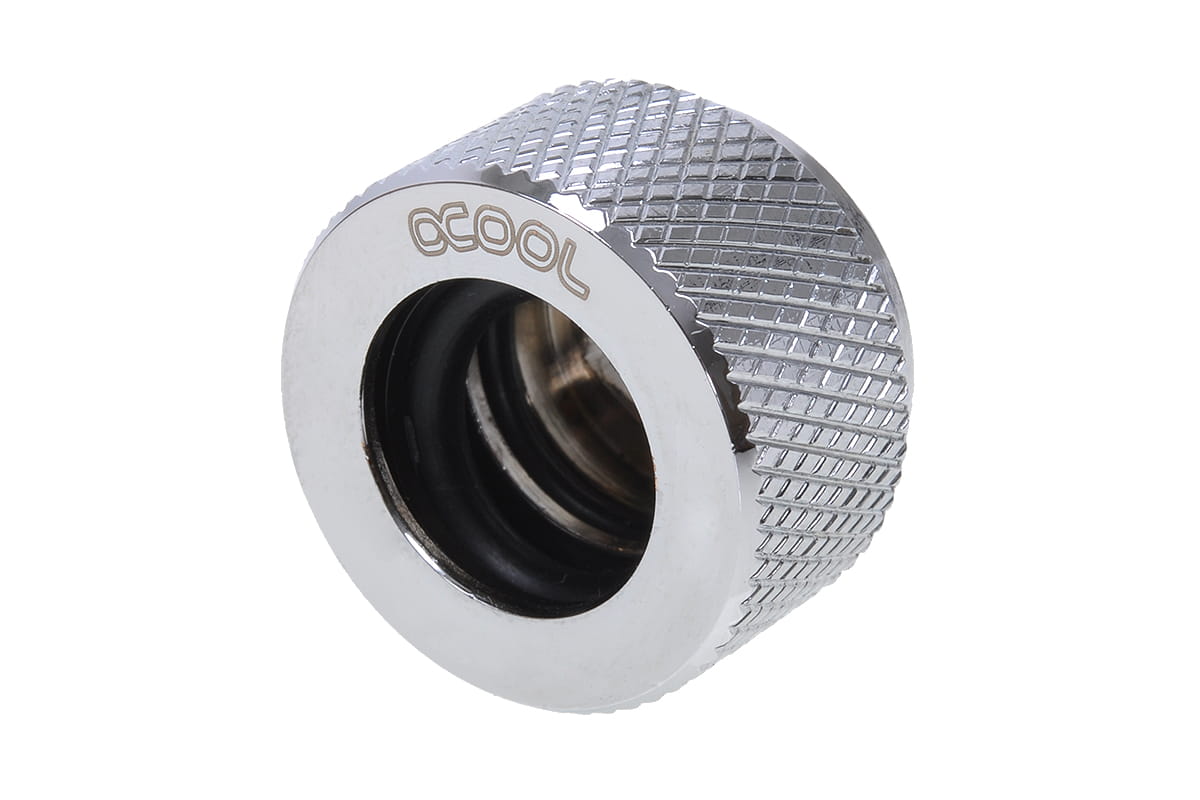

Alphacool HT 13mm HardTube screw sleeve G1/4 - knurled - Chrome

ANS Alphacool HT 13mm HardTube Anschraubtülle G1/4 - gerändelt - Chrome

Article no.: ANS
EAN: 4250197171885
Weight: 0,025 kg
Available: There are more than 250 units available
Images may differ slightly from the original

€3.47 *

Prices incl. VAT plus shipping costs

in stock

Alphacool HardTube 13/10mm Acrylic (PMMA) Clear 80cm - Set of 4 (320cm)

€19.98*

Alphacool Ice Tube 13/10mm Acrylic (PMMA) HardTube Satin 80cm - Set of 4 (320cm)

€23.98*

Alphacool Ice Tube 13/10mm PETG HardTube 80cm - Set of 4 (320cm)

€21.98*

Alphacool has created a true masterpiece with these screw-on nozzles. These connections promise... more

Close menu

Product information

Alphacool has created a true masterpiece with these screw-on nozzles. These connections promise absolute tightness and high quality.

Suitable for all hard metal pipes with an outer diameter of 13mm. On the other side of the connection is the usual ¼” thread. Available in deep black and chrome.

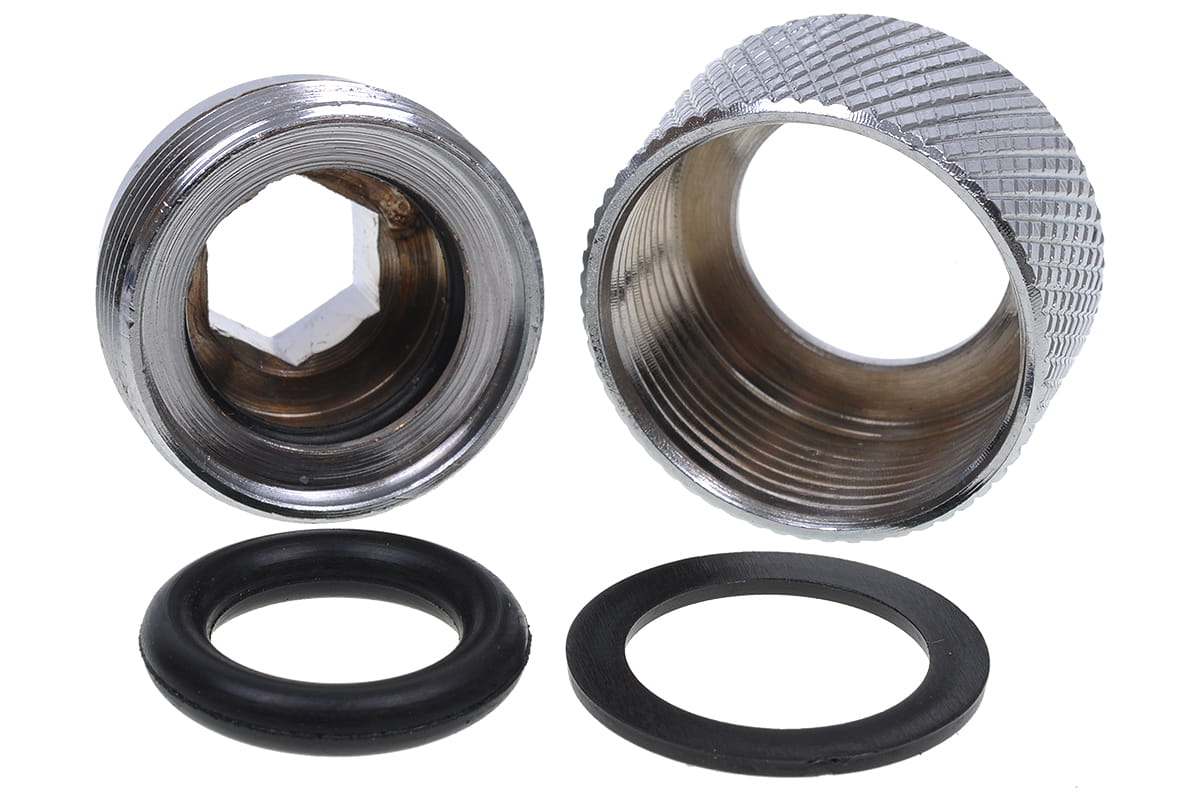

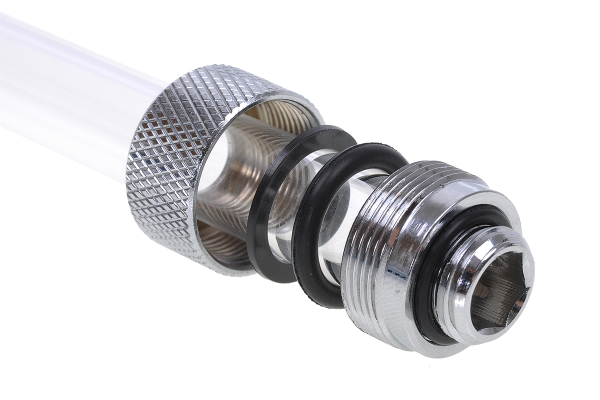

First, the union nut is put on the pipe, followed by a plastic washer that protects the O-ring and the thick O-ring itself. Now the pipe is simply put into the connection in which the second O-ring is already sitting, which fits very tightly against the pipe. As a last step, the union nut is pushed onto the connection and screwed on.

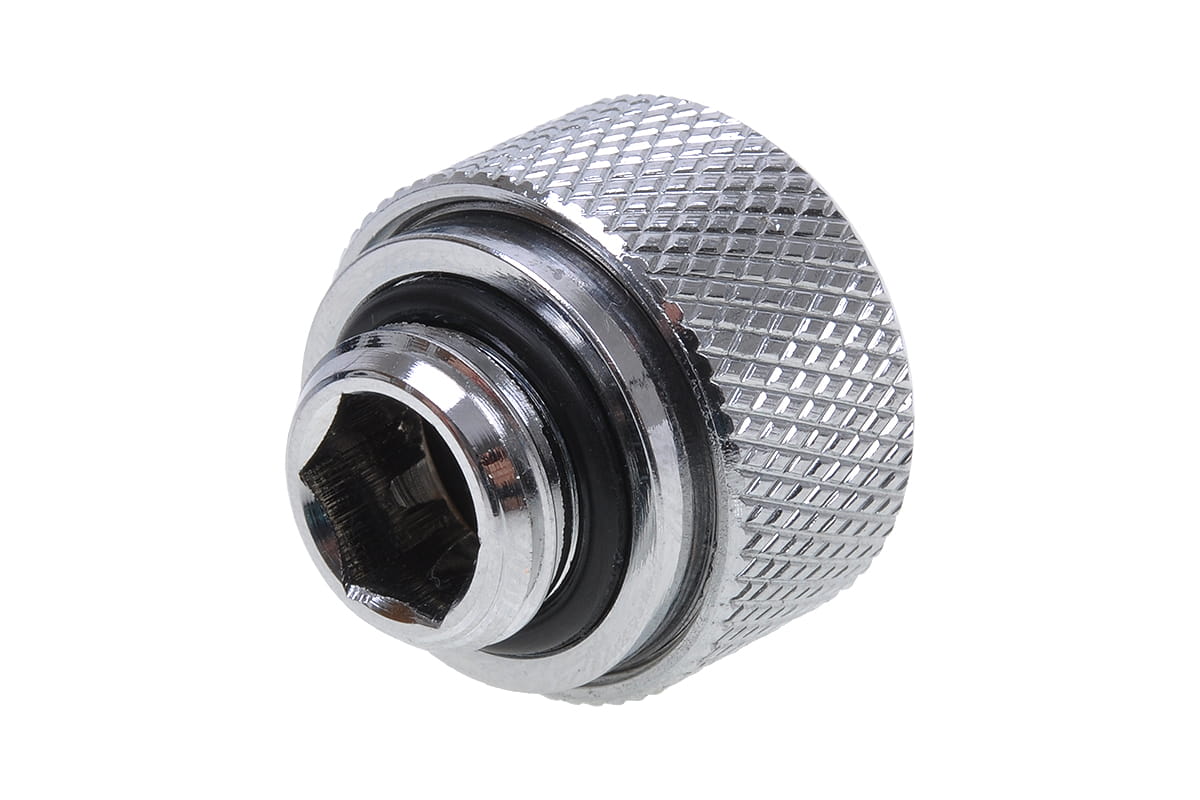

Due to the size, the union nut cannot be screwed on tightly enough. But this has also been thought of, as an 8 mm hexagon key can be inserted from below to hold the connection in place.

Scope of delivery:
1x screw sleeve 13mm

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Fitting Map

You can find an interactive map of all alphacool fittings here.

Technical details mehr

Technical details

Drehbar:	Nein
Gewindelänge:	5mm
Hersteller:	Alphacool
1. Seite:	G1/4" Außengewinde
Spezifikation:	Form: gerade
Abmessungen (L x B x H):	22 x 22 x 17mm
2. Seite:	13/10mm (ID 3/8" OD 1/2")
Material:	Messing
Farbe:	chrom
Kompatibilität:	Acrylrohre, Messingrohre
