The Alphacool ES 1-Slot GPU Water Block for the RTX PRO 6000 Blackwell Server Edition and RTX... more

Close menu

Product information

The Alphacool ES 1-Slot GPU Water Block for the RTX PRO 6000 Blackwell Server Edition and RTX PRO 5000 Blackwell has been specifically developed for professional use in performance-optimized server environments. With its compact 1-slot design and carefully considered port positioning, it meets the highest demands for cooling performance, reliability, and ease of installation – particularly in densely packed rack installations where space is limited.

The top of the water block is made of lightweight, durable carbon fiber. This significantly reduces the weight of the cooler compared to conventional solutions. At the same time, the matte carbon finish provides a subtle, premium appearance that combines functionality with elegance. The cooling block itself is made entirely of chrome-plated copper. The chrome plating is considerably harder and more durable than conventional nickel plating, providing reliable protection against corrosion, scratches, and mechanical stress – making it ideal for long-term 24/7 operation.

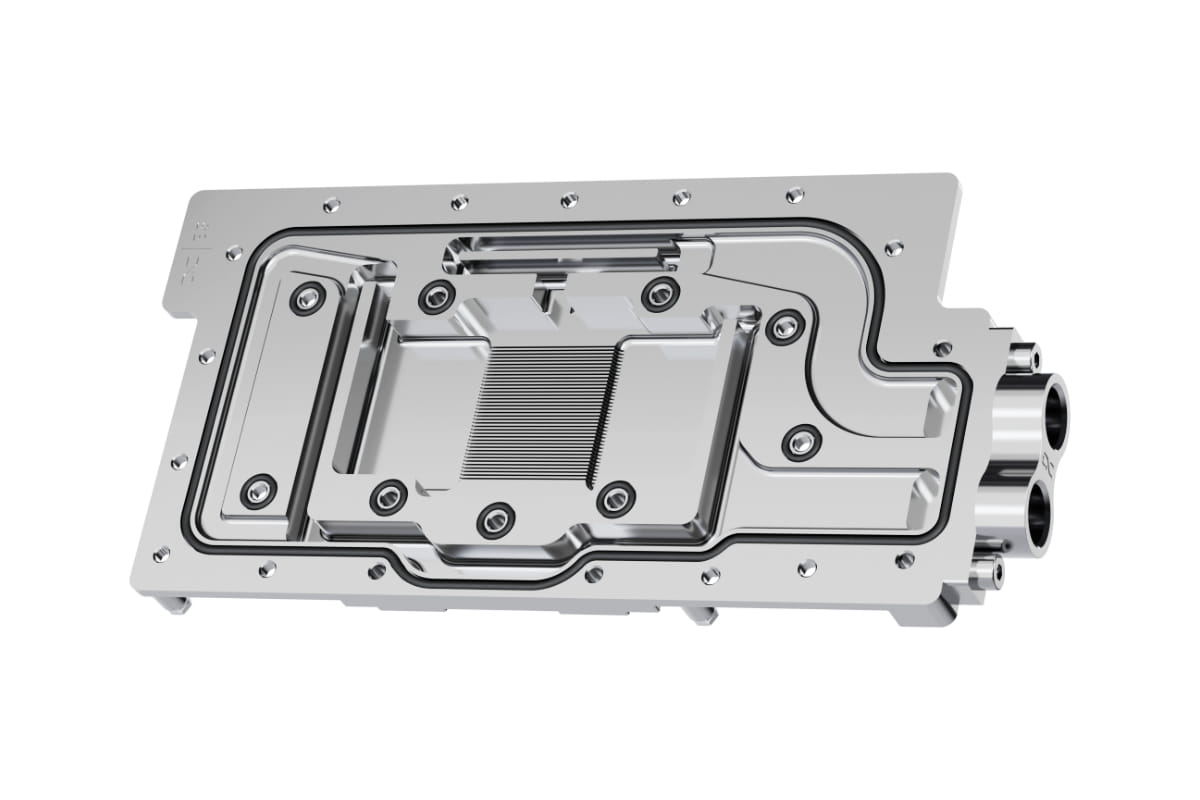

The inlet and outlet ports are positioned at the rear of the water block to save space. This port configuration simplifies tubing installation and integration into existing cooling loops, even in extremely compact server chassis. An optimized cooling channel structure ensures particularly efficient heat dissipation from the GPU, VRAM, and voltage regulators. The precisely designed internal channel layout ensures uniform coolant flow across all critical components.

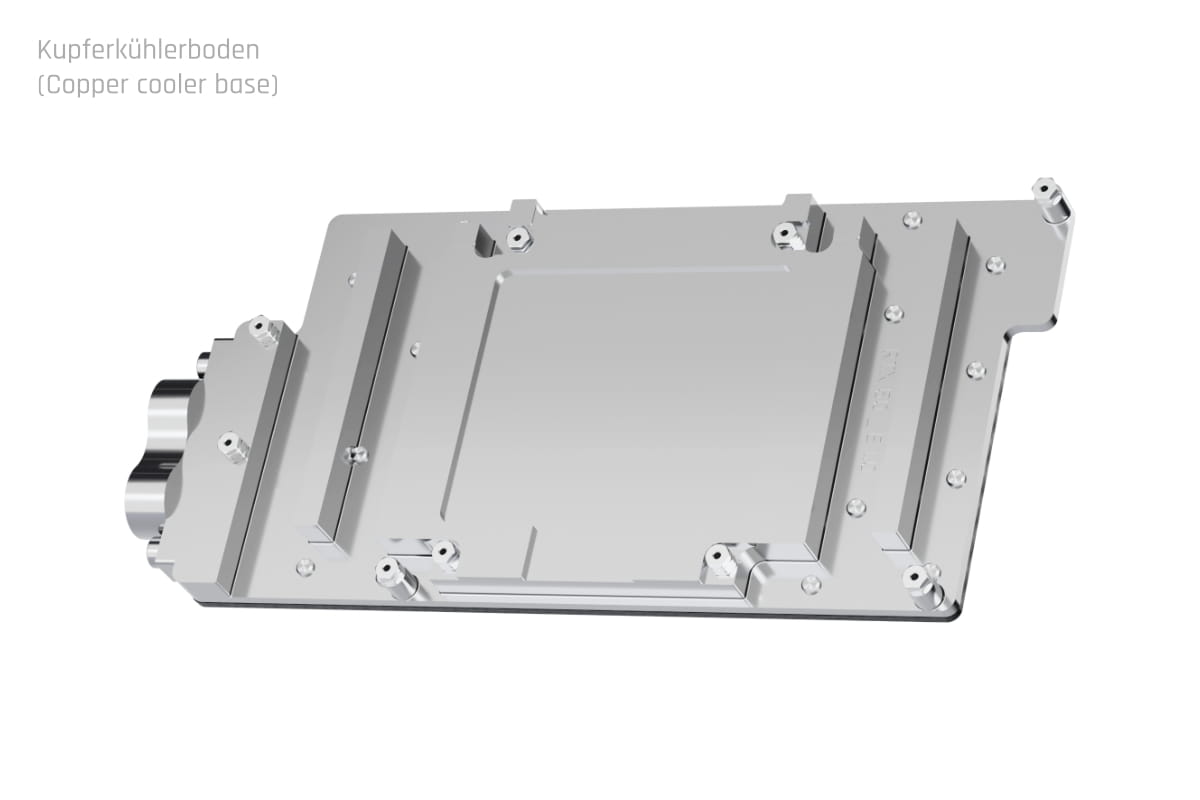

The solid copper base ensures optimal heat absorption and transfer. The robust chrome plating prevents peeling or damage under thermal stress.

The Alphacool ES 1-Slot GPU Water Block for the Nvidia RTX PRO 6000 Blackwell Server Edition, Nvidia RTX PRO 6000 Blackwell Max-Q Workstation Edition, and Nvidia RTX PRO 5000 Blackwell is the ideal solution for enterprise applications where performance, reliability, and efficient space utilization are top priorities.

Compatibility:
- Nvidia RTX PRO 5000 Blackwell
- Nvidia RTX PRO 6000 Blackwell Max-Q Workstation-Edition, 96GB GDDR7
- Nvidia RTX PRO 6000 Blackwell Server-Edition, 96GB GDDR7

Technical data
Dimensions (L x W x H)	267.80 x 95.58 x 19.20 mm
Slot size	1
Material cooler	Chome-plated copper
Material cooler top	Carbon
Threads	2 x G 1/4
Material Connection thread	Brass (CuZn39Pb3)
Maximum torque G 1/4 thread	1.00 Nm
Maximum torque M2 thread	0.13 Nm
Maximum torque M2,5 thread	0.27 Nm
Maximum torque M3 thread	0.48 Nm
Maximum torque M4 thread	1.12 Nm
Maximum operating temperature	60 °C
Recommended working temperature	20 °C
Minimum operating temperature	-20 °C
Maximum tested pressure	4.00 bar
Recommended working pressure	0.00-2.00 bar
Thickness of the cooling plate	2.96
Thickness of cooling fins	0.40 mm
Distance between cooling fins	0.40 mm
Cooling technology	Jet engine

Technical data Backplate
Dimensions (L x W x H)	267.70 x 95.58 x 4.00 mm
Material	Aluminium (AlMg0,7Si)
Color	Black

Technical data Thermal pads
Thermal conductivity of thermal pads	7 W/(m·K)
Thermal pads Hardness ASTM 2240	35 Shore 00

Technical data Thermal paste
Evaporation rate	Less than 0.5
Density	3.2 g/cm³ (Test method ASTM D2196)
Viscosity	150-200 × 10³ (Test method ASTM D2196)
Operating temperature (°C)	-40 °C to 120 °C
Breakdown voltage	250 V/mil (Test method ASTM D149)
Thermal impedance	0.1 ±0.01 °C in 2/W (Test method ASTM D5470)
Maximum operating pressure	40 psi
Quantity (in gramm)	1
Color	Grey

Warranty: 3 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
