VAT and shipping costs are displayed in the shopping cart
in stock

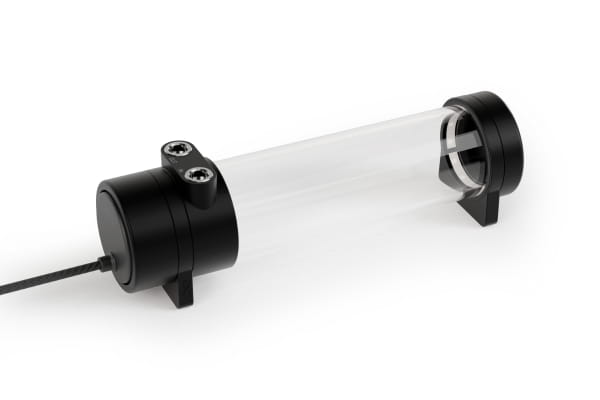

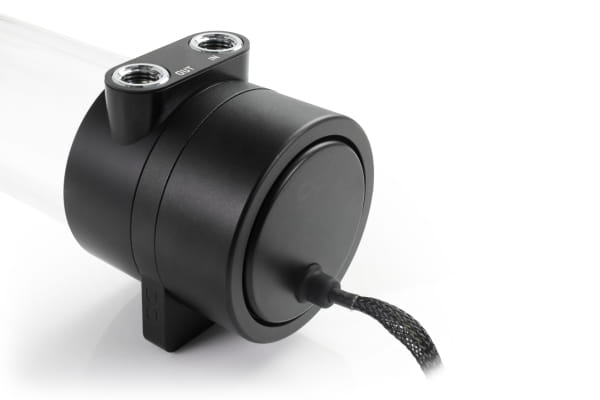

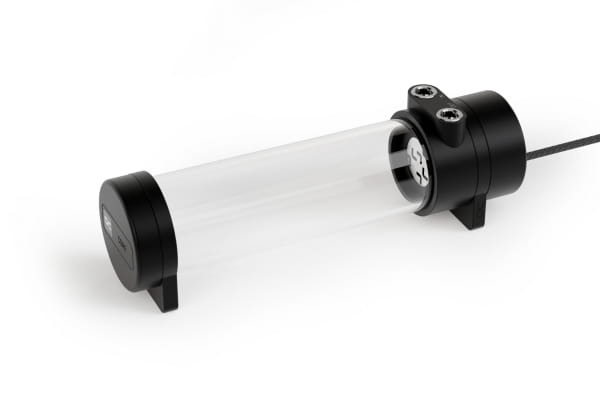

The Alphacool Core 70 Tube Reservoir is the ideal choice for modern custom water-cooling systems. Its slim design, high-quality real glass cylinder, and characteristic Core style not only enhance the visual appearance but also offer practical features for easy integration into demanding cooling loops.

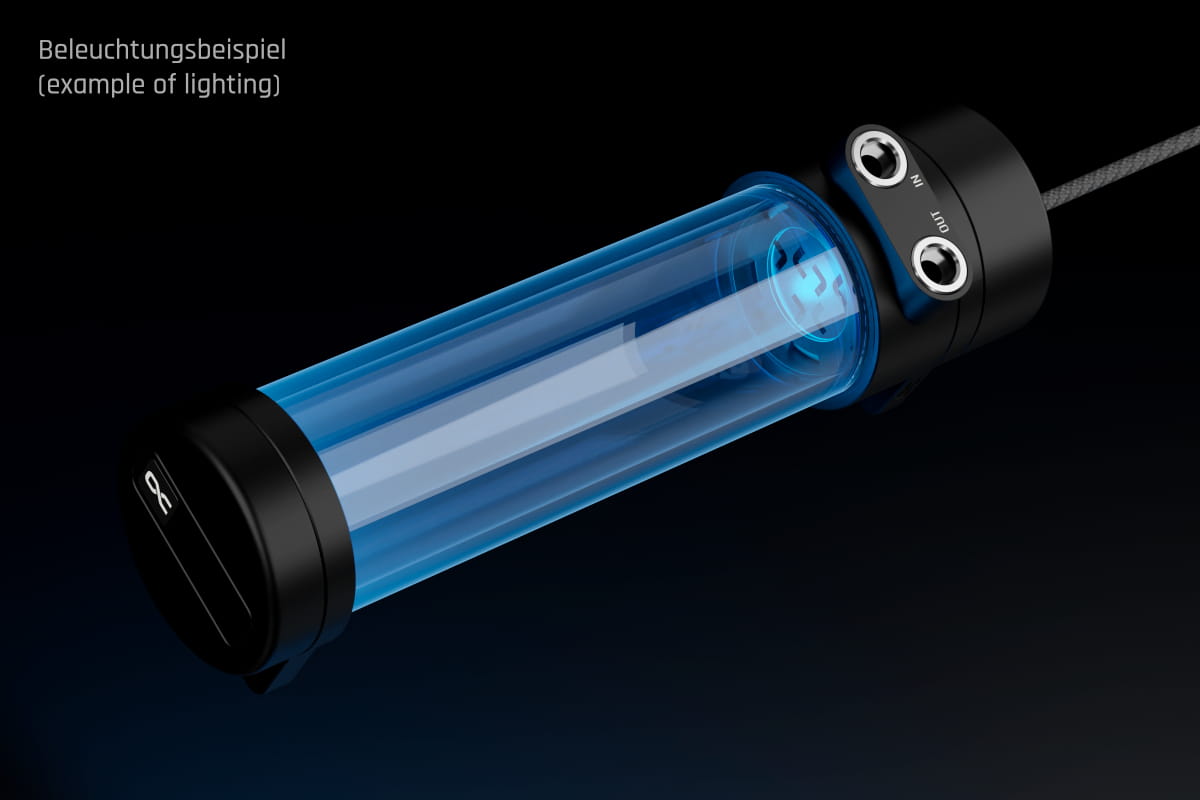

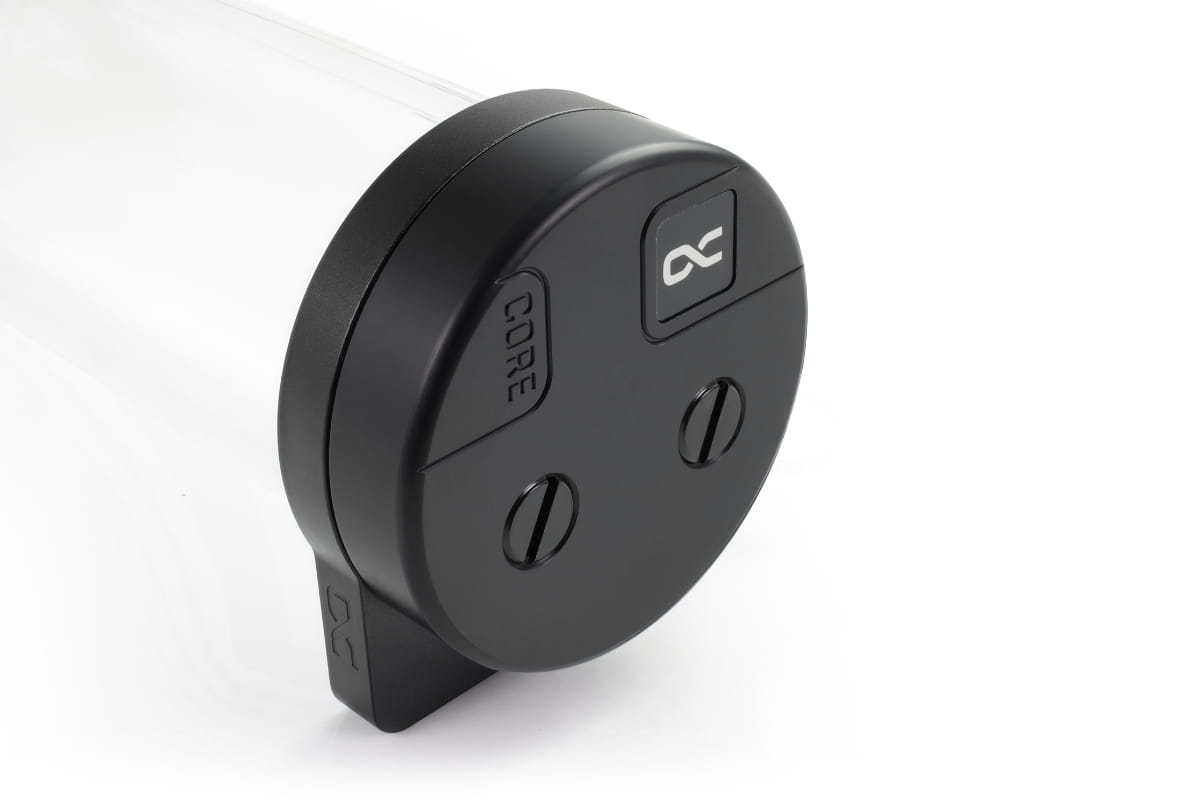

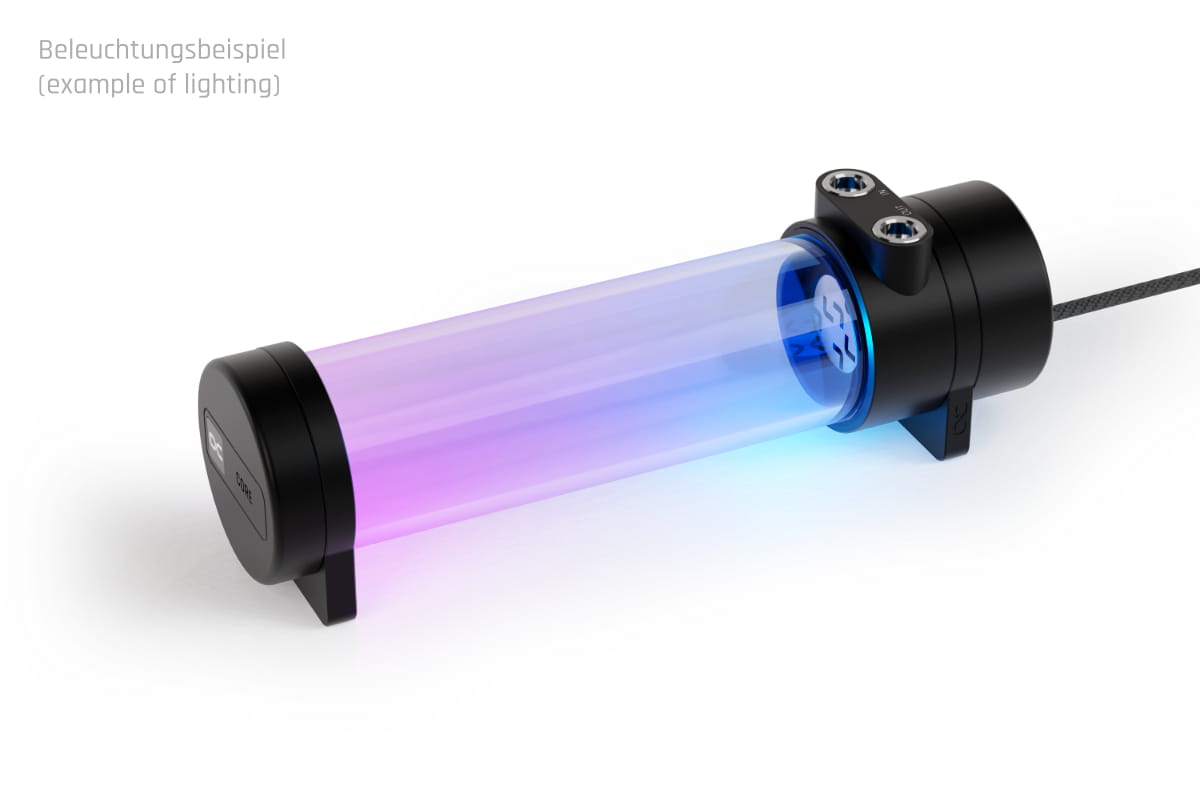

The tube reservoir combines a modern, functional design with premium materials. The real glass cylinder is the highlight of this reservoir, providing excellent durability and a clear view inside the tube and of the coolant. In combination with the integrated lighting, it creates impressive lighting effects, making the reservoir a true eye-catcher inside the system. The chrome-plated brass fittings follow the typical Core design and blend seamlessly into the overall look. Additionally, the top cover can be replaced with the included Core-design tube top, offering further customization options.

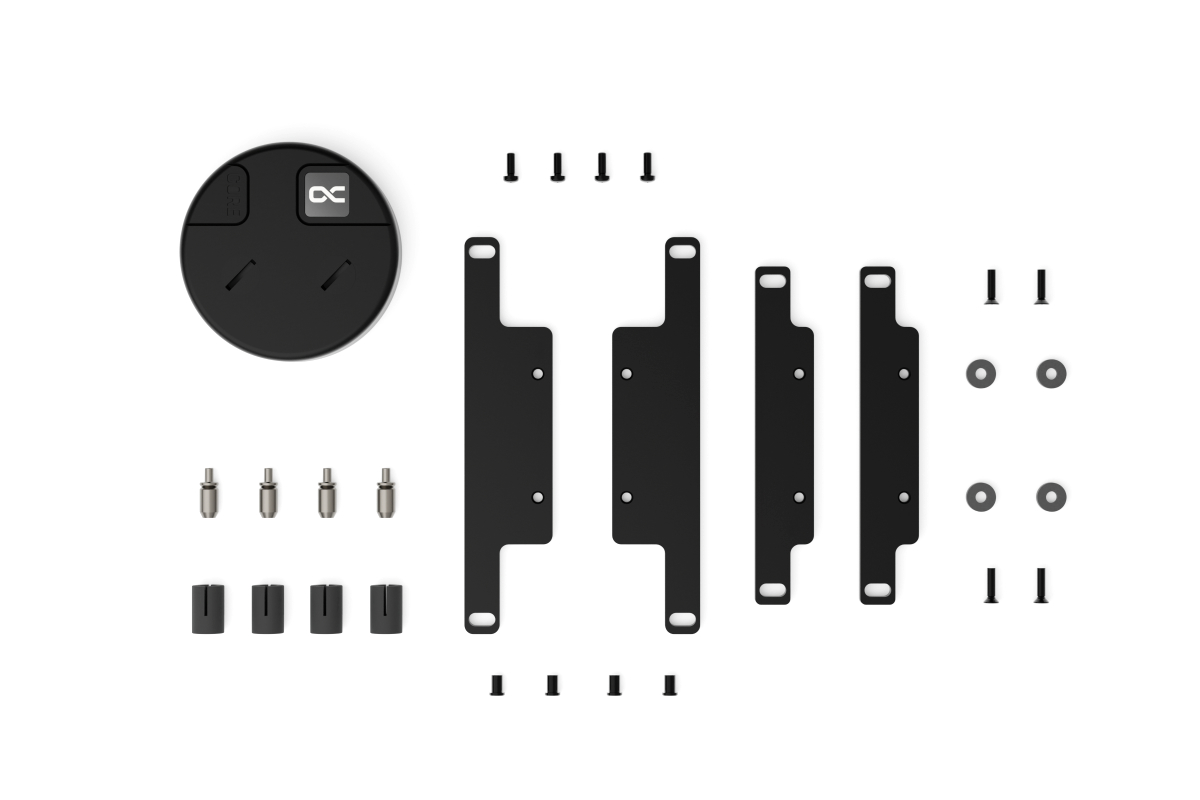

The rotatable mounting brackets provide maximum installation flexibility and allow free positioning inside the case. The interchangeable tube top makes filling and bleeding the cooling loop much easier, simplifying both installation and maintenance of the water-cooling system.
The package includes a powerful Apex VPP pump, which is designed for high performance, quiet operation, and long service life.
Note: The coolant temperature inside the reservoir must not exceed 60°C.
| Technical data | |
| L x W x H | 293 x 74 x 97 mm |
| Pump compatibility | VPP/D5 |
| Capacity | 494 ml |
| Material Pump top & cover | acetal |
| Material tube | glass |
| Connection | 2x G1/4" inner thread |
| Tube Top connections | 2 Fill-/ Drainports |
| Maximum water temperature | 60 °C |
| Pressure tested | 0,8 bar |
| Quantity of digital aRGB LEDs | 13 |
| Power digital aRGB LEDs | 5V |
| Power connector digital aRGB LEDs | 3-pin JST (male & female switch) |
| Weight | 1080g |
| Color | black |
| Technical data VPP Apex | |
| Dimensions (L x W x H) | 65 x 65 x 41mm |
| Material pump | synthetic material |
| Material pump cover | aluminium |
| Material axle | ceramics |
| Connections | 4-Pin PWM | SATA |
| Rotational speed | 2500 - 4500 RPM |
| Cable lenghts | 4-Pin PWM - 48cm | SATA - 48cm |
| Operating voltage | 8-13V DC / 14W IP32 |
| Starting voltage | 12V DC |
| Maximum pumping head | 4,25 m |
| Max flow | 340 l/h |
| Max working temperature | 60 °C |
| Net weight | 276 g |
| color | black |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
in stock
