For more than a decade, Alphacool’s Full Copper Radiator Series has set the standard in liquid cooling performance. Now, Alphacool introduces the first radiator in its Core Series – the Core XT45 Full Copper Radiator. It delivers outstanding cooling performance paired with an elegant, modern aesthetic. The clean contours of the redesigned housing are enhanced by interchangeable side panels – available either with discreet integrated aRGB lighting or in a classic, unlit version.
As with Alphacool’s proven NexXxoS models, all water-bearing components of the Core XT45 Radiator – including the fins, channels, and chambers – are made entirely of copper, ensuring excellent thermal conductivity. Inside, an optimized structure delivers noticeably improved cooling performance: sixteen instead of twelve water channels provide better flow dynamics, while the refined fin design further enhances heat transfer.

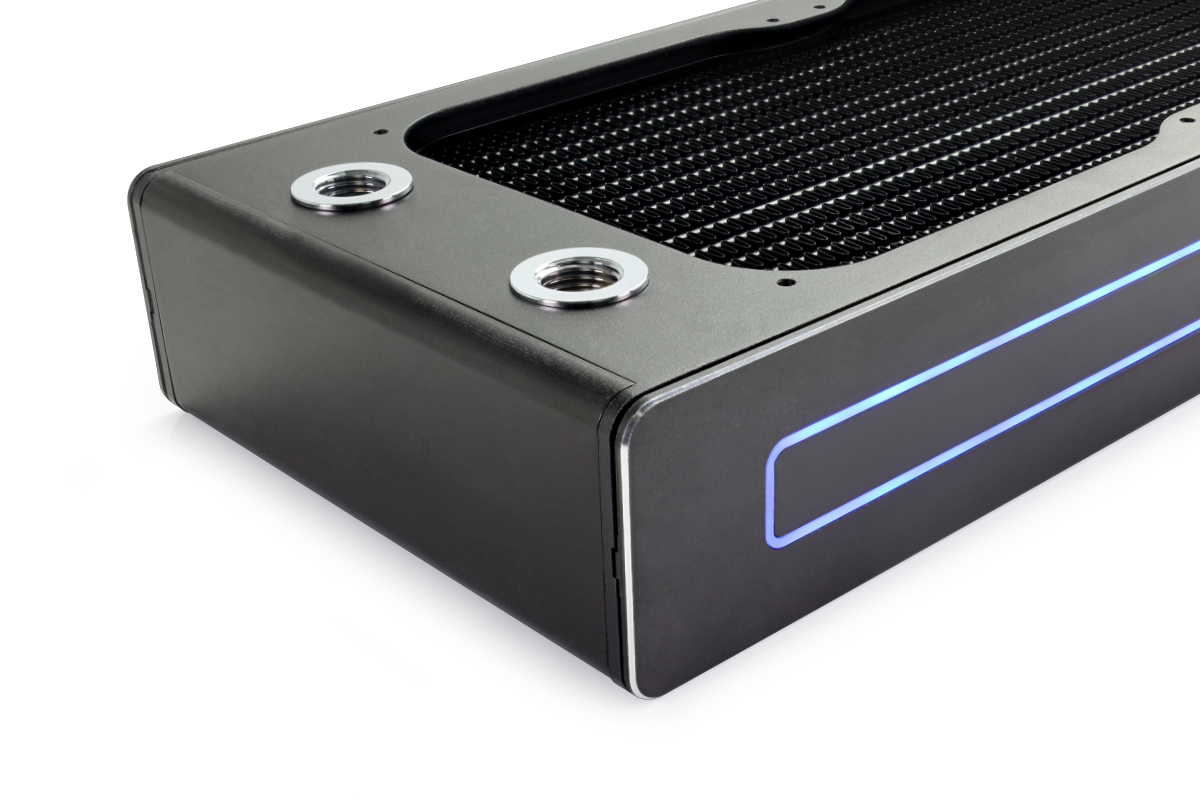

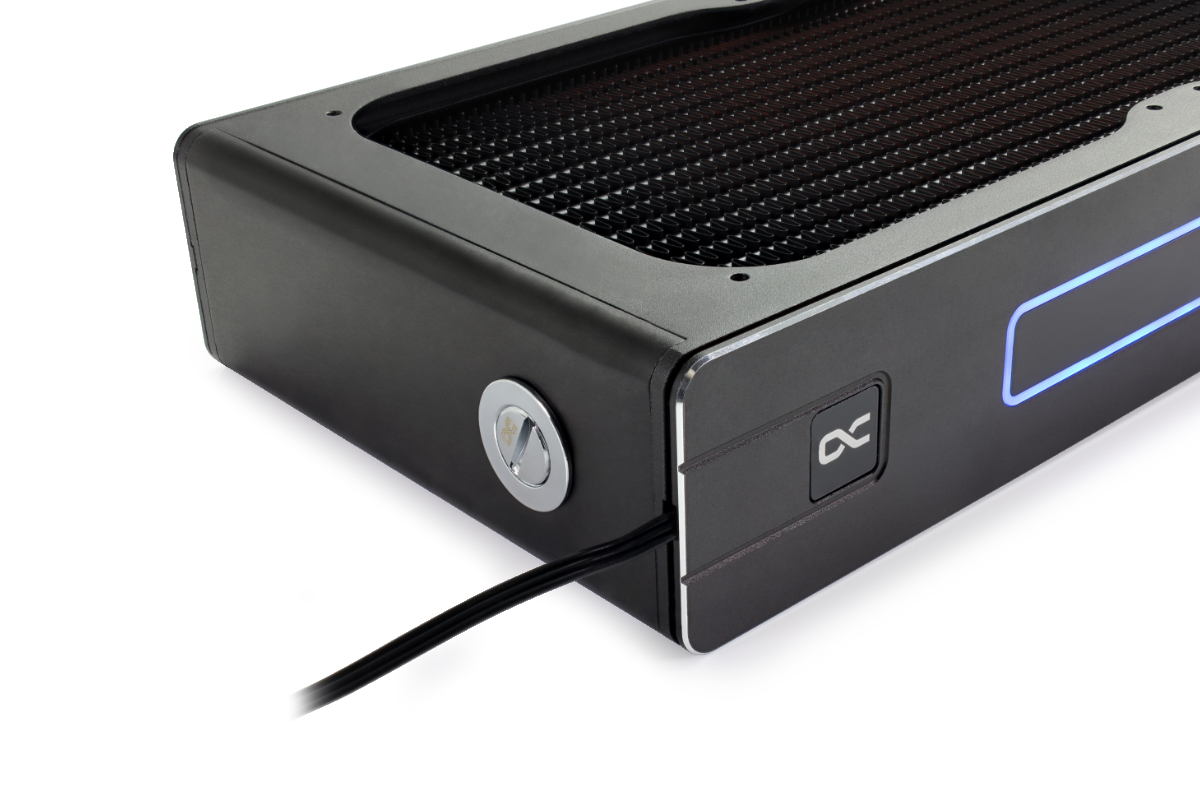

The radiator features two G1/4" ports designed in Alphacool’s characteristic Core style. Made from high-quality brass and precisely integrated into the end chamber, they combine durability with a clean appearance. A fill and vent port on the opposite side simplifies maintenance by allowing easy filling and draining of the cooling loop.

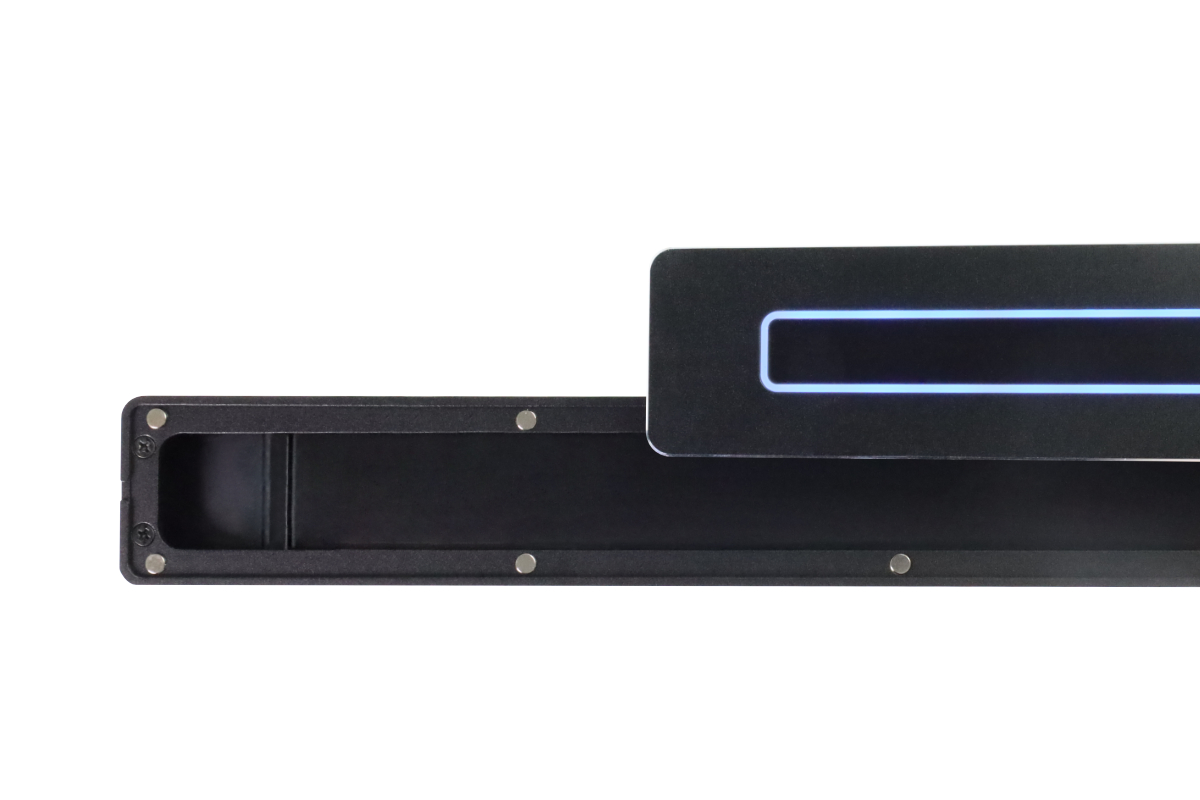

Each Core XT45 Radiator comes with two interchangeable side panels – one featuring integrated aRGB lighting and one without. Thanks to magnetic mounting, both versions can be swapped effortlessly and without tools. The aRGB version adds a striking visual accent, making the Core XT45 Full Copper Radiator a true centerpiece in any cooling setup.
| Technical data radiator | |
| L x W x H | 297,00 x 133,40 x 50,00mm (+/- 0,25mm) |
| Quantity of cooling channels | 32 |
| Material cooling fins, pre-chambers & channels | copper |
| Material threads | brass |
| Material outer housing | aluminum |
| Threads | 2x G1/4" IN/OUT & 1x Fill-/Drainport G1/4" (max. 5mm thread length) |
| Possible fan size | 120mm |
| Possible fan assembly | 2x one-sided / 4x both-sided |
| Thread size fan mounting | M3 |
| Pressure tested | 0,8 Bar |
| Maximum working temperature | 60°C |
| Fin density | 16 FPI |
| Panel | magnetic,changeable, 1xRGB & 1x non-RGB |
| aRGB | yes |
| Illumination | digital aRGB LEDs |
| Power connector digital aRGB LEDs | 3-Pin JST |
| Power digital aRGB LEDs | 5V |
| Number of digital aRGB LEDs | 11 |
| Weight | 1294g |
| Color | black |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
| Hersteller: | Alphacool |
| Fins per inch: | 16 |
| Housing: | Aluminium; |
| Cooling channels: | Copper |
| Slats: | Copper |
| Fan thread: | M3 |
| Fan size: | 120mm; |
| Dimensions (L x W x H): | 297,00 x 133,40 x 50,00mm |
| Number of fans: | 2; |
| Thickness: | 39 - 49mm |
| Pressure tested: | 0,8 bar |
| Color: | Black |
