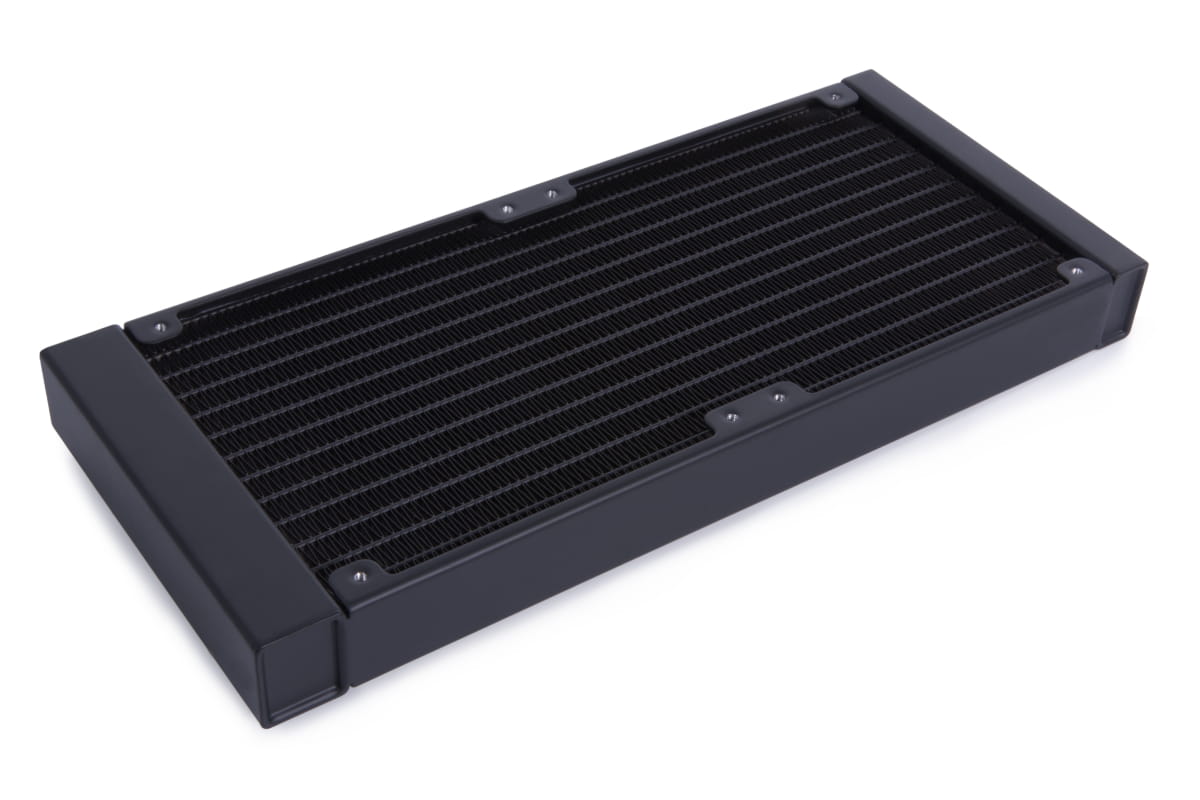

Alphacool ES Aluminum 240 mm T27 - (For Industry only)

  • 14427
  • 4250197144278
  • 0,44 kg
  • Images may differ slightly from the original
€29.98 *

Prices incl. VAT plus shipping costs

Delivery date exceeded

Recommended accessories
Extra Price
ANK Alphacool HF quick release coupling set TPV - Eisbaer compatible - Black
1x
Alphacool HF quick release coupling set TPV - Eisbaer compatible - Black
€9.98*
ANS Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6
1x
Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6
€16.98*
ROH Alphacool Eisbaer TPV Extension Set 90° (hose and connections)
1x
Alphacool Eisbaer TPV Extension Set 90° (hose and connections)
€18.49*
PUM Alphacool Eisstation DC80 - AIO Power Unit
1x
Alphacool Eisstation DC80 - AIO Power Unit
€69.98*
WZS Alphacool ES Big Inline Particle Filter 2x G1/4" IG PHT EOL
1x
Alphacool ES Big Inline Particle Filter 2x G1/4" IG
€29.98*
WAZ Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
The all-aluminium ES T27 and T38 radiators from Alphacool's ENTERPRISE SOLUTIONS series were... more
Product information

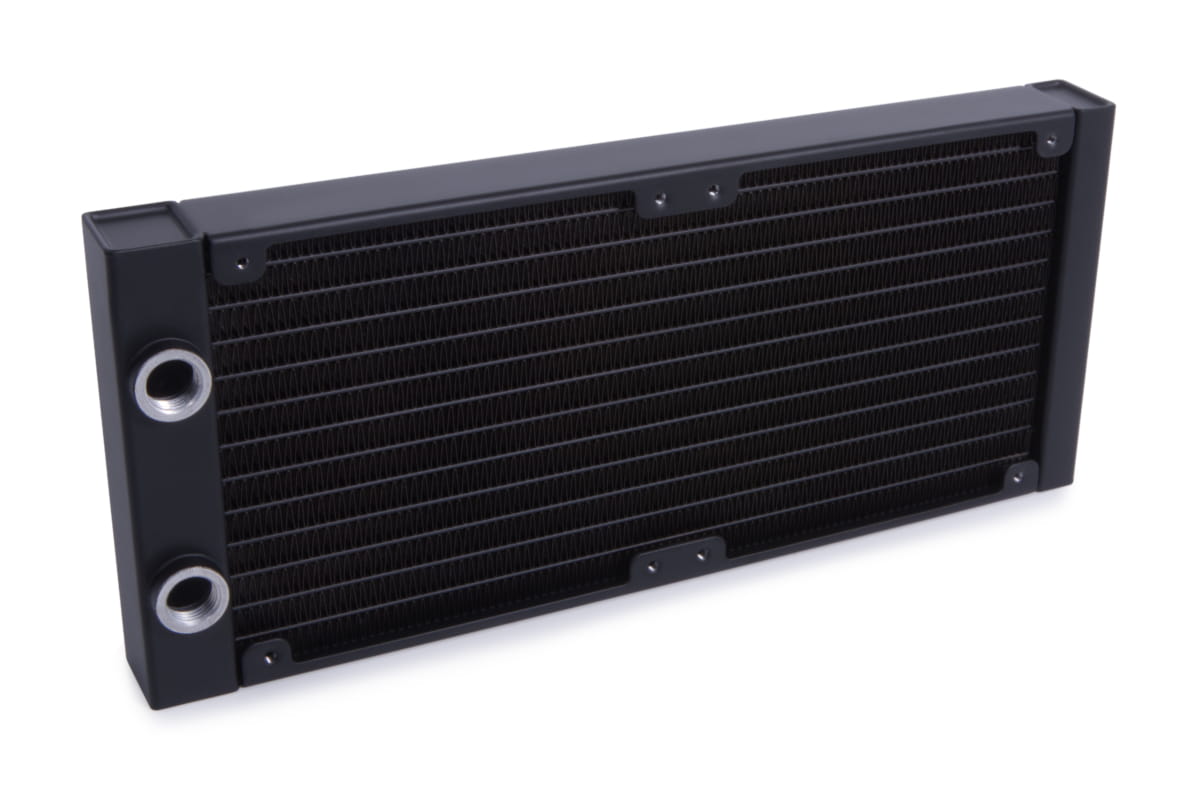

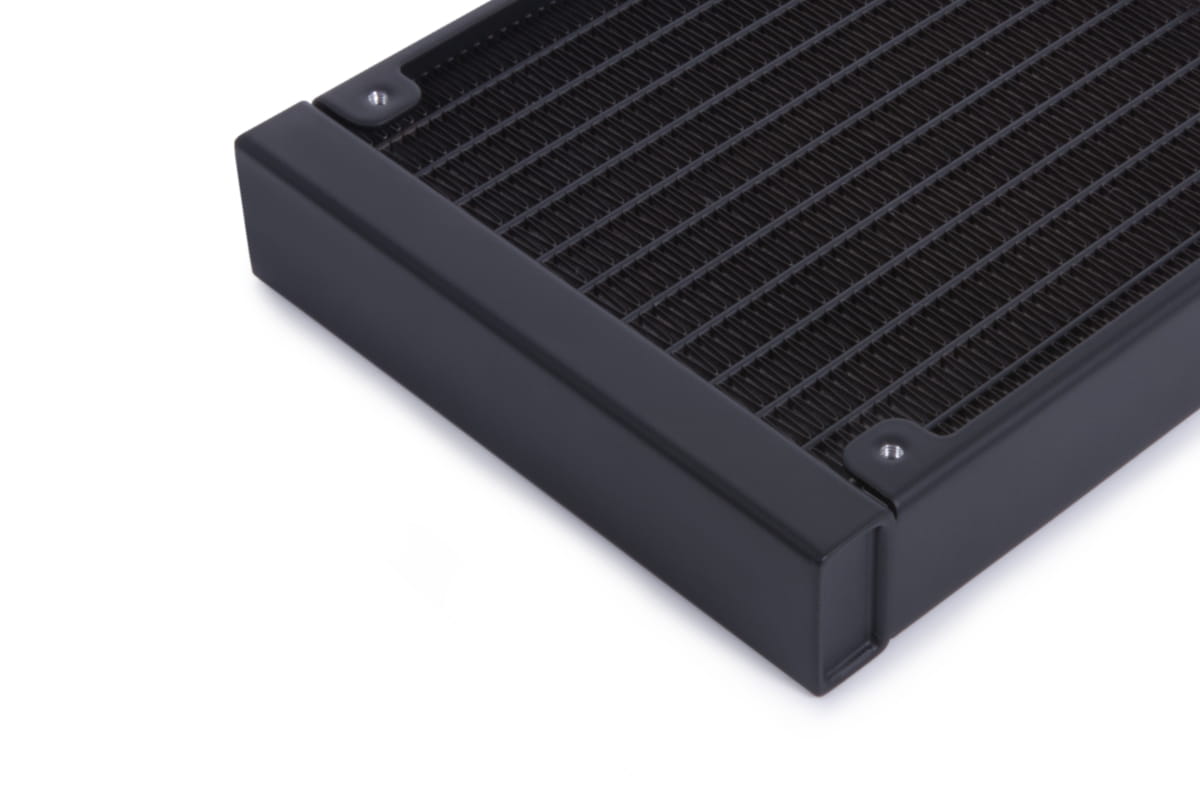

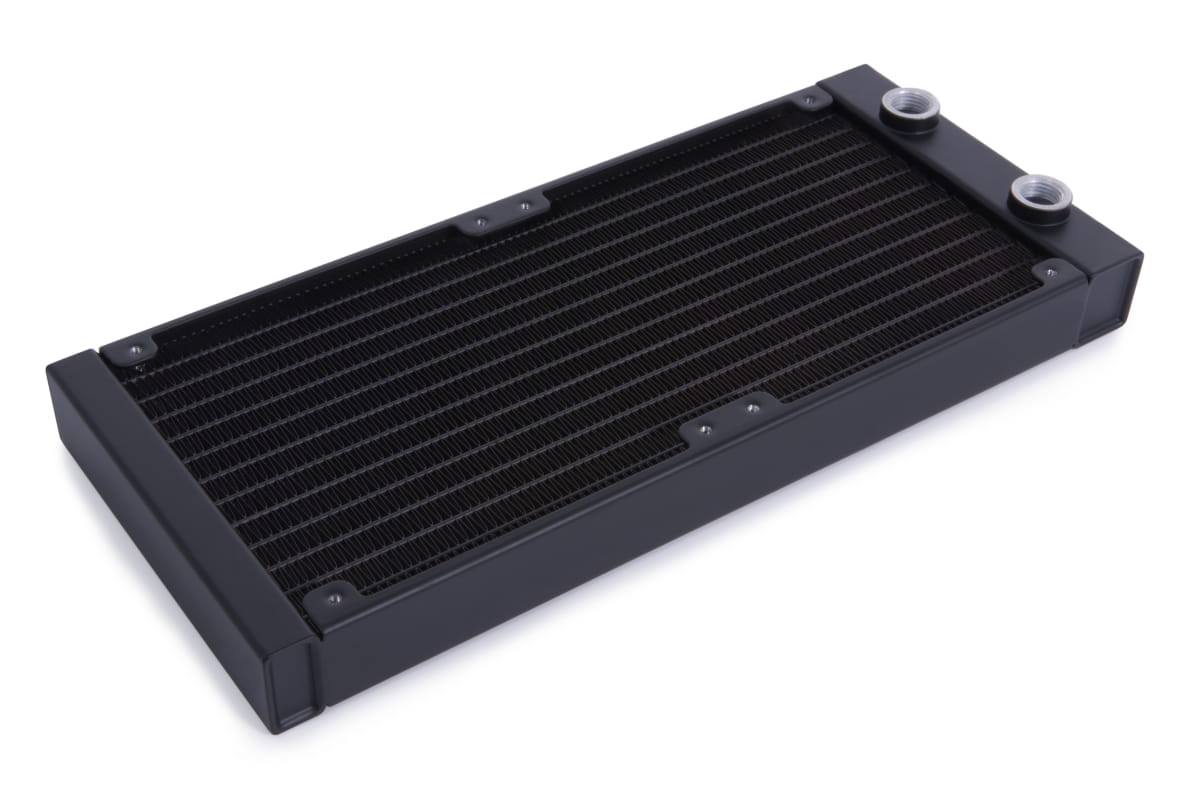

The all-aluminium ES T27 and T38 radiators from Alphacool's ENTERPRISE SOLUTIONS series were specially developed for use in the industrial range. Due to the low construction height of 27mm or 38mm, they find space in the smallest of spaces and enable the water cooling of technical equipment in the automotive industry, in mechanical engineering or in the production of films and videos.

High Performance
Compared to Alphacool's full copper models, all ES T27 and T38 aluminium radiators have additional cooling channels. This technical design allows a significant increase in cooling capacity without restricting the water flow within the radiator. The radiators have a high fin density and are particularly suitable for use with fans with high air pressure and air throughput. This achieves a significant increase in the performance of the water-cooled components.

Fitting and mounting options

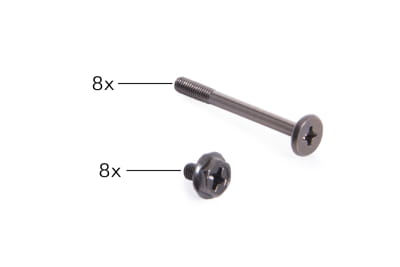

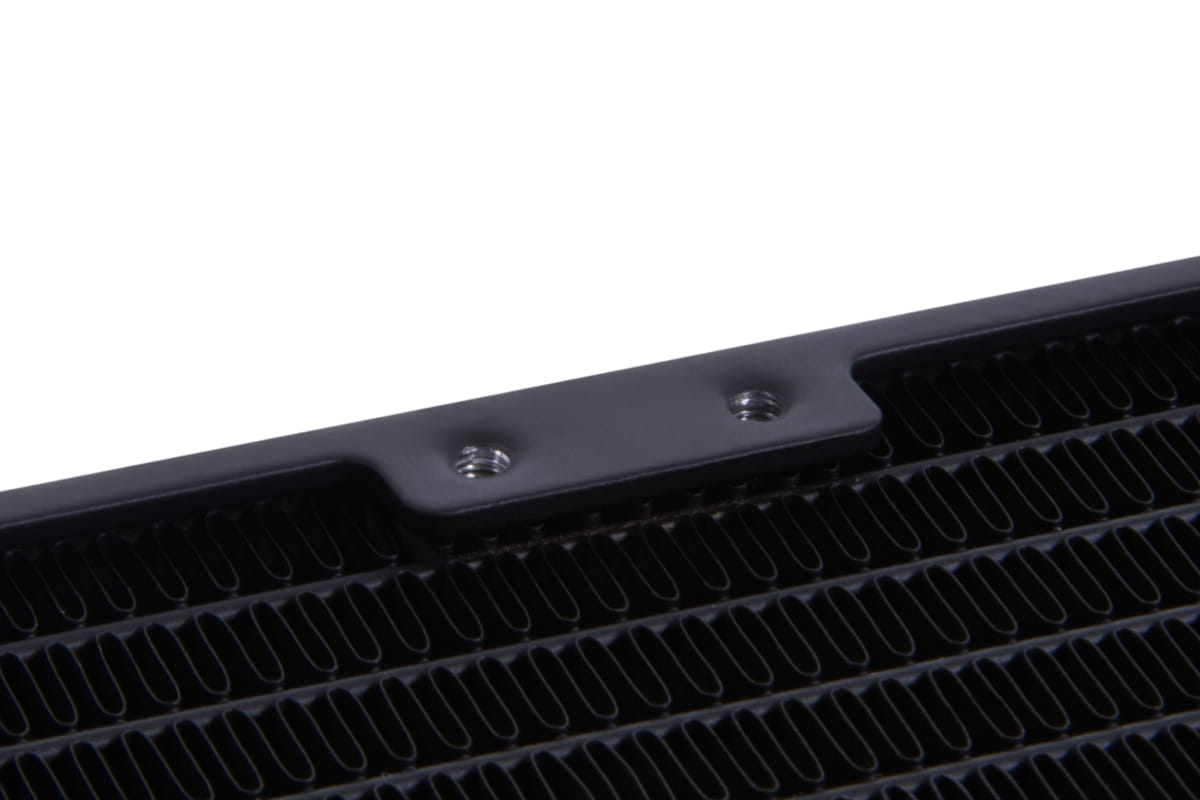

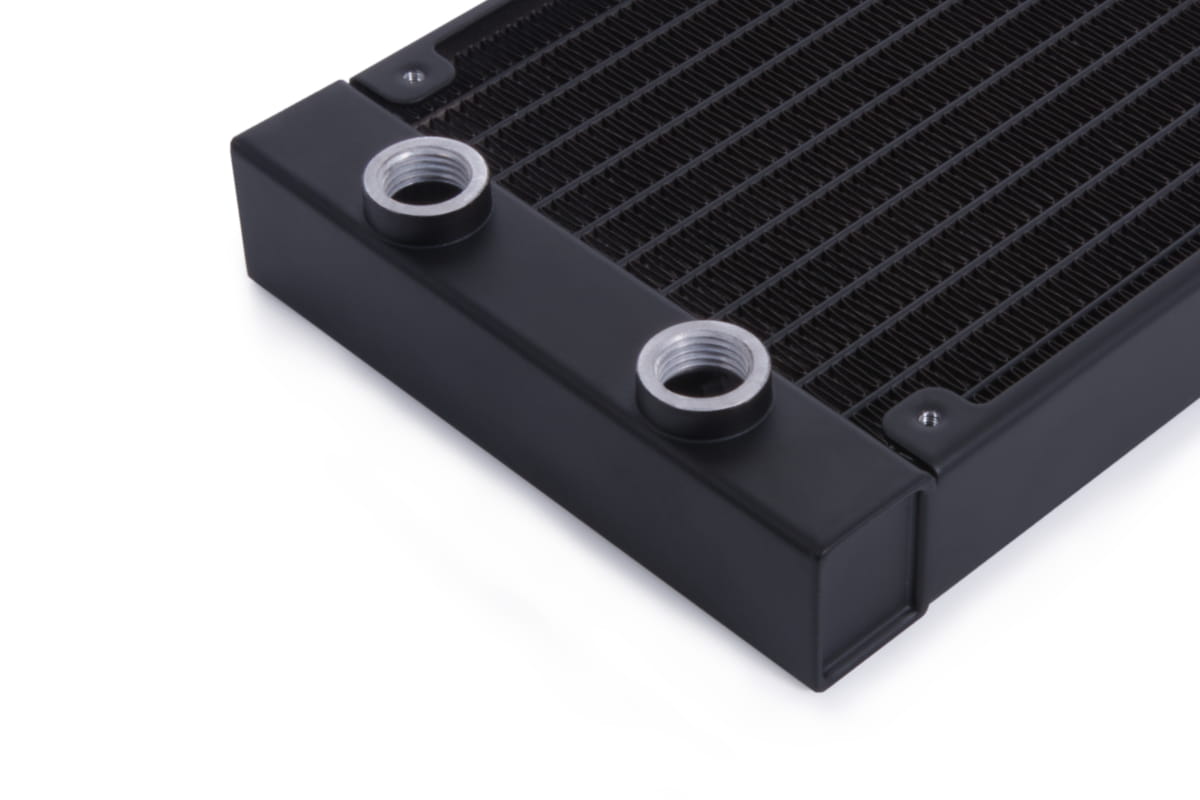

The radiator offers an inlet and outlet (IN/OUT) with G1/4" thread. Screws for case mounting (M3x5) and for fan mounting (M3x30) are included with the radiator. Additional screws are not required for single-sided fan mounting.

Important note

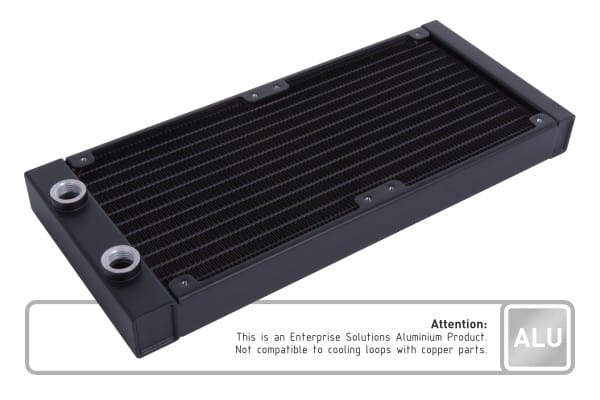

This is an Enterprise Solutions Aluminium product. The ES aluminium radiators must not be used together with copper water cooling products (radiators, fitting, etc.). Using aluminium & copper components together will cause severe damage to the liquid cooling loop.



Technical data
L x W x H276 x 120 x 27 mm
Quantity of cooling channels14
Material cooling fins, channels & prechamberAluminium
Material outer housing & threadsAluminium
Fins per Inch19
Threads2x G1/4“
Thread size fan mountingM3
Fan size120 mm
Fan slots2 one-sided / 4 double-sided
Max working temperature90 °C
Pressure tested0,8 bar
Weight321 g
ColorBlack

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Farbe: schwarz
Anschluss: 2x G1/4"
Lüftergewinde: M3
Lamellen: Aluminium
Druckgetestet: 2 bar
Anzahl Lüfter: 2, 4
Dicke: 0 - 29mm
Fins per inch: 19
Lüftergröße: 120mm
Kühlkanäle: Aluminium
Abmessungen (L x B x H): 276 x 120 x 27mm
Gehäuse: Aluminium
