Core 200 expansion tank with VPP 655 D5 pump

PUM Alphacool Core 200 Aurora D5/VPP Ausgleichsbehälter Acetal/Acryl mit VPP655 PWM Pumpe

Article no.: 15484
EAN: 4250197154840
Weight: 1,4 kg
Available: There are more than 10 units available
Images may differ slightly from the original

€114.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen 16mm HardTube screw-on nozzle G1/4 - Deep Black

€5.99*

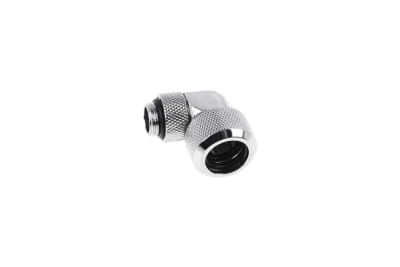

Alphacool Eiszapfen 16mm HardTube screw-on nozzle 90° rotatable G1/4 - Chrome

€8.98*

Alphacool Leak Testing Tool incl. Pump

€34.98*

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

Alphacool spray bottle Core 1000ml

€6.28*

The Alphacool Core reservoir has an integrated pump top for powerful D5 pumps and comes with a... more

Close menu

Product information

The Alphacool Core reservoir has an integrated pump top for powerful D5 pumps and comes with a VPP655 PWM pump. The tube of the reservoir is made of acrylic, the D5/VPP pump top and the lid of acetal. The combination of these two materials gives the expansion tank a discreet appearance. The wow effect is provided by 12 digitally addressable RGB LEDs in the pump top and the Lighttower water effect inside the acrylic tube.

What's new?
Compared to the previous Eisbecher models, the acrylic tube of the Core reservoir has an external thread. This provides more stability and safety when connecting the lid and pump top to the tube. Also new is the integrated digital aRGB lighting. 12 digitally addressable RGB LEDs in the pump top are included in the scope of delivery of the Core reservoir and no longer have to be purchased separately.

Extensive mounting options
Mounting option 1:
Stands are included in the scope of delivery, which, among other things, allow the expansion tank to be mounted on the bottom of the enclosure.

Mounting option 2:
Included in the scope of delivery are 120mm/140mm mounting frames, which can be used to mount the Core expansion tank as desired on free fan spaces, radiators or on the fans on radiators.

Digitally addressable RGB lighting
12 digitally addressable RGB LEDs illuminate the aycryl tube of the reservoir. They are mounted in a ring at the lower end of the tube in the transition to the pump top and provide brilliant illumination of the entire expansion tank. In combination with the Lighttower water effect, a very special ambience is achieved. The digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a digital RGB capable mainboard.

Lighttower water effect
A special water effect is created in the core reservoir via the riser tubes. If you do not fill the reservoir beyond the top edge of the riser tube, you get a kind of fountain effect. In this case, the water is pushed out the sides of the riser tube and splashed against the glass tube. Depending on the flow of the circuit, the effect is stronger or weaker. The effect can be placed at the lower or upper inlet using the riser tubes included in the delivery.

Pump
This pump is ideal for PC and other electronics water cooling. The DC pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic. The spherical bearing of the rotor offers many advantages: For example an increase of bearing play is impossible due to the design, allowing the pump to run quietly and smoothly over its whole lifespan. A separate magnetic shielding of the pump is not needed.

Technical data
L x W x H	251 x 76,5 x 76,5 mm
Pump compatibility	D5
Capacity	400 ml
Material Pump top & cover	acetal
Material tube	acrylic
Connection	3x G1/4“ internal thread
Maximum working temperature	60 °C
Pressure tested	0,8 Bar
Quantity of digital aRGB LEDs	12
Power digital aRGB LEDs	5V
Power connector digital aRGB LEDs	3-pin JST (male & female switch)
Weight	621 g
Color	black

Technical data VPP655 PWM
Dimensions (L x W x H)	65 x 65 x 57mm
Material pump	synthetic material
Material axle	ceramics
Connections	4 Pin Molex
Rotational speed	800-4800 RPM
Operating voltage	8-24V DC
Power consumption	23W
Maximum pumping head	3,7m
Max flow	1000l/h
Max working temperature	60 °C
color	black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
