Alphacool ES Orbiter 360 TS

  • 11932
  • 4250197119320
  • 8,2 kg
  • There are more than 50 units available
  • Images may differ slightly from the original
€499.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
WAZ Alphacool ES Liquid GL50 (-40°C) 1000ml
1x
Alphacool ES Liquid GL50 (-40°C) 1000ml
€19.98*
SEN Alphacool Leak Testing Tool incl. Pump
1x
Alphacool Leak Testing Tool incl. Pump
€34.98*
WAZ Alphacool Core Loop Cleaning 100ml
1x
Alphacool Core Loop Cleaning 100ml
€9.98*
WAZ Alphacool ES Liquid GL50 (-40°C) 5000ml
1x
Alphacool ES Liquid GL50 (-40°C) 5000ml
€79.98*
WAZ Alphacool ES deionized water (ultrapure water) 1000ml
1x
Alphacool ES deionized water (ultrapure water) 1000ml
€15.98*
WAZ Alphacool ES deionized water (ultrapure water) 5000ml
1x
Alphacool ES deionized water (ultrapure water) 5000ml
€69.98*
The Alphacool ES Orbiter 360 TS is an external cooling system for industrial applications. It is... more
Product information

The Alphacool ES Orbiter 360 TS is an external cooling system for industrial applications. It is compact and powerful, using two HPE-30 NexXxoS Full Copper radiators with a total of 360mm for cooling. The ES Orbiter 360 TS can dissipate heat of up to 1300 watts*.

Powerful Cooling!

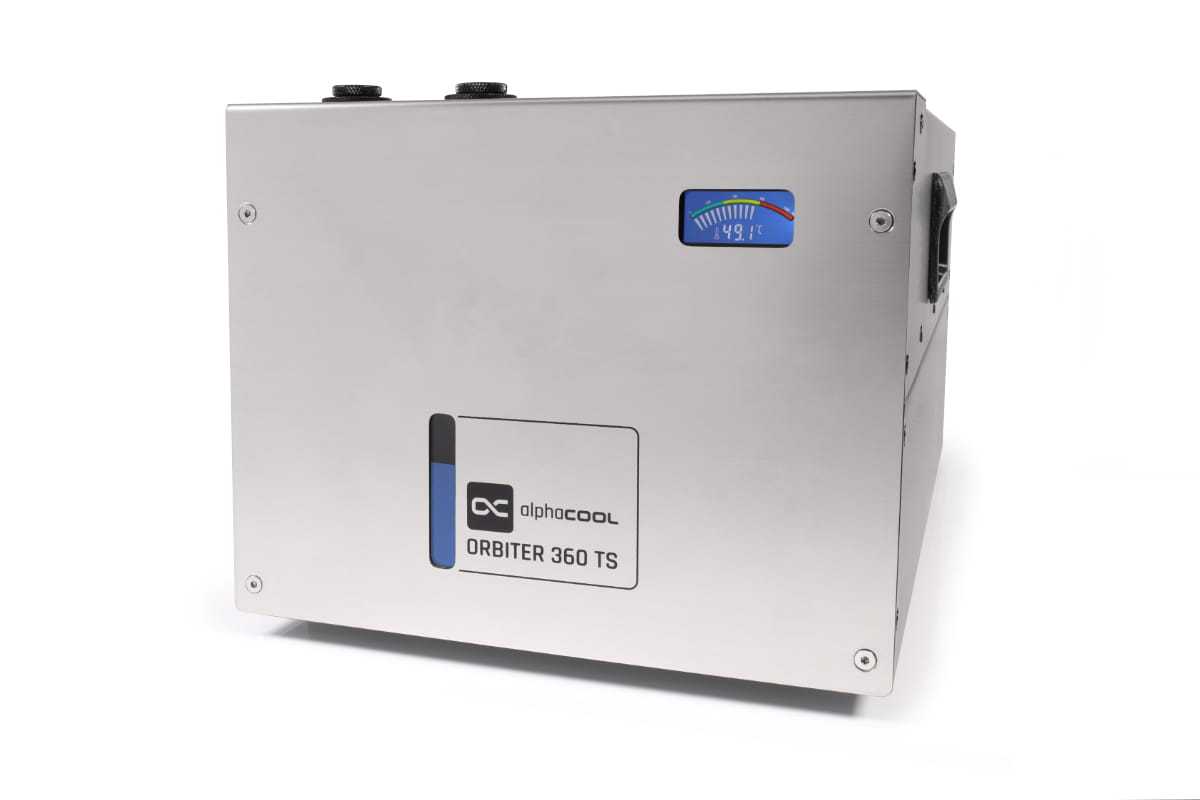

The system utilizes a 120mm and a 240mm NexXxoS Full Copper radiator with 30mm thickness each in the HPE variant. The HPE version of the NexXxoS radiators features a condensed design of the cooling channels, allowing more coolant to flow through the radiator and significantly improving the cooling performance. The three Alphacool Core 120mm fans with high durability ensure optimal ventilation of the radiators. The fans and pump are controlled and monitored by the ES Guardian Powerfan Hub, which alerts in case of component failure. The temperature can be monitored with the color display on the front, which also features a fluid level indicator to determine the amount of liquid in the system.

Compact Design

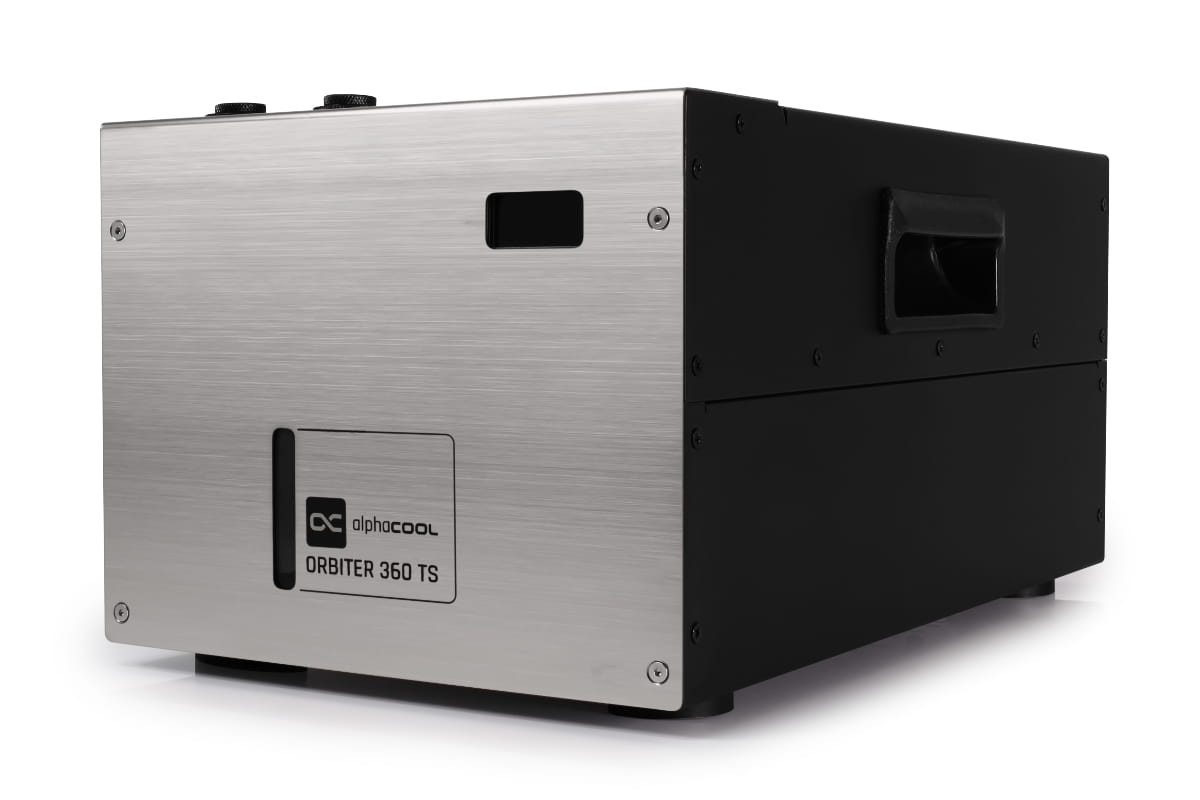

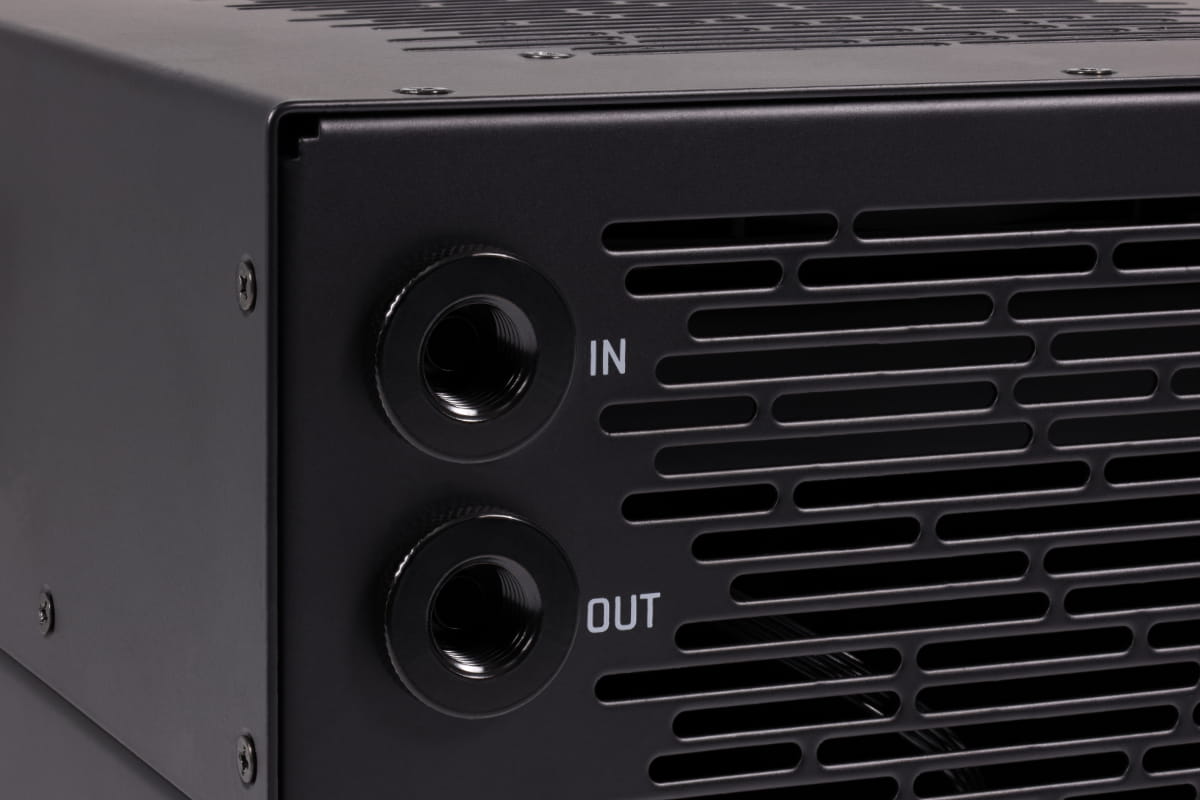

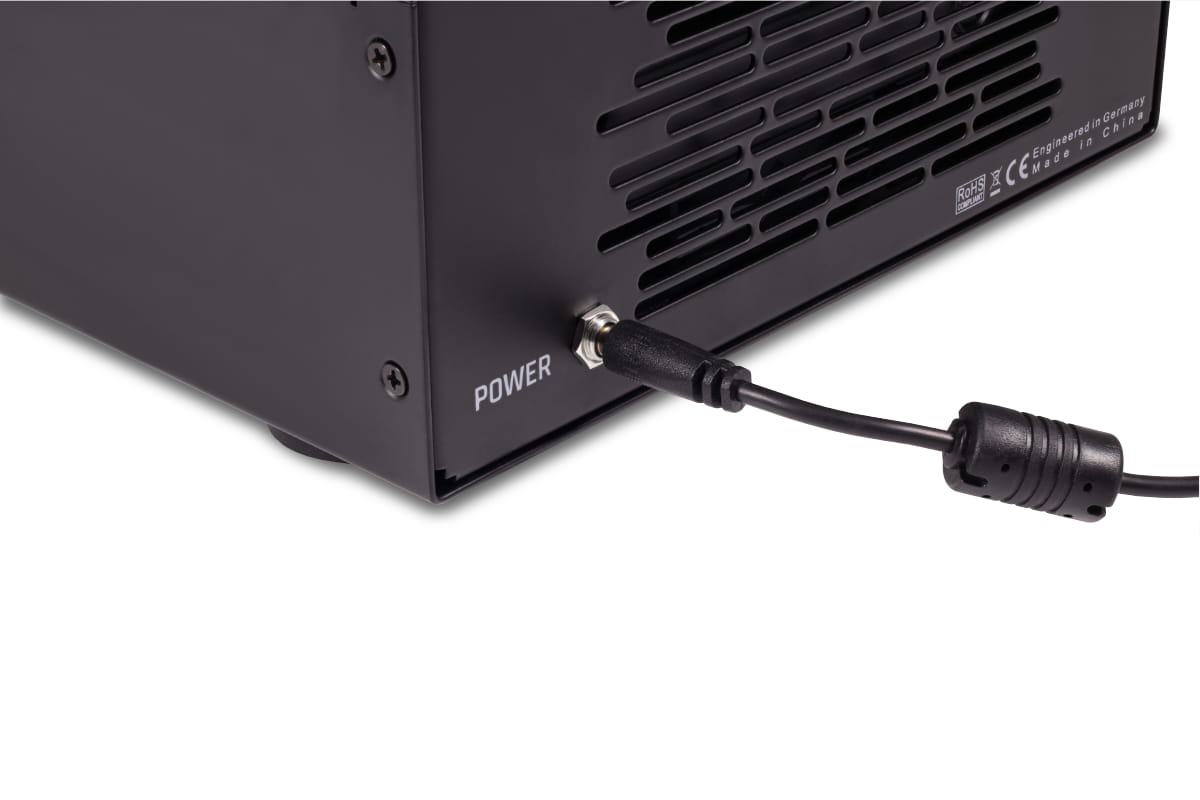

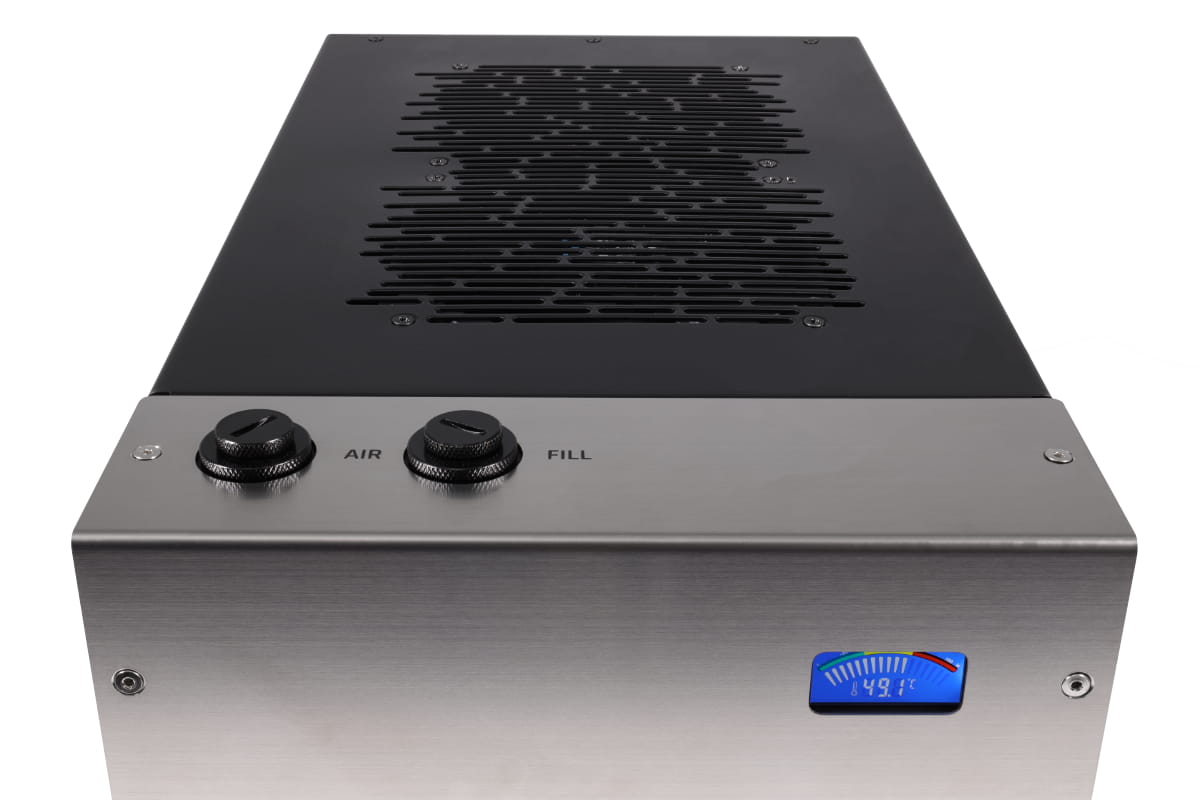

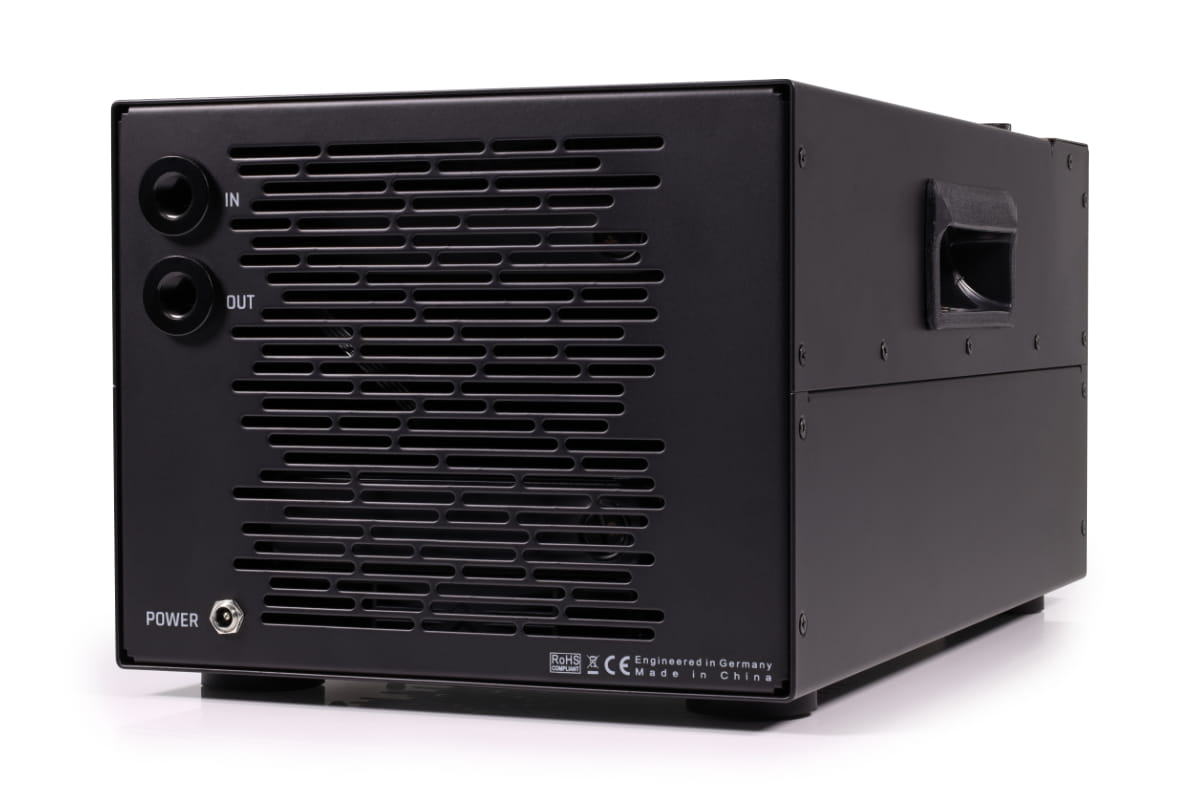

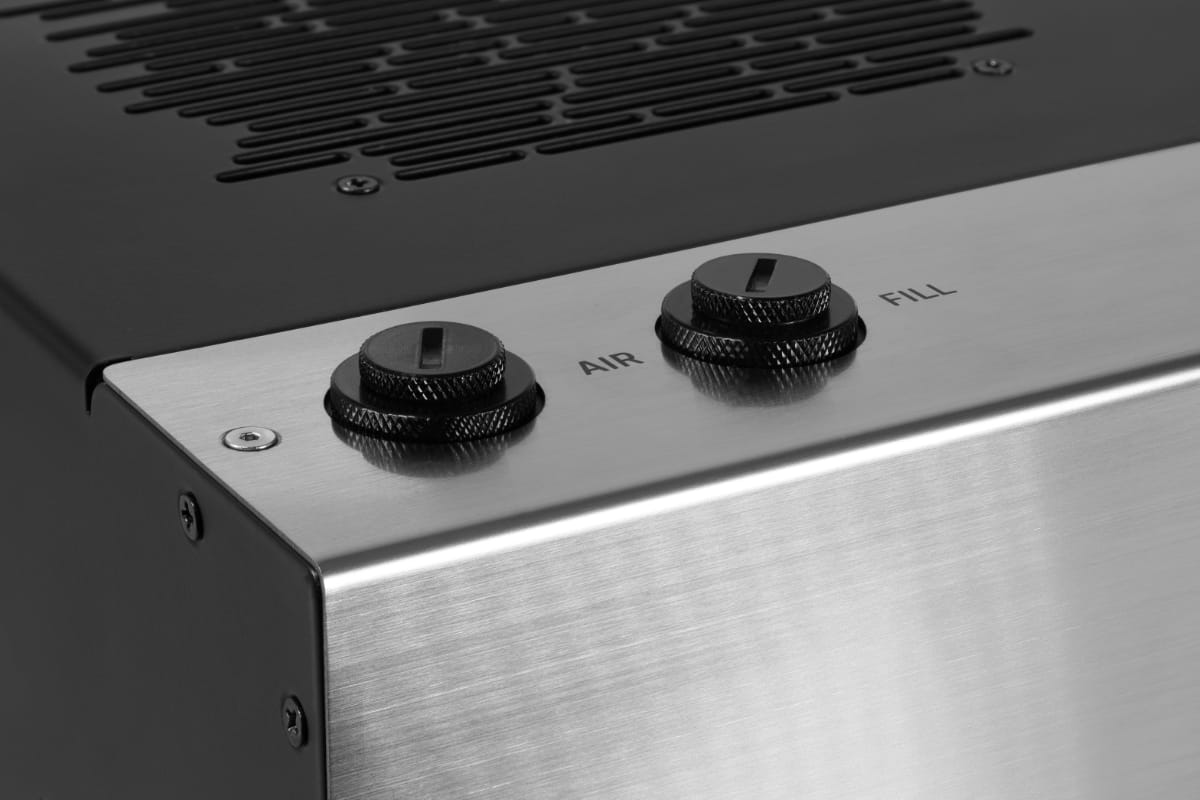

The ES Orbiter has a simple and sleek design, with two built-in handles on the left and right for easy lifting. The Alphacool Eisfach with integrated and powerful third-generation VPP755 pump is used as the reservoir. Thanks to this powerful pump, almost any desired loop can be reliably operated. Refilling the coolant is easy using to the fill port on the top, and the system can be easily vented through the adjacent valve. The water inlet and outlet, as well as the power connector, are located on the back of the Orbiter.

*at an ambient temperature of 23°C



Technical data ES Orbiter
Dimensions (L x W x H)378,80 x 224,46 x 185,30mm
Housing: MaterialMetal
Radiator: MaterielCopper
Tube: MaterialTPV (EPDM)
Radiator: Fins Per Inch18
Approved liquidswater, water/glycol mixture
Max. Cooling capacityup to 1300W at an ambient temperature of 23°C
Voltage12V DC
Total power consumption17,7W
Approved water pressure0,8bar
Fillport1x G1/4“
Water connections2x G1/4“
Air balance connection1x G1/4“
Permitted operating temperature (PC water cooling)60°C
Permitted operating temperature (industrial applications)75°C
Reservoir: Volume445ml
Pump: Flow rate340l/h
Pump: max. pumping head3,125m
Fan: max. speed2500rpm
Fan: max. air flow rate83,3m³/h
DisplayMulticolor, indication optionally in °C or Fahrenheit
Sensor typeNTC 10 kOhm thermistor
Colorblack, silver

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
