Bulkhead fitting with quick release coupling

ANK Alphacool HF Schnellverschlusskupplungsset IG/IG - Schottverschraubung

Article no.: 17599
EAN: 4250197175999
Weight: 0,034 kg
Available: There are more than 100 units available
Images may differ slightly from the original

€9.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool HF quick release coupling set G1/4 - Black

€7.98*

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€18.98*

Alphacool HF quick release coupling set TPV - Eisbaer compatible - Black

€9.98*

Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6

€16.98*

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

Alphacool HF double nipple G1/4 AG to G1/4 AG rotatable - Deep Black

€2.48*

The Alphacool HF quick release coupling set IT/IT - bulkhead is suitable for permanent mounting... more

Close menu

Product information

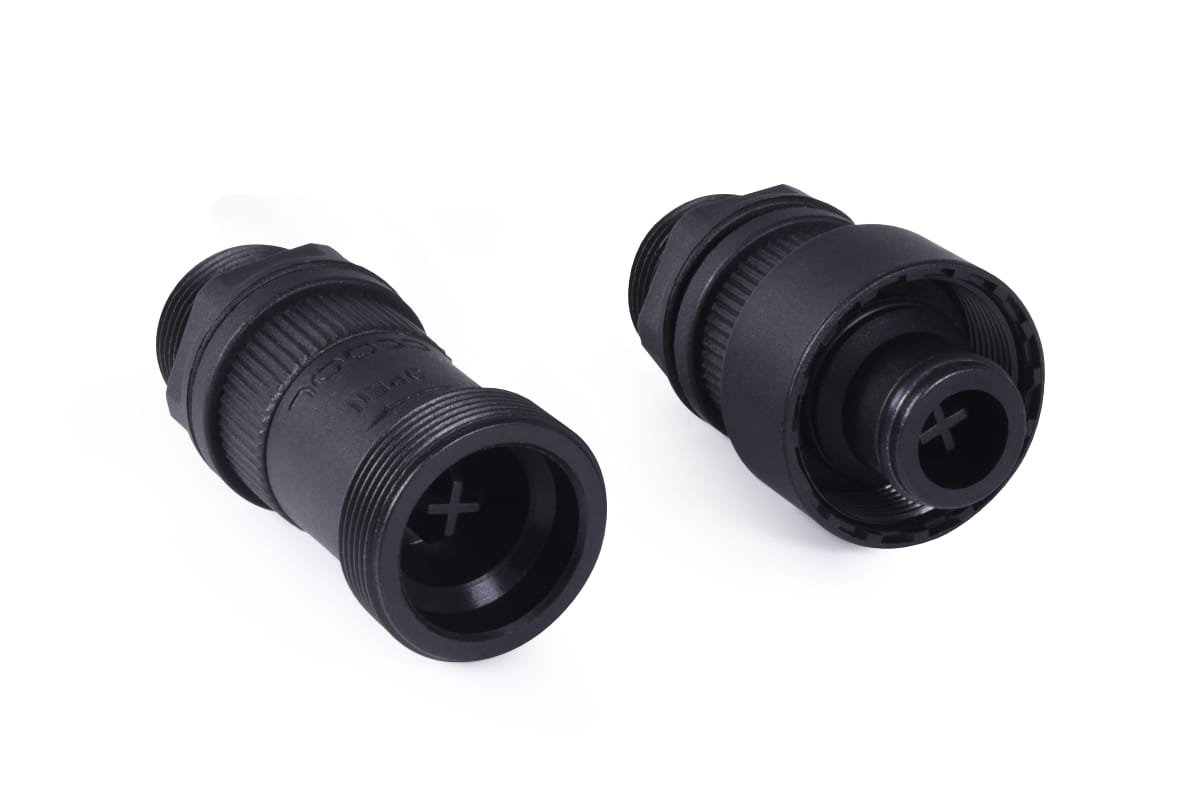

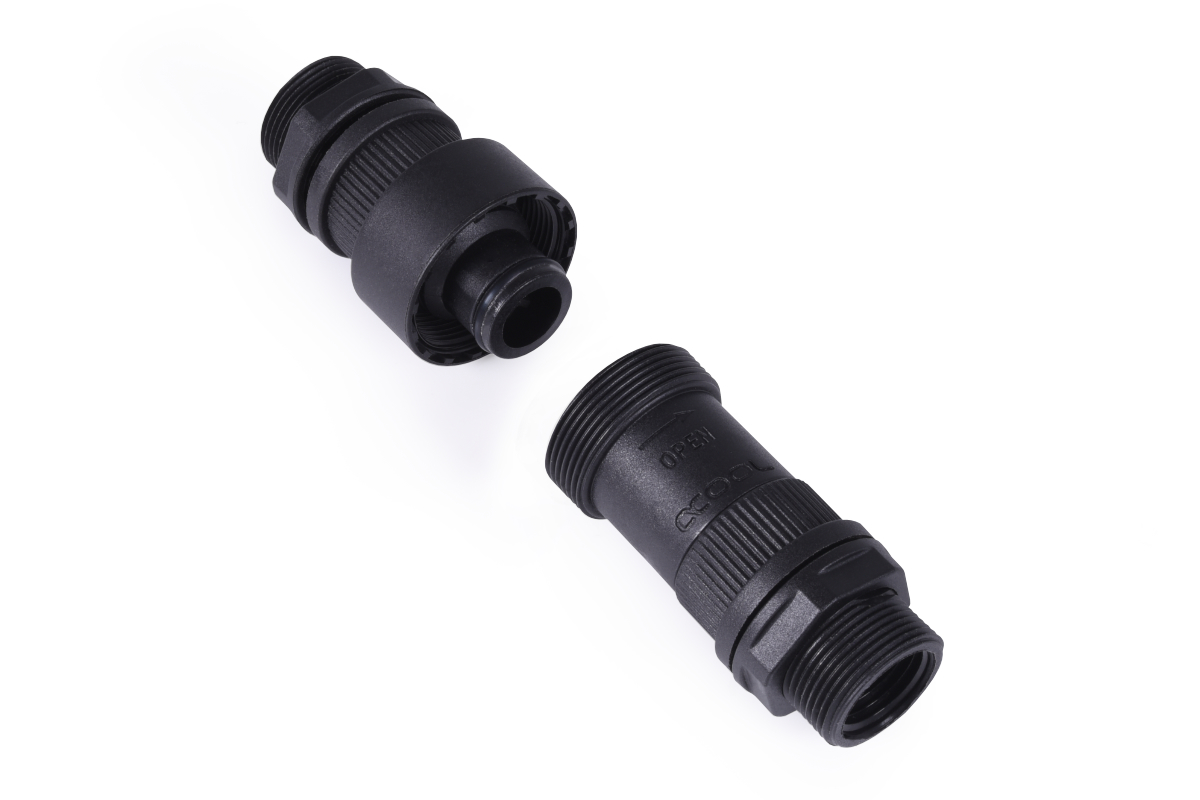

The Alphacool HF quick release coupling set IT/IT - bulkhead is suitable for permanent mounting on a PC or server case and functions like a bulkhead fitting. The quick release coupling enables quick connection or disconnection of externally connected radiators or cooling systems

Assembly

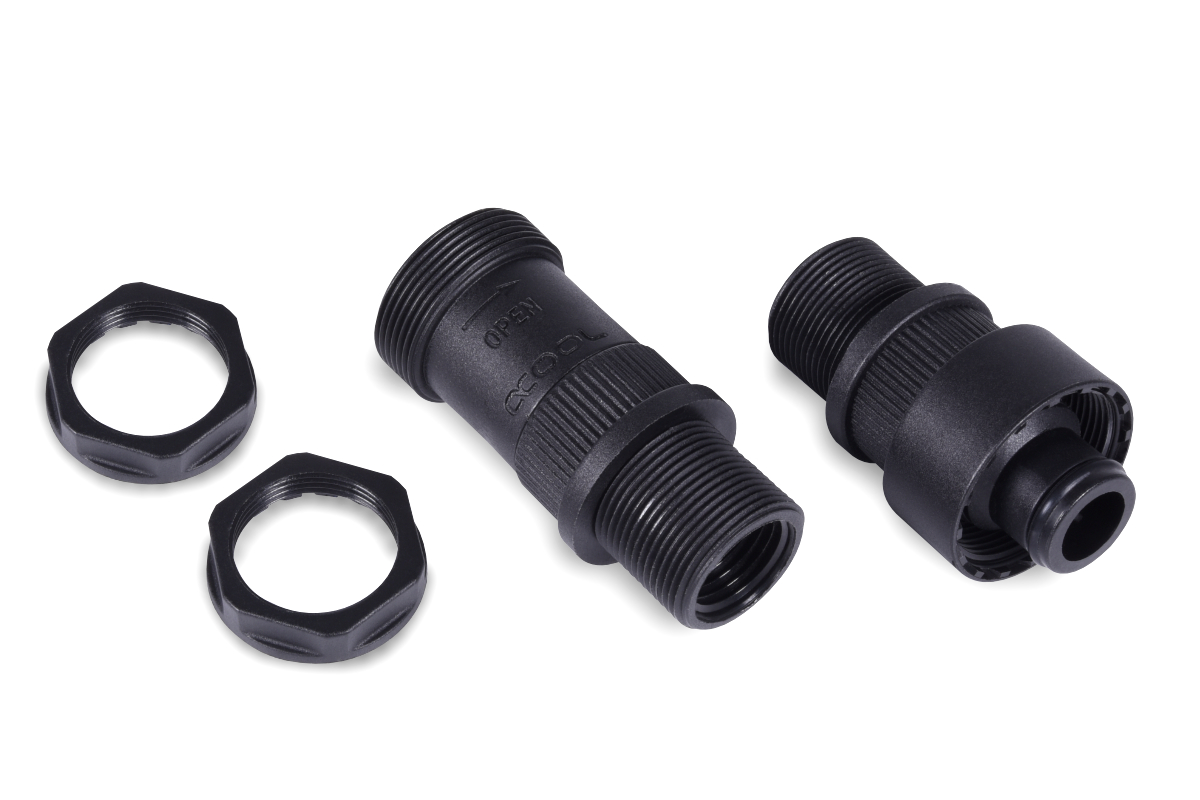

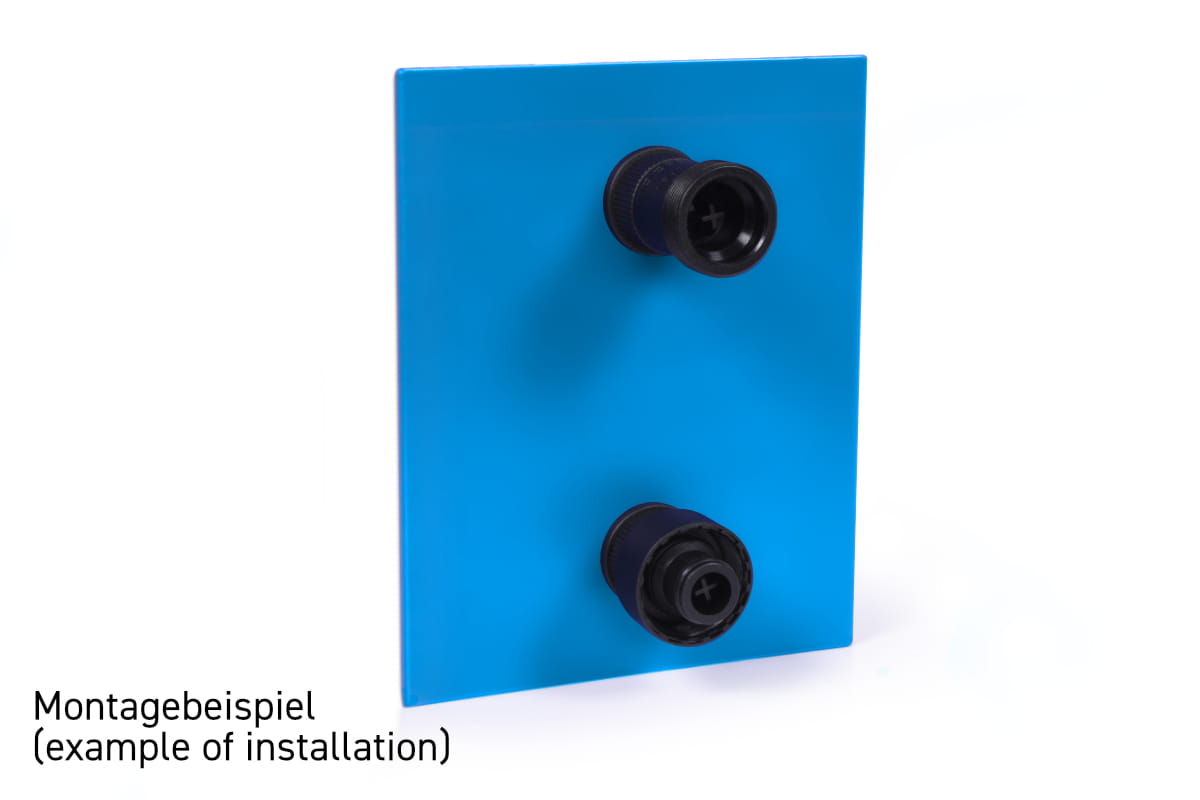

The quick-release coupling set is mounted in two openings in the housing, each with a diameter of 18 mm (see assembly example). Male and female connectors are inserted with the threaded side through the circular openings and screwed tight with the enclosed lock nuts. The water circuit is then connected to the inside of the housing via the two G1/4" internal threads. External radiators or cooling systems can now be easily connected to the water cooling in the housing using additional HF quick-release fasteners.

Safety is a priority

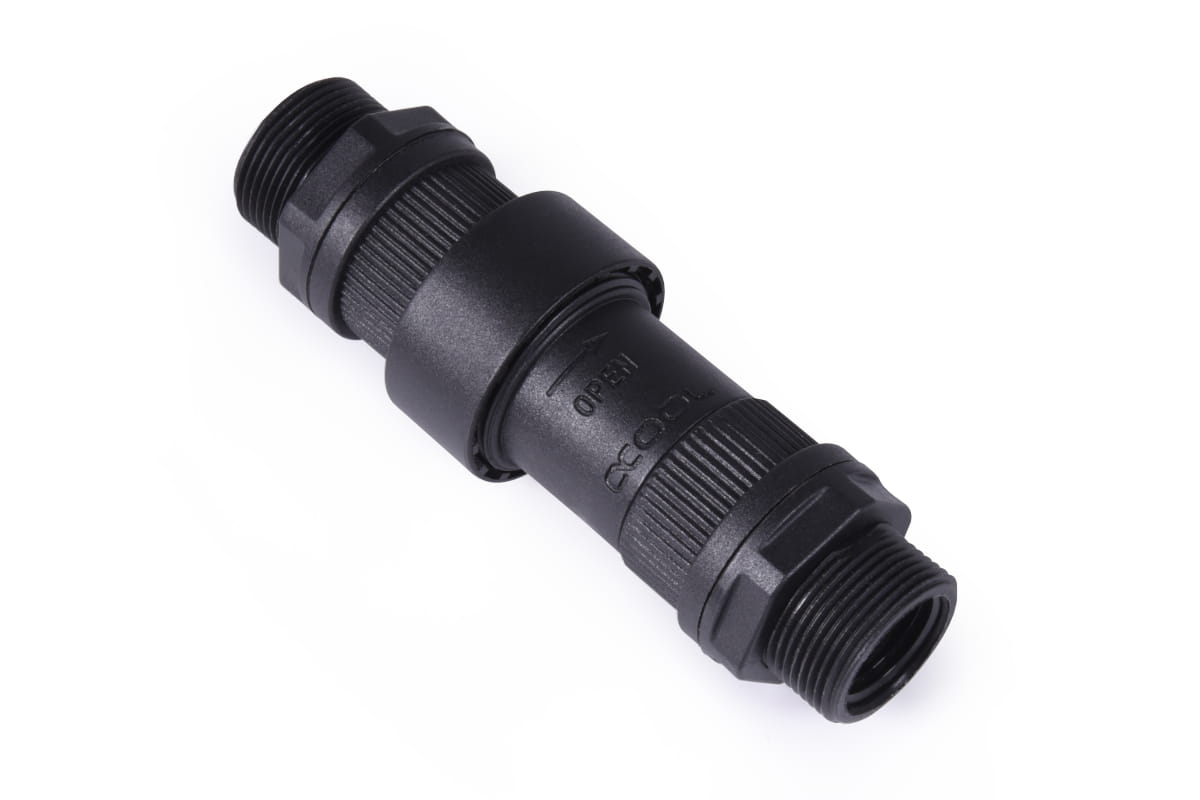

Alphacool's HF quick-release couplings do not use a "click" mechanism, but are screwed together with a union nut. This means that the couplings can no longer be accidentally unlocked and offer a high level of safety.

Compatibility:
- G1/4" AG connections
- Alphacool HF quick release coupling set G1/4 - Black (Art. 17396)
- Alphacool HF quick release coupling set TPV - Eisbaer compatible - Black (Art. 17452)

Technical data
L x D (total)	82mmx26.5mm
L x D (male connector)	46.5mmx26.5mm
L x D (female connector)	50mmx23mm
material	nylon
thread	G1/4" female
Working temperature	60°C
Pressure tested	0.8 bars
Color	black

Technical details mehr

Technical details

Manufacturer:	Alphacool
2nd page:	G1/4" internal thread
Dimensions (L x W x H):	82 x 26,5 x 26,5mm
Color:	Matte black
Thread length:	9mm
Material:	Carbon fiber
Specification:	Shape: straight
1st page:	G1/4" internal thread
