Water cooling fillport for housing

Article no.: ANS
EAN: 4250197134675
Weight: 0,05 kg
Available: There are more than 50 units available
Images may differ slightly from the original

€11.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool pumpin gum ball - black

€9.98*

Alphacool Leak Testing Tool incl. Pump

€34.98*

Alphacool Apex filling funnel G1/4"

€7.98*

Alphacool Apex Liquid ECO 1000ml clear

€14.98*

Alphacool spray bottle Core 500ml

€4.98*

A simple but effective port for easily filling a water circuit. The flat design makes it... more

Close menu

Product information

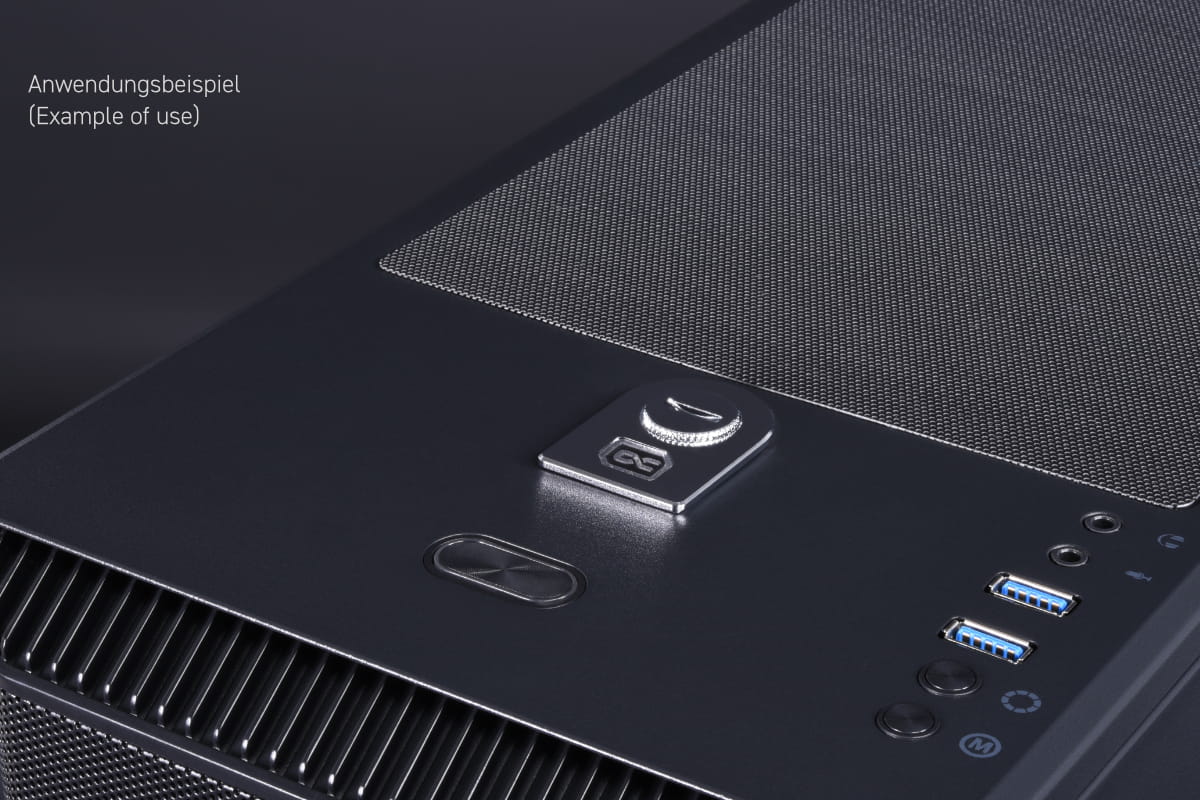

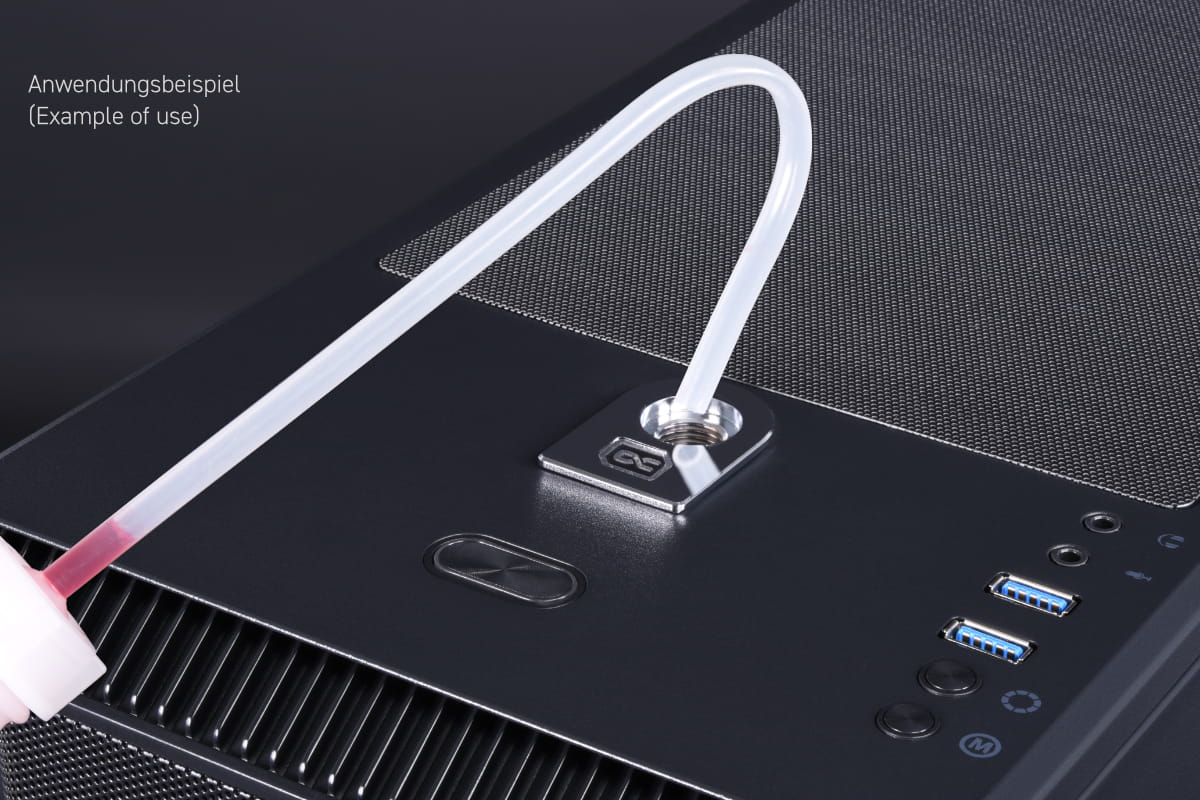

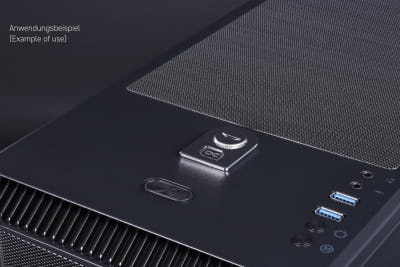

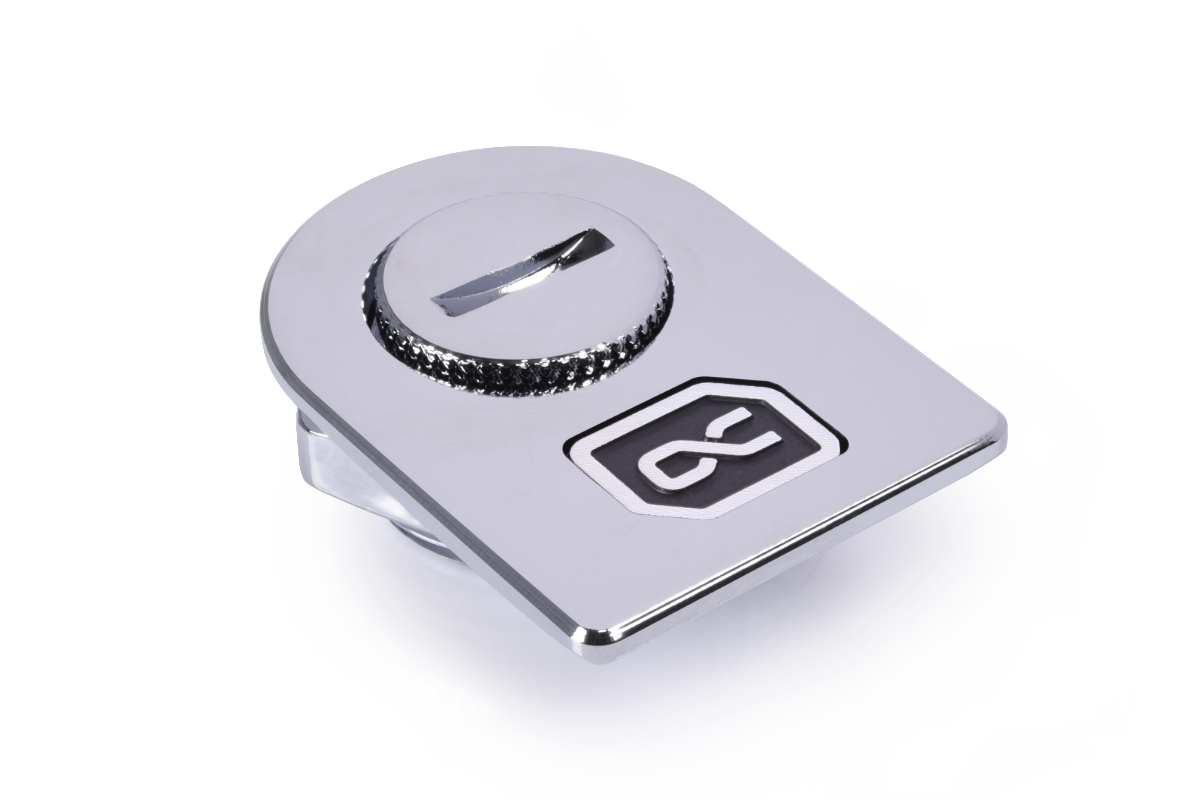

A simple but effective port for easily filling a water circuit. The flat design makes it unobtrusive, so that it fits most cases and blends into the overall picture without disturbing anything. The supplied sealing plug is screwed in almost completely and thus closes almost flush. With the Alphacool Apex Fillport you get a connection that does not protrude and looks as if it belongs to the case instead of being mounted later.

material

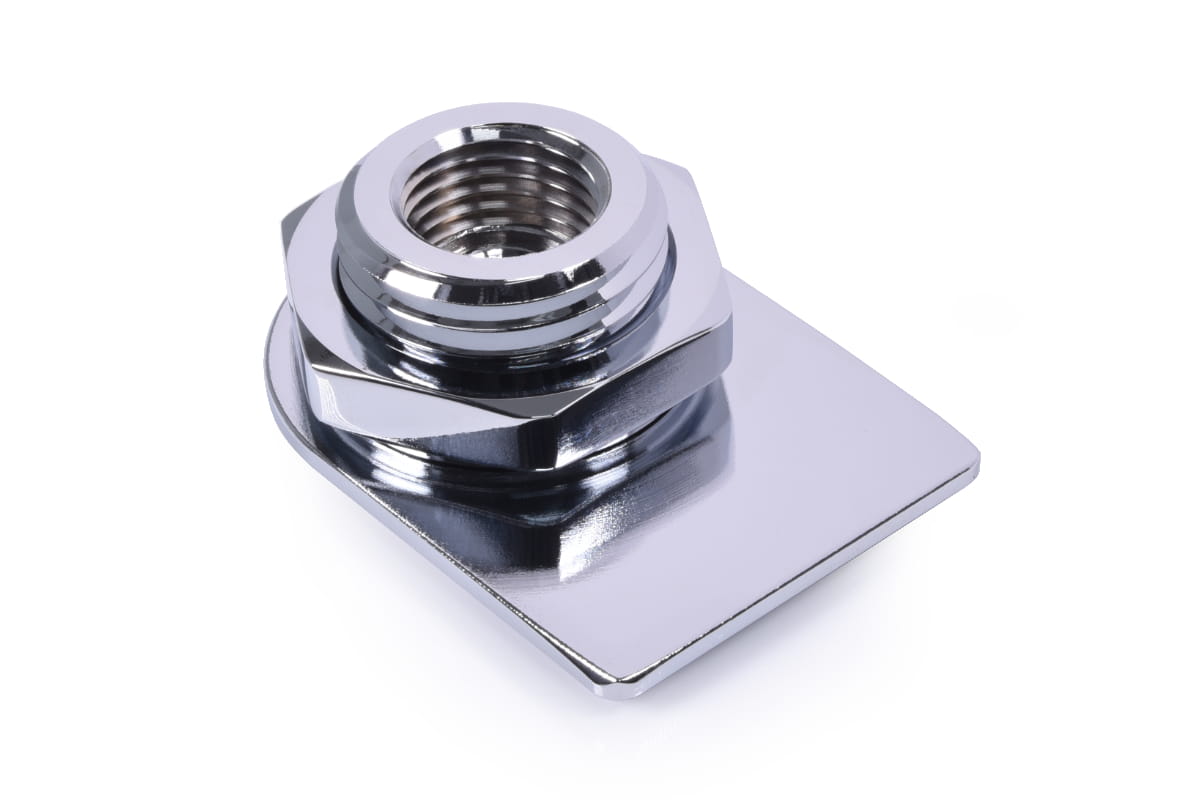

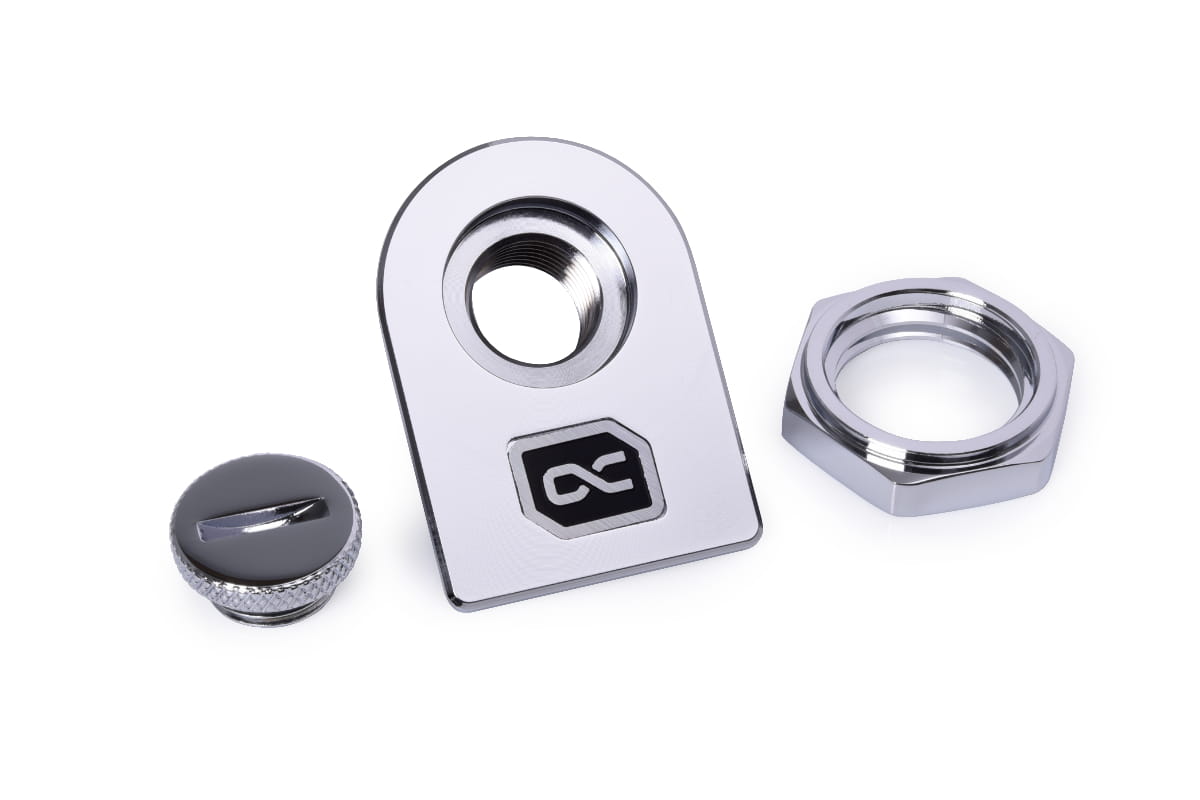

The fill port and the included nut are made of solid chrome-plated brass and are therefore very stable. The chrome coating is durable and firmly bonded to the surface, which prevents scratches or chipping.

Assembly

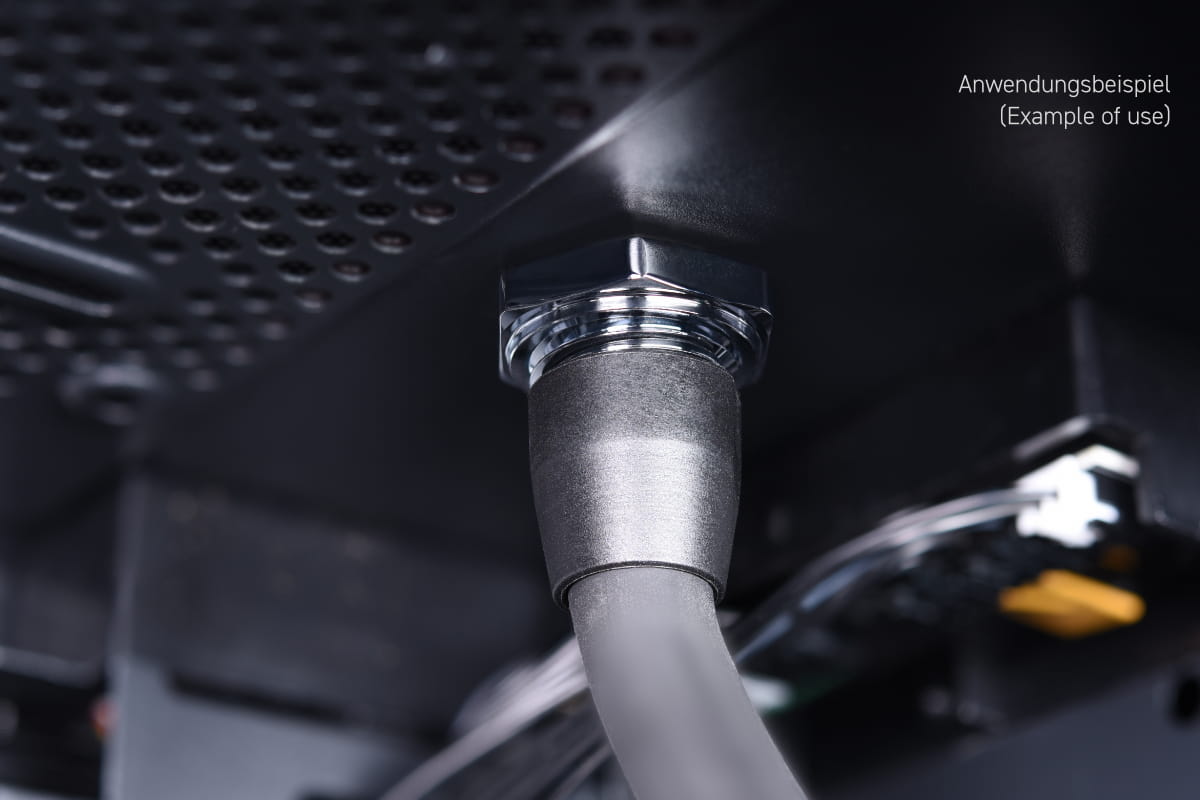

For installation, a hole with a diameter of 20 mm is drilled anywhere in the housing. The fill port is inserted and screwed firmly and securely with the enclosed nut. Please note that the fill port should be the highest point in the water cooling system.

Compatibility:
G1/4" connections

Technical data
L x W x H	42x30x15mm
material	Brass
Color	chrome
Connection	G1/4" female
Thread for housing mounting	M20
Weight	51g
