DC80 AIO filling aid, expansion tank & pump

PUM Alphacool Eisstation DC80 - AIO Power Unit

Article no.: PUM
EAN: 4250197153881
Weight: 0,64 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€69.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eisplateau anti-static work and assembly mat 120x60cm

€59.98*

Alphacool Eisbaer Pro Aurora 360 CPU AIO

€199.98*

Alphacool Eiswolf 2 AIO - 360mm RTX 3080/3090 Ventus with backplate

€159.98*

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

spray bottle 1000ml PE-LD

€6.19*

The pre-filled Eisstation DC80 AIO Power Unit fulfills two important functions. It can be used... more

Close menu

Product information

The pre-filled Eisstation DC80 AIO Power Unit fulfills two important functions. It can be used as a filling aid for all Alphacool AIO systems or as a booster for more pump power if the circuit is to be expanded to include several components.

Construction

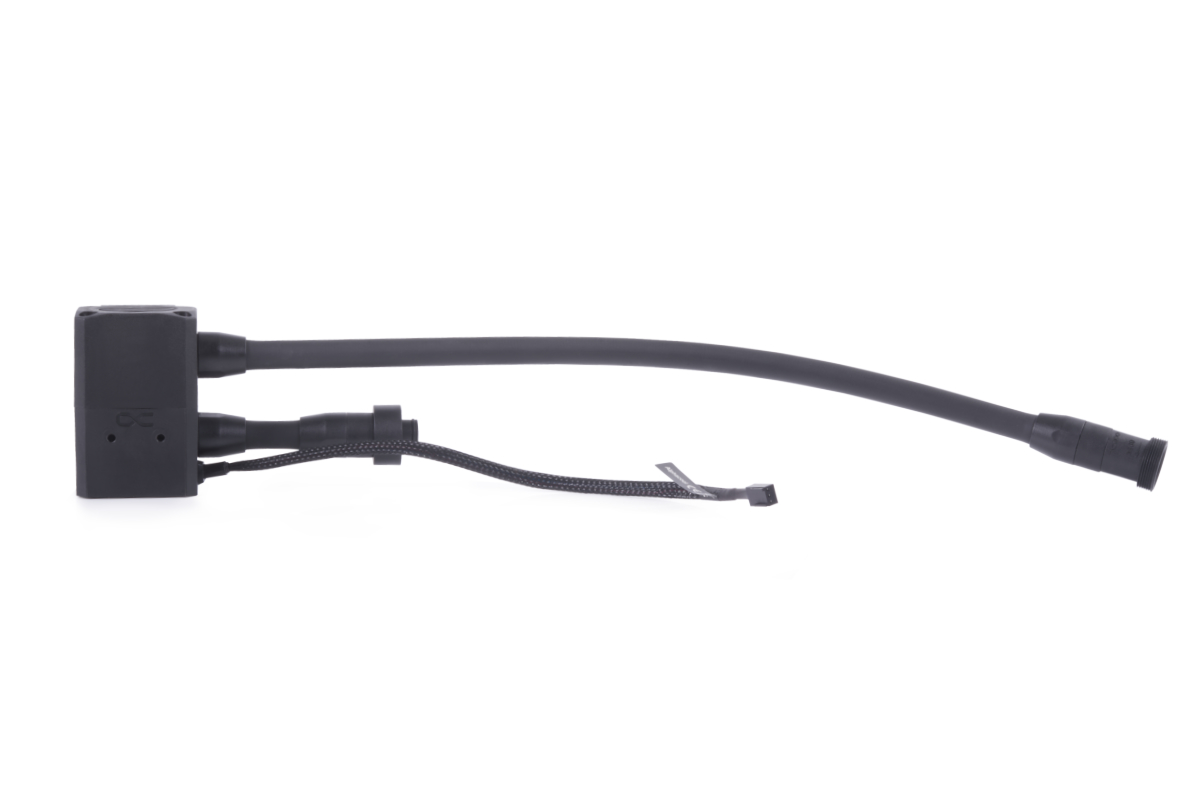

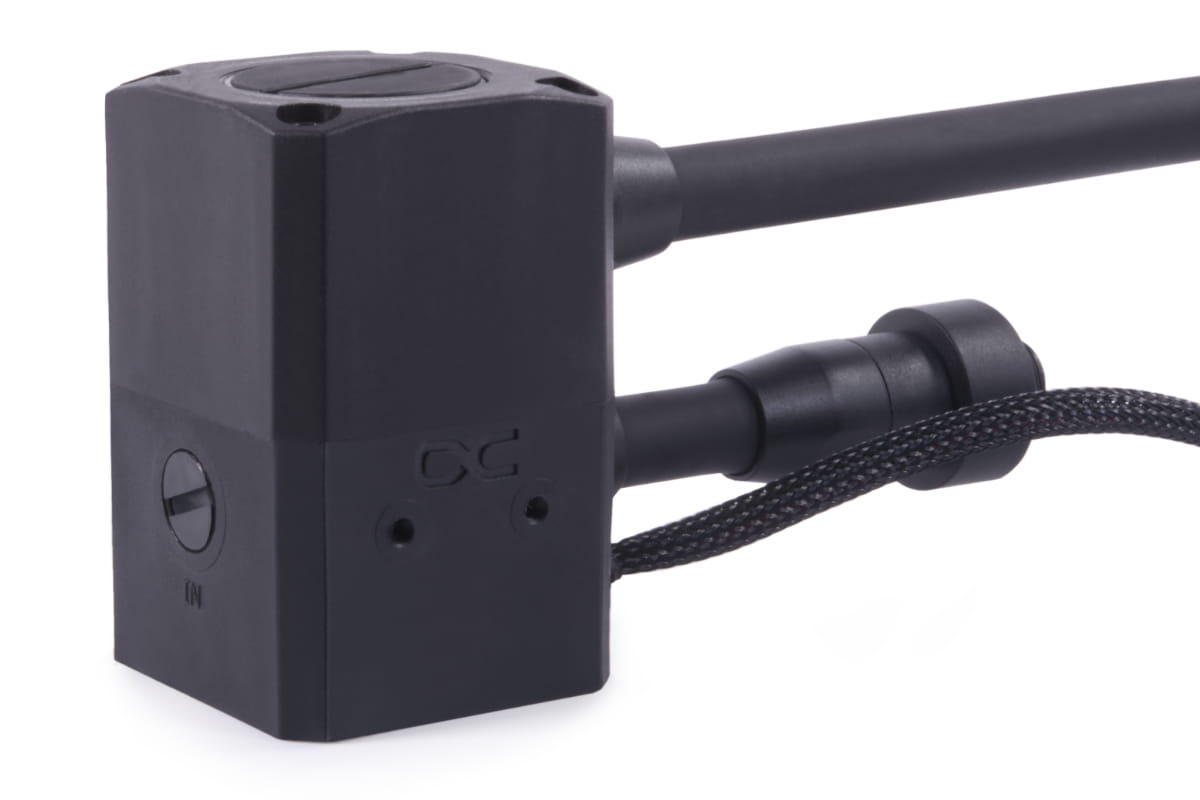

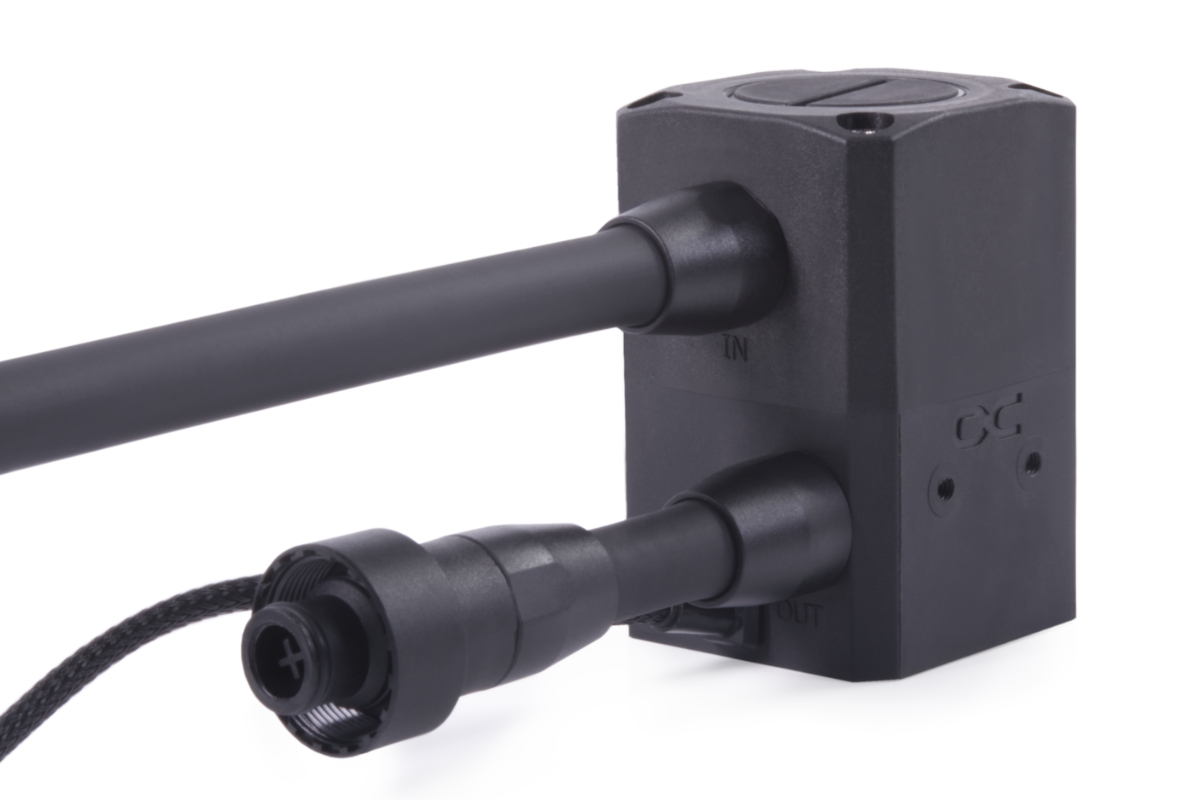

The Eisstation DC80 power unit consists of the Eisstation DC80, an expansion tank with integrated pump top and a DC-LT 2 pump. Two TPV hoses are connected to it, each of which has a male or female quick-release fastener. These quick-release fasteners are compatible with all Alphacool AIO systems for graphics cards and processors.

Filling aid
If you want to refill your AIO system, you can simply and easily connect it to the power unit using the quick-release fasteners. To fill, you only need to open the large G1" screw plug. The integrated DC-LT 2 pump provides enough pressure to pump the coolant into the AIO. Ideally, you should only run the AIO pump when there is already enough coolant in the system. This will prevent the AIO pump from running dry during the filling process.

PowerUnit?
Expanding an Alphacool AIO with several components can quickly lead to the existing DC-LT 2 pump reaching its performance limit. If you also integrate the power unit into the circuit, you get more power thanks to the additional DC-LT 2 pump, so you can also operate a larger circuit.

Assembly

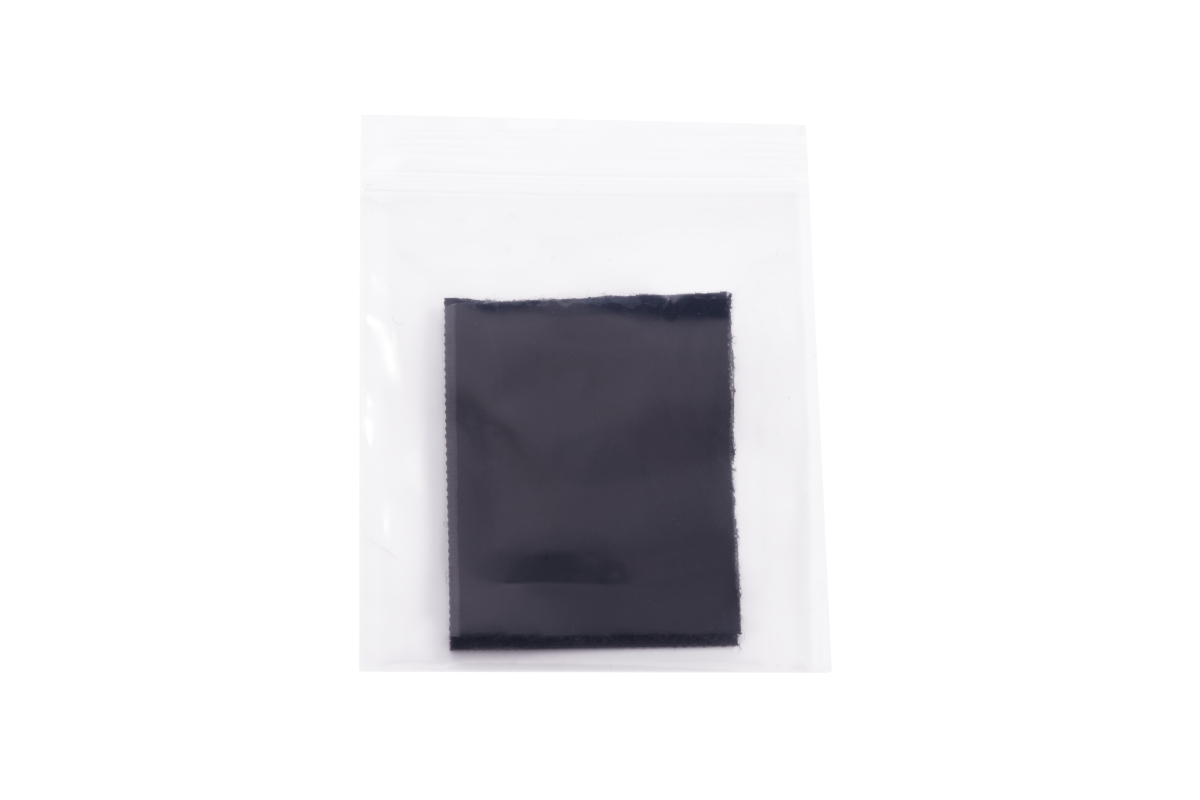

The delivery includes an extremely adhesive Velcro fastener that allows positioning anywhere in the case. The optionally available Alphacool mounting accessories allow even more mounting options.

Technical data pump top & reservoir, black
L x W x H	50.62x50.62x77mm
Maximum working temperature	60°C
Connections	3xG1/4“
Pressure tested	1.5 bars

Technical data pump
speed	2600 RPM
Tension	6-13.5V DC
Power consumption	3.2W
Maximum flow	72L/h
Maximum discharge head	1m
Power connection	3-pin fan connector

Technical data quick release coupling
material	nylon
Hose size	12.7 / 7.6mm

Technical data hose
material	TPV (EPDM/PP)
Hose size	12.7 / 7.6mm
length	43cm / 9cm
Working temperature	50 to +155 °C

Technical data liquid
Ingredients	Distilled water (CAS number 7732-18-5), Glysantin (CAS number 1017-21-1)
Temperature range	-15C° / +90 °C
Color	clear

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Anschluss:	G1/4" Innengewinde
Fillport:	G1" Innengewinde
Pumpenkompatibilität:	für DC-LT
Pumpe vorinstalliert:	Ja
Anzahl Anschlüsse:	2
Material:	Nylon
