Alphacool NexXxoS XT45 Full Copper 120mm Radiator V.2

  • 14288
  • 4250197142885
  • 0,712 kg
  • There are more than 50 units available
  • Images may differ slightly from the original
€54.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
ANS Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Chrome Sixpack
1x
Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Chrome Sixpack
€31.98*
ANS Alphacool HF 13/10 screw-on nozzle 45° rotatable G1/4 - Deep Black
1x
Alphacool HF 13/10 screw-on nozzle 45° rotatable G1/4 - Deep Black
€4.97*
ANS Alphacool HF 13/10 screw-on nozzle G1/4 - Deep Black
1x
Alphacool HF 13/10 screw-on nozzle G1/4 - Deep Black
€3.47*
ANS Alphacool HF 13/10 screw-on nozzle 90° rotatable G1/4 - Chrome
1x
Alphacool HF 13/10 screw-on nozzle 90° rotatable G1/4 - Chrome
€4.97*
It’s the best system because it’s your system! Only be satisfied with perfection! The new... more
Product information

It’s the best system because it’s your system! Only be satisfied with perfection! The new Alphacool NexXxos V.2 radiators will take you to the next level!

Increase the performance of your system with the new Alphacool NexXxos V.2 radiators.

New and yet proven
Alphacool also has been able to combine the best quality with the most beautiful design for the NexXxos V.2 radiators. The end chambers have been manufactured in a noble, modern design. In addition, the NexXxos ST30 V.2 radiators now also have a G1/4“; connection at the opposite end chamber than the inlet/outlet for easy bleeding of the loop. Mount your Alphacool NexXxos radiator in any position, the possibilities are unlimited.

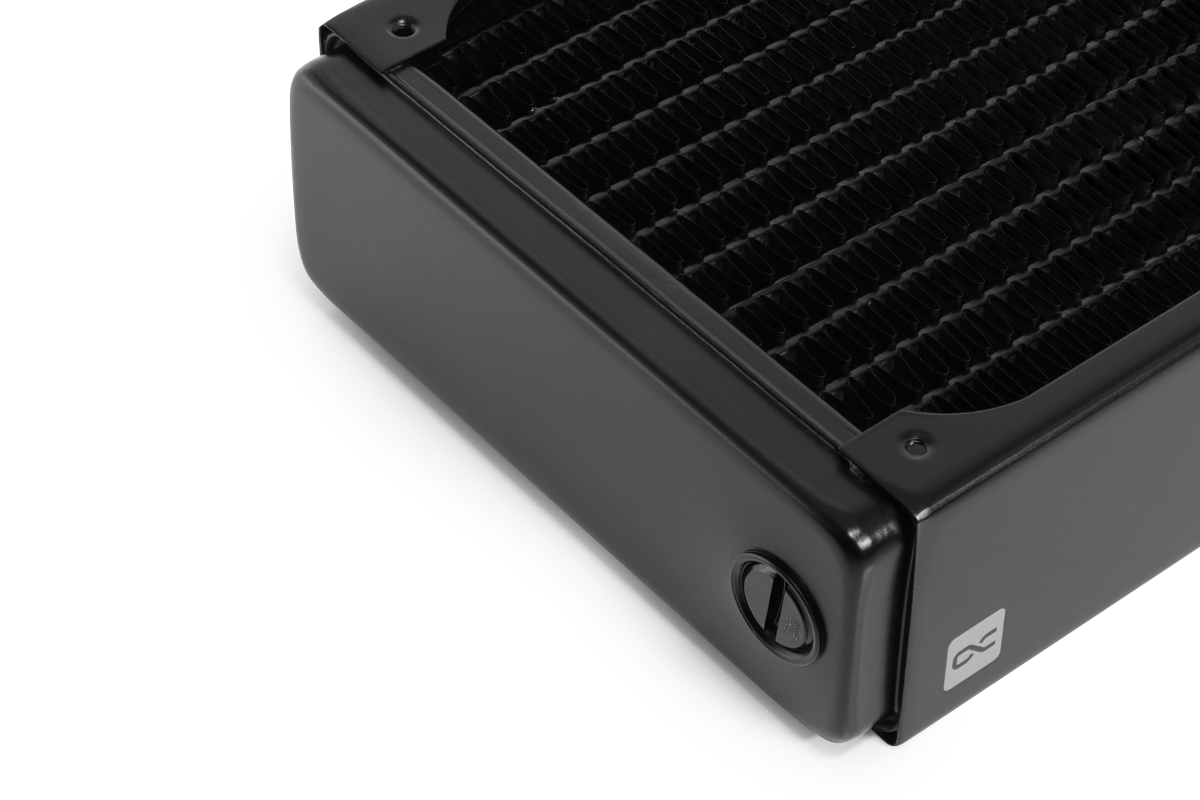

Countersunk screw plugs - anything but ordinary
For the first time Alphacool has created countersunk the screw plugs for the NexXxoS range. This unique, patented design allows you to stay flexible with your Alphacool NexXxos V.2 Radiator. Mount your radiator the way you want it. Thanks to the differently positioned inlets and outlets, you remain individual and unique.

Solid copper - the best performance at the highest level
As always with Alphacool, the new Alphacool NexXxos series is also made of solid copper. Thus, the Alphacool NexXxos radiators offer you the highest thermal conductivity for the best performance. Rely on the No. 1 in materials.

Different sizes - same quality
The new Alphacool NexXxos V.2 is available in many different sizes and thicknesses. Thanks to its special shape, installation is child's play, even with the larger radiators. Decide for yourself which size is perfect for your system and always choose the best quality.

ATTENTION: The NexXxoS V.2 radiators are only compatible with connections with a maximum thread length of 5 mm.



Technical data
L x W x H154,5 x 124 x 45,5 mm
Quantity of cooling channels12
Net weight571 g
Max working temperature180 °C
Material cooling finscopper
Material cooling chamberscopper
Prechambers materialcopper
Material outer housingsteel
Fins per Inch15
Threads5 x G1/4“
Thread size fan mountingM3
Fan size120 mm
Fan slots1 one-sided / 2 double-sided
Pressure tested0,8 bar

Warranty: 10 years
🔗 Warranty Terms

Technical details mehr
Technical details
Hersteller: Alphacool
Farbe: schwarz
Dicke: 39 - 49mm
Lamellen: Kupfer
Kühlkanäle: Kupfer
Gehäuse: Stahl
Lüftergewinde: M3
Druckgetestet: 1,5 bar
Fins per inch: 12
Anzahl Lüfter: 1
Anschluss: 5x G1/4"
Lüftergröße: 120mm
Abmessungen (L x B x H): 154,5 x 124 x 45,5mm
