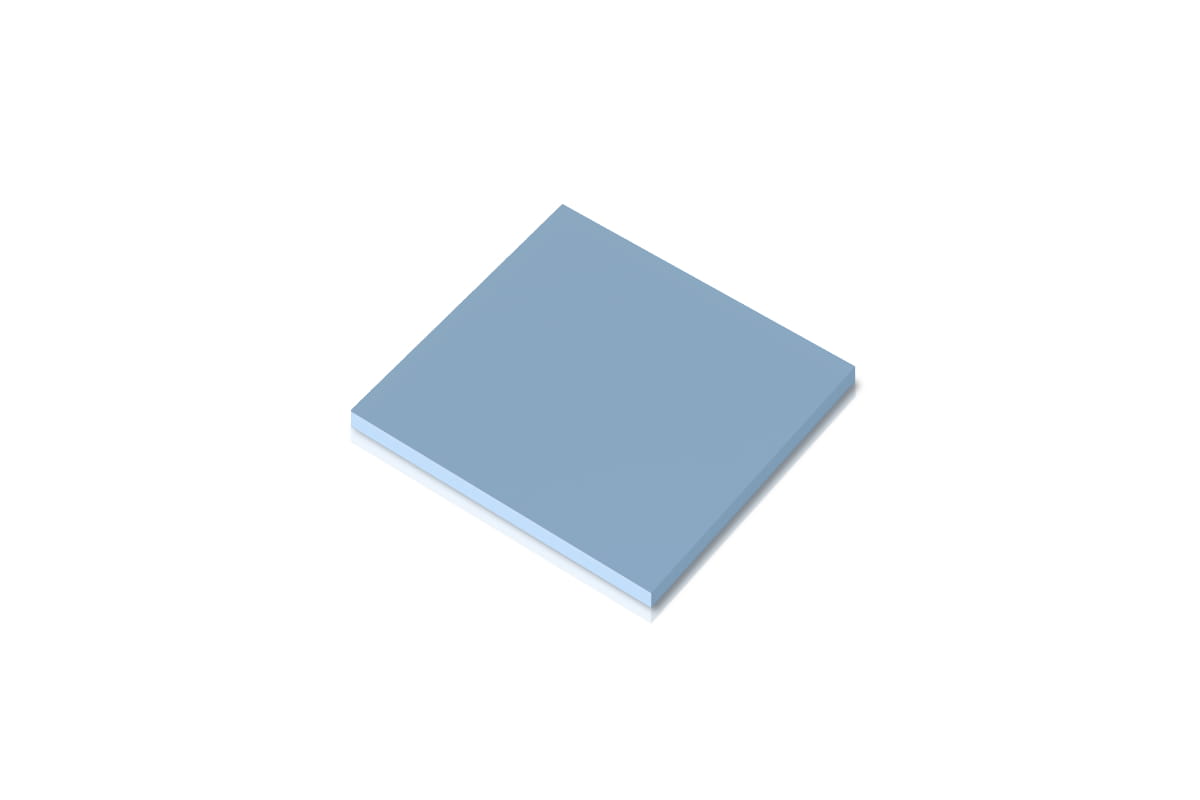

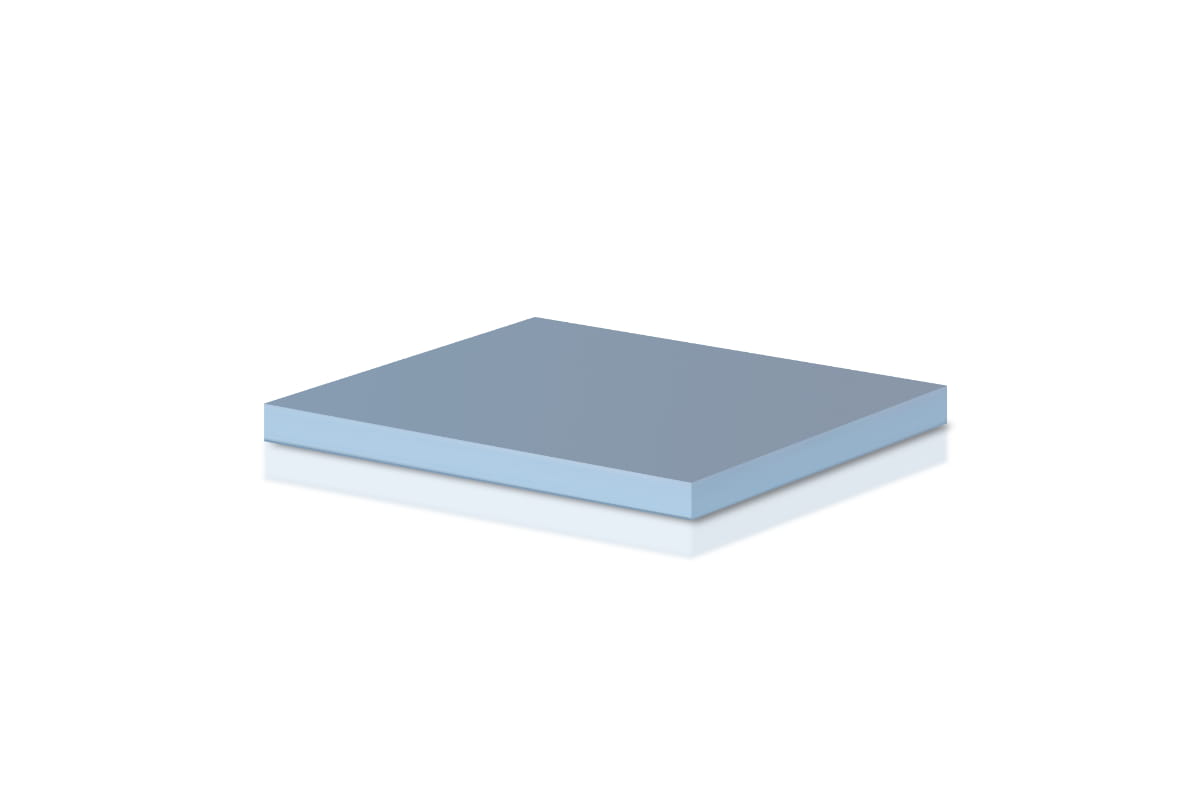

Performance thermal pad soft 6.2 W/mk 40x40x3mm

WÄM Alphacool Core Wärmeleitpad Soft 6.2W/mk 40x40x3mm

Article no.: WÄM
EAN: 4250197134118
Weight: 0,029 kg
Available: There are more than 25 units available
Images may differ slightly from the original

€8.98 *

Content: 16 cm² (€0.56 * / 1 cm²)

Prices incl. VAT plus shipping costs

in stock

Alphacool Tec Protect 2 Clear 1000ml

€13.98*

Alphacool Apex Thermal grease 4g

€11.98*

Alphacool Apex Thermal grease 50g

€99.98*

Alphacool Core thermal pad Soft 6.2W/mk 100x100x3mm

€32.97*

Alphacool Core thermal pad Soft 6.2W/mk 40x40x0.5mm

€3.97*

Alphacool Core thermal pad Soft 6.2W/mk 120x20x1.5mm

€7.98*

Alphacool's performance thermal pad can be used to cool electronic components of all kinds where... more

Close menu

Product information

Alphacool's performance thermal pad can be used to cool electronic components of all kinds where it is essential to effectively dissipate waste heat. In addition to voltage converters and VRAMs on graphics cards, electronic components of Playstation and Xbox game consoles can also be cooled, greatly improving their performance and durability.

Better than standard thermal pads?
The silicone-based Soft heat conduction pad is characterized by optimal compressibility. Due to its low hardness and a natural stickiness, the Core thermal pad adapts perfectly to surfaces, compensates for unevenness between components and thus ensures a significant improvement in heat transfer.

Increased service life!
The special material composition of the Core thermal pad reduces the risk of silicone bleeding. It can be used for a substantially longer period of time than conventional heat conduction pads without significantly losing performance.

Versatile use!
Due to its excellent electrical insulation (electrically non-conductive), Alphacool's thermal pad can also be used to cool electronic components in electric vehicles, autopilot systems, cell phones, servers, motherboards, power supplies, LCD TVs, notebooks, telecommunication devices, access points, memory modules, etc.

Technical data thermal pad
Dimensions (L x W x H)	40 x 40 x 3mm
Thermal Conductivity (ASTM D5470)	6.2 W/mK (±10%)
Hardness (ASTM D412)	50 (Shore 00) (±15)
Working temperature	-50 to ~150°C
Volume Resistance (ASTM D257)	1×10¹³ Ohm-m
Dielectric Breakdown Voltage (ASTM D149)	6 KV/mm (±10%)
Density (ASTM D792)	3.1 g/cm³ (±10%)
Elongation (ASTM D412)	50%
Weight Loss (ASTM E595)	less than 1%
Flame Rating (UL 94)	V-0
Color	blue
