Alphacool NexXxoS XT45 Full Copper 480mm radiator V.2

  • 14284
  • 4250197142847
  • 1,731 kg
  • Es sind noch mehr als 50 Artikel verfügbar
  • Images may differ slightly from the original
€109.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
17229 Alphacool Eiszapfen 13/10mm compression fitting G1/4 - chrome sixpack
1x
Alphacool Eiszapfen 13/10mm compression fitting G1/4 - chrome sixpack
€33.98*
17072 Alphacool 13/10 compression fitting 45° revolvable G1/4 - Deep Black
1x
Alphacool 13/10 compression fitting 45° revolvable G1/4 - Deep Black
€5.98*
17078 Alphacool HF 13/10 compression fitting G1/4 - deep black
1x
Alphacool HF 13/10 compression fitting G1/4 - deep black
€3.98*
17074 Alphacool 13/10 compression fitting 90° revolvable G1/4 - Chrome
1x
Alphacool 13/10 compression fitting 90° revolvable G1/4 - Chrome
€5.98*
It’s the best system because it’s your system! Only be satisfied with perfection! The new... more
Product information

It’s the best system because it’s your system! Only be satisfied with perfection! The new Alphacool
NexXxos V.2 radiators will take you to the next level!

Increase the performance of your system with the new Alphacool NexXxos V.2 radiators.

New and yet proven

Alphacool also has been able to combine the best quality with the most beautiful design for the
NexXxos V.2 radiators. The end chambers have been manufactured in a noble, modern design. In
addition, the NexXxos ST30 V.2 radiators now also have a G1/4“; connection at the opposite end
chamber than the inlet/outlet for easy bleeding of the loop. Mount your Alphacool NexXxos radiator
in any position, the possibilities are unlimited.

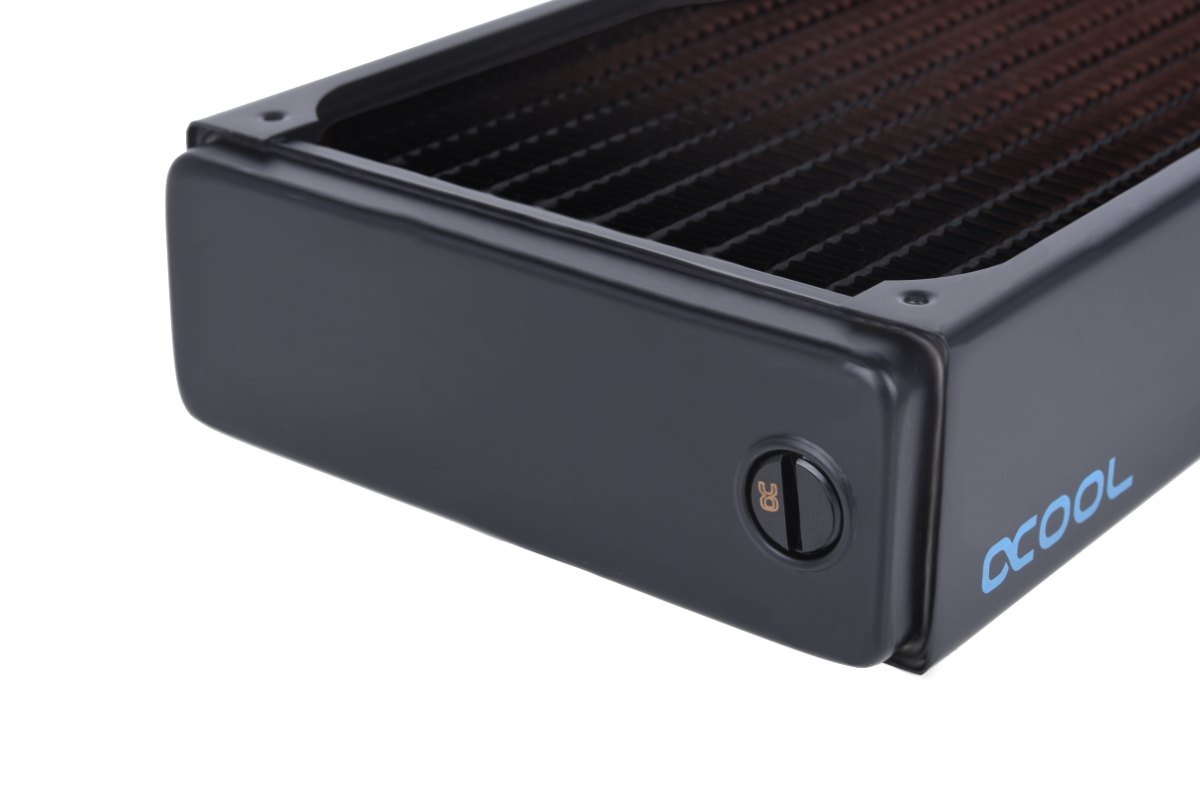

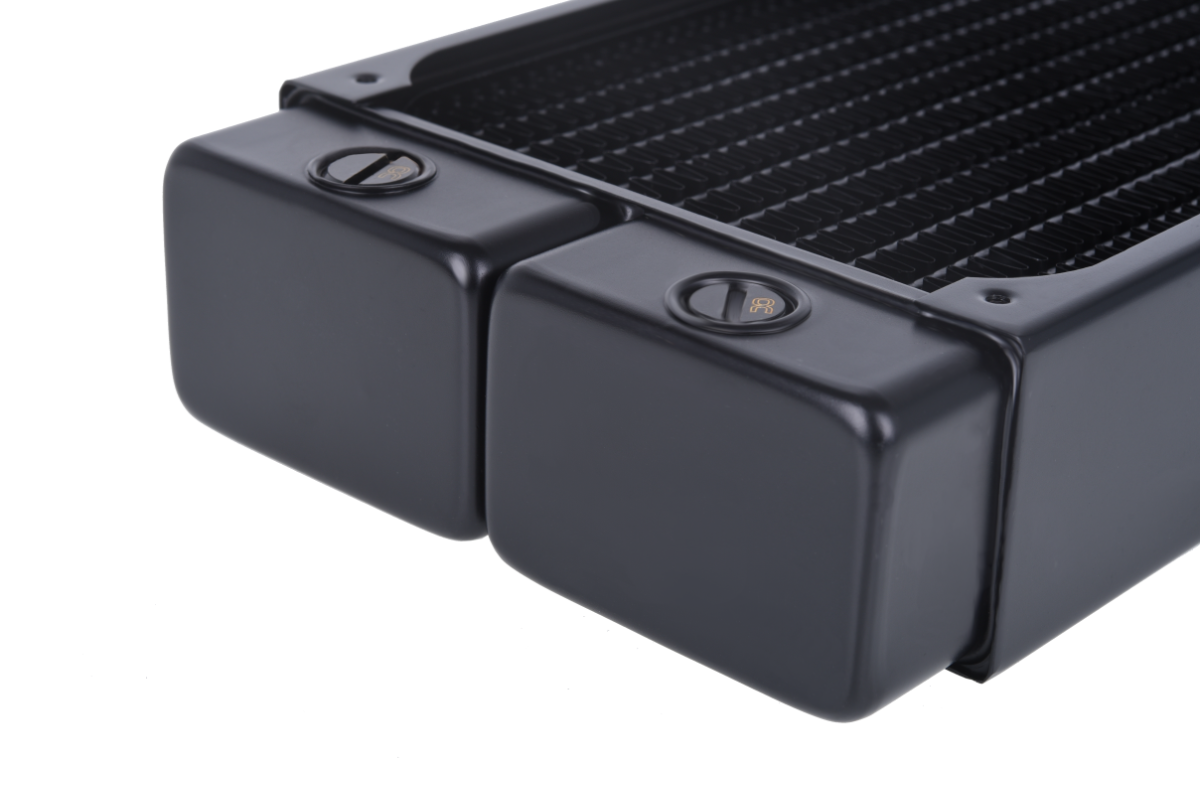

Countersunk screw plugs - anything but ordinary

For the first time Alphacool has created countersunk the screw plugs for the NexXxoS range. This
unique, patented design allows you to stay flexible with your Alphacool NexXxos V.2 Radiator.
Mount your radiator the way you want it. Thanks to the differently positioned inlets and outlets, you
remain individual and unique.

Solid copper - the best performance at the highest level

As always with Alphacool, the new Alphacool NexXxos series is also made of solid copper. Thus, the
Alphacool NexXxos radiators offer you the highest thermal conductivity for the best performance.
Rely on the No. 1 in materials.

Different sizes - same quality

The new Alphacool NexXxos V.2 is available in many different sizes and thicknesses. Thanks to its
special shape, installation is child's play, even with the larger radiators. Decide for yourself which
size is perfect for your system and always choose the best quality.



Technical Details

  • WxDxH 514 x 124 x 45,5 mm
  • Net Weight 1409g
  • Maximum Working Temperature 180 °C
  • Material (fins/channels/outer shell): Cooper
  • Material (outer shell)
  • Fins per Inch 12
  • Connections 5x G1/4“
  • Screw Size M3
  • Fan size 120 mm
  • Fans 4 per side, 8 total
  • Lüftergewinde M3
  • Pressure Tested 1,5 Bar
  • Certificates CE, FC, ROHS

Scope of Delivery

  • Alphacool NexXxoS XT45 Full Copper 480mm radiator V.2
  • Mounting material

Datasheet

Manual

Technical details mehr
Technical details
Hersteller: Alphacool
Farbe: schwarz
Dicke: 39 - 49mm
Lamellen: Kupfer
Kühlkanäle: Kupfer
Gehäuse: Stahl
Lüftergewinde: M3
Druckgetestet: 1,5 bar
Fins per inch: 12
Anschluss: 5x G1/4"
Anzahl Lüfter: 4
Lüftergröße: 120mm
Abmessungen (L x B x H): 514 x 124 x 45,5mm
