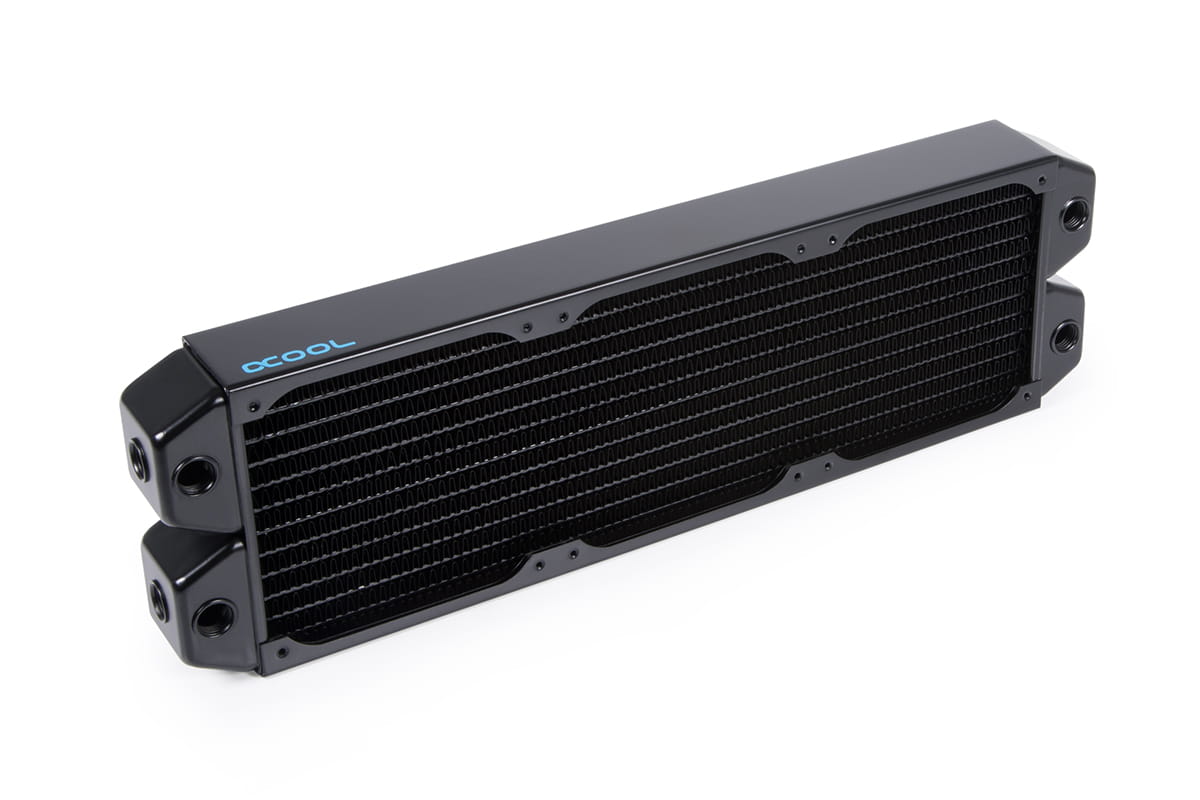

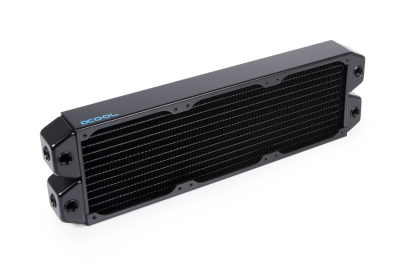

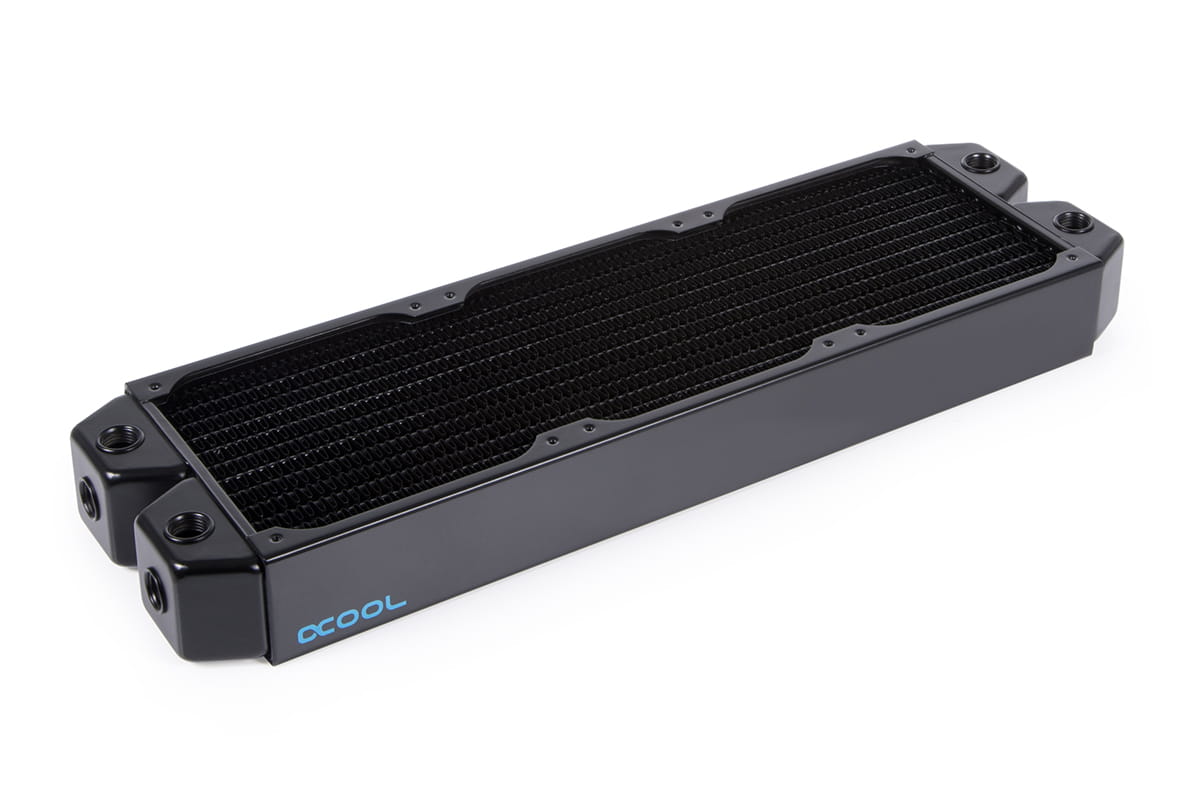

Alphacool NexXxoS XT45 Full Copper Dual-Flow 360mm Radiator

  • 14389
  • 4250197143899
  • 1,498 kg
  • There are more than 25 units available
  • Images may differ slightly from the original
€119.98 *

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price

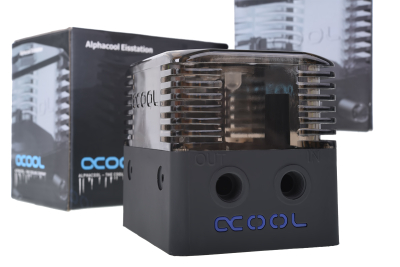

PUM Alphacool Eisstation DDC incl. Alphacool Laing DDC310
1x
Alphacool Eisstation DDC incl. Alphacool Laing DDC310
€74.98*
WAC Alphacool Eisblock XPX CPU - Satin Clear Version PHT EOL
1x
Alphacool Eisblock XPX CPU - Satin Clear Version
€34.97*
L12 Alphacool ice cyclone Aurora LUX PRO 2 Digital RGB (120x120x25mm) EOL
1x
Alphacool ice cyclone Aurora LUX PRO 2 Digital RGB (120x120x25mm)
€12.98*
ROH Alphacool Eisbaer TPV Extension Set (hose and connections)
1x
Alphacool Eisbaer TPV Extension Set (hose and connections)
€15.39*
WAZ Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
Alphacool Dual-Flow radiators were developed specifically for use in servers. The ability to run... more
Product information

Alphacool Dual-Flow radiators were developed specifically for use in servers. The ability to run two separate loops through one radiator is unique. There are also advantages to using them in a single loop as you can split the cooling surface and use it directly behind hotspots.

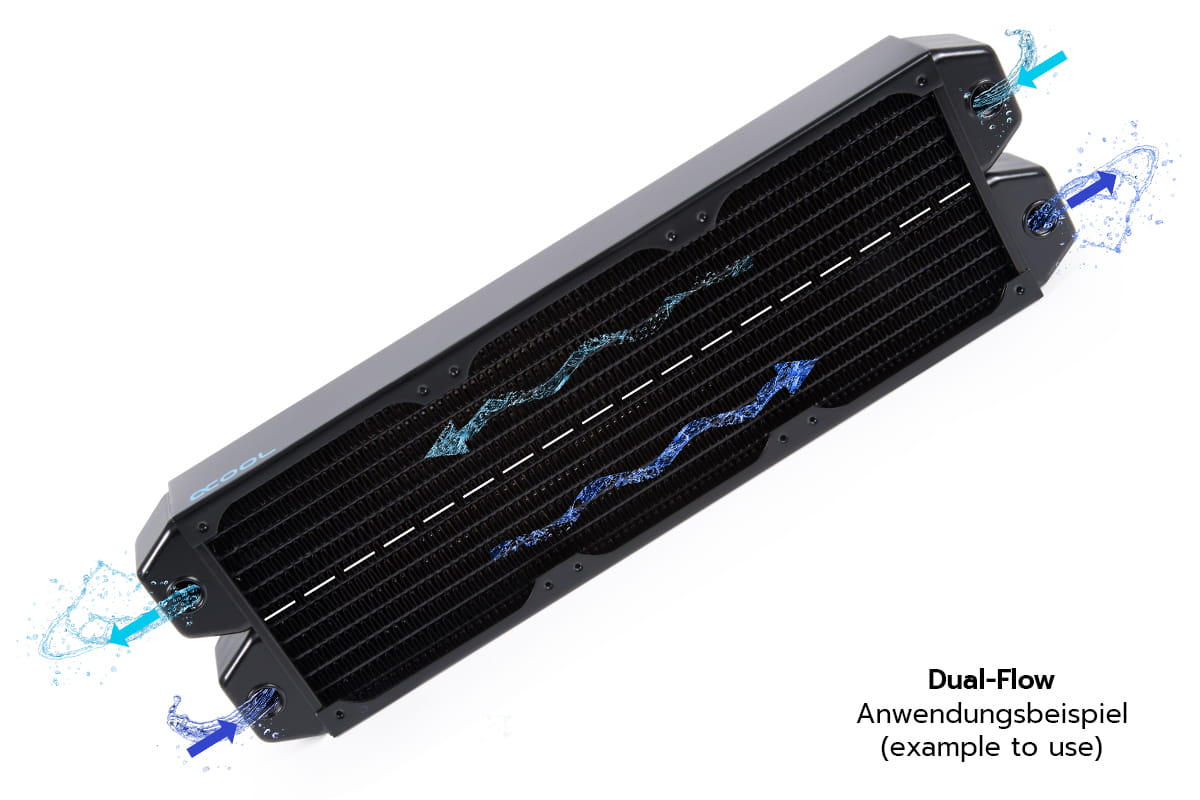

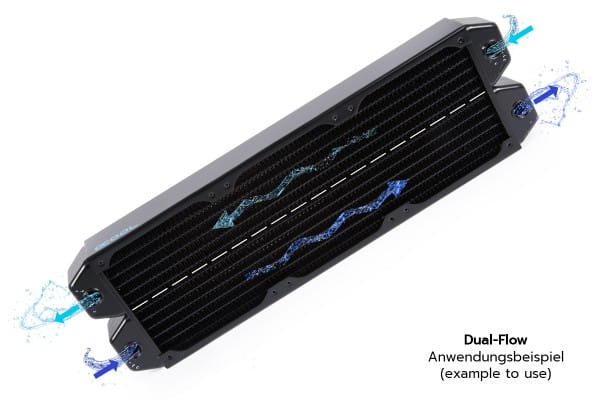

What does dual flow mean?
The water flow in a classic radiator is in a U-shape. Water is introduced on one side, runs once through half of the radiator before turning around and running back through the other half. The outlet is on the same side as the inlet. In an X-Flow radiator, the water flows once from left to right completely through the radiator. The inlet and outlet are on opposite sides. With the Dual-Flow Radiator, the water flows from one side to the other just like the X-Flow. However, the Dual-Flow Radiator is divided in the middle. You could also say the Dual-Flow Radiator is nothing more than two small X-Flow Radiators in one.

What are the advantages?
In most server racks, space is extremely limited and being able to do fancy loops is not usually an option. Due to this you can utilise the radiator to simplify the loop and reduce the amount of tubing needed. In some test scenarios, we have even seen an increase in performance from the loop due to this method too.

Many connection and mounting options

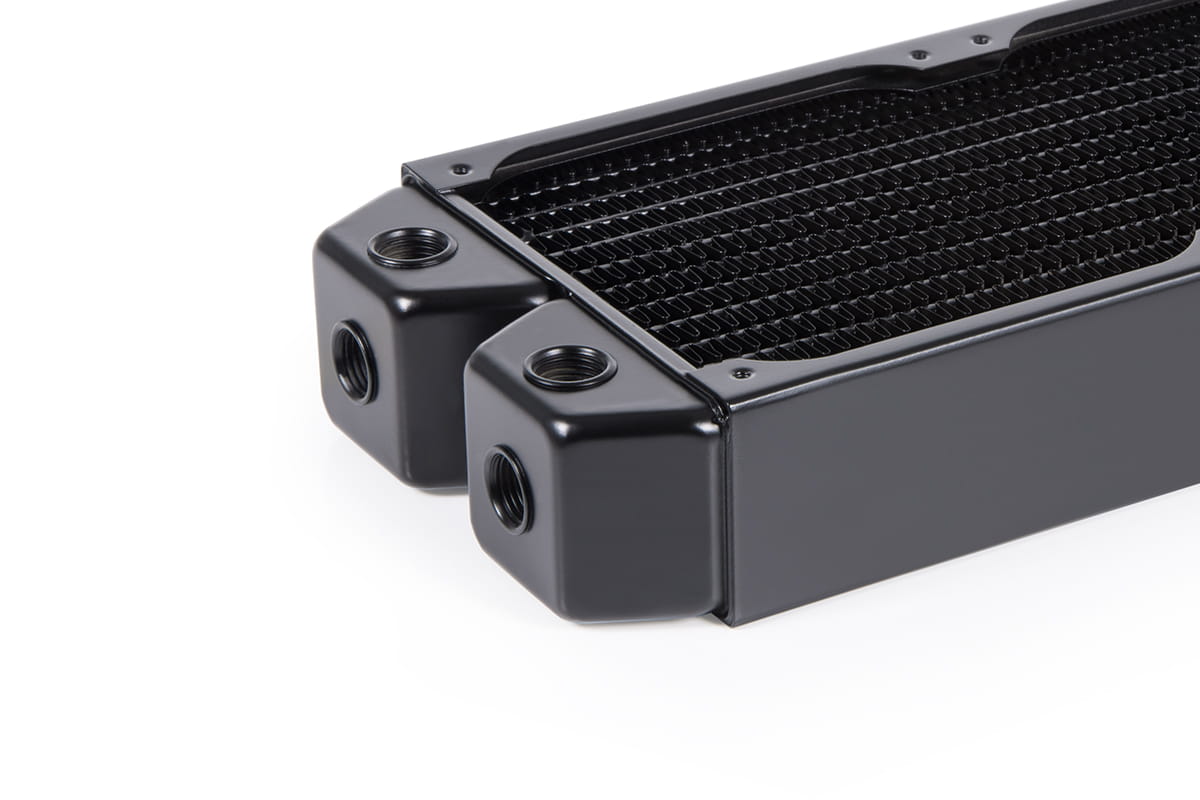

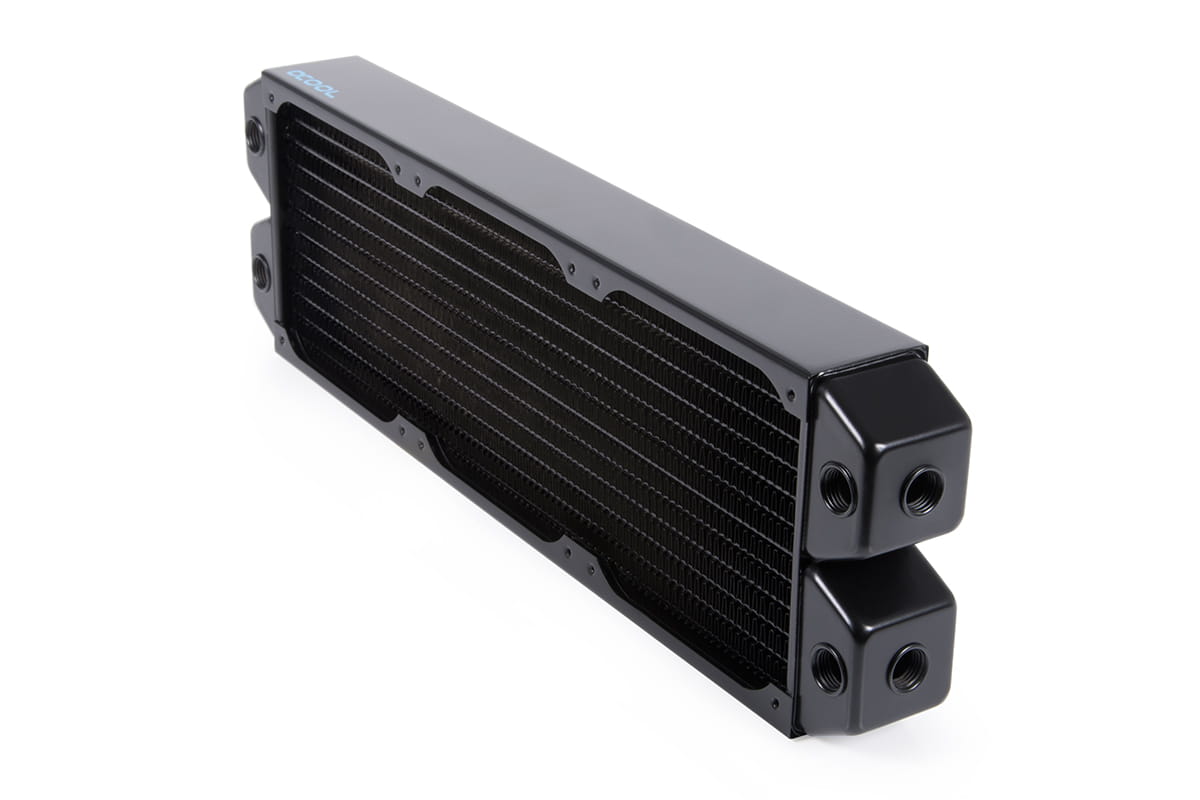

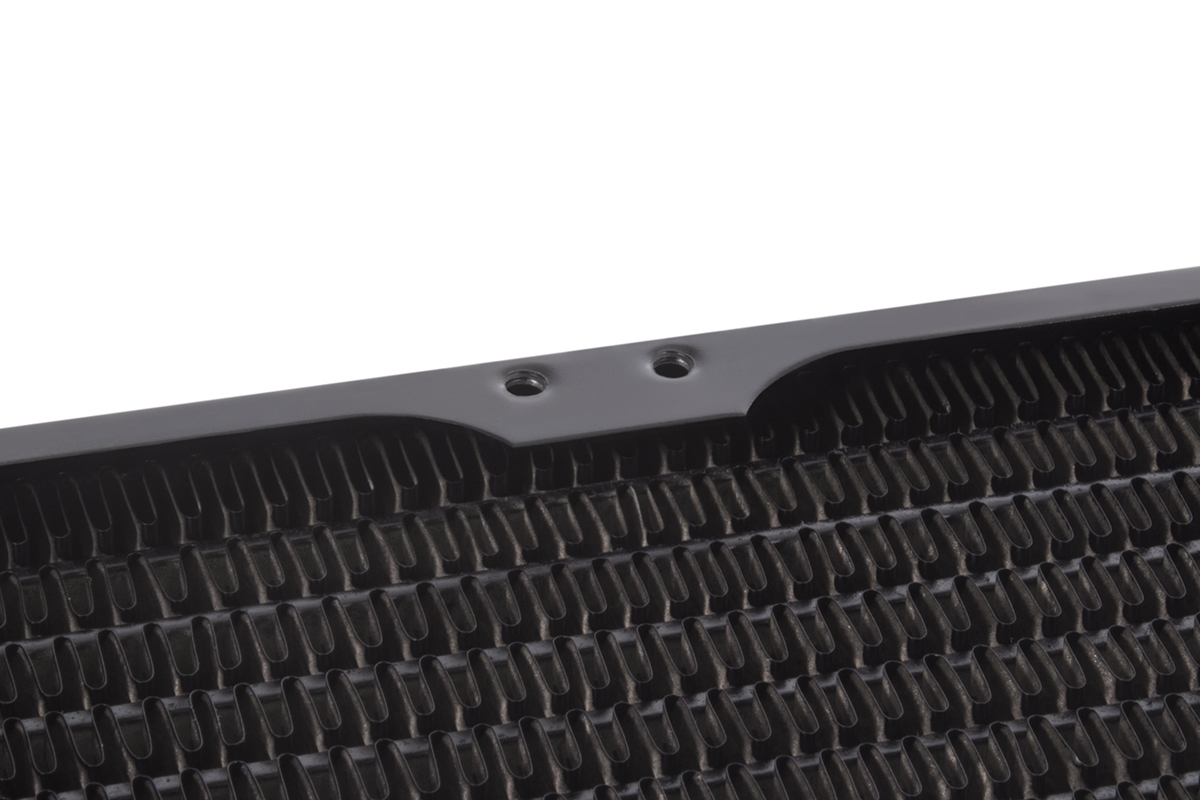

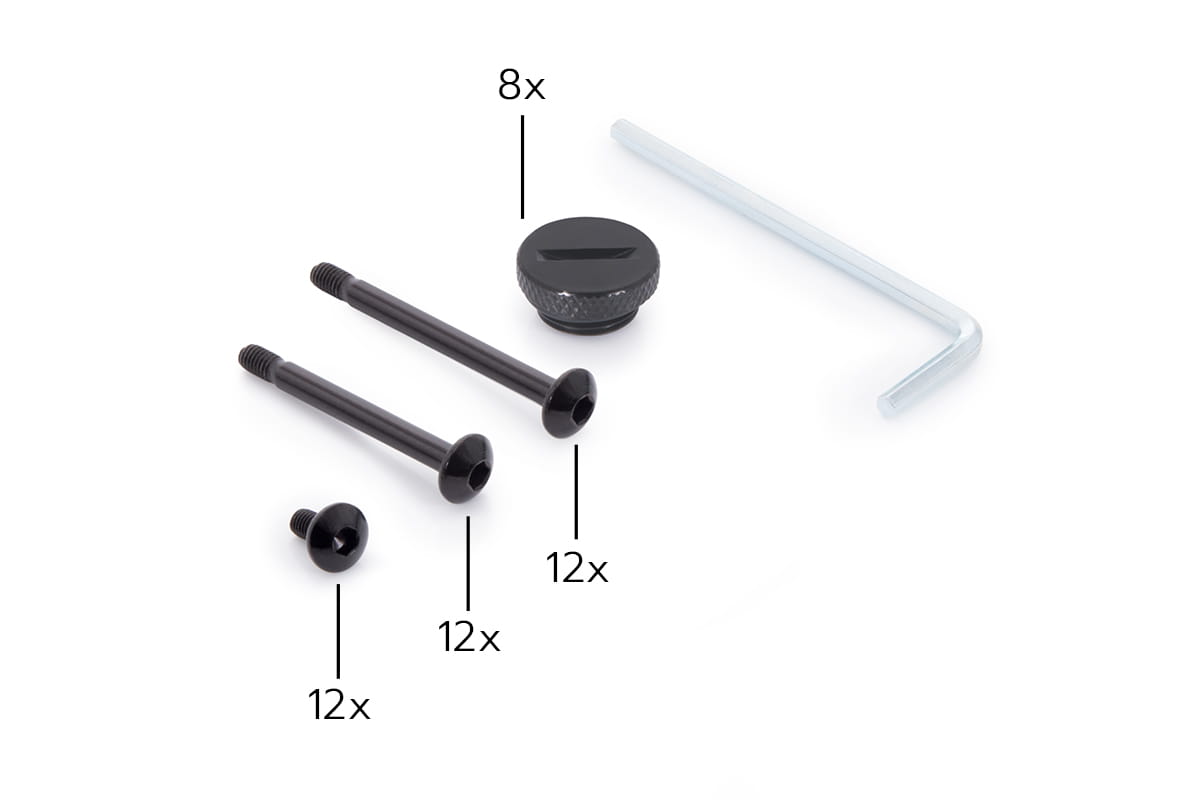

The radiator offers 3 connection options at each input and output. In total, the radiator has 12x G1/4" connections. Thus, versatile mounting requirements can be met. The radiator comes with all screws for mounting inside a case or server rack and for mounting the fans. Additional screws are usually not needed. There is also a protective plate between the mounting holes and the cooling fins. This is to prevent overly long screws from damaging the cooling fins and cooling channels.

Choice of materials
Alphacool is the only manufacturer in the world to use only copper in all water-carrying parts in the radiator. The pre-chambers and the cooling channels are made of copper. The connection threads are made of brass and the cooling fins are also made of copper. Only the side parts to protect the cooling fins are made of sheet steel.



Technical data
Dimensions (L x W x H)415 x 125 x 45mm
Quantity of cooling channels24
Cooling channelsCopper
Colorblack
Fan threadM3
SlatsCopper
Thickness39 - 49mm
Number of fans3
Fan size120mm
HousingSteel
Pressure tested0,8 bar
ManufacturerAlphacool
Fins per inch12
Connection12x G1/4"

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Farbe: schwarz
Dicke: 39 - 49mm
Lamellen: Kupfer
Kühlkanäle: Kupfer
Gehäuse: Stahl
Lüftergewinde: M3
Druckgetestet: 1,5 bar
Fins per inch: 12
Anzahl Lüfter: 3
Lüftergröße: 120mm
Abmessungen (L x B x H): 415 x 125 x 45mm
Anschluss: 12x G1/4"
