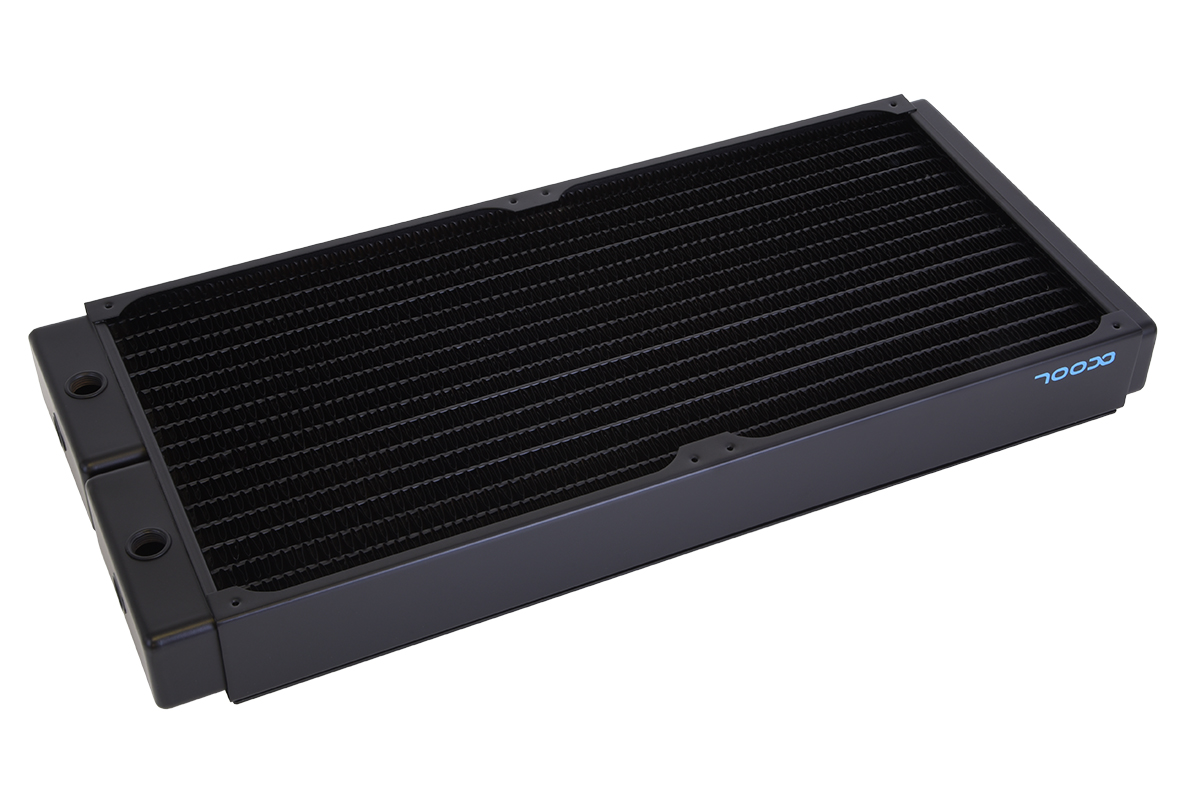

Alphacool NexXxoS XT45 Full Copper 400mm Radiator

Article no.: 14350
EAN: 4250197143509
Weight: 2,18 kg
Available: There are more than 50 units available
Images may differ slightly from the original

€119.98 *

Prices incl. VAT plus shipping costs

in stock

Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Deep Black Sixpack

€31.98*

Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Chrome Sixpack

€31.98*

Alphacool Eiszapfen PRO 16mm HardTube Fitting G1/4 - Chrome Sixpack

€36.99*

Alphacool Eiszapfen PRO 16mm HardTube Fitting G1/4 - Deep Black Sixpack

€36.99*

Big is Good. Bigger is Better! Make No Compromises, Use Copper. As usual, Alphacool also... more

Close menu

Product information

Big is Good. Bigger is Better!

Make No Compromises, Use Copper.
As usual, Alphacool also uses pure copper for the NexXxoS 400 mm XT45 Radiator. The end chambers, water channels and cooling fins are all made of copper and are a unique selling point worldwide. As a result, Alphacool radiators have been among the most popular and best on the market for many years, providing the perfect foundation for every water cooling system.

Full Cooling Capacity
To maximize the performance of a radiator, Alphacool reaches deep into its bag of tricks. Copper is the starting point. With a thermal conductivity of 400 W/(mK) for copper compared to 236 W/(mK) for aluminium, the winner is clear. Alongside this is the special fin density. Alphacool is one of the oldest companies in the field of water cooling and has carried out countless laboratory tests. The result, especially for such large radiators, is a fin spacing of 12 FPI. This means that the air flow is almost unobstructed as the air can pass through even without high pressure. However, the cooling capacity does not suffer from this, on the contrary. To use the airflow optimally, all cooling fins have small serrations. These are tiny flaps that guide the airflow in the desired direction and increase the surface area. In the case of radiators, they are barely 1 mm high, but still provide controlled air turbulence to increase cooling capacity and minimise airflow noise.

Which fans?

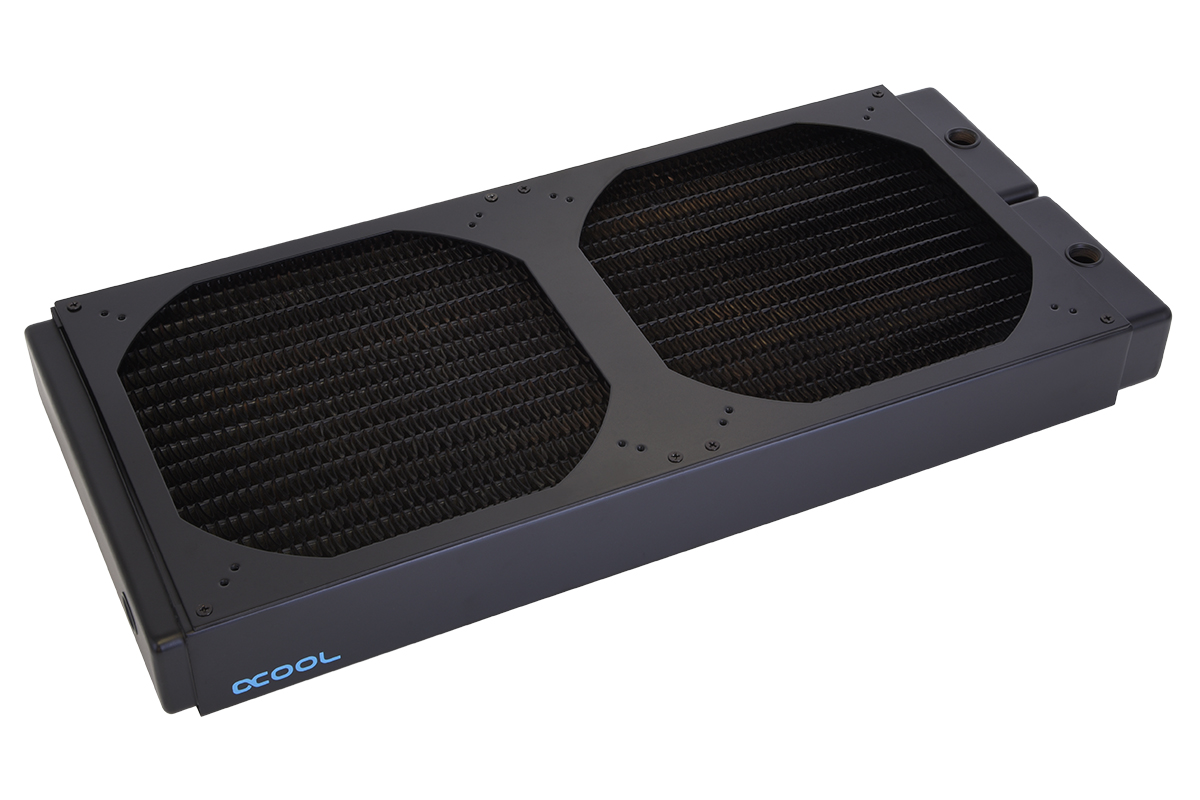

The 400 mm XT45 radiator offers space for a 200 mm fan with 154 or 165 mm mounting holes on the mounting frame. The fans are screwed onto a mounting frame which can also be removed for purely passive operation in order not to obstruct the natural airflow.

Connection options

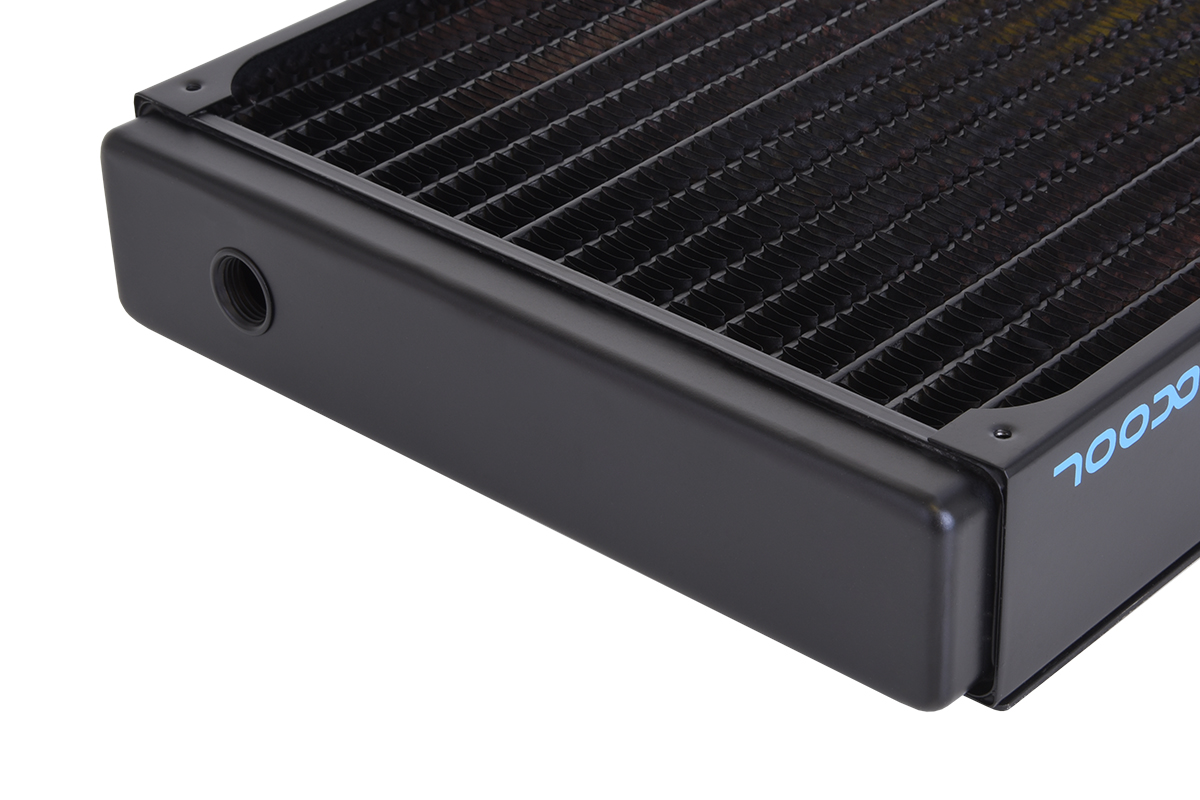

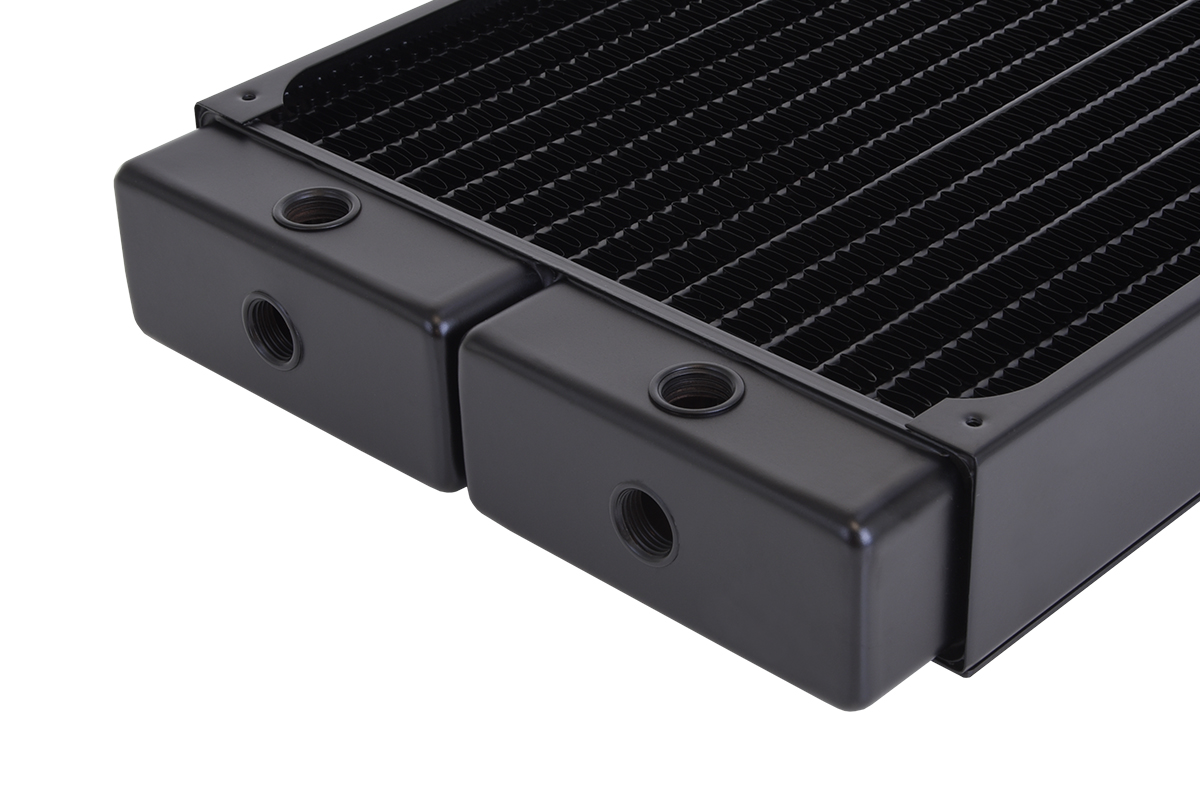

The Alphacool NexXxoS 400 mm XT45 radiator offers four G1/4" threads for IN and OUT. A further G1/4" thread on the back of the radiator serves as a fill port. Alternatively, a temperature sensor or a drain port can also be attached here.
Small was yesterday. With a cooling area of 40 x 20 cm the 400 mm XT radiator offers more cooling surface than a 560 mm radiator. This is more than enough cooling power to cool every CPU and every graphics card in a loop.

Technical data
Cooling channels	Copper
Color	black
Fan thread	M3
Slats	Copper
Thickness	39 - 49mm
Number of fans	2
Housing	Steel
Pressure tested	0,8 bar
Manufacturer	Alphacool
Fins per inch	12
Connection	5x G1/4"
Fan size	200mm
Quantity of cooling channels	32

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Hersteller:	Alphacool
Farbe:	schwarz
Dicke:	39 - 49mm
Lamellen:	Kupfer
Kühlkanäle:	Kupfer
Gehäuse:	Stahl
Lüftergewinde:	M3
Druckgetestet:	1,5 bar
Fins per inch:	12
Anschluss:	5x G1/4"
Anzahl Lüfter:	2
Lüftergröße:	200mm
