Alphacool ES RTX A5000 GPU cooler with backplate

  • 10669
  • 4250197106696
  • 1,297 kg
  • Images may differ slightly from the original
€89.99 * €149.98 * (40% Saved)

Prices incl. VAT plus shipping costs

ready for shipment in 1-3 days

Recommended accessories
Extra Price
15371 Alphacool Eisstation 80 DC-LT - reservoir
1x
Alphacool Eisstation 80 DC-LT - reservoir
€43.98*
18605 Alphacool tube AlphaTube TPV 12,7/7,6 - black matte 3,3m (10ft) retail box
1x
Alphacool tube AlphaTube TPV 12,7/7,6 - black matte 3,3m (10ft) retail box
€18.98*
17453 Alphacool HF compression Fitting TPV - 12,7/7,6mm Straight - Black - 6pcs Kit
1x
Alphacool HF compression Fitting TPV - 12,7/7,6mm Straight - Black - 6pcs Kit
€16.98*
17455 Alphacool HF compression fitting TPV Metall - 90° rotatable 12,7/7,6mm - Black
1x
Alphacool HF compression fitting TPV Metall - 90° rotatable 12,7/7,6mm - Black
€8.98*
14377 Alphacool NexXxoS HPE-30 Full Copper 360mm Radiator
1x
Alphacool NexXxoS HPE-30 Full Copper 360mm Radiator
€104.98*
24817 Alphacool ES 120mm 1.000-4.000rpm Fan ( 120x120x25mm ) - Two Ball Bearing - PWM EOL
1x
Alphacool ES 120mm 1.000-4.000rpm Fan ( 120x120x25mm ) - Two Ball Bearing - PWM
€22.98*
18651 Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
13154 Alphacool DC-LT 3600 ceramic - 12V DC - pump - Industry bulk
1x
Alphacool DC-LT 3600 ceramic - 12V DC - pump - Industry bulk
€34.98*
The Alphacool ES RTX A5000 GPU water cooler with backplate was specially developed for the... more
Product information

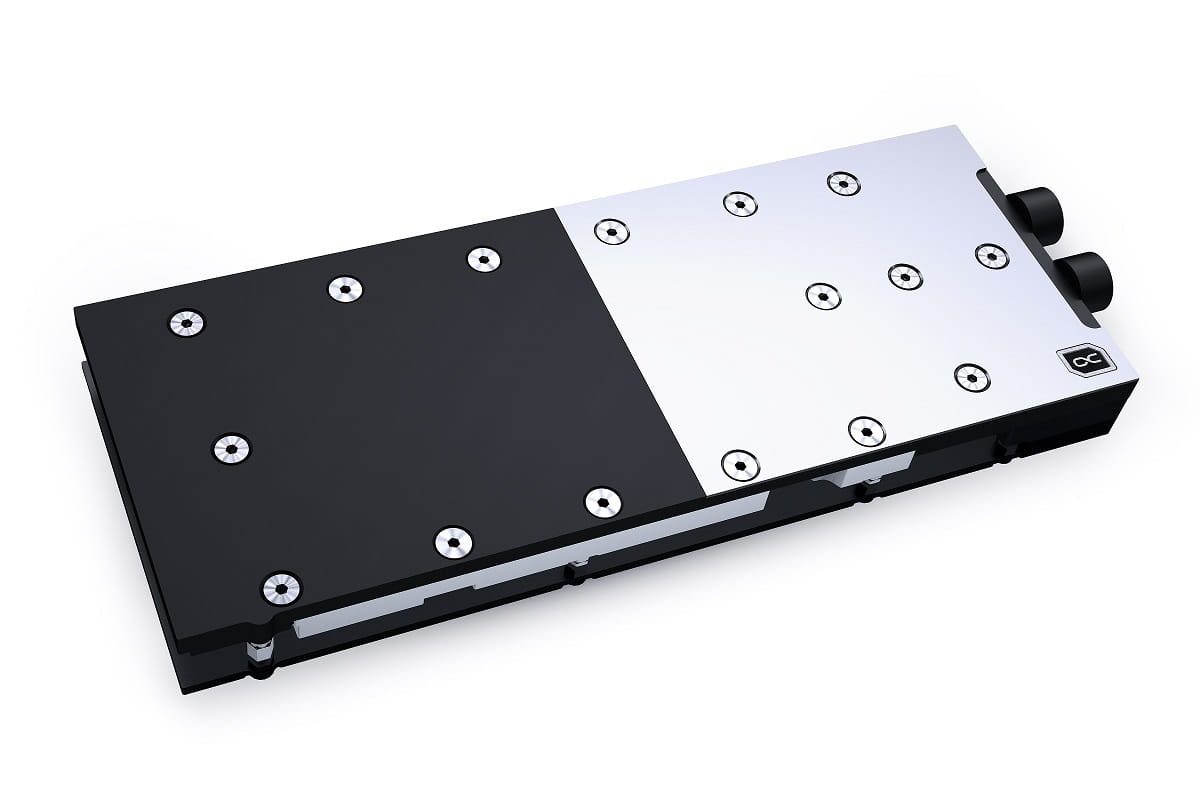

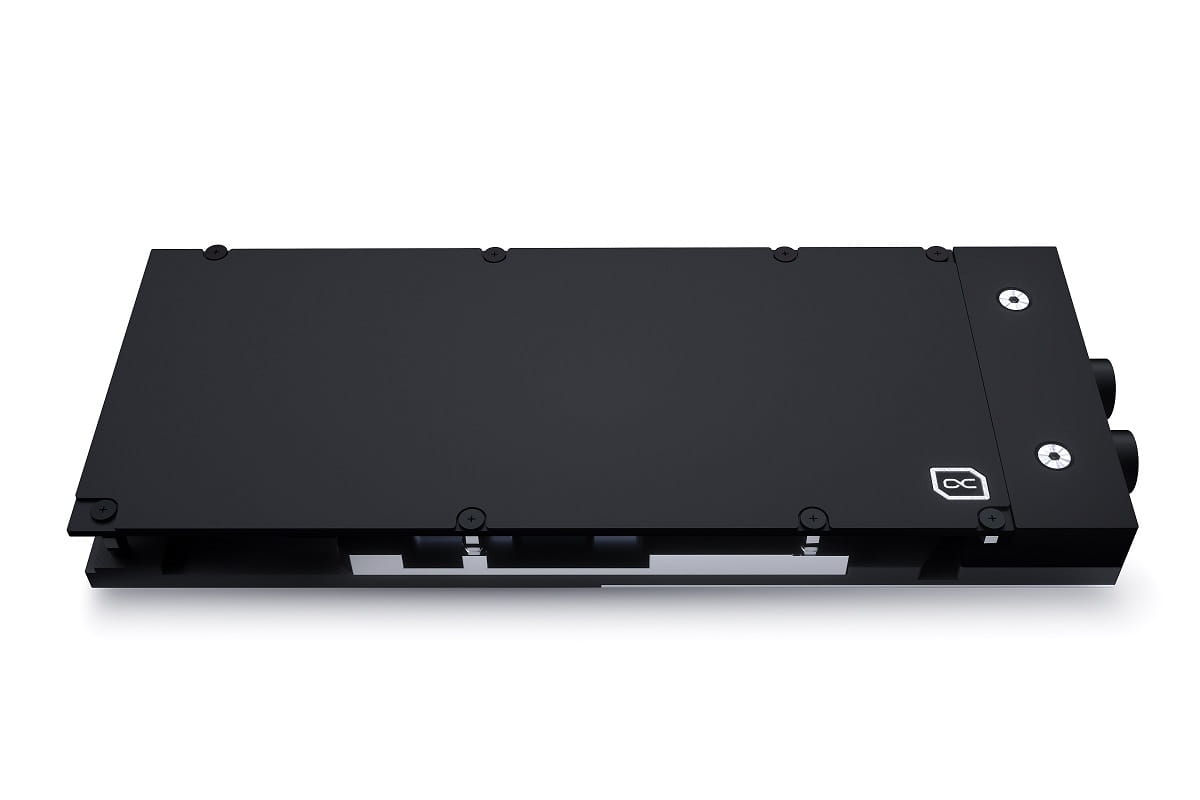

The Alphacool ES RTX A5000 GPU water cooler with backplate was specially developed for the Alphacool Enterprise series. The full-cover cooler with aluminium backplate cools the GPU and all important components such as voltage converters and the graphics memory directly with water.

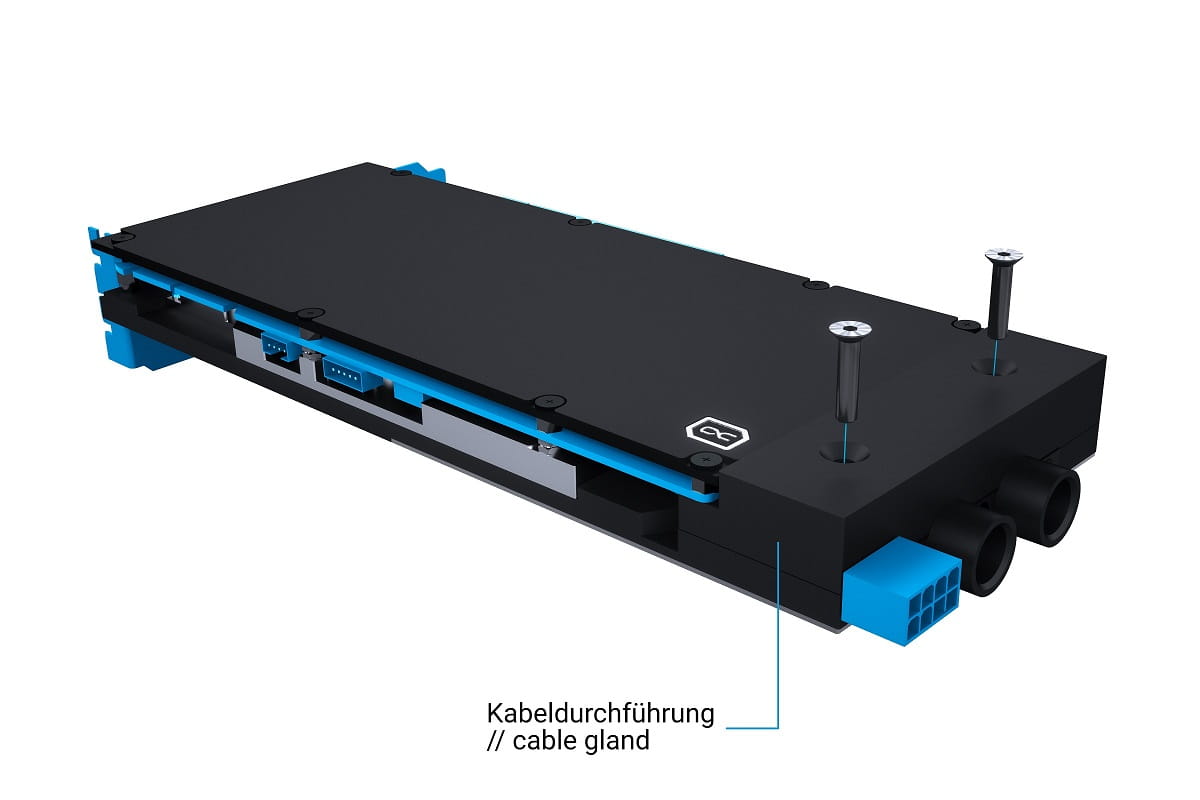

Connections to the rear?
Server cases offer different dimensions than normal PC cases. To save space in width and height, the connections were moved to the back. Another advantage is that it is easier to connect the tubing of a complete server rack with this kind of positioning of the connections. This means that even quick-release fasteners with G1/4" external thread can be screwed directly to the graphics card as already offered by Alphacool.

More performance!
During the development of the ES RTX A5000 graphics card waterblock, we naturally placed great emphasis on increasing performance. For the first step, the cooler was brought closer to the individual components by reducing the thermal pads to a thickness of 1mm. Next, the nickel-plated copper block was also made thinner. Instead of 7mm, it is now only 5.5mm thick. The water flow within the cooler was also optimized. All important components such as the voltage converters and the RAM are now cooled much better and more effectively by water. All this provides a significant increase in cooling performance.

Copper or aluminum?
Alphacool uses only copper for all water-carrying parts on the coolers. In the ES RTX A5000 GPU cooler the copper is nickel-plated. However, compared to the previous models, Alphacool has improved the type of nickel plating once again. This has significantly increased the acid resistance and is intended to prevent nickel plating from flaking off. Why does Alphacool use copper instead of aluminum? Copper simply has almost twice the thermal conductivity of aluminum and is therefore clearly the better material for water cooling.



Compatibility:
- PNY RTX A5000, 24GB GDDR6, 4x DP (VCNRTXA5000-PB)



Technical data cooler
L x W x H254,48 x 97,19 x 26,6mm
Material coolerNickle-plated copper
Material cooler topacetal
Threads2 x G1/4"
Thickness cooling fins0,6mm
Maximum working temperature60 °C
Pressure tested0,8 Bar

Technical data backplate
L x W x H216,55 x 95,43 x 6mm
Materialaluminium
Colorblack

Warranty: 3 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Anschluss: 2x G1/4"
Hardware Hersteller: NVIDIA
Kühlertyp: Komplettkühler
Material Deckel: Acetal
Abmessungen: 254,48 x 97,19 x 26,6mm
Material Bodenplatte: Kupfer
Hinweis: Kompatibel bis 16/13mm gerade, Kompatibel bis 19/13mm gewinkelt
