Alphacool Eisblock ES Acetal GPX-N RTX 3080/3090 Turbo with backplate

  • 11976
  • 4250197119764
  • 1,19 kg
  • There are more than 50 units available
  • Images may differ slightly from the original
€79.98 * €152.97 * (47.72% Saved)

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
ANS Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Deep Black Sixpack
1x
Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Deep Black Sixpack
€31.98*
RAD Alphacool NexXxos ST30 Industry HPC Series 360mm Radiator EOL
1x
Alphacool NexXxos ST30 Industry HPC Series 360mm Radiator
€89.98*
L12 Alphacool ES 120mm 1,000-4,000rpm Fan (120x120x25mm) - Two Ball Bearing - PWM EOL
1x
Alphacool ES 120mm 1,000-4,000rpm Fan (120x120x25mm) - Two Ball Bearing - PWM
€22.98*
S13 Alphacool EPDM Tube 13/10 - Black 3m (9.84ft) retail box
1x
Alphacool EPDM Tube 13/10 - Black 3m (9.84ft) retail box
€17.98*
WAZ Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
The Alphacool Eisblock ES Acetal GPX-N RTX 3080/3090 Turbo was specially developed for the... more
Product information

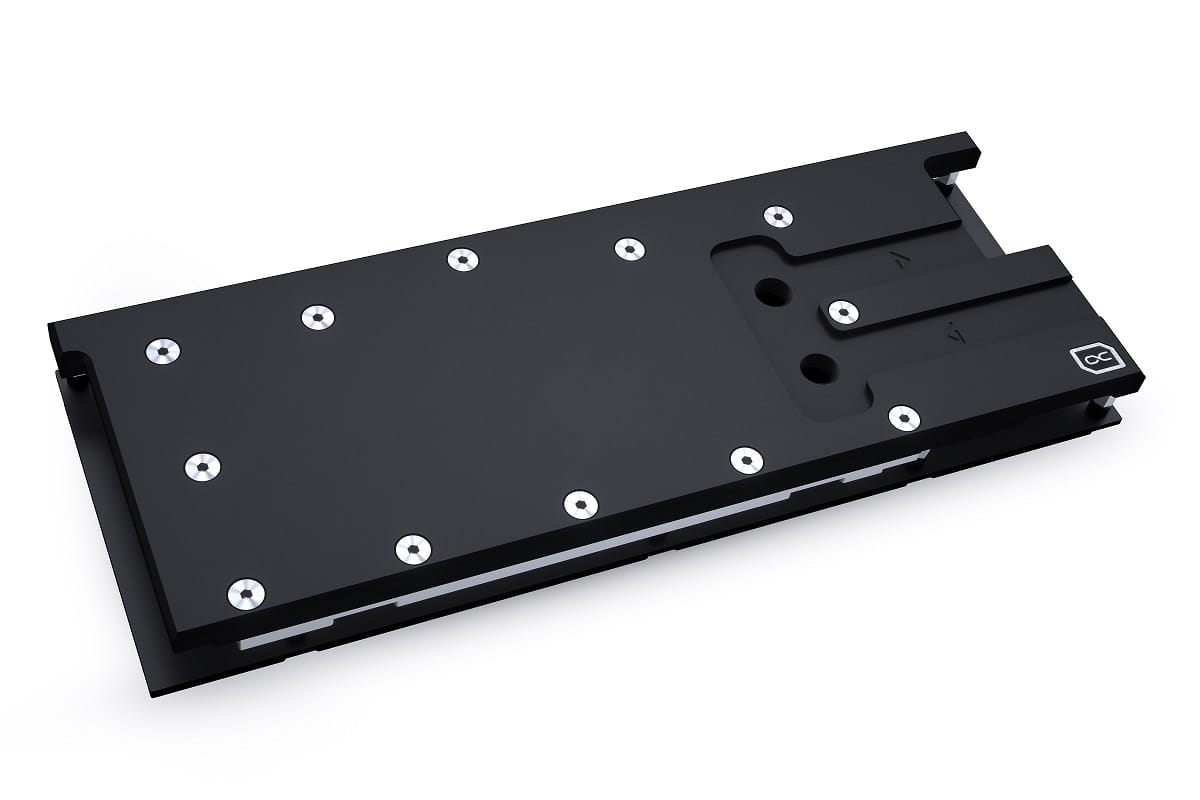

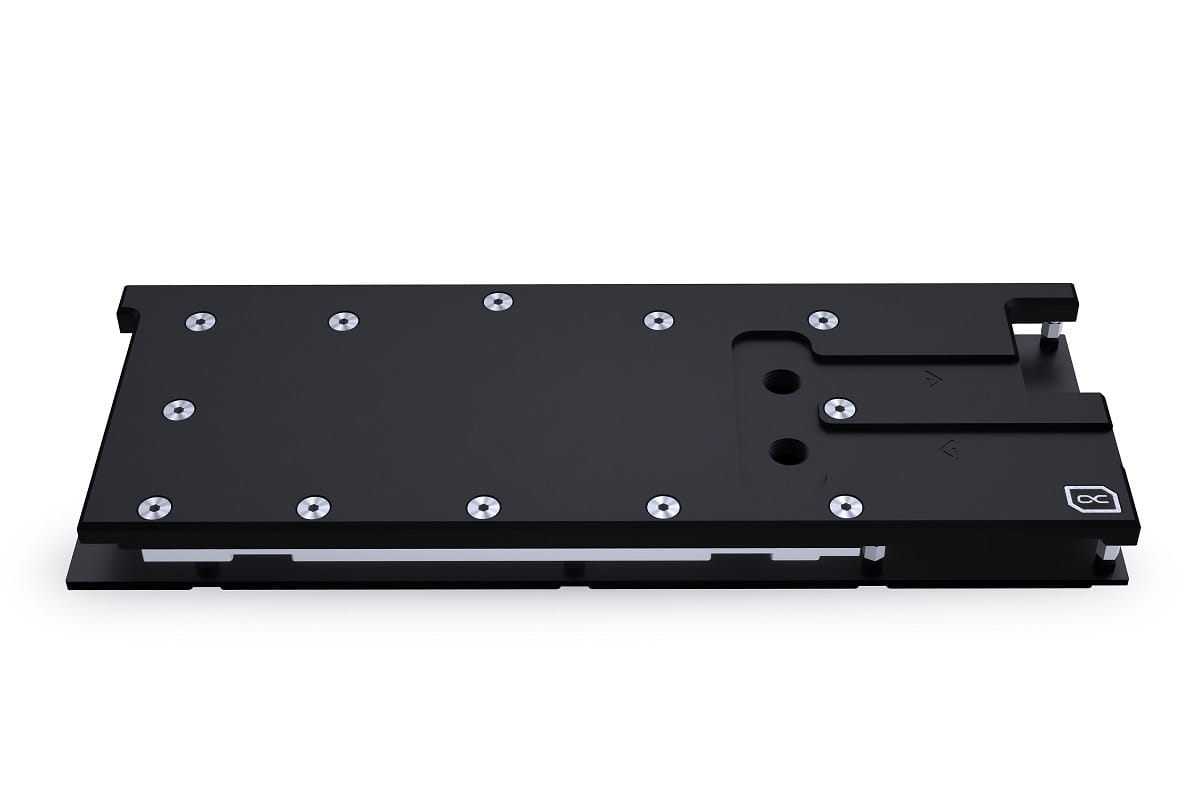

The Alphacool Eisblock ES Acetal GPX-N RTX 3080/3090 Turbo was specially developed for the Alphacool Enterprise series. The full-cover cooler with aluminum backplate cools not only the GPU but also all important components such as the voltage converter and the graphics memory directly with water.

Connections upwards?
Server cases have different dimensions than normal PC cases. In order to save space in terms of width and height, the connections have been moved upwards. Another advantage is that it is easier to connect the hoses to a complete server rack with this type of positioning of the connections. This means that quick-release fasteners with G1/4" external threads can even be screwed directly onto the graphics card, as is already offered by Alphacool.

More performance!
When developing the Eisblock ES Acetal GPX-N RTX 3080/3090 Turbo graphics card water cooler, emphasis was naturally placed on increasing performance. In the first step, the cooler was brought closer to the individual components by reducing the thermal pads to a thickness of 1 mm. In the second step, the nickel-plated copper block was also made thinner. Instead of the previous 7 mm, it is now only 5.5 mm thick. The water flow within the cooler has also been optimized. All important components such as the voltage converters and the RAM are now cooled much better and more effectively by the water. All of this ensures a significant increase in cooling performance.

Copper or aluminum?
Alphacool naturally only uses copper in its water coolers. The copper in the Eisblock ES Acetal GPX-N RTX 3080/3090 Turbo is nickel-plated. Compared to previous models, however, Alphacool has further improved the type of nickel plating, which has significantly increased acid resistance. This should prevent nickel plating from flaking off. And why does Alphacool use copper instead of aluminum? Copper simply has almost twice the thermal conductivity of aluminum and is therefore clearly the better material for water cooling.

Technical data cooler
L x W x H 266.7 x 97.90 x 14.75mm
Radiator base material Nickel-plated copper
Material radiator top Acetal
Connections 2xG1/4“
Thick cooling fins 0.6mm

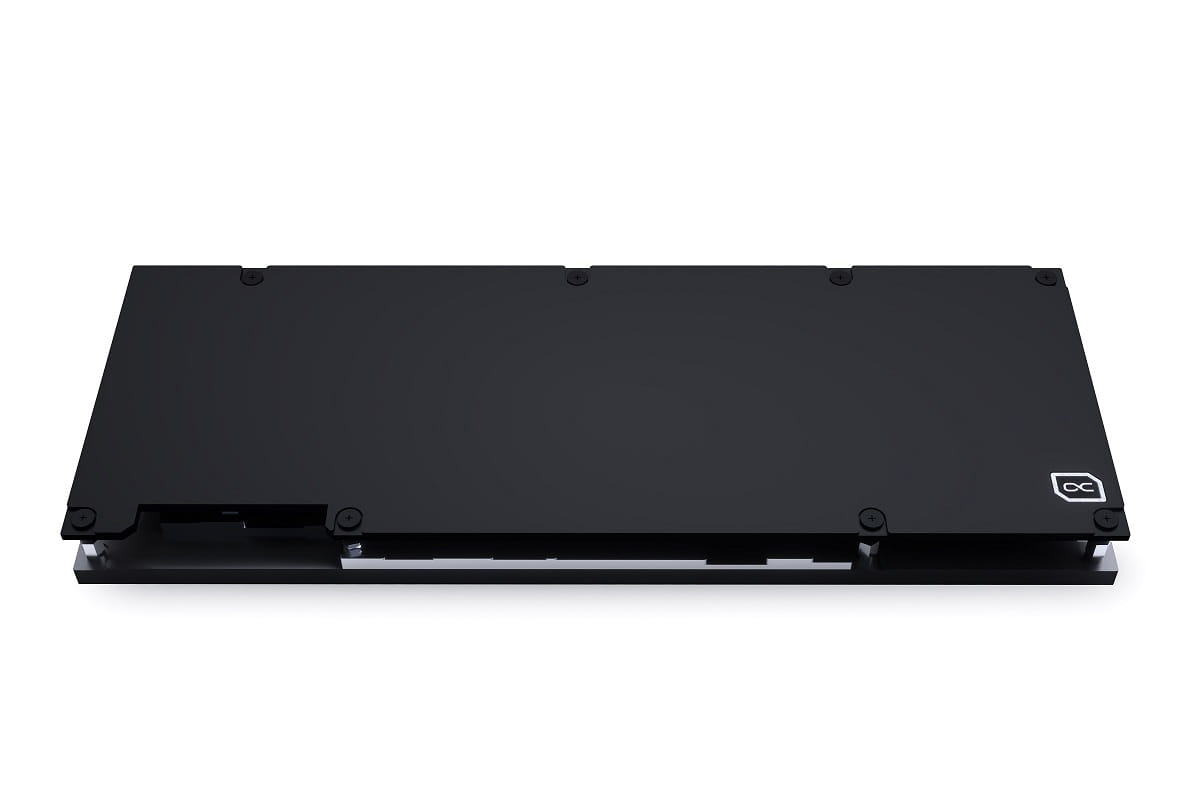

Technical data backplate
L x W x H 266.7 x 97.6 x 6mm
material aluminum
Color Black

Compatibility:
- ASUS Turbo GeForce RTX 3090 (90YV0FK0-M0NB00)
- ASUS Turbo GeForce RTX 3080 10GB (TURBO-RTX3080-10G)
- ASUS Turbo GeForce RTX 3080 V2 10GB (TURBO-RTX3080-10G-V2)

Download:
Data sheet PDF | User manual PDF | Nvidia compatibility list PDF

Left:
Graphics card configurator

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr
Technical details
Hersteller: Alphacool
Anschluss: 2x G1/4"
Hardware Hersteller: NVIDIA
Kühlertyp: Komplettkühler
Material Deckel: Acetal
Abmessungen: 266,7 x 97,90 x 14,75mm
Material Bodenplatte: Kupfer
Hinweis: Kompatibel bis 16/13mm gerade, Kompatibel bis 19/13mm gewinkelt
Hardware Modell: RTX 3080, RTX 3090
