Alphacool Eisbaer Quick-Connect Extension Kit

Article no.: 12548
EAN: 4250197125482
Weight: 0,571 kg
Available: Currently there are 4 available - More is on the way
Images may differ slightly from the original

€21.98 *

Prices incl. VAT plus shipping costs

in stock

With the Eisbaer Quick-Connect Extension Kit, the circuit of an Eisbaer or Eiswolf GPX-Pro... more

Close menu

Product information

With the Eisbaer Quick-Connect Extension Kit, the circuit of an Eisbaer or Eiswolf GPX-Pro cooler can be easily expanded to include additional components. For example, with another radiator, another cooler or other components.

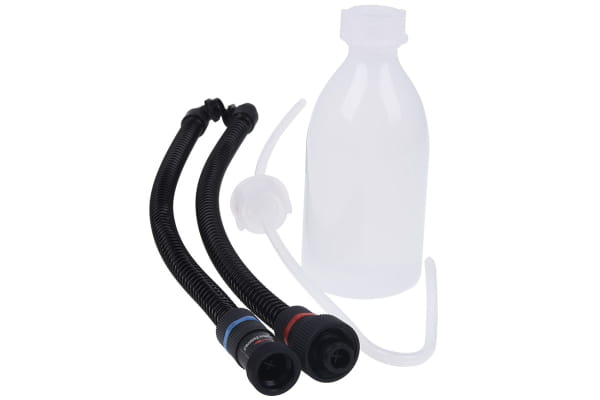

The set consists of two 32cm long hoses in 11/8 format and are covered with anti-kink springs. This prevents the hoses from kinking and thus prevents the water from flowing too far. Safety is a top priority.

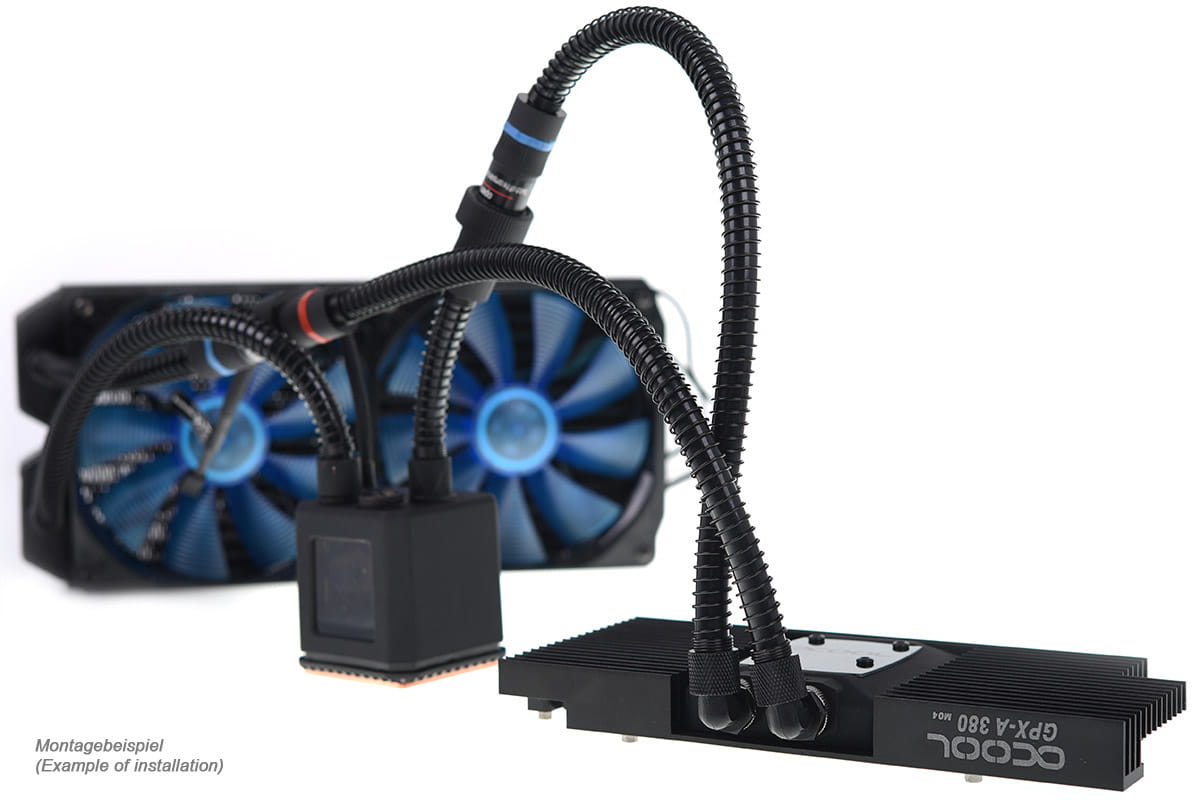

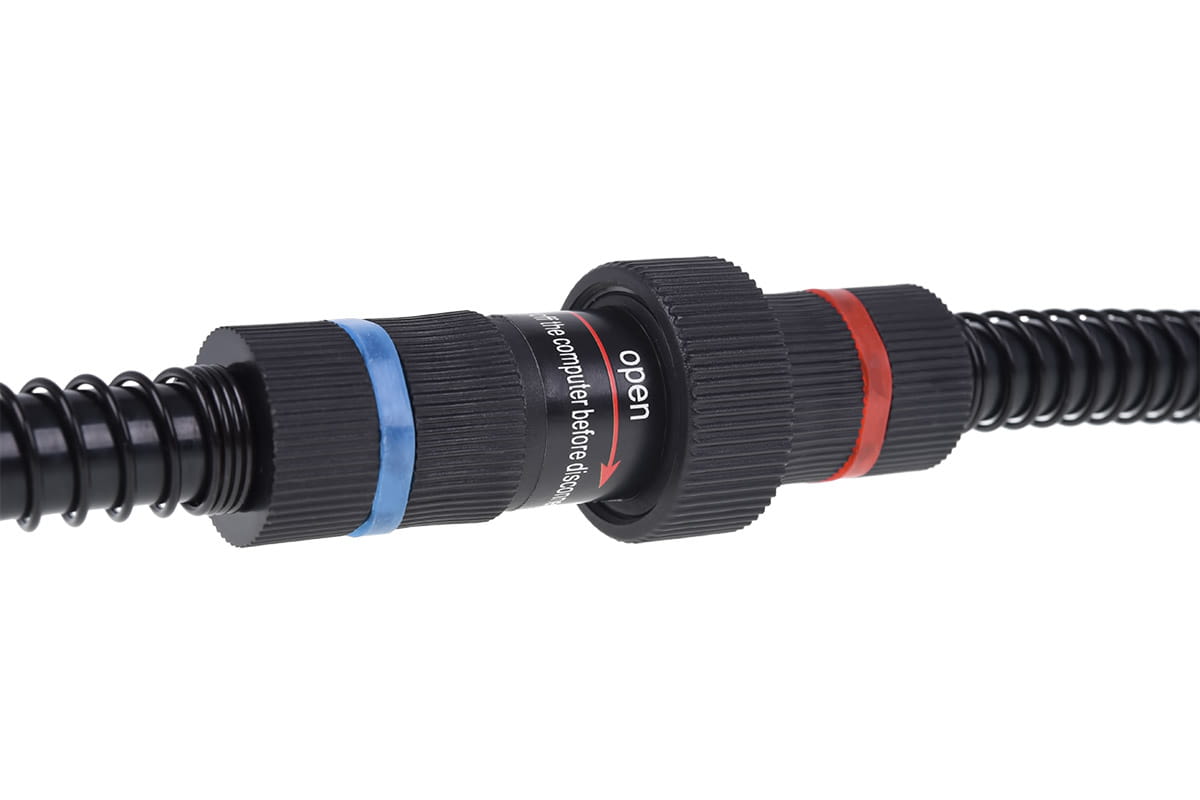

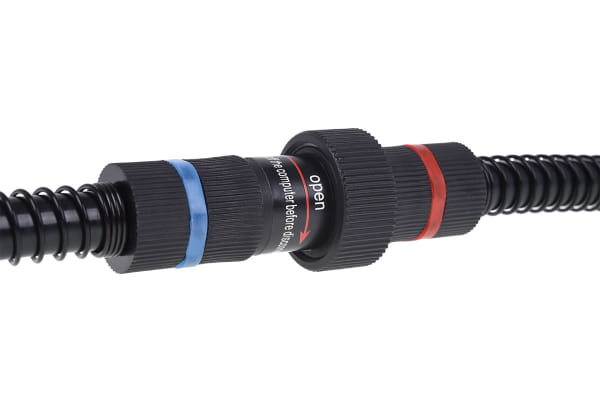

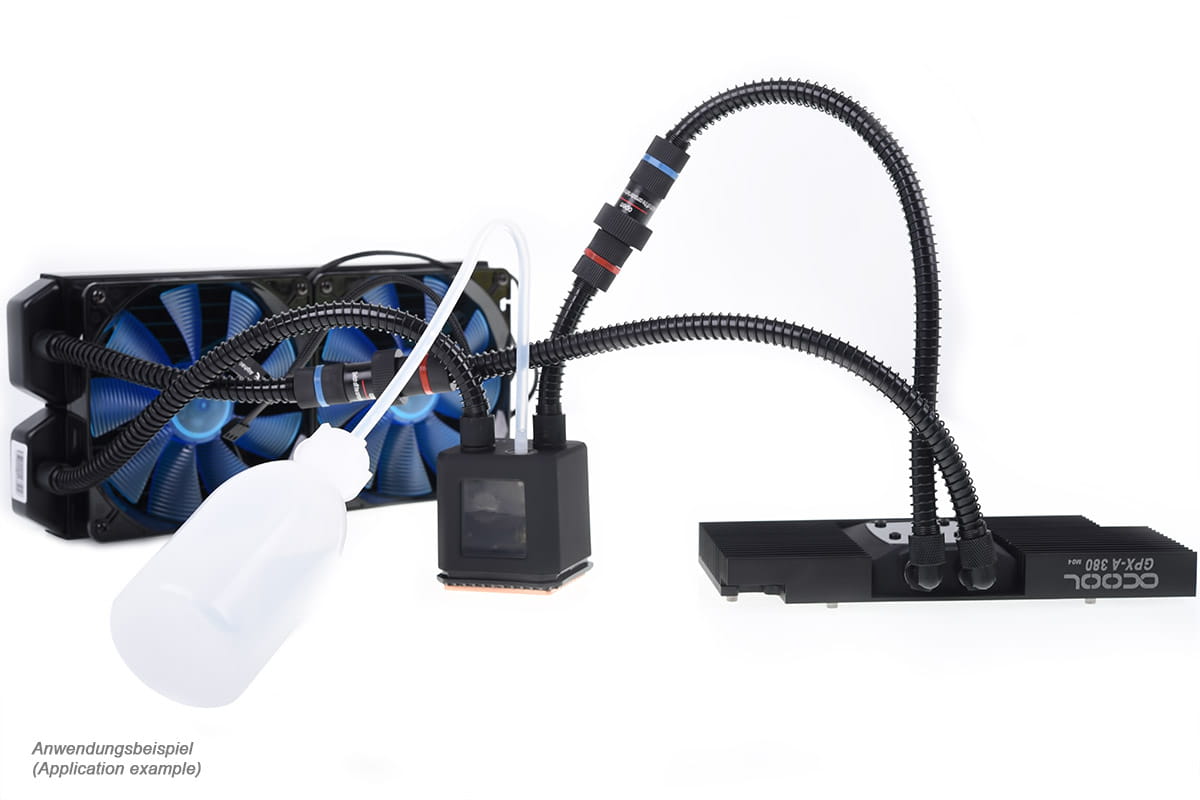

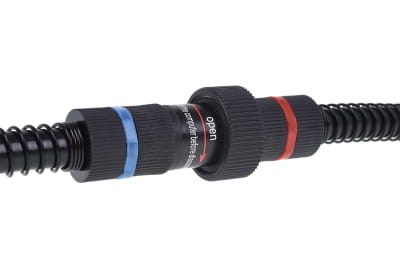

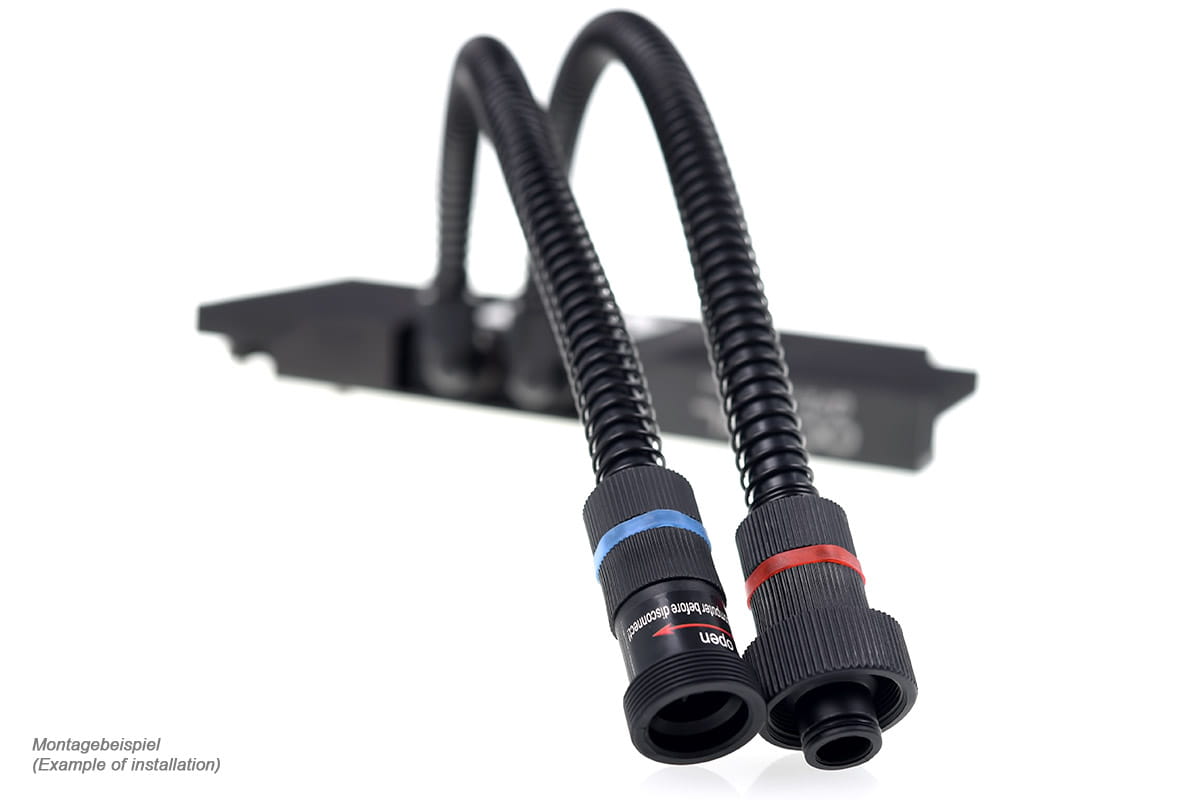

At two ends there are 90° angles which are pre-mounted on the hoses. All you have to do is screw these into the corresponding G1/4" threads. At the other end there are two ends of a safety quick release from the Alphacool HF series, as you can also find on the Eisbaer or Eiswolf. This means you simply open the quick release on the Eisbaer or Eiswolf and screw it onto the matching counterparts in this set and another product, and the circuit is ready. Of course, this still needs to be filled. This set comes with a spray bottle containing 250ml of osmosis filtered water. The spray bottle makes it very easy to fill the circuit at the designated points. For the Eisbaer, for example, this would be the fill port on the Eisbaer cooler.

Technical details:

Hose length: 32cm
Quick connector material: nylon
Color: black
G1/4" thread
11/8 hose size
Pre-filled: 250ml osmosis water

Scope of delivery:

Alphacool Eisbaer Quick-Connect Extension Kit

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Notice for expansion:

Please take care not to mix up the IN and OUT ports. On the “Eisbaer”, the “outlet” is marked in “red” and the “inlet” in “blue”. On the components to be connected, it is the opposite. The coupling with the “blue” marking denotes the “outlet” and the coupling with the “red” marking is the “inlet”. This is important as in many coolers the flow direction is crucial for optimal cooling performance.
