Alphacool Core Hurrican 360mm XT45 HardTube water cooling Set
- Article no.: 11993
- EAN: 4250197119931
- Weight: 7,26 kg
- Available: There are more than 10 units available
- Images may differ slightly from the original
Prices incl. VAT plus shipping costs
in stock
With the Core Hurrican HardTube water cooling kit, Alphacool provides all the components needed to get started in the world of water cooling. The set is aimed not only at beginners, but also at enthusiasts. The selected components are optimally matched and come from Alphacool's DIY program. The choice of materials is still uncompromisingly based on copper or brass for all metals in order to guarantee performance-oriented CPU cooling.

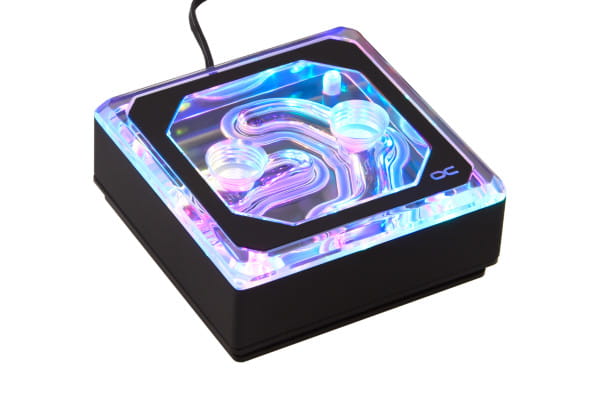

Eisblock XPX Aurora Edge CPU Cooler
Alphacool's Eisblock XPX Aurora Edge CPU water cooler offers the highest performance and impresses with its outstanding quality. The patented ramp system ensures optimal water flow within the cooler as water is forced evenly through the jet plate. 81 cooling fins are distributed on the CPU cooler base, occupying an area of 34 x 32mm and thus accommodating the ever-growing CPU DIEs. The Aurora design in combination with the 15 addressable digital aRGB LEDs provides many options for outstanding CPU water cooler illumination. The included mounting hardware makes the CPU cooler compatible with popular mainstream sockets from AMD and Intel.

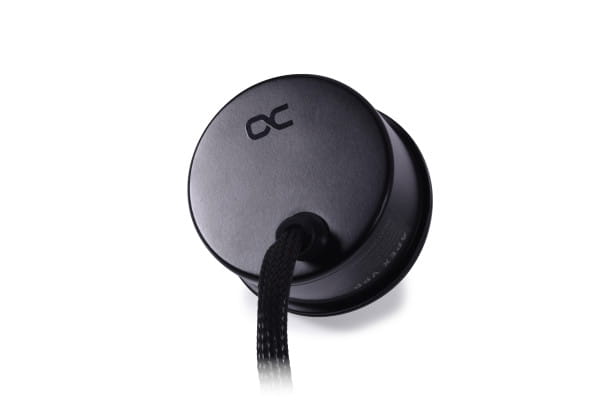

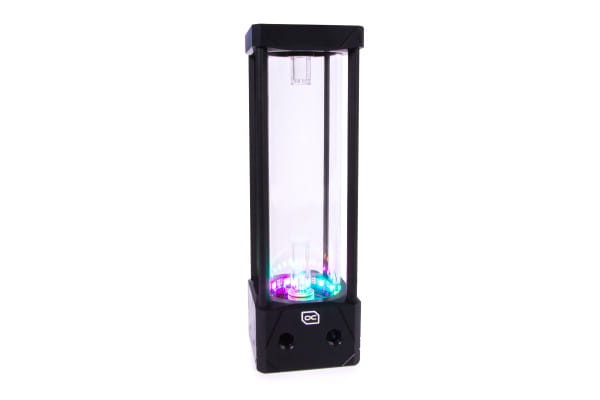

Eisbecher Aurora D5 250mm & VPP Apex Pump
The Alphacool Eisbecher Aurora glass reservoir uses a real glass tube rather than the usual plastic tube that Alphacool usually relies on. The embedded 5V digital RGB LED ring and the new design makes the reservoir look magnificent. Of course, the Lighttower water effect is used again. The mounting can be done via feet but also mounted on 120 or 140mm fan mounts or even directly to a radiator. The Apex VPP is a powerful pump that is compatible with the most popular D5/VPP tops and reservoirs. Via the 4-pin fan connector, the speed of the pump can be read and controlled via PWM signal. The Apex VPP is supplied with power via the SATA connector.

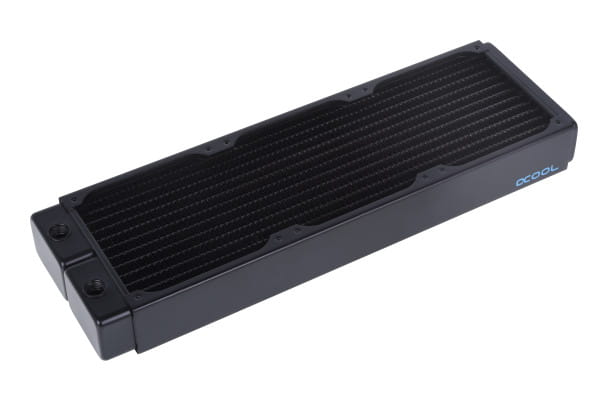

NexXxoS XT45 Full Copper 360mm Radiator V.2
All water-bearing parts and the cooling fins are made of pure copper. Thus, the NexXxoS XT45 achieves the highest thermal conductivity value of all radiators on the market and can easily dissipate extremely high waste heat. The radiator has two IN or OUT connections with G1/4" threads in the pre-chamber area. On the opposite side is a fill or vent port, which can be used to fill and drain the water loop.

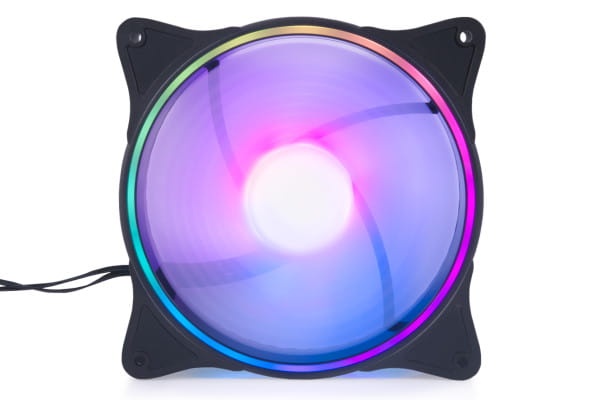

Rise Aurora 120mm fans
The fans can be controlled from 0 to 2500 rpm via the 4-pin PWM connector. At 800 rpm, the fan is nearly silent, but still offers good airflow (118.9 m3/h) coupled with high static pressure (3.17mm/H2O). In addition to a wide control range, the Rise fan also offers superior digital aRGB lighting. The frame and hub feature 20 digitally addressable 5V RGB LEDs that illuminate the entire fan.
Eisrohr 16/13mm PETG HardTube
The Alphacool Eisrohr PETG HardTube givse the user the possibility to create a very special look. With a wall thickness of 3 mm, the tubes are very strong, but can still be bent without great effort and they are easy to fit. The HardTubes are clear and will look great in almost every water cooling loop. When cutting the tubes, make sure to chamfer the edges with fine file or a hose deburrer, as sharp edges can damage the O-rings of fittings.

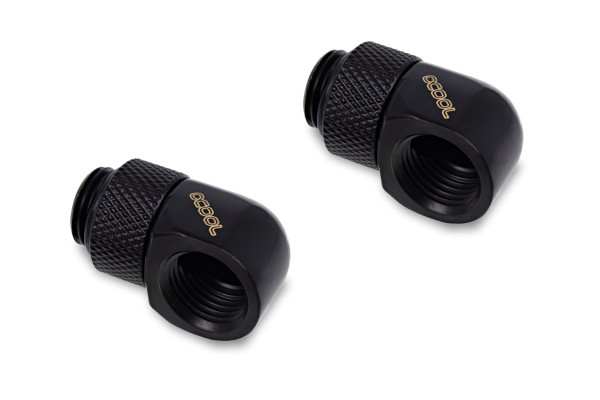

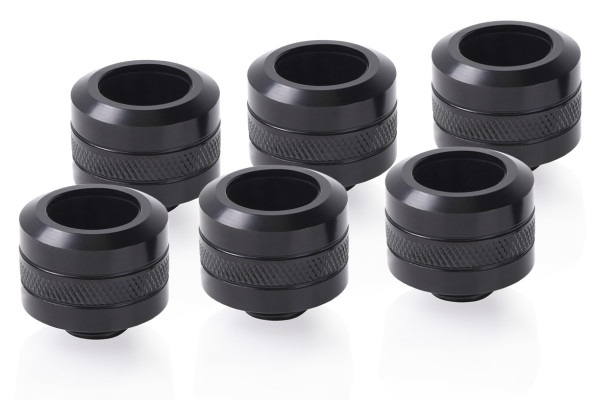

Eiszapfen 16/13mm G1/4" Connections
All the requirements for a connection are met here: Highflow, shape, machining and coloring. Special manufacturing processes firmly bond the coating to the substrate. This increases the longevity of the color and prevents the coating from flaking off.

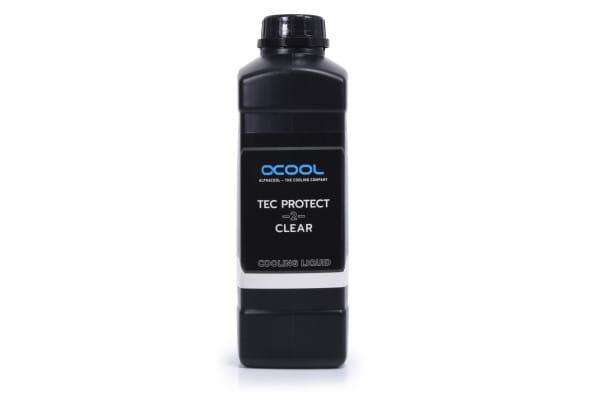

Thermal Paste & Coolant
The included thermal paste is Alphacool's Subzero with a thermal conductivity of 16 W/mk. The electrically non-conductive Thermal Grease is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850,000 TF. Tec Protect 2 Clear in the 1 liter bottle is used as the coolant. Tec Protect 2 Clear is a ready-to-use mixture that already contains all the necessary additives and can be used straight from the bottle.
aRGB Controller, Cables, Tools & Accessories

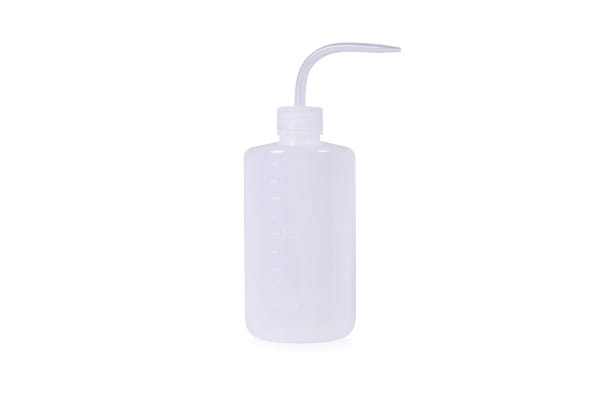

All cables (aRGB, PWM) and controllers needed to use & control the pump, fan and aRGB lighting are included. The accessory package also includes important tools like filling bottle, deburrer and pit saw. Thus, the construction of the custom loop can be started "out-of-the-box" immediately.
Compatibility:
Intel: 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066 / 1851
AMD: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / AM5
| Technical data CPU cooler | |
| Dimensions (L x W x H) | 70 x 70 x 32,5mm |
| Material cooler | nickel-plated copper |
| Material housing | brass, acrylic |
| Threads | 2 x G1/4“ |
| Illumination | 3-Pin 5V, 15 digital aRGB LEDs |
| Max working temperature | 60°C |
| Pressure tested | 0,8 Bar |
| Technical data reservoir | |
| Dimensions (L x W x H) | 77 x 77 x 242mm |
| Capacity | 250ml |
| Material housing | Acetal |
| Material tube | Glass |
| Material framing bar | Aluminium |
| Threads | 1x G1/4“ IT IN | 4x G1/4“ IT OUT |
| Illumination | 5V digital addressable LED‘s (0,3A) |
| Max working temperature | 60°C |
| Pressure tested | 0,8 Bar |
| Technical data pump | |
| Dimensions (L x W x H) | 65 x 65 x 41mm |
| Material | synthetic material, aluminium, ceramics |
| Threads | 4Pin PWM I SATA |
| Rotational speed | 2500 - 4500 RPM |
| Operating voltage | 8-13V DC / 14W IP32 |
| Starting voltage | 12V DC |
| Maximum pumping head | 4,25m |
| Maximum flow rate | 340L/h |
| Max working temperature | 60°C |
| Pressure tested | 0,8 Bar |
| Technical data radiator | |
| Dimensions (L x W x H) | 391,5 x 124 x 45mm (+/- 3%) |
| Material cooling fins, pre-chambers & channels | copper |
| Material threads | brass |
| Material outer housing | stainless steel |
| Threads | 4x G1/4" IN/OUT & 1x Fill-/Drainport G1/4" |
| Possible fan size | 120mm |
| Possible fan assembly | 3x one-sided / 6x both-sided |
| Fin density | 12 |
| Max working temperature | 60°C |
| Pressure tested | 0,8 Bar |
| Technical data fan | |
| Dimensions (L x W x H) | 120 x 120 x 25mm |
| Speed | 0-2500 rpm (+/-10%) |
| Threads | 4-Pin PWM |
| Voltage | 12V DC |
| Current consumption | 0,65A (0.72A max) |
| Static pressure | 3,17 mm/H2O |
| Max. air flow | 118,9 m³/h |
| Noise | max. 31,5 dB(A) |
| Speedometer signal | yes |
| Auto-Restart | yes |
| Illumination | 3-Pin 5V, 20 digital aRGB LEDs |
| Technical data tube | |
| Dimensions (outer/inner) | 16/13mm |
| Material | PETG |
| Length | 4x 60cm |
| Color | clear |
| Technical data 16/13mm G1/4" fittings | |
| Material | brass |
| Threads | 1x G1/4" OT |
| Color | black |
| Technical data coolant | |
| Ingredients | osmose water(93,8%), glysofor L (4,2%), RHOBA KLA (2%) |
| Boiling point | 105°C |
| Freezing point | -10°C |
| Packaging unit | 1L bottle |
| Color | clear (not UV-active) |
| Technical thermal grease | |
| Viscosity (mPa. s) | 3.000.000 |
| Specific Gravity (g/cm³) | 2,7 |
| Thermal Conductivity (w/m-K) | 16 |
| Temperature Stability (Degree Celcius) | -50 ~ 200 |
| Color | gray |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
| Hersteller: | Alphacool |
| Radiatorgröße: | 360mm |
| Vorbefüllt: | Nein |
| Radiatordicke: | 39 - 49mm |
| Radiatorabmessung: | 391,5 x 124 x 45mm |
| Sockel: | AMD AM3(+), AMD AM4, AMD AM5, Intel 115x, Intel 2011(-3), Intel 2066, Intel LGA 1200, Intel LGA 1700, Intel LGA 1851 |
| Schlauchabmessungen: | 16/10mm |
