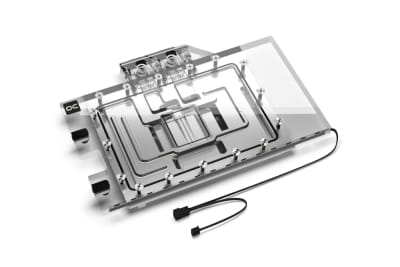

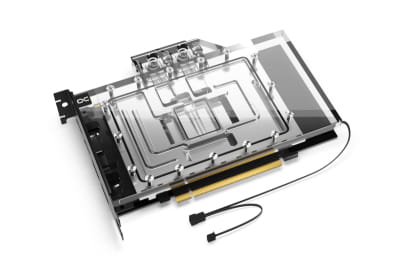

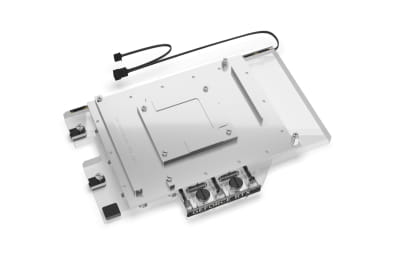

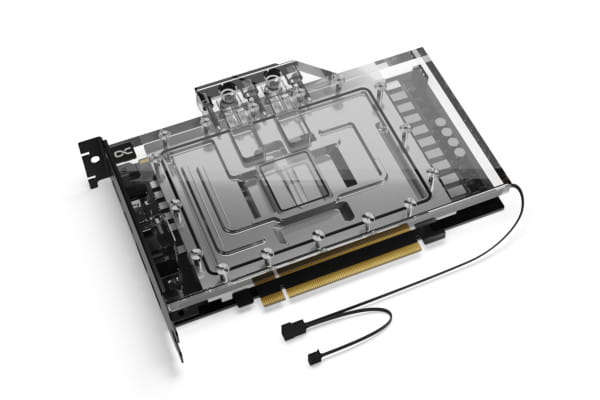

Alphacool Eisblock Aurora Geforce RTX 4070 TI ROG Strix with backplate

  • 13749
  • 4250197137492
  • 1,752 kg
  • There are more than 50 units available
  • Images may differ slightly from the original
€119.98 * €159.98 * (25% Saved)

Prices incl. VAT plus shipping costs

in stock

Recommended accessories
Extra Price
ANS Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Deep Black
1x
Alphacool Eiszapfen 13/10mm screw-on nozzle G1/4 - Deep Black
€5.99*
ANS Alphacool Eiszapfen 13/10mm screw-on nozzle 90° rotatable G1/4 - Deep Black
1x
Alphacool Eiszapfen 13/10mm screw-on nozzle 90° rotatable G1/4 - Deep Black
€7.98*
WAZ Alphacool Tec Protect 2 Clear 1000ml
1x
Alphacool Tec Protect 2 Clear 1000ml
€13.98*
WZS Alphacool spray bottle Core 500ml
1x
Alphacool spray bottle Core 500ml
€4.98*
S13 Alphacool EPDM Tube 13/10 - Black 1m (3.28ft) Retailbox
1x
Alphacool EPDM Tube 13/10 - Black 1m (3.28ft) Retailbox
€9.98*
SZ Alphacool hose cutter aluminum 3-19mm
1x
Alphacool hose cutter aluminum 3-19mm
€18.98*
The next generation - the Alphacool Eisblock Aurora water cooler for Geforce RTX 40XX graphics... more
Product information

The next generation - the Alphacool Eisblock Aurora water cooler for Geforce RTX 40XX graphics cards. In order to dissipate the enormous heat of this graphics card generation in the best possible way, numerous optimizations have been made to the water cooler compared to the previous model. The fin structure was adapted and enables a very good water flow while increasing the cooling surface. The modified jet plate with improved inflow engine ensures an optimal distribution of the water on the cooling fins.

Technical Highlights
The fin structure of this Eisblock cooler generation was developed together with Nvidia board partners. The fin thickness is 0.4 mm, the distance between the cooling fins is 0.4 mm. This ensures a very good water flow while increasing the cooling surface. The jet plate has a revised inlay that spreads the water pressure better over the fins thus optimizing the heat absorption. The adjusted water inflow gives the water a better angle of inflow.

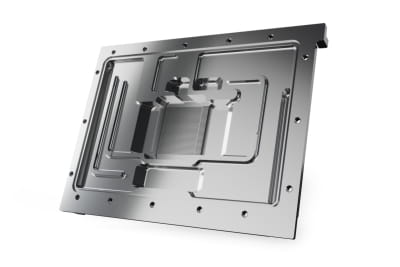

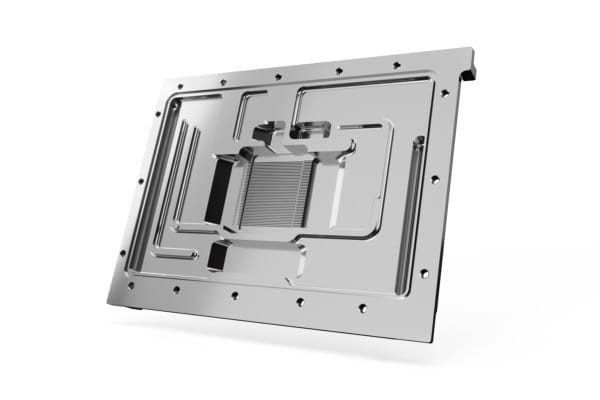

Chrome-plated copper
The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.

Design

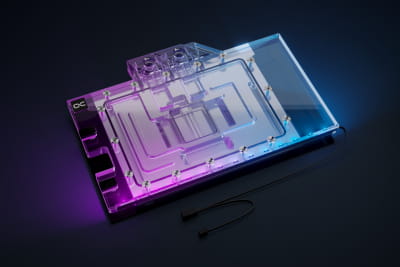

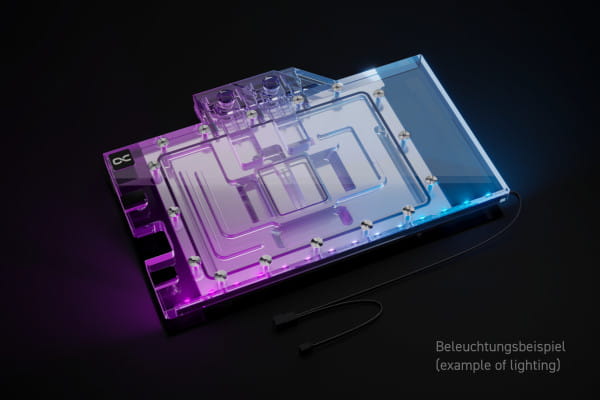

The Aurora design of the Geforce RTX 40XX Eisblock generation is visually calmer and simpler. Only one O-ring runs around the entire cooler. The design around the cooling fins and jetplate makes for a cleaner look. The illumination of the digitally addressable RGB LEDs is even better distributed throughout the cooler as a result of the chrome plating. The terminal's design is in line with the classic Aurora design.

Thermal paste & thermal pads
The included thermal compound is Alphacool's Subzero. With a thermal conductivity of 16 W/mK, it is one of the highest performing thermal pastes on the market. The electrically non-conductive thermal compund is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850,000 TF. Alphacool Soft Pads with 1mm thickness are used on the voltage converter and the graphics memory. The thermal conductivity of the pads is 7 W/mK. The pads for the back of the PCB are 3mm thick and have a thermal conductivity of 3 W/mK.



Compatibility:
- Asus ROG Strix GeForce RTX 4070 Ti OC, ROG-STRIX-RTX4070TI-O12G-GAMING (90YV0II0-M0NA00)
- Asus ROG Strix GeForce RTX 4070 Ti, ROG-STRIX-RTX4070TI-12G-GAMING (90YV0II1-M0NA00)
- Asus ROG Strix GeForce RTX 4070 Ti SUPER OC, ROG-STRIX-RTX4070TIS-O16G-GAMING, 16GB GDDR6X (90YV0KG0-M0NA00)
- Asus ROG Strix GeForce RTX 4070 Ti SUPER, ROG-STRIX-RTX4070TIS-16G-GAMING, 16GB GDDR6X (90YV0KG1-M0NA00)



Technical data
Dimensions (L x W x H)240 x 156,90 x 34,70mm
Material coolerchrome-plated copper
Material cooler topacrylic
Threads4 x G1/4"
Thickness cooling fins0,4mm
Distance cooling fins0,4mm
Illuminationdigital aRGB LEDs
Number of digital aRGB LEDs14
Power connector digital aRGB LEDs3-Pin JST
Power digital aRGB LEDs5V
Pressure tested0,8 bar
Max working temperature60°C

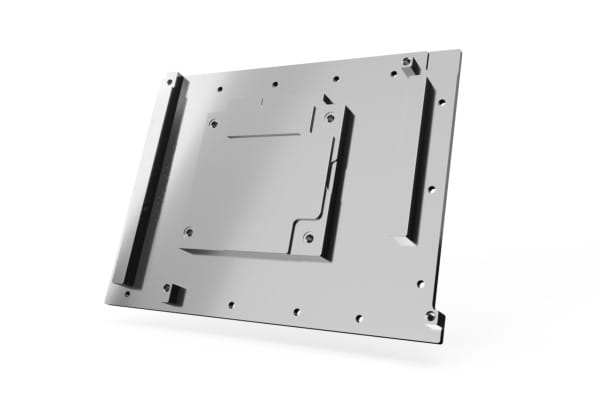

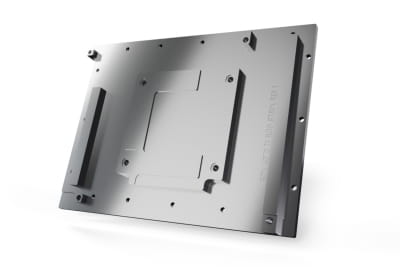

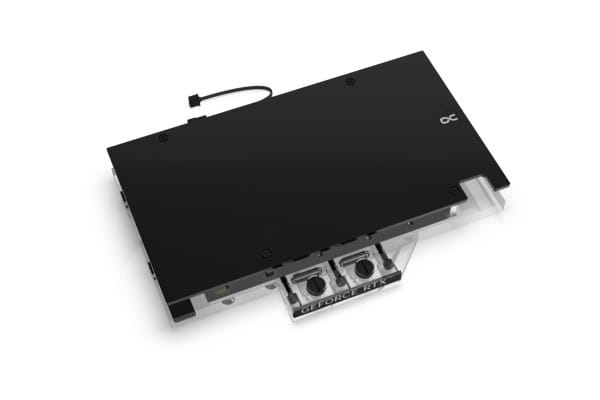

Technical data backplate
Dimensions (L x W x H)240,00 x 132,40 x 6mm
Materialaluminium
Colorblack

Warranty: 2 years
🔗 Warranty Terms

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Awards & Videos
Technical details mehr
Technical details
Hersteller: Alphacool
Hardware Hersteller: NVIDIA
SLI kompatibel: Ja
Kühlertyp: Komplettkühler
Anschluss: 4x G1/4"
Material Deckel: Acryl
Abmessungen: 240 x 156,90 x 34,70mm
Material Bodenplatte: Kupfer
Hardware Modell: RTX 4070 Ti
