GPU water cooler for XFX MERC/QICK RX 6700 XT

WAK Alphacool Eisblock Aurora Acryl GPX-A Radeon RX 6700XT MERC 319 mit Backplate PHT EOL

Article no.: 18660
EAN: 4250197186605
Weight: 1,51 kg
Available: There are more than 5 units available
Images may differ slightly from the original

€81.98 * €149.98 * (45.34% Saved)

Prices incl. VAT plus shipping costs

in stock

Alphacool Eisplateau anti-static work and assembly mat 120x60cm

€59.98*

Alphacool VPP Apex pump - G1/4 IG incl. ice cover D5 - acrylic V.3

€79.98*

Alphacool hose AlphaTube TPV 12.7/7.6 - Black Matte 3.3m (10ft) retail box 330cm

€18.98*

Alphacool HF screw-on nozzle TPV - 12.7/7.6mm straight - black - kit of 6

€16.98*

Alphacool HF screw-on sleeve TPV metal - 90° rotatable 12.7/7.6mm - Black

€8.98*

Alphacool Rise Aurora 120 mm fan (120x120x25mm)

€11.98*

Alphacool NexXxoS HPE-45 Full Copper 360mm Radiator

€109.98*

Alphacool Ultra Pure Water 1000ml

€6.98*

The Alphacool Eisblock Aurora Acrylic GPX graphics card water cooler with backplate combines... more

Close menu

Product information

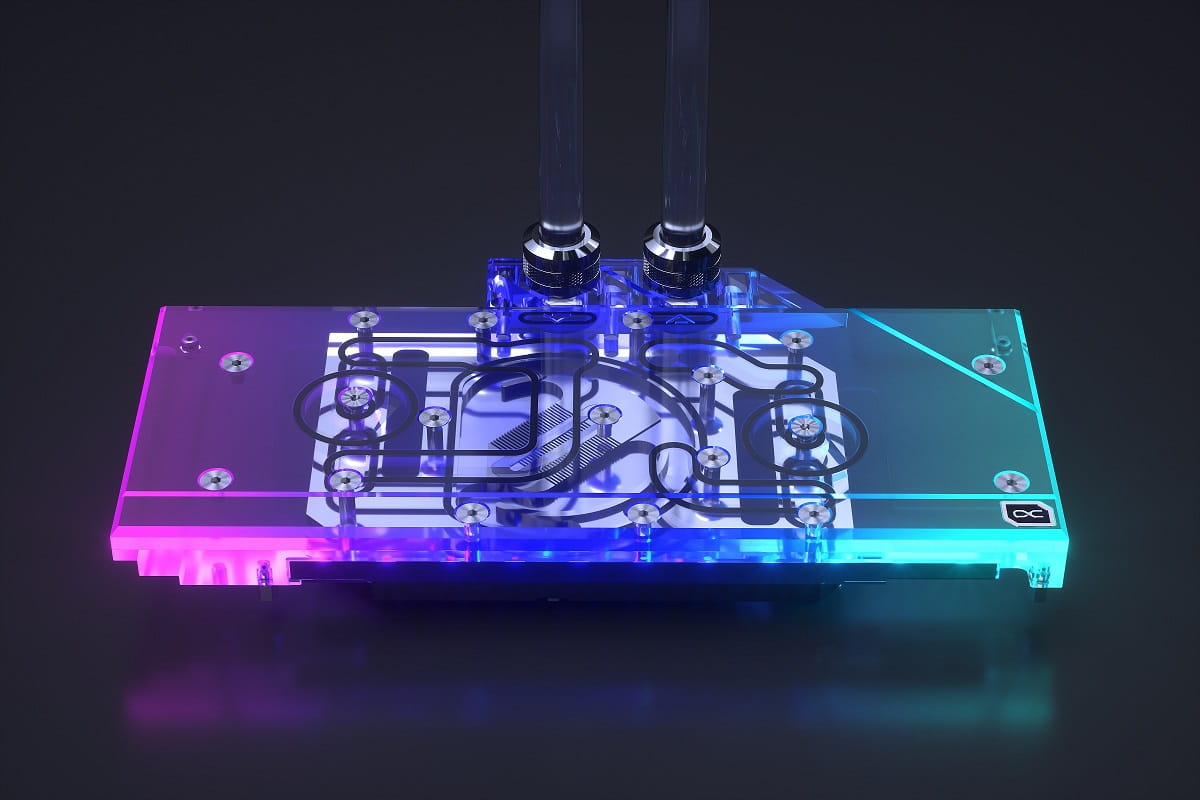

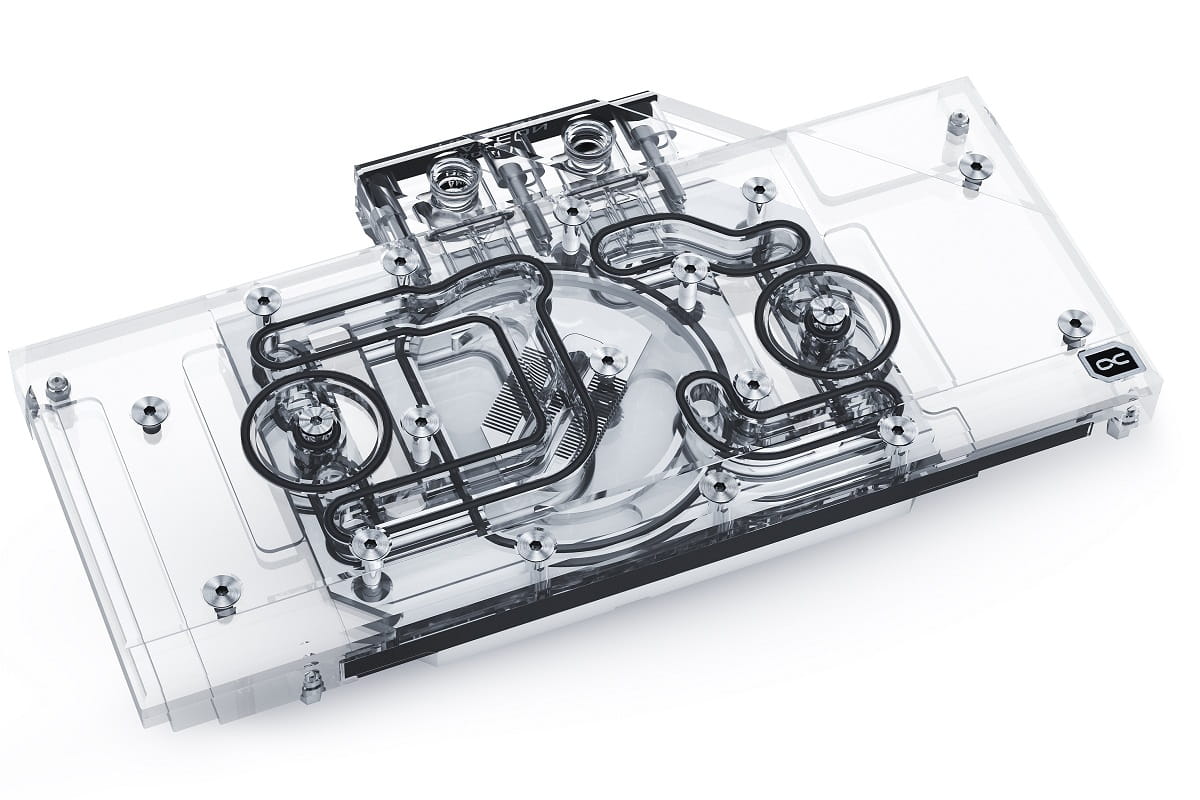

The Alphacool Eisblock Aurora Acrylic GPX graphics card water cooler with backplate combines style with performance. Extreme cooling performance and an extensive digital RGB lighting characterize it. Experience and technical know-how from more than a decade have gone into the development, without making any technical compromises. The Eisblock Aurora Acryl GPX is a significant evolution of the previous Alphacool graphics card water cooler, which has been improved in every area.

More performance!
During the development of the Eisblock Aurora Acryl GPX graphics card water cooler, emphasis was naturally placed on increasing performance. First, the cooler was brought closer to the individual components by reducing the thickness of the heat conducting pads. Next, the nickel-plated copper block was also made thinner. Step 3 involves the constant optimisation of the water flow within the cooler. The result: All important components such as voltage converters and RAM are cooled much better and more effectively by the water and the cooling performance increases significantly.

Brilliant design!
The addressable digital aRGB LEDs are embedded directly in the cooling block and run along the sides of the entire cooler. The effect is an illumination that engulfs the entire cooling block. No corner or edge is left unlit by the aRGB LEDs. The new design is more angular, with all edges bevelled. The result is better light diffusion in the water cooler due to the reflections on these bevels. They also create various contours that give the Eisblock Aurora Acryl GPX cooler its very own visual touch.

Copper or aluminium?
Alphacool only uses copper in its water coolers. In the case of the Eisblock Aurora Acryl GPX, the copper is nickel-plated. Compared to the previous models, however, Alphacool has once again improved the type of nickel plating, which has significantly increased the acid resistance. This should prevent the nickel plating from flaking off. Why does Alphacool use copper instead of aluminium? Copper has almost twice the thermal conductivity of aluminium and is therefore clearly the better material for water cooling.

Other special features
The Eisblock Aurora Acryl GPX GPU cooler has the patented screw plugs, which sit flush with the surface of the terminal. The Alphacool logo sits in the corner on the top and is also fully illuminated. On the front of the terminal, corresponding designations of the compatible graphics card manufacturers can be seen. Of course, these are also fully illuminated by the adressable digital LEDs. IN and OUT are marked by small discreet triangles. They are easily recognisable and fit perfectly into the overall visual line of the graphics card water cooler.

Compatibility:
- XFX Speedster MERC 319 Radeon RX 6700 XT Black Gaming, 12GB GDDR6 (RX-67XTYTBDP)
- XFX Speedster QICK 319 AMD Radeon RX 6700 XT BLACK (RX-67XTYPBDP)
- XFX Speedster QICK 319 AMD Radeon RX 6700 XT Core, 12G GDDR6 (RX-67XTYLUDP)
- XFX Speedster QICK 319 AMD Radeon RX 6700 XT Ultra, 12G GDDR6 (RX-67XTYPUDP)

Technical data cooler
L x W x H	239,26 x 124 x 25 mm
Material cooler	Nickle-plated copper
Material cooler top	acrylic
Threads	4 x G1/4
Thickness cooling fins	0,6 mm
Illumination	digital aRGB LEDs
Power connector digital aRGB LEDs	3-Pin JST
Power digital aRGB LEDs	5V
Number of digital aRGB LEDs	10

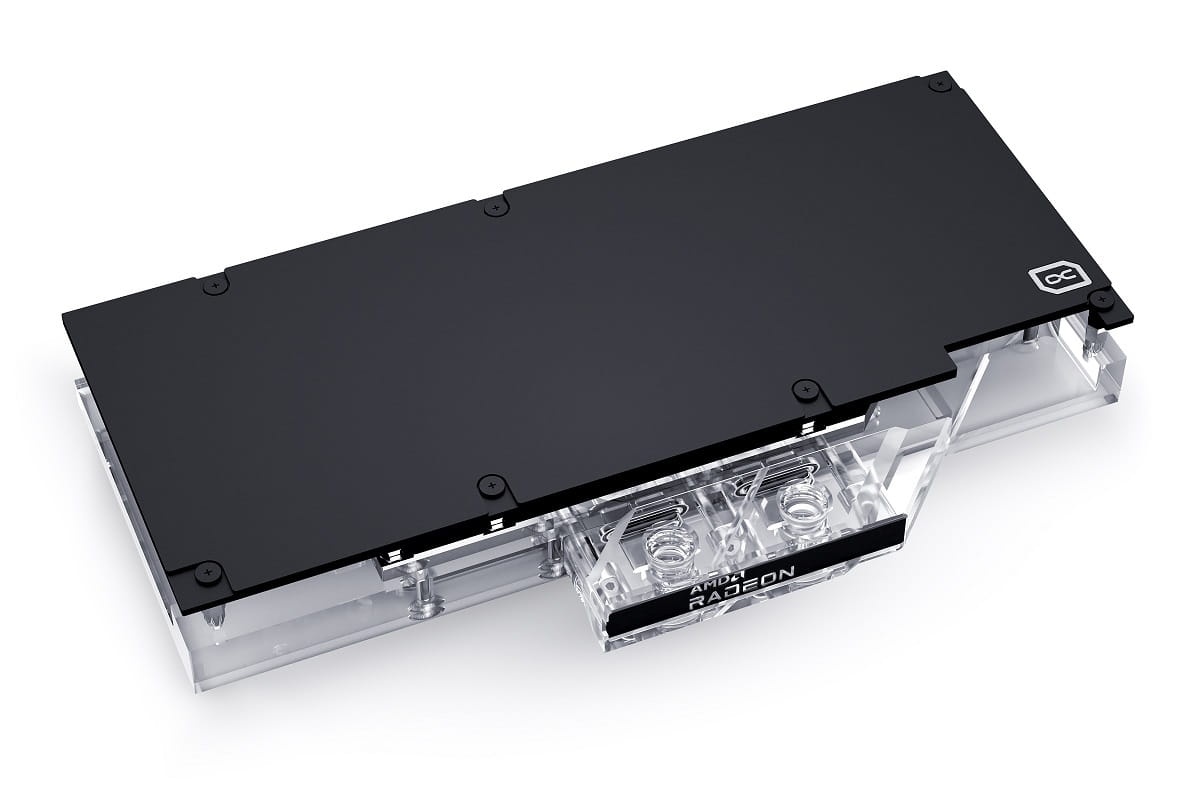

Technical data backplate
L x W x H	239,26 x 99,32 x 6 mm
Material	aluminium
Color	black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical details mehr

Technical details

Manufacturer:	Alphacool
Cooler type:	Complete cooler
Material base plate:	Copper
Material Lid:	Acrylic
SLI compatible:	Yes
Dimensions:	239,26 x 124 x 25mm
Connection:	4x G1/4"
Hardware manufacturers:	AMD
Notice:	Compatible up to 16/13mm straight, Compatible up to 19/13mm angled
